Dart Engineering Light Fabrication Auction

2020 Durma 4 Metre 320 Ton CNC Press Brake

Skylarc Ref D176607

Brand: Durmazlar
Model: AD-R 40320
Machine type: hydraulic press brake
Manufacturing year: 2020
Capacity: 4030x320 ton
Control: Durma CNC controller with touchscreen HMI
Installed software version on HMI: Indexation HMI V2.0.10.8
Motor power: 37 kW
Power supply: 400 V 3 phase kA
Nominal stroke: 365 mm
Machine weight: 20040 kg
Backgauge system fitted
Foot pedal control with emergency stop
Fiessler Elektronik AKAS II LC safety system fitted
Wide range of tooling
Made in Turkey
You will need your own lifting machinery to load this machine

Yawei 4 Metre Hydraulic Guillotine

Skylarc Ref Z176603

Manufacturer Yawei Machine Tool Co Ltd
Model Hydraulic Shear LGSX6X4050
Max cutting thickness 6 mm
Max cutting length 4050 mm
Nominal voltage 400 V
Control unit Delem DAC-360
Emergency stop button on control panel
Machine is hydraulic operation
Foot pedal control connected by cable
Election backgauge
Shearing pressure selection table on control panel
Hydraulic clamping
You will need your own lifting machinery to load this machine

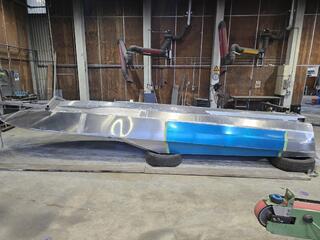

7.4 Metre Gas Turbine Jet Boat

Skylarc Ref S176622

7.4 metre Dart World Jet Boat Marathon Boat
3mm Auminum hull
1760mm beam
Designed to be powered by a helicopter gas turbine
Capable of speeds of over 200km/h
Approx 80% complete
The ultimate toy

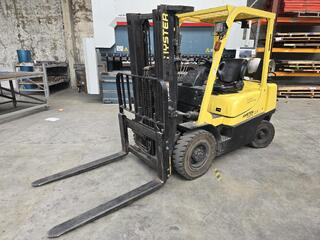

Hyster Fortis 2.5 Ton LPG Forklift

Skylarc Ref Y176654

Model: Hyster H2.5TX-2L
2.5 ton lift capacity
LPG powered (rental gas bottle not included)
3 stage container mast
4.8 metre lift height
Solid tyres
1210mm forks
Side shift
26356 hours on clock
4 cylinder engine
Starts easy and runs well
Collection for this machine will be the week of the 28th of April

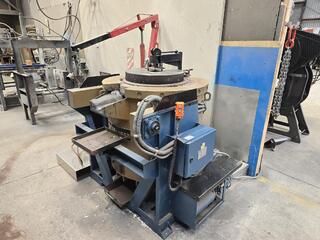

Morgan Electric Hydraulic Tilt Furnace

Skylarc Ref E176634

Manufacturer Molten Metal Products Ltd
Model ERBT150
Morgan MKV ERBT150 electric heated hydraulic tilt furnace
Serial number 1532
Rated voltage 400V
Frequency 50Hz
Three phase supply
Rated current 70A
Rated power 42kW electric
Duty cycle 100%
Includes separate Morgan control panel
Control panel fitted with Eurotherm temperature controller
Furnace fitted with hydraulic tilting mechanism
Includes foot pedal marked raise and lower
Furnace lid with mechanical lever mechanism
Includes new crucibles in boxes
Rarely available late model machine
Buyer to decommission

Miller Dynasty 350 TIG Stick Welder

Skylarc Ref G176584

Manufacturer Miller Electric Mfg Co.
Model Dynasty 350.
Serial number MG080439L.
Assembled in USA.
Process modes include TIG HF impulse TIG Lift Arc and Stick.
AC and DC welding capability.
Output rating 5A to 350A.
Duty cycle ratings shown on data plate up to 350A 24V at 30 percent duty.
Input frequency 50 Hz or 60 Hz three phase.
Input voltage ranges listed 380V 400V 460V 575V.
Maximum input current 23A at 380V three phase.
Maximum input current 22A at 400V three phase.
Maximum input current 19A at 460V three phase.
Maximum input current 15A at 575V three phase.
Integrated front control panel with digital amperage display.
Included TIG torch shown attached to front of unit.
Included work clamp and cable shown attached to side of cart.
Unit mounted on a wheeled metal cart.
Cooling unit

Large Double Welding Table and Clamps

Skylarc Ref G176610

2 x 1500mm x 1500mm welding tables
25mm plate steel construction
30mm diameter clamp holes
Cross braces underneath
Screw adjustment feet
Trolley with a range of clamps and fittings

EWM Tetrix XQ 230 puls AC/DC Welder

Skylarc Ref N176617

Brand EWM
Model Tetrix XQ 230 puls AC/DC EX3 8POL V
Supply voltage 230V single phase
Frequency 50Hz or 60Hz
Process type TIG AC and DC shown on display
Front panel colour display installed
Welder mounted on wheeled trolley
Earth clamp lead attached
TIG torch and lead set attached
Gas connection point on rear panel
Main power switch on rear panel
Multiple control and communication sockets on rear panel
Made by EWM AG Germany

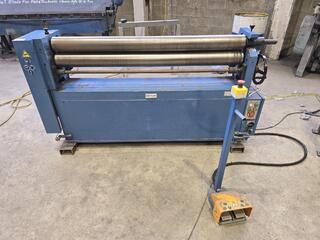

Metalex RM1250X4.5 Plate Roll

Skylarc Ref Y176628

Brand Metalex
Model RM1250X4.5
120mm diameter rollers
Three phase
Manufactured 2019.07
Three roll plate rolling machine
Electric powered operation
Fixed control panel with power on and run off buttons
Emergency stop button on main control panel
Keyed isolator switch on main control panel
Remote pedestal with emergency stop button
Foot pedal control unit connected by cable
Handwheels for mechanical adjustment at one end

Audi V10 Twin Turbo Dry Sump Engine

Skylarc Ref S176674

Audi BUH V10 Twin Turbo Engine
Dry sump
78,899km on the clock
4991cc
Unknown condition but believed to be purchased for jet boat project

Three Phase Lathe

Skylarc Ref K176614

Model: GK-6240
Bed length 1600mm
Distance between centers approx 1000mm
Swing over bed approx 400mm
Swing over gap approx 520mm
Swing over cross slide approx 240mm
12 spindle speeds
40rpm - 2000rpm
Metric and imperial thread cutting
250mm three jaw chuck
40mm spindle bore
No.3 MT tailstock
250mm removable bed gap missing

Hafco Metalmaster Single Phase Bandsaw

Skylarc Ref Q176620

Brand Hafco Metalmaster
Model EB-280DSV
Type metal cutting bandsaw
Capacity 225mm
Voltage 240V 50Hz
Motor power 1.5kW
Manufacture date 01/2022
Machine weight 295kg
Motor speed range 850 to 2800rpm
Motor rated at 240V 6A single phase
Control panel with start stop and emergency stop buttons
Adjustable cutting speed control marked in mpm
Mounted on steel base with integrated coolant tray
Fitted with vice for material clamping
Includes long infeed and outfeed support table
Mitre function
Made in Taiwan
Serial number 202201280003
Buyer to dismantle

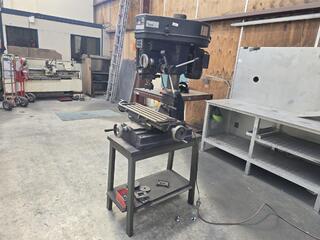

Tooline ZX30 Single Phase Mill Drill

Skylarc Ref B176631

Brand Tooline ZX30 mill drill.
Belt driven spindle drive.
Speed chart on head shows spindle speeds from 100 to 2500 rpm.
Single phase double capacitor induction motor.
Motor power 2HP.
Motor speed 1400rpm.
Morse taper no.3 spindle taper
Forward off reverse rotary switch on head.
120mm spindle travel
730mm x 210mm milling table with three T-slots.
Longitudinal and cross feed handwheels on table.
Machine is mounted on a steel stand with lower shelf.
Three step pulley system under top cover.
Chuck marked capacity 3 to 16mm.
Includes a cutter holder mounted in spindle.

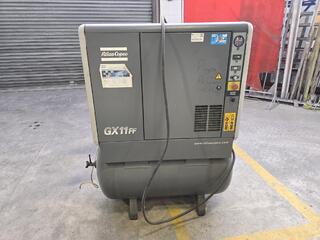

Atlas Copco GX 11 FF Air Compressor

Skylarc Ref I176976

Brand: Atlas Copco
Model: GX 11 FF
Product type: GX 11
Serial number: AII 629778
Year of construction: 2004
Maximum working pressure: 7.25 bar(e)
Free air delivery: 26.6 l/s
Nominal shaft power: 11 kW
Mounted on horizontal air receiver tank
Fitted with pressure gauge in PSI and bar
Service label shows next service due at 26935 operating hours
Three phase power plug fitted on cable end
Model marking 32 amp plug

Lincoln Electric Precision TIG 375

Skylarc Ref V176599

Lincoln Electric Precision TIG 375 welding power source.
Model code K1834-1.
Rated input at 415V is 63A.
Output type AC and DC.
Maximum DC output 385A at 20V DC.
Rated duty cycle 40 percent at 375A DC.
Rated duty cycle 60 percent at 350A DC.
Rated duty cycle 100 percent at 300A DC.
Open circuit voltage 80V.
Front panel mode selector for Stick and TIG.
Front panel display selector for amps or volts.
Switchable local or remote output control.
Main power switch on front panel.
AC DC minus and DC plus output selector switch.
MicroStart technology indicated on front panel.
TIG torch and leads attached as shown.
Assorted TIG consumables in top compartment as shown.
Mounted on wheeled base.
3 phase 32 amp power plug

Luxcut GH-30 Geared Head Milling and Drilling Machine

Skylarc Ref W176600

Brand: Luxcut
Model: GH-30 geared head milling and drilling machine
Single phase 2.0 HP motor
Motor speed 1420 rpm
Spindle speed ranges shown as L1 95 rpm
Spindle speed L2 170 rpm
Spindle speed L3 280 rpm
Spindle speed H1 540 rpm
Spindle speed H2 960 rpm
Spindle speed H3 1600 rpm
Machine has drilling milling tapping selector
Table is a T slot type 600mm x 190mm
Machine has longitudinal and cross handwheel feeds
Machine has T slot base table
Emergency stop button fitted on front panel
Forward and reverse controls on front panel
Coolant pump on off selector on panel

Miller Welder with Optima Pendant Control

Skylarc Ref L176615

Model: Miller XMT 350 CC/CV Auto-Line
Front panel shows TIG MIG Pulsed MIG Stick and CC modes
Three phase 32 amp plug
Arc control knob marked 10 to 80
Maximum open circuit voltage 75 volts DC
Duty cycle 40 percent or 60 percent
Unit is mounted on a metal trolley with four caster wheels
Miller Optima remote pulsing pendant control attached to the trolley
Optima pendant has select and adjust controls and display
Hand held wire feed gun attached with cable set

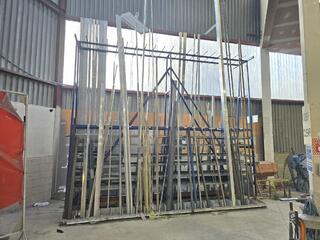

Large Materials Rack and Contents

Skylarc Ref U176624

4.2 meters tall
Contents include

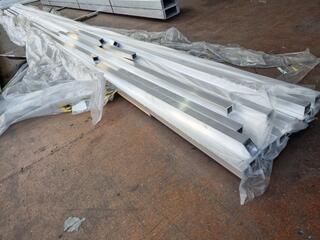

3 x 65mm x 65mm x approx 7 metre aluminum box section
Approx 40 lengths 30mm x 25mm x 5000mm channel aluminum
8 lengths 95mm x 60mm x 5000mm angle aluminum
Various part and full lengths of aluminum in various sizes
Assorted lengths of 30mm stainless steel bar
This frame will be oversize on a truck
Buyer will need to unload

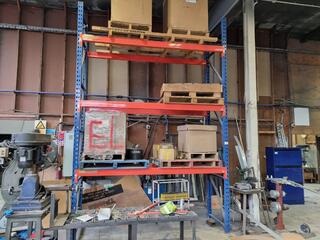

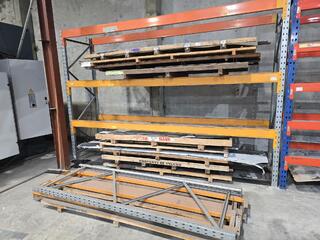

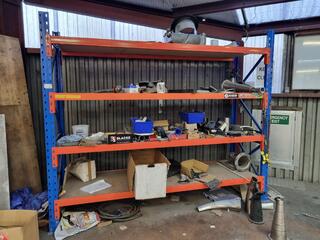

5 Bays of Pallet Racking

Skylarc Ref F176661

6 x 4210mm x 900mm uprights
Approx 100 2780mn long cross beams
Mainly 2300kg rated
Only two bays erected, rest are dismantled

Metalmaster MBR-610MK2 Bead Roller

Skylarc Ref C176580

Model: Metalmaster MBR-610MK2
Single phase powered swager
Capacity: 1.2mm
Net weight: 115kg
Voltage: 240V 50Hz
Motor power: 0.3kW
Full load current: 1.8A
Manufacture date: 04 2024
Foot pedal control with forward and reverse
Emergency stop control post
Includes multiple bead roller dies as shown
Freestanding floor mounted frame
Single phase power plug visible

Lincoln Electric Precision TIG 185 Welder

Skylarc Ref O176592

Brand: Lincoln Electric
Model: Precision TIG 185
K No: K2346-1
Code No: 11107
Serial No: U1041115065
AC and DC TIG and stick welding modes
Square wave power source featuring MicroStart technology
Input supply 400V to 415V three phase 50Hz or 60Hz
Rated output 5A to 185A at 27V
Duty cycle 185A at 15 percent
Duty cycle 85A at 100 percent
Includes TIG torch with wrapped lead
Torch lead shows taped repair
Includes work lead and electrode lead
Unit mounted on wheeled cart base
Rear bracket and chain for gas cylinder mounting
Power switch located on front panel
Three metre mains cable visible in photos

BOC Smootharc Advance II 400R MIG Welder

Skylarc Ref R176595

Brand BOC
Model Smootharc Advance II 400R
Process MIG and MMA according to rating plate
Input supply three phase AC 420V
Rated MIG output 50A at 22V to 400A at 36V
MIG duty cycle 40 percent at 400A 60 percent at 325A 100 percent at 250A
Rated MMA output 50A at 16.5V to 400A at 34V
MMA duty cycle 45 percent at 400A 60 percent at 346A 100 percent at 268A
Protection class IP21
Cooling method air cooled
Front panel controls for current wire speed inductance and voltage
Separate Smootharc Advance II wire feeder unit fitted on top
Wire feeder has digital voltage and wire speed displays
Wire feeder has controls for voltage wire speed and wire inch
Wire feeder mechanism rated DC 24V 3.5A
Includes MIG torch lead connected
Includes work return lead connected
Machine is trolley mounted with wheels
Input plug visible on rear panel
Spool compartment contains metal wire on reel

BOC Smootharc Advance II 400R MIG Welder

Skylarc Ref T176597

Brand BOC
Model Smootharc Advance II 400R
Process MIG and MMA according to rating plate
Input supply three phase AC 420V
Rated MIG output 50A at 22V to 400A at 36V
MIG duty cycle 40 percent at 400A 60 percent at 325A 100 percent at 250A
Rated MMA output 50A at 16.5V to 400A at 34V
MMA duty cycle 45 percent at 400A 60 percent at 346A 100 percent at 268A
Protection class IP21
Cooling method air cooled
Front panel controls for current wire speed inductance and voltage
Separate Smootharc Advance II wire feeder unit fitted on top
Wire feeder has digital voltage and wire speed displays
Wire feeder has controls for voltage wire speed and wire inch
Wire feeder mechanism rated DC 24V 3.5A
Includes MIG torch lead connected
Includes work return lead connected
Machine is trolley mounted with wheels
Input plug visible on rear panel
Spool compartment contains metal wire on reel

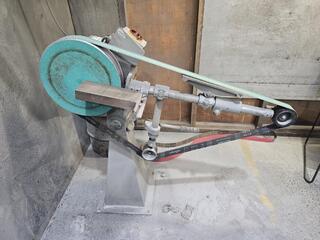

Bramley Wright Linishall Belt Linisher

Skylarc Ref Y176602

Brand: Bramley.
Base branded Wright Linishall.
Free standing pedestal mounted belt linisher.
Electric motor is Crompton Greaves three phase TEFC induction motor.
Motor rating 2.2kW.
Motor speed 2840rpm.
Three phase 32 amp power plug
Belt is fitted over drive wheel and idler rollers.
Machine has adjustable work rest in front of drive wheel.
Start and stop push button control box mounted on top of belt housing.
Some spare belts

Optimum GU 25P Polishing Machine

Skylarc Ref A176604

Brand: Optimum Maschinen Germany
Model: GU 25P
Type: Polishing machine
Power rating: 1.5 kW
Supply voltage: 415 V 50 Hz
Machine weight: 23 kg
Rated speed: 2850 U/min
Serial number: 23341609021
Year of manufacture: 2016
Mounted on floor stand
Fitted with flap wheel on one spindle
Fitted with bonded polishing wheel on other spindle
Electric on off switch on front of machine
Includes assorted additional wheels as shown
Three phase 32 amp power plug

Kemppi MasterTig AC/DC 2500W TIG Welder

Skylarc Ref M176616

Brand: Kemppi
Model: MasterTig AC/DC 2500W
Process: TIG and MMA
Input supply: 3 phase 50–60 Hz
Rated input at 460 V: 16 A
Rated input at 400 V: 16 A
Rated input at 230 V: 20 A
Open circuit voltage U0: 70 V
Duty cycle and output ranges are shown on rating plate in photos
Cooling: water cooled
Cooling unit supply: 230 V 0.12 kW
Maximum cooling unit pressure: 350 kPa
Maximum gas pressure: 500 kPa
Control panel shows AC DC and pulse functions
TIG H, TIG contact and MMA modes
Includes TIG torch with protective sheath as shown
Includes earth clamp lead as shown
Mounted in a steel trolley frame with four castor wheels
Made in Finland

Materials Rack and Contents

Skylarc Ref T176623

3640mm x 730mm x 1660mm tall steel materials rack
Contents include:
60 lengths 50mm x 8mm x 5000mm aluminum bar
Assorted lengths of stainless steel pipe
Box and i-beam
Angle steel
Various other offcuts
Buyer to unload

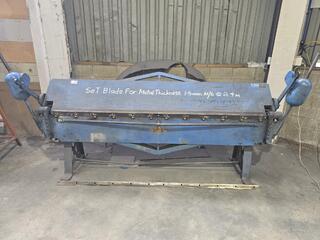

F.J.Edwards Sheet Metal Folder

Skylarc Ref X176627

Model: F.J.Edwards 8FT16G
2450mm folding length
16 gauge

Hafco Metalmaster PN-2001 Tube Notcher

Skylarc Ref A176630

Brand: Hafco Metalmaster
Model: PN-2001
Type: Tube notcher
Capacity: 20–76mm tube
400mm sanding surface
75mm wide belt
Manufacture date: 2018.11
Weight: 156kg
Power supply: 415V three phase 50Hz
Motor type: three-phase multi-speed asynchronous motor
Motor rated power: 2.2kW
Motor rated current: 4.8A
Motor rated speed: 1430rpm
Machine incorporates an abrasive belt for notching
Equipped with handwheel-driven tube clamping vise
Vise assembly includes angle scale for notch angle setting
Controls located on pedestal include start and stop push buttons

Bramley Wright Linishall Belt Linisher

Skylarc Ref O176644

Brand: Bramley.
Base branded Wright Linishall.
Free standing pedestal mounted belt linisher.
Electric motor is Crompton Greaves three phase TEFC induction motor.
Motor rating 2.2kW.
Motor speed 2840rpm.
Three phase 32 amp power plug
Belt is fitted over drive wheel and idler rollers.
Machine has adjustable work rest in front of drive wheel.
Start and stop push button control box mounted on top of belt housing.
Some spare belts

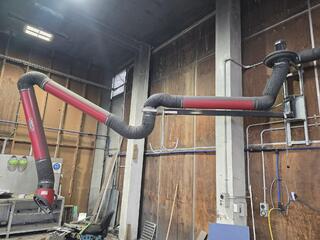

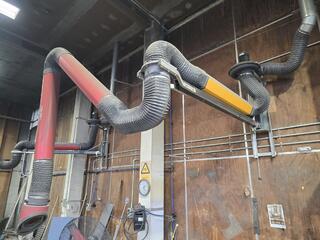

Lincoln Welding Fume Extractor

Skylarc Ref Z176655

Lincoln SF2400 fan unit
Lincoln EC 2 extension crane arm
Manufactured 2007
Three phase
Long reach extractor unit
Will be electrically disconnected and lowered for collection

Lincoln Welding Fume Extractor

Skylarc Ref A176656

Lincoln SF2400 fan unit
Lincoln EC 2 extension crane arm
Manufactured 2007
Three phase
Long reach extractor unit
Will be electrically disconnected and lowered for collection

Smoothcut Plasma 100 DC Inverter Plasma Cutter

Skylarc Ref H176585

Model: BOC Smoothcut Plasma 100.
Type: DC inverter plasma cutter.
Front panel current display shows digital readout.
Current control knob marked 20A to 100A.
Duty cycle 60 percent at 100A.
Open circuit voltage marking U0 = 298V.
Protection class marked IP21.
Unit fitted with air pressure regulator and gauge.
Includes attached plasma torch marked LT141.
Includes attached earth clamp lead.
Includes attached power lead with 32A plug.
Mounted on four wheels.

A-Tech Pegasus-I Cut-off Saw

Skylarc Ref P176593

Brand A-TECH
Model Pegasus-I
Cold saw on fixed stand
Motor power 2.2 kW
Motor speed 2750 rpm
Blade specification 355 mm x 3.0 mm x 120T
Blade type tungsten carbide tipped blade
Blade maximum speed 5100 rpm
Manual pull down handle
Rotating table with angle scale
Metal work table with integral fence
Mounted length stop and measuring scale on infeed and outfeed

EWM Phoenix 355 Progress Puls MM T welder

Skylarc Ref U176598

Brand EWM.
Model Phoenix 355 Progress puls MM T.
Phoenix puls MULTIMATRIX series.
Gas and wire material selection controls on front panel.
Digital display with amp and volt indication on front panel.
Mounted on wheeled trolley.
Includes attached MIG torch with cable.
Includes work clamp with cable.
Wire feed unit installed inside side compartment.
Wire feed unit is four roll type.
Side compartment contains wire spool reel.
Includes gas regulator with pressure gauges.
Manufacturer EWM AG Germany.
3 phase 32 amp plug

EWM Phoenix 355 Progress Puls MM T welder

Skylarc Ref I176612

Brand EWM.
Model Phoenix 355 Progress puls MM T.
Phoenix puls MULTIMATRIX series.
Gas and wire material selection controls on front panel.
Digital display with amp and volt indication on front panel.
Mounted on wheeled trolley.
Includes attached MIG torch with cable.
Includes work clamp with cable.
Wire feed unit installed inside side compartment.
Wire feed unit is four roll type.
Side compartment contains wire spool reel.
Includes gas regulator with pressure gauges.
Manufacturer EWM AG Germany.
3 phase 32 amp plug

Reuter Cleanox Weld Cleaner

Skylarc Ref O176618

Brand: Reuter
Model: Cleanox 1.0
Input voltage: 230V 50Hz
Power rating: 1000VA
Includes main Cleanox 1.0 unit
Includes orange handpiece with attached black cable

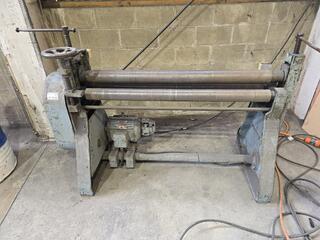

F.J.Edwards Sheet Metal Rollers

Skylarc Ref Z176629

F.J.Edwards
1240mm long x 100mm diameter top roller
85mm diameter bottom rollers
Three phase
4.7hp motor
32 amp plug
2 x safety switches

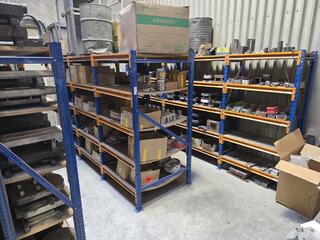

Shelving and Contents of Foundry Moulds Etc

Skylarc Ref R176647

Stack-It shelving
8 bays
4 bays 450mm x 1380mm
1 bay 450mm x 870mm
3 bays 900mm x 870mm
Contents of aluminum cast fittings
Casting moulds
Bolts and nuts
Small trolleys
Buyer will need to unload and dismantle

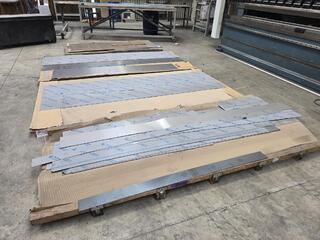

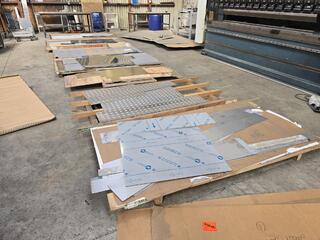

Assorted Steel and Aluminum Sheet

Skylarc Ref E176660

Aluminum grating
5mm steel plate with hole
Assorted 1.5mm galvanized sheet
Unknown stainless grates
10mm x 1530mm x 1330mm aluminum plate
ACM offcuts
Assorted steel sheet offcuts
2400mm x 1200mm perforated stainless sheet
2 x 2400mm x 1200mm sheets blue colored steel sheets of smaller offcuts
2400mm x 1200mm x 1.5mm stainless sheet

Cigweld WeldSkill 250 MIG Welder

Skylarc Ref E176608

Brand: Cigweld
Model: WeldSkill 250 MIG
Single phase 15 amp plug
Duty cycle at 250A: 30 percent
Duty cycle at 190A: 60 percent
Open circuit voltage range: 22V to 46V
Input supply voltage: 240V single phase
Input frequency: 50Hz
Maximum input current: 54A
Enclosure rating: IP21S
Generator requirement listing on data plate: 13kVA
Shielding gas inlet fitted on rear panel
Front panel controls include power on off switch
Front panel controls include weld voltage selector with 12 positions
Front panel controls include wire speed control knob
Indicators for power and overheat on front panel
Includes MIG torch connected to front panel
Includes work return lead with clamp

Cigweld WeldSkill 250 MIG Welder

Skylarc Ref F176609

Brand: Cigweld
Model: WeldSkill 250 MIG
Single phase 15 amp plug
Duty cycle at 250A: 30 percent
Duty cycle at 190A: 60 percent
Open circuit voltage range: 22V to 46V
Input supply voltage: 240V single phase
Input frequency: 50Hz
Maximum input current: 54A
Enclosure rating: IP21S
Generator requirement listing on data plate: 13kVA
Shielding gas inlet fitted on rear panel
Front panel controls include power on off switch
Front panel controls include weld voltage selector with 12 positions
Front panel controls include wire speed control knob
Indicators for power and overheat on front panel
Includes MIG torch connected to front panel
Includes work return lead with clamp

2 Bays of Pallet Racking

Skylarc Ref G176662

3 x 2760mm uprights x 3900mm long
6 x 3900mm long crossbeams
6 x 2740mm long crossbeams
Contents not included
Buyer to dismantle

Materials Trolley and Contents

Skylarc Ref N176591

1750mm x 800mm x 1090mm tall steel trolley
Assorted partial sheets of material
Stainless steel
Checker plate
Mild steel

Materials Rack and Contents

Skylarc Ref B176605

Steel free standing steel rack
Assorted sheet offcuts
Steel and aluminum

Materials Rack and Contents

Skylarc Ref C176606

Steel free standing steel rack
Assorted sheet offcuts
Steel and aluminum

Large Steel Welding Table

Skylarc Ref H176611

10mm plate steel top
Box steel frame

EWM Tetrix puls AC DC T 400 TIG Welder

Skylarc Ref J176613

Brand EWM
Model Tetrix puls AC DC T 400
TIG pulse function
MMA pulse function
activArc function
spotArc function
spotmatic function
DC and AC welding modes selectable on control panel
Multiple job memory selector on control panel
Includes TIG torch
Three phase 32 amp plug

Miller 330ST Aircrafter Welder with Coolmate 3 Cooler

Skylarc Ref P176619

Brand: Miller
Model: 330ST Aircrafter
Type: Constant current AC DC arc welding power source
Front panel controls include postflow time adjustment
Front panel controls include start amperage adjustment
Front panel controls include amperage adjustment
Front panel controls include spot time control
Selector switches for electrode positive electrode negative and electrode AC
Output contactor selector with remote and panel modes
High frequency control with start and continuous modes
Voltage range markings show 20 to 250 VAC and 50 to 450 VDC
Unit is mounted on a wheeled base
Top unit is a Miller Coolmate 3
Coolmate 3 is a liquid coolant system
Power leads and welding cables are attached to the main unit
TIG torch is dismantled

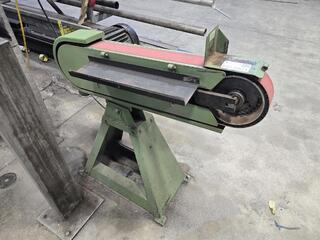

Trupro Belt Sander

Skylarc Ref R176621

Three phase belt sander
Floor standing
Three phase 32 amp plug
470mm long sanding surface
75mm wide belt

Metal Tumbler

Skylarc Ref W176626

Single phase
Metal finishing tumbler
910mm x 530mm hopper
Heavy duty steel frame

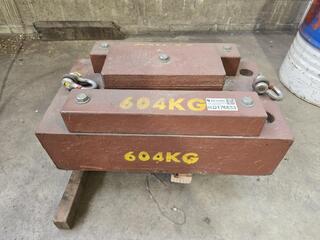

604kg Counterweight Block

Skylarc Ref D176633

Counterweight block
Marked weight 604kg
Lifting points with shackles fitted
Top section bolted to main body with hex head bolts

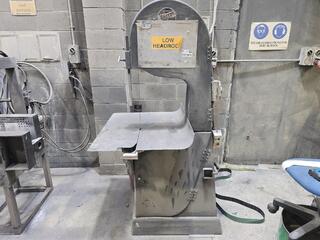

Berry's Three Phase Band Saw

Skylarc Ref N176643

Berry's band
Aluminum table
910mm x 700mm table
350mm throat
Approx 450mm max cut height
Cast iron construction

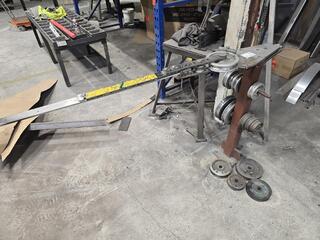

Bramley Tube Bender and Formers

Skylarc Ref S176648

Bramley manual tube bender
Pedestal mount
14 x assorted formers
Including BRY170, BRY200, BRY170, BRY170 and several unmarked

Assorted Steel and Aluminum Sheet

Skylarc Ref B176657

4 x 4mm aluminum sheet 3000mm long x 610mm, 2 x 370mm, 2430mm x 420mm
1.5mm sheet 2950mm x 870mm
Assorted small 1.5mm offcuts
Assorted 3mm plate steel offcuts

Assorted Steel and Aluminum Sheet

Skylarc Ref C176658

Assorted 3mm hot rolled steel offcuts
10mm plate sheet with large cut outs
Assorted sheets of 2mm hot rolled steel
1.5mm aluminum sheet, largest 2400mm x 900mm
3mm corten steel offcuts

Assorted Steel and Aluminum Sheet

Skylarc Ref D176659

Assorted 1.5mm stainless offcuts
5mm aluminum tread plate
Unknown martial (gold colored)
1mm stainless with speckled finish
Assorted blackened steel offcuts
Ridgidised stainless steel sheet (approx 1mm) one full sheet and offcuts

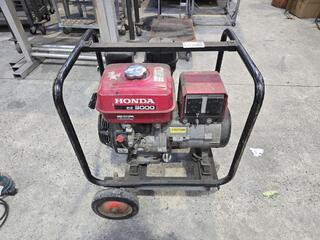

Honda EZ3000 Generator

Skylarc Ref J176665

Honda EZ3000 generator
Honda GX240 engine
Two 240V AC outlets
Recoil pull start
Four stroke petrol engine
2.5kVa
Starts and runs well

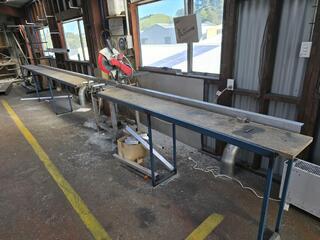

Pegic GP 350 RT cold saw with infeed and outfeed tables

Skylarc Ref T176675

Manufacturer Pegic di Ronchetti & C. SNC
Model GP 350 RT
Blade diameter 350 mm
Blade bore 30 mm
Blade thickness 3.2 mm
Rated motor power 1.8 kW
Rated speed 2810 rpm
Year 2004
Motor power 2.5 hp
Saw fitted with air operated twin vertical clamps
Saw mounted between two steel infeed and outfeed tables
Each table constructed with steel frame and timber top
Single phase

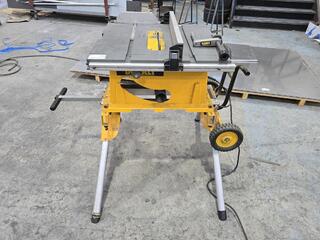

DeWalt DW744XP-XE Table Saw with DE7400 Stand

Skylarc Ref M176668

Brand: DeWalt
Model: DW744XP-XE table saw
Blade diameter 250mm
Motor power 2000W
No load speed 3000rpm
Blade bore diameter 15.88mm
Maximum cut depth 77mm
Riving knife thickness 2.3mm
Table saw includes metal table surface
Rack and pinion fence
Mounted on DeWalt DE7400 stand
Folding legs and wheels for easy transport

Bishamon BX30SE Scissor Lift Table Trolley

Skylarc Ref E176582

Brand Bishamon
Model BX30SE
Type manual scissor lift table trolley
Maximum load capacity 300 kg
Self weight 138 kg
Manufactured by Taiwan Bishamon Industries Corporation
Minimum platform height 430 mm
Maximum platform height 1590 mm
Platform is rectangular and painted orange
Steel frame construction
Four swivel castor wheels
Manual lift mechanism operated by foot pedal
Mechanical release lever on handle
MFG date 201207

DeWalt 36V Cordless SDS Plus Rotary Hammer Kit

Skylarc Ref F176297

DeWalt 36V Cordless SDS Plus Rotary Hammer Kit.
Hammer Drill model No.DC234-XE.
36V Battery charger model.DC9000-XE.
2x 36V, 79Wh batteries model DC9360.
Includes SDS+ chuck and a Keyless 13mm drill chuck.
Includes side handle and plastic carry case.
All items operate but not tested at length or under load.

Milwaukee M18 Reciprocating Saw w/ 6.0Ah Battery

Skylarc Ref B176293

Milwaukee M18 Cordless Sawzall Reciprocating Saw.
Model No.M18 CSX2.
Brushless motor.
Includes Red Lithium-Ion 6.0Ah High Output battery.
Charger NOT included.
Tool in very good condition showing mild usage. Battery shows more moderate wear.

https://www.milwaukeetool.co.nz/power-tools/saws/reciprocating-saws/M18CSX2-0.html

Pallet of 3mm Aluminum Sheets

Skylarc Ref L176589

3 x 2900mm x 1500mm
2300mm x 1500mm
1200mm x 1500mm
1870mm x 1500mm

Thermal Dynamics Cutmaster 25mm CE Plasma Cutter

Skylarc Ref S176596

Brand: Thermal Dynamics.
Model: Cutmaster 25mm CE.
Type: Plasma cutting power source.
Input supply: 3 phase.
Input voltage: 400V.
Input frequency: 50 or 60Hz.
Rated output current: 80A.
Maximum cut rating shown: 25mm.
Duty cycle ratings listed for 40 percent, 60 percent and 100 percent IEC.
Includes attached plasma torch lead.
Includes mains cable with 32A 500V 50Hz IP66 plug marked 56PA432.
Mounted on a wheeled metal frame.
Control panel includes amperage adjustment.

Metabo Corded Tube Belt Sander RBE 15-180 Set

Skylarc Ref C176268

Metabo Corded Tube Belt Sander Set.
Model RBE 15-180.
Steel case.
Includes assorted Sanding bells.
Includes side handle.
See video for operational condition.

https://www.metabo.com/com/en/tools/cutting-sanding-milling/stainless-steel/tube-belt-sander/rbe-15-180-set-tube-belt-sander/602243500

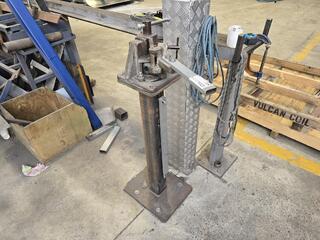

Speedline Bar Bender

Skylarc Ref V176625

Pedestal mounted bender
With handle

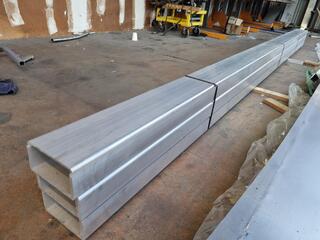

6x 5000x180x80mm Aluminium Channel type Lengths, as new

Skylarc Ref U176936

6x Aluminium Channel type Lengths.
All are 5-metres long by 180x80mm and 10mm thick.
As new leftover workshop materials supply stock.

Large Lot of Retail Baby & Toddler Clothing, Craft Suppplies, & More

Skylarc Ref L176901

Large Lot of Retail Baby & Toddler Clothing, Craft Suppplies, & More.
32x large pladtic bins with a large variety of new retails items. An ideal lot for a reseller!

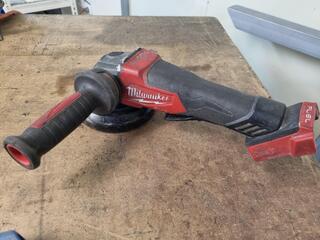

Milwaukee M18 125mm Angle Grinder w/ 6.0Ah Battery & Charger

Skylarc Ref Y176290

Milwaukee M18 125mm Angle Grinder.
Model No.M18 FAG125XPD.
Includes Red Lithium-Ion High Output 6.0Ah, 144Wh battery.
Includes battery charger M12-18FC.
Condition varies with each item.
Disk changing tool is missing.
See video to see tool operating.

Ullrich Aluminium.Extension Ladder

Skylarc Ref A176240

Ullrich Aluminium.Extension Ladder.
Made in New Zealand.
Length from 3650mm to 6000mm.
455mm width.

Large Steel Framed Workbench

Skylarc Ref A176578

Box steel frame
MDF sheet top and shelf
Heavy duty castor wheels
Contents of assorted industrial supplies

Bishamon BX16E Scissor Lift Table Trolley

Skylarc Ref I176586

Brand Bishamon
Model BX16E
Type scissor lift table trolley
Maximum capacity 150 kg
Maximum capacity 330 lb
Maximum height 740 mm
Minimum height 210 mm
Four wheels
Foot pedal lift mechanism
Handle material metal
Tabletop material metal
Colour orange table and frame

Heavy Steel Workshop Table Trolley

Skylarc Ref A176266

Heavy Steel Workshop Table Trolley.
Frame is made from 75x75x5mm and 50x50x5mm box steel.
Top is a 1200x900x25mm steel plate.
100mm diameter castors.
A VERY heavy duty mobile work table trolley. Only potential issue is the 100mm castors seem a bit undersized for this heavy unit, they are rolling OK, but seem undersized.

All Aluminium Workbench

Skylarc Ref U176260

All Aluminium Workbench.
Custom built welded aluminium construction.
50x50mm box frame, 5mm plate top, 3mm tread plate lower shelves.
Work surface 905mm high.
Upper rear aluminium panel for attaching shelves or hooks.
One small shelf on rear panel needs re-attaching

Pallet Trolley Jack, 2500kg Capacity

Skylarc Ref O176254

Pallet Trolley Jack.
Unknown manufacturer/model.
2500kg Capacity.
Forks 1150xa150mm.
Fork inner gap 225mm.
Total width 520mm.
Jack height from approx 75mm to approx 195mm.

Aluminium Workbench w/ 150mm Bench Vice

Skylarc Ref V176235

Aluminium Workbench.
Custom made in workshop entirely of aluminium materials.
6mm thick main work surface 900mm above floor.
Back wall panel rises 1100mm above work surface.
Two arms on top for hanging a light (light not included).
Includes Swordfish branded 150mm bench vice.

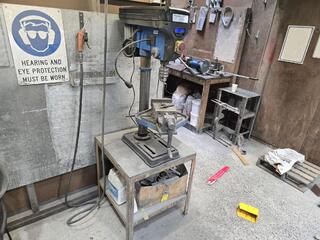

Formula Drill Press Bench Type

Skylarc Ref P176645

Brand Formula
Model FAT503
Type Drill Press Bench Type
Digital depth display
LED light
Swing 360mm
Spindle taper MT2
Speed changes 16
Motor rating 230V 50Hz 750W
Drilling capacity 20mm
Spindle speed range 220 to 2840 RPM
Spindle travel 82mm
Three handle feed lever
Keyed drill chuck fitted
Machine vice mounted on drill table
Includes drill chuck
Runs but requires hand turning the chuck to start (see video)

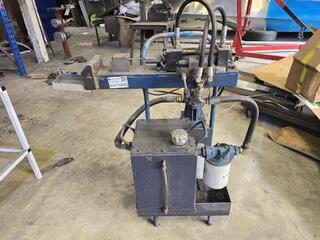

Single Phase Custom Hydraulic Press

Skylarc Ref W176652

Single phase hydraulic power pack
Mounted on wheels
Parker hydraulic ram with custom press attachment and valve block

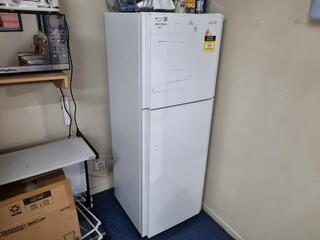

Mitsubishi Electric MR-260G-W-A Refrigerator Freezer

Skylarc Ref K176952

Brand: Mitsubishi Electric
Model: MR-260G-W-A.
Type: Refrigerator-freezer Type II.
Configuration: Top freezer bottom refrigerator.
Colour: White
Voltage: 230-240 V
Frequency: 50 Hz
Current: 0.53 A.
Defrosting input power: 122-131 W.
Refrigerant: HFC-134a.
Refrigerant mass: 130 g.
Weight: 50 kg.
Total gross volume: 260 L.
Total storage volume freezer: 56 L.
Total storage volume refrigerator: 167 L.
Defrost heater power: 121 W.
Climatic class: 5T.
Door hinge position: Right side.
Energy rating label shows 425 kWh per year.

Industrial Pallet Racking Assembly

Skylarc Ref B176943

Industrial Pallet Racking Assembly.
Includes:
- 2x 900x100x2450mm blue vertical frames.
- 8x 2730x50x80mm orange beams.
- 4x MDF shelving boards.

Items seen on Racking are NOT included.

DeWalt DW718-XE 12" Double Bevel Sliding Compound Mitre Saw

Skylarc Ref K176666

Brand: DeWalt
Model: DW718-XE
Type: 12 inch double bevel sliding compound mitre saw
Power rating: 1600W
No load speed: 3600rpm
Blade diameter: 305mm
Blade bore diameter: 30mm
Maximum cut depth: 89mm
Mitre saw mounted on cast base
Sliding mechanism on twin rails
Power cable attached

Milwaukee Cordless M12 Rivet Tool w/ 3.0Ah Battery

Skylarc Ref D176295

Milwaukee Cordless M12 Rivet Tool.
Model No.M12 BPRT.
Includes M12 3.0Ah, 36Wh Li-Ion Battery.
Charger NOT included.
Tool operates, see video, but not tested using rivets.

https://www.milwaukeetool.co.nz/power-tools/impacts-and-fastening/rivet-tools/M12BPRT-0.html

AGR Corded Straight Grinder SG6

Skylarc Ref E176296

AGR Corded Straight Grinder SG6.
Uses 150mm diameter grinding wheels.
Tool operates, see video.

DeWalt 3-Beam 360 Cross Line Red Laser

Skylarc Ref X176289

DeWalt 3-Beam 360 Cross Line Red Laser.
Model No.DW089-XE.

https://www.dewalt.co.nz/product/dw089k-xe/3-x-360-cross-line-red-laser

Heavy Steel Workshop Mobile Table

Skylarc Ref P176255

Heavy Steel Workshop Mobile Table.
A heavy 75x75x5mm a d 50x50x5mm welded box steel frame.
100mm diameter, 50mm wide castors.
Approx 24mm MDF top.

2x Large 150x75mm Box Steel Lengths

Skylarc Ref K176250

2x Large 150x75mm Box Steel Lengths.
Both are 150x75x6mm size.
One is 5720mm long and the other is 5090mm long.
Note that Both are currently welded together by one 125x75x860mm angle steel length.. Buyer should bring an angle grinder if they wish to separate the two box steel lengths on pickup.
Note that the large steel sawhorses are NOT included in this auction, see our other listing for those.

Sheets of 4mm Aluminium Panels

Skylarc Ref H176247

Sheets of 4mm Aluminium Panels.
All 4mm thick.
Sizes include:
1x 38050x1500mm (has a dent, see photo).
1x 2360x1500mm.
1x 1900x305mm.
1x 2200x315mm
1x 2200x210mm.

Pallet Racking Assembly

Skylarc Ref O176228

Pallet Racking Assembly.
Includes the following components:
- 2x 900x80x4200mm blue frames.
- 6x 2680x60x115mm orange beams.

Intens seen on Racking is NOT included.

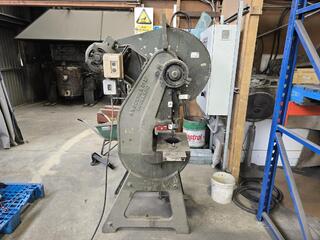

A.W.Beere Reclining Press

Skylarc Ref C176632

A W.Beere & Co reclining flywheel press
Unknown capacity but estimate 30 ton
Three phase 20 amp plug
3 press tools (unknown if they fit this machine)

Hydraulic Powerpack Hand Pump w/ 340mm Jack Attachment

Skylarc Ref V176209

Hydraulic Powerpack Hand Pump w/ 340mm Jack Attachment.
Unknown brand/model for both units.
Pump unit approx 500mm long, 55mm diameter cylinder.
Attached column jack with main cylinder 340mm long, 55mm diameter.

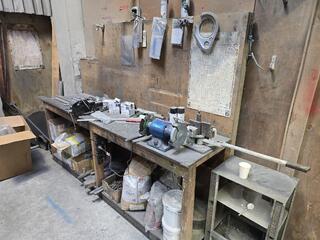

Workbench with Bar Bender, Vice and Grinder

Skylarc Ref Q176646

Timber work bench with lower storage shelf.
Approximate work top height 920mm.
Tooline BG151 150mm bench grinder mounted on bench.
Bench grinder motor rating 250 watts.
Bench grinder supply 230V 50Hz.
Bench grinder wheel size 150 x 20 x 12.7mm.
One GROZ bench vice mounted on bench.
Bench mounted bar bender
Assorted hand tools and metal offcuts on bench.
Assorted boxes bags and containers stored on lower shelf.
Contents on and under bench included as shown.

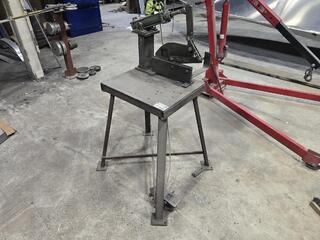

Custom Made Pneumatic Shear

Skylarc Ref T176649

Speedline Model No.2 shear.
Label states capacity for round bar 5/16 inch or 8 mm.
Label states capacity for flat bar 2 x 1/4 inch or 50 x 6 mm.
Label states capacity for plate 1/8 inch or 3 mm.
Mounted on steel stand.
Cylinder connected to pedal-operated valve on floor.

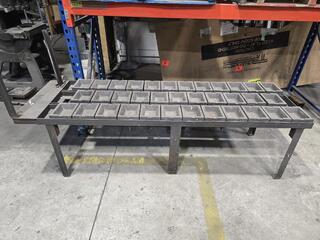

Steel Stand and Foundry Moulds

Skylarc Ref U176650

Steel framed stand
35 x 180mm x 145mm x 65mm moulds

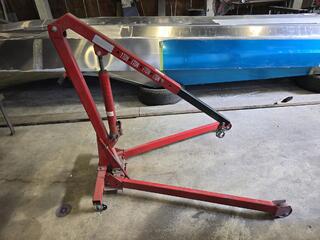

Topmaq 1 Ton Hydraulic Engine Hoist

Skylarc Ref V176651

Brand: Topmaq
Type: Hydraulic engine hoist
Rated capacity 1 ton maximum at shortest boom position
Boom capacity positions marked 1 ton 3/4 ton 1/2 ton 1/4 ton
Hydraulic long ram jack rated 3 ton
Foldable leg design with pivoting main column
Four swivel castor wheels on base
Hook and chain attached to boom end
Steel construction
Manual operation via pump handle
Warning and instruction labels present on

BOC Smootharc TIG 200 ACDC welder

Skylarc Ref P176957

Brand: BOC.
Model: Smootharc TIG 200 ACDC.
Model code on label: BOCTIG200ACDC.
Input supply: 230V AC 1 phase 50Hz.
Maximum input current I1max: 25A.
Effective input current I1eff: 14A.
Open circuit voltage U0: 60V.
Output current range shown on label: 3A to 210A.
Duty cycle ratings shown on label up to 210A.
Protection class: IP21S.
Insulation class: F.
Rear breaker: Chint DZ47-60 D60 400V.
Included TIG torch with hose assembly.
Included work clamp with lead.
Serial number label visible: H21075150028.

ARCFIX PW800J Capacitor Discharge Pin Welder

Skylarc Ref N176955

Brand ARCFIX.
Model PW800J.
Type capacitor discharge pin welder.
Manufactured by Epitech Products Pty Ltd.
Input rating 240 V AC 50 Hz 10 A.
Output range 50 to 175 V DC
Front panel power switch.
Front panel voltage selector knob marked 1 to 5.
Negative output connector on front panel.
Control connector on front panel.
Positive output connector on front panel.
Marked 240V AC at mains input.
Blue metal enclosure with top carrying handles.
Includes attached welding gun with cable.
Includes attached earth clamp with cable.

13x 7-metre Lengths of Box Aluninum, as new

Skylarc Ref T176935

13x 7-metre Lengths of Box Aluninum.
Each 7-metre length is 35x35mm square and 5mm thick.
Also includes 8x various Offcut short lengths.
As new leftover workshop materials supply stock

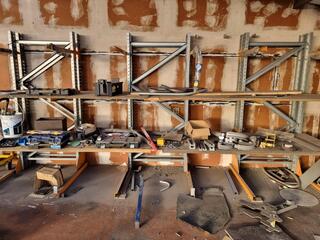

3x Self Suppirting Long Materials Support Racks w/ MDF boards.

Skylarc Ref R176933

3x Self Suppirting Long Materials Support Racks w/ MDF Shelving boards.
Each frame is approx 1150mm wide, 1250mm deep, 2400mm tall.
Material Support arms in orange finish are 50x35mm channel steel with 900mm length.
Auction also includes the MDF boards currently on thr Racks.
The auction does NOT include the items currently on the boards.
The three frames are bolted together so the buyer can bring a socket set, Wrenches to dissasemble these units on pickup.
Condition - the three racks appear relatively new and in excellent condition. The MDF boards are average to good condition.

Assorted Office Desks, Chairs Drawers, & More

Skylarc Ref J176925

Assorted Office Desks, Chairs Drawers, & More.
A room of office gear.
Includes 3x office desks, 2x mobile chairs, 2x electric heaters, 2x mobile drawer units, monitor stand, 2x wireless keyboards and one wireless mouse.
Other items seen in the photos as well as contents on and withing desks and drawers are NOT included.

Assorted Retail Furniture, Display Racks, Shelves, Ecore, & More

Skylarc Ref I176924

Assorted Retail Furniture, Display Racks, Shelves, Ecore, & More.
Various style chairs, stools, reed baskets, a baby bed, vintage boxes, brass & iron vintage rack, vintage suitcase, and other de ore pieces ideal for a cafe or retail shop.
See photos for further details on included items.

Milwaukee M12 & M18 Rapid Charging Station

Skylarc Ref H176299

Milwaukee M12 & M18 Rapid Charging Station.
Model.No.M12-18C3.

https://www.milwaukeetool.co.nz/power-tools/batteries-and-chargers/chargers/M12-18C3.html

Milwaukee M18 Cordless Right Angle Drill, tool only

Skylarc Ref C176294

Milwaukee M18 Cordless Right Angle Drill.
Model No. C18 RAD.
Auction includes the bare tool only!
https://www.milwaukeetool.co.nz/power-tools/drills/right-angle-drills/C18RAD-0.html

Milwaukee M18 Cordless 125mm Angle Grinder, Tool Only

Skylarc Ref Z176291

Milwaukee M18 Cordless 125mm Angle Grinder.
Model No. M18 FAG125XPD.
Auction includes tool only.
Tool is missing disk Tool.
See video to see tool operating.

https://www.milwaukeetool.co.nz/power-tools/metalworking/angle-grinders/M18FAG125XPD-0.html

Custom Aluminium Storage Cabinet

Skylarc Ref K176276

Aluminium Storage Cabinet.
Custom.made in shop.
Non-adjjustable inner shelves.
Sturdy unit.
Would benefit to add some door handles.

Large Mobile Workshop Work Table

Skylarc Ref R176257

Large Mobile Workshop Work Table.
50x50x4mm angle steel frame, 18mm plywood top, 100mm diameter castors.
Items seen on table not included.

Hydraulic Pipe Bender Set

Skylarc Ref T176207

Hydraulic Pipe Bender Set.
12-Ton jack capacity.
Includes pipe bender sizes of 15mm, 20mm, 25mm, 32mm, 40mm, and 50mm.
Includes jack handle.

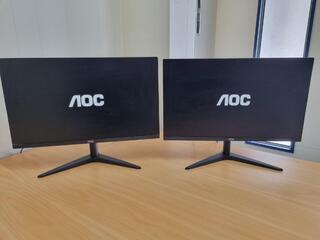

2x AOC 23.8" IPS LED Full HD Monitors

Skylarc Ref G177000

2x AOC 23.8" IPS LED Full HD Monitors.
Both are model No.24B1XH2.
Both manufactured 06/2916.
HDMI and D-sub video inputs.
Includes power cords and HDMI cables.
NOTE that shipping is not available due to the fragility of the items.
See website below for further specifications.

https://www.displayspecifications.com/en/model/470333d1

2x AOC 27" IPS LED Full HD Monitors

Skylarc Ref F176999

2x AOC 27" IPS LED Full HD Monitors.
Both are model No.27B2H.
Both manufactured 10/2021
HDMI and D-sub video inputs.
Includes 2x power cords and 1x HDMI cable and 1x D-sub cable.
NOTE that shipping is not available due to the fragility of the items.
See website below for further specifications.

https://www.displayspecifications.com/en/model/0ec11cd0

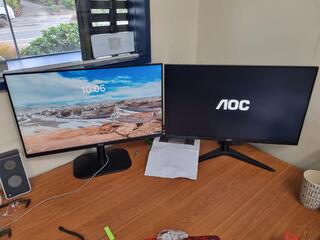

2x AOC 23.8" IPS LED Full HD Monitors

Skylarc Ref Q176984

2x AOC 23.8" IPS LED Full HD Monitors.
One is model No.24B1XH2, manufacture year unsure, see ID label photo.
Second unit is model 24B2XH, manufactured 10/2022.
Both have HDMI and D-sub video inputs.
Includes power cords and HDMI cables.
NOTE that shipping is not available due to the fragility of the items.

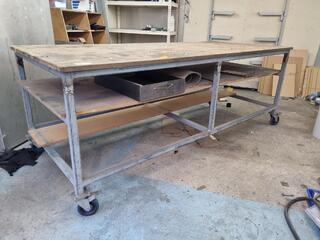

Sturdy Mobile Workshop Table Workbench

Skylarc Ref S176960

Sturdy Mobile Workshop Table Workbench.
40x40mm box steel frame.
120mm diameter castors.
25mm MDF top board.

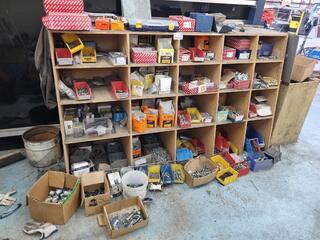

Assorted Fastening Hardware + MDF Storage Shelf

Skylarc Ref R176959

Assorted Fastening Hardware + MDF Storage Shelf.
Fastening hardware includes various bolts, pop rivets, screws, washers, nails, pipe fittings.
Also includes the large MDF storage shelf.

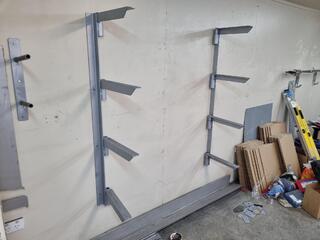

Wall Mounted Folding Materials Storage Rack

Skylarc Ref Q176958

Wall Mounted Folding Materials Storage Rack.
2x 1335mm tall Vertical frames are made from 50x50x5mm angle steel..
4x 395mm long Swivel arms on each frame, arms also made from 50x50x5mm angle steel.
5mm thick steel pipe "hinges" thst allow each arm to fold back when not in use.
The set appears custom made so weight capacity is unknown known.
Silver enamel finish.
Versatile heavy duty frame set.

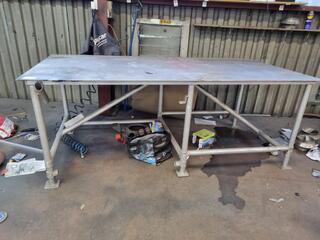

Aluminium Workshop Table Workbench

Skylarc Ref A176942

Aluminium Workshop Table Workbench.
All aluminium construction.
6mm plate aluminium top.
50mm diameter alumiium tube frame.
Lightweight but sturdy.

3x 6-metre 50x50x3mm box Aluninium Lengths, New

Skylarc Ref Z176941

3x box Aluninium Lengths.
Each box type length is 6-metres long, 50x50mm square, and 3mm thick.
As new leftover workshop materials stock.

41x 5-Metre Aluninium Quarter Round Lengths, as new

Skylarc Ref Q176932

41x 5-Metre Aluninium Quarter Round Lengths.
Each is 5-metres long by 35x35mm on two sides with a quarter round curve on third side.
See photos for further design/type details.
All are as new leftover workshop materials stock in manufactuer wrapping.

Custom Aluminium & Galvanised Workshop Shelf Trolley

Skylarc Ref J176275

Aluminium & Galvanised Workshop Shelf Trolley.
Custom made in shop.
Welded box aluminium frame with galvanised steel top and middle shelves.
75mm castors.
Lightweight but sturdy custom trolley.

FAR Long Arm Rivet Nut Tool KJ29

Skylarc Ref I176300

FAR Long Arm Rivet Nut Tool KJ29.
M3-M10 capacity.

2x Wood's Power Grip 205mm Vacuum Lifters

Skylarc Ref P176281

2x Wood's Power Grip 205mm Vacuum Lifters.
Both tools excellent condition. Case exteriors show more moderate workshop storage wear.

Powerbuilt 700mm Industrial Pedistal Fan

Skylarc Ref G176272

Powerbuilt 700mm Industrial Pedistal Fan.
ID label.is missing so model number unknown.
Adjustable leg height stand.
3-speed.
Non-swivel design.

Powerbuilt 700mm Industrial Pedistal Fan

Skylarc Ref F176245

Powerbuilt 700mm Industrial Pedistal Fan.
ID label.is missing so model number unknown.
Adjustable leg height stand.
3-speed.
Non-swivel design.

Custom "Christmas" Tree, Steel Rebar, Steampunk-esque

Skylarc Ref X176991

Custom built Christmas Tree.
Made from 8mm and 4mm welded steel rebar with untested rusty sueface.
Base is a weathered 300mm diameter concrete disk.
The tree has two lengths of miniature white LED Lighting wire that automatically alternate from slow blinking to steady on and in-between.
A well built unique display piece with a Steampunk-esque inspired style, see photos.

3M Adflo Powerd Air Purifying Respirator, motor unit only

Skylarc Ref P176983

3M Adflo Powerd Air Purifying Respirator.
Auction includes the waist mounted motor/fan unit only.
Also includes 2x new spare filter inserts.
Face mask and battery are missing, therefore NOT included.

Three Phase Hydraulic Power Pack

Skylarc Ref X176653

ASEA 3 phase squirrel cage motor.
Type MBT 112M IEC 34.
Power rating 4.0 kW.
Speed 1405 rpm
Motor mounted on steel hydraulic tank.
Hydraulic system fitted with filter assembly.
Hydraulic valve block mounted on tank top.
Unit fitted with flexible hydraulic hoses.
32 amp three phase plug

Assorted Office Furniture, Desk, Shelving, Chairs, & More

Skylarc Ref G176948

Assorted Office Furniture, Desk, Shelving, Chairs, & More.
Includes:
- 1800x1800x715mm office Corner desk, excellent condition.
- 655x500x710mm 3-drawer Cabinet, missing top.
- 915x455x1835mm black Shelving Assembly, excellent condition.
- 1000x695mm Whiteboard calender, some corner damage.
- 2x Gas lift office desk chairs, larger one has tear in vinyl.

All other items seen in photos are NOT included!

Woods Powr-Grip PC1104 Vacuum Lifter

Skylarc Ref H176663

Manufacturer Woods Powr-Grip Co Inc
Model PC1104
Serial number 20030031
Manufactured 10 2003
Rated load capacity 700 lbs
Rated load capacity 320 kg
Unit weight 52 lbs
Unit weight 24 kg
Power system 12V DC 7A-HR
Maximum current draw 8 amps
Vacuum lifter with multiple round suction pads
Yellow steel frame
Integrated vacuum gauge on control panel
Battery gauge on control panel
Handle with lifting eye attachment
Includes yellow Woods Powr-Grip pad covers
Made in Laurel Montana USA
Battery condition unknown

Metal Flammable Liquid Storage Cabinet

Skylarc Ref P176671

Metal flammable liquid storage cabinet.
Two front doors.
Lockable but no key
Contents of various part containers of paint and oils

2x Modetn Office Desks

Skylarc Ref F176921

2x Modetn Office Desks.
Box metal frames in light grey with with laminated MDF tops.
Desk surface heights are 735mm above floor.
Each includes an upper 770x290mm file/book shelf 210mm above main desk surface.
Both would benefit from a surface cleanup.
Both desks are included in this auction.

Socket Mobile SocketScan S700 1D Barcode Scanner.

Skylarc Ref B176917

Socket Mobile SocketScan S700 1D Bluetooth Barcode Scanner.
White/black colour.
Also Includes USB cable for charging stand.
Unfortunately we are unable to locate the charger stand itself within this liquidated office, so we are unable to charge and test the scanner.
Scanner in excellent physical condition but unable to test when powered.
See the manufacturer website below for further item specs.
https://www.socketmobile.com/products/s700

18-Metre 3-Phase 32A Power Extension Lead Cable

Skylarc Ref Y176914

18-Metre 3-Phase 32A Power Extension Lead Cable.
Note that the female plug end is missing its cap.

Assorted Hand Tools

Skylarc Ref A176994

Assorted Hand Tools.
A mix of tools, see photos.

2x Milwaukee M18 Cordless Drills, Tools only

Skylarc Ref A176292

2x Milwaukee M18 Cordless Drills.
One is model M18 FPD3.
The second drill has worn label so model number is unknown.
Both have brushless motors.
Auction includes the two Drills ONLY.
See video to see the drills running.

9x Annular Cutters

Skylarc Ref V176287

9x Annular Cutters.
Sizes from 12mm to 25mm.
See photos for all sizes.
Includes case.

Air Hose Reel, Wall Mounted

Skylarc Ref S176284

Air Hose Reel, Wall Mounted.
Hose length unknown.

Makita Corded 2-Speed Drill DP4010

Skylarc Ref M176278

Makita Corded 2-Speed Drill.
Model DP4010.
Keyed 13mm chuck, key is missing.
Includes side handle and case.
See video to see drill operating.

5x 180mm Starcraft Concrete Diamond Saw Blades

Skylarc Ref I176274

5x 180mm Starcraft Concrete Diamond Saw Blades.
All appear as new unused, see photos.
Packaging shows dust from Workshop storage.

3x Mobile Aluminium Workshop Shelf Trollies

Skylarc Ref P176229

3x Mobile Aluminium Workshop Shelf Trollies.
All are custom built in workshop from all aluminium materials with steel castors.
Dimensions of each are as follows:
- 1000x400x965mm with shelf 565mm above floor.
- 1195x395x1000mm with shelf 600mm above floor.
- 1185x405x995mm with shelf 600mm above floor.

See photos for further design details.

All Steel Workbench

Skylarc Ref Q176204

All Steel Workbench.
40x40mm box steel frame.
3mm sheet steel top and lower surfaces.
Sturdy unit.

BOC MasterStart Cut Flame Cutting Gas Kit

Skylarc Ref C176996

BOC MasterStart Cut Flame Cutting Gas Kit.
Includes BOC 8000 Acetylene and Oxygen regulators, brass torch handle with two types of brass end attachments, length of hose, aluminium/plastic case, Assorted parts.
See photos for included components.

https://www.boc.co.nz/shop/en/nz/boc-masterstart-cut-kit-105011-c-p

Brother Colour Laser Printer HL-L9310CDW

Skylarc Ref K176926

Brother Colour Laser Printer HL-L9310CDW.
Prints up to A4 size.
4840 total pages printed.
See photos for further details on print counts and toner and drum levels.
Includes power cord.

Brother Label Printer QL-1100

Skylarc Ref D176919

Brother Label Printer QL-1100.
Includes a spare roll of labels.
Includes power cord.
Feed and cut functions tested and operate . Print functions not tested.

Medalist 400mm Laser Level Kit

Skylarc Ref L176277

Medalist 400mm Laser Level Kit.
400mm bubble level with built in laser.
Includes tripod, laser level mount, safety goggles, user guide, plastic case.

Workshop Shelving and Contents

Skylarc Ref D176581

Clip together shelving
5 levels
Contents of various handles
Wiring
Steel
Aluminum profile

2 x Aluminum Trestles

Skylarc Ref J176587

680mm x 550mm x 910mm tall

2 x Aluminum Trestles

Skylarc Ref K176588

700mm x 520mm x 910mm tall

2 x Aluminum Trestles

Skylarc Ref M176590

680mm x 550mm x 910mm tall

Tooline DP250B 250mm Drill Press

Skylarc Ref Q176594

Brand: Tooline
Model: DP250B 250mm Drill Press
Motor power 375 watts
Supply voltage 230V 50Hz
Speed settings 12
Speed range 230 to 2470 rpm
Table size 190mm x 190mm
Spindle travel 60mm
Keyed drill chuck marked B16
On off switch on front of head
Belt driven pulley system under top cover
Floor standing column and base
Made in China
Serial number 00013
Dent in top cover

SRC 56 Air Riviter

Skylarc Ref O176280

SRC 56 Air Riviter.
3.2mm to 6.4mm capacity.

https://srcrivet.com/product-in.php?pid=162

Tooline BG201 200mm Bench Grinder

Skylarc Ref X176601

Brand Tooline
Model BG201
Type Bench grinder
Wheel size 200 x 25 x 16mm
Single phase
On metal stand

Lincoln Electric SuperGlaze 4043 Aluminium Welding Wire

Skylarc Ref F176271

Lincoln Electric SuperGlaze 4043 Aluminium Welding Wire.
5x 0.9mm wire diameter, 0.45kg rolls in auction.
Spools are 100mm diameter, 45mm wide.
New in manufacturers plastic wrapping.

Bosch Corded Router

Skylarc Ref D176269

Bosch Corded Router.
Model No.POF 1200 AE.
See photos for included accessories.
Includes box.

https://www.bosch-diy.com/nz/en/p/pof-1200-ae-060326a140

Sturdy Workshop Table

Skylarc Ref Z176265

Sturdy Workshop Table.
55x55mm angle steel frame.
Top is 18mm plywood with 4mm MDF sheet.

Aluminium Workbench w/ 125mm Vice

Skylarc Ref X176263

Aluminium Workbench w/ 125mm Vice.
Custom constructed workbench from wrlded 50x50mm angle lengths and 6mm aluminium plate.
Includes attached Polish made bench vice with 125mm wide jaws.

Custom Workshop Workbench

Skylarc Ref T176259

Custom Workshop Workbench.
25x25mm box steel frame, 18mm laminated MDF top and back board.
Work top 905mm above floor.
See photos for further design details.

2x Heavy Duty Box Steel Sawhorses

Skylarc Ref J176249

2x Heavy Duty Box Steel Sawhorses.
Made from 90c90x6mm box steel.
Each is approx 1300x700x800mm.
NOTE that the large box steel lengths on top are NOT included, see our other listing for those.

3x Aluminium Sawhorses

Skylarc Ref G176246

3x Aluminium Sawhorses.
All are 1100x500x850mm.

2x Heavy Steel Sawhorses

Skylarc Ref E176244

2x Heavy Steel Sawhorses.
Made from 90x90x6mm box steel.
Each is 1495x860x800mm.

Custom Workshop Table Workbench

Skylarc Ref X176237

Custom Workshop Table Workbench.
50x50mm angle steel frame, 4mm steel sheet top covered by 18mm plywood board.
See photos for further design details.

Easy Reel Air Hose Reel

Skylarc Ref W176236

Easy Reel Air Hose Reel.
Length of hose unknown.
Includes attached Walmec PA4 air blower gun.

Heavy Duty Mobile Table Trolley

Skylarc Ref T176233

Heavy Duty Mobile Table Trolley.
Appears to be custom made in workshop.
Sturdy construction.

Ullrich Double Sided 1135mm Aluminium Step Ladder

Skylarc Ref S176232

Ullrich Double Sided Aluminium Step Ladder.
Made in New Zealand
1135mm hight.
470mm base width, 375mm top width.

2x DeWalt 18V Cordless Impact Drivers w/ Battery & Charger

Skylarc Ref H176221

2x DeWalt 18V Cordless Impact Drivers w/ Battery & Charger.
Both have 6mm hex chucks.
One is model No.DCF885-XE and the other is model No.DCF887-XE.
Includes 1x 18V XR 3.0Ah, 54Wh Li-Ion Battery.
Includes Battery charger DCB115-XE.
All items operate but show heavy industrial workshop wear and usage.
See video to see the two drivers running.

2x Rupes Random Orbital Air Sanders

Skylarc Ref G176220

2x Rupes Random Orbital Air Sanders.
Both are Model No.TA153A.
150mm diameter pads
NOTE that one unit is marked as "Spare Parts" as has faults. The second one is apparently operational though untested as compressors here are decommissioned.

Sumake Air Drill w/ 10mm Keyless Chuck

Skylarc Ref F176219

Sumake Air Drill.
ID label is worn so specific model unknown.
10mm Keyless Chuck.

Sumake Air Drill w/ 10mm Keyless Chuck

Skylarc Ref E176218

Sumake Air Drill.
ID label is worn so specific model unknown.
10mm Keyless Chuck.

Sumake Air Drill w/ 13mm Keyed Chuck

Skylarc Ref D176217

Sumake Air Drill.
Model No.ST-4441
13mm Keyed Chuck, key is included.

Sumake Air Adjustable Clutch Screwdriver ST-4481

Skylarc Ref C176216

Sumake Air Adjustable Clutch Screwdriver.
Model No.ST-4481

13x Assorted Argon Welding Gas Regulators

Skylarc Ref Z176213

10x Argon Welding Gas Regulators.
Includes:
- 8x SmoothArc Argon regulators, each 30,000kpa max. (note that the 7th one was found after the original.auction booking, a photo of it is at the end of the photo list).
- 1x SteadyFlo model 89030 Argon regulator, .25,000kpa max.
- 1x XcelGas Argon regulator, 20,00kpa max.
- 1x Weldwell Argon regulator,
- 1x Uni-Flame regulator, 20,000kpa max.
- 1x Messer regulator.

See photos for condition details.

150mm Air Palm Sander

Skylarc Ref Y176212

Air Palm Sander.
Unknown brand/model.
150mm diameter.

Diesel Foundry Furnace

Skylarc Ref F176635

Morgan-Major brand
Manually tipping
800mm outer diameter
Buyer to decommission

3 x Hydraulic Die Casting Foundry Presses

Skylarc Ref J176639

Unknown make or model
500mm x 360mm press plates
440mm x 300mm press plates
500mm x 400mm press plates
Includes hydraulic pump
Buyer to decommission
Will be electrically disconnected

Foundry Press

Skylarc Ref K176640

Unknown make and model
440mm x 300mm press plates

Foundry Press

Skylarc Ref L176641

Unknown make and model
500mm x 360mm press plates

Hydraulic Pressure Die Casting Press

Skylarc Ref M176642

Unknown make and model
Aluminum pressure die casting press
430mm x 420mm press plates
500mm x 360mm press plates
Includes hydraulic pump
Buyer to decommission
Will be electrically disconnected

Aluminium Welding Gas Bottle Trolley

Skylarc Ref P176203

Aluminium Welding Gas Bottle Trolley.
Custom made in workshop.
200mm diameter wheels.
Can accommodate two gas bottles both up to 215mm diameter.
595x260mm rear shelf.
See photos for further design details.
Note that this trolley will not stand upright on its own, needs a gas bottle mounted for it to stay upright.

Stainless Steel Tall Table Bench

Skylarc Ref N176201

Stainless Steel Tall Table Bench.
30x30mm box stainless frame.
Table on excellent condition, top showing few minor marks.

Brother Desktop All-In-One Inkjet Printer MFC-J6940DW

Skylarc Ref E176998

Brother Desktop All-In-One Inkjet Printer.
Model No. MFC-J6940DW.
Prints up to A3 size.
7871 total pages printed.
Includes power cord.

5x Annular Cutters

Skylarc Ref D176997

5x Annular Cutters.
Sizes include 40mm, 22mm, 16mm.
Also includes 2x similar type Cutters with Starrett branding with possibly both 25/32" in size (one had worn off markings but visually appears the same diameter).

2x Industrial Spray Guns by AirPro & Star

Skylarc Ref U176988

2x Industrial Spray Guns.
One is Star model S-770.
Second is AirPro model 905 with tank. Note that the tank is new unused, the spray gun has been used.

Hafele Concealed Cupboard Cabinet Hinges

Skylarc Ref R176985

Hafele Concealed Cupboard Cabinet Hinges.
14x 2-hinge sets in unopened manufacturer packaging, one in opened packaging, and three loose unpackaged hinges.
33x individual hinges in auction.
Made in Italy.
An opened hinge measures approx 97x41mm.

Assorted Welding Supplies, Consumables, & More

Skylarc Ref F176973

Assorted Welding Supplies, Consumables.
See photis for details on includes items.
Leftover unused workshop consumables stock.

3x Standard Cafe / Office Tables w/ 11x Stackable Chairs

Skylarc Ref M176954

3x Standard Cafe / Office Tables w/ 11x Stackable Chairs.
Includes:
- 1x table with light blue top laminate and black steel frame, 1790x760x760mm.
- 2x Tables with light blue laminate tops and black steel frames, each 762x762x755mm.
- 11x Stackable Chairs with dark blue padded vinyl seats and backs with black stere frames, seat widths 390mm, seat heights 445mm.

Tables in generally very good condition. Chairs ahoe a bit more wear than the Tables with some corner and edge wear and holes in vinyl suefaces on some chairs.

Russell Hobbs Cimpact Kitchen Convection Oven w/ Hotplates

Skylarc Ref J176951

Russell Hobbs Cimpact Kitchen Convection Oven w/ Hotplates.
Model No.RHTOV2HP.
Appears in near new condition.

https://au.russellhobbs.com/product/compact-kitchen-convection-oven-rhtov2hp

Microwave, Sandwich Press, Toaster

Skylarc Ref I176950

Microwave, Sandwich Press, Toaster.
Includes:
Living & Co. 34L 1100W microwave model EM134AL7.
Sunbeam sandwich press model GRM7000SS.
Anko toaster model T382D.
All items in generally excellent condition showing very light usage.

Mobile Workbench

Skylarc Ref C176944

Mobile Workbench.
Aluminium frane with plywood surfaces and back panel.
Main work surface 955mm above floor..

Workshop Shelving Assembly

Skylarc Ref W176938

Workshop Shelving Assembly.
Made from 50mm diameter welded aluminum tubes.
Plywood shelves.
NOTE that this unit is welded together and does not dissasrmble!
Items seen on shelves are NOT included.

Elektra Beckum KGS 301 Mitre Saw

Skylarc Ref L176667

Brand: Elektra Beckum
Model: KGS 301 (AUS)
Type: Powered mitre saw
Motor power rating: 1.6 kW
Rated speed: 3000 min-1
Blade bore: 30 mm
Blade diameter range: 240 mm to 250 mm
Manufacture year: 2002
Made in Germany
Single phase operation
Ralf Schumacher Collection edition
Aluminium plastic and wood cutting blade fitted (per blade print)

54x 5.4-metre Aluminium Lengths w/ Ullrich Branding

Skylarc Ref P176931

54x 5.4-metre Aluminium Lengths.
Ullrich labeling attached to top visible layers.
Each aluminium length is 5400x70x32mm.
See photos for end profile design.
Lengths are as new unused leftover old Ullrich ladder production materials stock. Top layers dusty from open storage.

Hitachi 3.2mm Electric Nibbler

Skylarc Ref N176669

Hitachi 3.2mm Electric Nibbler
Model NUK-RN
Rated capacity 3.2mm
Rated voltage 230V AC
Frequency 50 or 60Hz
Rated current 3.0A
Manufacturer Hitachi Koki Co Ltd
Made in Tokyo Japan
Corded handheld electric metal nibbler
On off switch located on handle

Assorted MIG Welding Wire Spools

Skylarc Ref O176670

Lot of assorted MIG welding wire spools
BOC Aluminium MIG Wire ER5356 0.9mm 6kg spool part no S530960
BOC Aluminium MIG Wire ER5356 0.9mm 2kg spool part no S530922
BOC Aluminium MIG Wire ER5356 1.0mm 5kg spool
Lincoln Electric SuperGlaze AlMg5Cr(A) ER5356 1.0mm 7.26kg spool stock no ED028386
Hyundai Welding SW-316L Cored wire 1.2mm 15kg spool
Unbranded aluminium wire AWS ER5356 1.0mm 2.2kg spool batch no 5356180110
Multiple spools shown in photos
Exact remaining wire quantity on each spool is not specified
All details are taken from spool labels

Konica Minolta Bizhub C220 Multi Function Colour Laser Printer

Skylarc Ref M176928

Konica Minolta Bizhub C220 Multi Function Colour Laser Printer.
240,368 total pages printed.
133,416 black and white pages printed.
106,952 colour pages printed.
Prints up to A3 size.
Note that we were unable to get the unit to print. There seems to be a discrepancy with the system with one part displaying full or partial supplies remaining but then an error stating all toner drums need replacing. Nothing prints when testing print functions except a blurred bar see photos.

Antique Victorian Wooden Baby High Chair

Skylarc Ref H176923

Antique Victorian Wooden Baby High Chair.
Unknown maker and specific age.
Has been painted blue then white at some point in its history
Wood type unknown.
All moving parts seem to function.
Inner seat width 280mm.
Would make a great restoration project!

Bemato Drill Mill Project

Skylarc Ref R176673

Model: BMT 30J
No motor
Spindle dismantled
Has a double drill head assembly
660mm x 190mm table
Spindle speeds 100 - 2080rpm

Dymo LabelMaker Label Printer

Skylarc Ref E176920

Dymo LabelMaker Label Printer.
Model No.1750284.
Includes power cord.
Includes 3x new label rolls.
Powers on, feed functions operate. Print functions not tested

TSC Barcode Printer DC2700

Skylarc Ref C176918

TSC Barcode Printer DC2700.
Includes power cord and USB cable.
Includes a new spare 100mm wide label roll.
Feed function operates.
Print functions not tested.

Wheelbarrow

Skylarc Ref V176677

Carter's branded
Aluminum reinforced floor

12-Metre 3-Phase 32A Power Extension Lead Cable

Skylarc Ref Z176915

12-Metre 3-Phase 32A Power Extension Lead Cable.
Note that the female plug is missing its cap.

3M Headgear G500 Series Safety Face Sheild w/ Peltor Optine Ear Protectors

Skylarc Ref X176913

3M Headgear G500 Series Safety Face Sheild .
Includes attached 3M Peltor Optime I ear protection.
The set is dusty from Workshop storage.

BlackRidge 10L Air Sand Blaster

Skylarc Ref W176912

BlackRidge 10L Air Sand Blaster.
Includes plastic tank and blasting gun.

Assorted Simgle Phase 10A Power Extension Leads & More

Skylarc Ref V176911

Assorted Simgle Phase 10A Power Extension Leads & More.
4x 10A extension leads in various lengths.
1x Plug Boss workshop powerboard.
HPM Electrsafe D5101 surge protector.
Condition varies with each item.

20-Metre Single Phase 16A Power Extension Cable Lead

Skylarc Ref U176910

20-Metre Single Phase 16A Power Extension Cable Lead.

20-Metre Single Phase 16A Power Extension Cable Lead

Skylarc Ref T176909

20-Metre Single Phase 16A Power Extension Cable Lead.

2 shelves of foundry supplies

Skylarc Ref X176679

Assorted Aluminum ingots
Various moulds
Shelves not included

DeWalt Corded 125mm Angle Grinder

Skylarc Ref G176298

DeWalt Corded 125mm Angle Grinder.
Model No.D28135-XE.
Disk guard, removal tool, and side handle are missing.
Grinder operates, see video.

DeWalt Corded 125mm Angle Grinder

Skylarc Ref W176288

DeWalt Corded 125mm Angle Grinder.
Model No.D28135-XE.
Missing side handle snd disk tool.
See video for operational condition.

Ullrich Aluminium Combination Step & Extension Ladder

Skylarc Ref R176283

Ullrich Aluminium Combination Step & Extension Ladder.
Model CS/2.10m.
2100mm extension mode length.
1125mm step mode height.

Bosch Professional Corded Jig Saw GST 100 BCE

Skylarc Ref Q176282

Bosch Professional Corded Jig Saw.
Model GST 100 BCE.
Includes plastic case.
Case is missing both latches.
Saw operates normally.

Tap & Die Set

Skylarc Ref H176273

Tap & Die Set.
In a 590x400x32mm steel case.
Some pieces are missing, see photos

Ullrich UlltraWeld Aluminium Welding Wire ER5356

Skylarc Ref E176270

Ullrich UlltraWeld Aluminium Welding Wire.
All are type ER5356.
2x Rolls are 2kg size and the third roll is 0.5kg.
As new unused.

Bostik FR Duct Sealer, 28x 375mL Tubes

Skylarc Ref B176267

Bostik FR Duct Sealer.
28x 375mL Tubes in auction.
Tube size 255x50mm.
All are Grey colour.
All with Best Before dates of 07/2023.

Custom Sturdy Aluminium Mobile Trolley Frame

Skylarc Ref N176253

Custom Sturdy Aluminium Mobile Trolley Frame.
75x50x6mm aluminium channel frame.
200mm diameter rear wheels, 140mm diameter front wheels.

Custom Built Workshop Welding Trolley

Skylarc Ref L176251

Custom Built Workshop Welding Trolley.
Welded steel construction.
70mm diameter castors.
Can accommodate welding gas bottles up to 230mm diameter.
Appears to be a recent custom built as the new bare steel has only light rust spotting, would benefit from a surface painting to prevent further rusting.

3x Small Aluminium Platform Trollies

Skylarc Ref D176243

3x Small Aluminium Platform Trollies.
Custom made in workshop.
All are 700x400x515mm.
25mm diameter aluminium tube frames welded to 2mm aluminium sheet tops.
50mm diameter meral castors.
Lightweight but sturdy little Trollies.

Ullrich Double Sided 850mm Aluminium Step Ladder

Skylarc Ref Z176239

Ullrich Double Sided Aluminum Step Ladder.
Made in New Zealand.
850mm height.
430mm bottom width, 310mm top width.
150kg max weight capacity.

Ullrich Double Sided 840mm Aluminium Step Ladder

Skylarc Ref Y176238

Ullrich Double Sided Aluminum Step Ladder.
Made in New Zealand.
840mm height.
430mm bottom width, 380mm top width.
150kg max weight capacity.

6-Metre Single Phase 15A Power Extension Lead

Skylarc Ref J176223

6-Metre Single Phase 15A Power Extension Lead.

Manual Pressure Testing Pump by TLP

Skylarc Ref U176208

Manual Pressure Testing Pump by TLP.
Model No.HHS-24G.
Pressure gauge is dented.
Pump mechanisim won't move.
Unknown if any other faults.

53mm Annular Cutter by FE, New

Skylarc Ref Y176992

53mm Annular Cutter by FE.
Made in Germany.
Model FE 3053.
30mm cutting depth, 53mm diameter.
As new unused.

Metabo Corded 80mm Planer

Skylarc Ref S176986

Metabo Corded 80mm Planer.
Model No. HoE 0983.
80mm wide blade.
Includes sawdust catcher bag and steel carry case.
See video to see this tool briefly running.

Record No.136 T-Bar Sash Clamp

Skylarc Ref O176982

Record No.136 T-Bar Sash Clamp.
2150mm long T-bar.

2x Electronic Welding Masks

Skylarc Ref N176981

2x Electronic Welding Masks.
The black mask is an Otos Z87+ mask, battery is currently operating and controls power on, see photo.
The blue NZ flag mask is of unknown brand/model. Operational condition of this mask is unknown.

100mm Mill Vice

Skylarc Ref L176979

Mill Vice.
Unknown brand/model.
100mm wide jaws.
Opens to approx 110mm.
Mounting base bolts slots spaced 220mm apart.
Overall dimensions when fully closed is 290x250x115mm.
Crank handle is missing.

Steel Workshop Storage Cabinet by Alex Harvey

Skylarc Ref H176975

Steel Workshop Storage Cabinet.
Manufactured in New Zealand by Alex Harvey & Sons.
Lockable doors, but key is missing.
Includes the 15x custom Workshop made aluminium storage bins.
Buyer can have the other random contents if they wish as well, see photos.
Sturdy vintage NZ made unit.

3M 7528 GP2 Welding Respirator Kit

Skylarc Ref W176964

3M 7528 GP2 Welding Respirator Kit.
Size M.
See photos for included parts.
The mask shows usage.

9x Assorted Aluminium Edging Lengths

Skylarc Ref O176930

9x Assorted Aluminium Edging Lengths.
Lengths range from 2900mm to 8000mm long.
See photos for end profile design/type details.
7x Lengths are 120mm wide curved type.
2x Lengths are 75x60x40mm channel type.
Items are as new leftover workshop materials supply stock

Mobile Workshop Shelf Trolley

Skylarc Ref A176916

Mobile Workshop Shelf Trolley.
Aluminium frame and lower shelves.
MDF board top.

Record Professional Engraver 480

Skylarc Ref U176286

Record Professional Engraver model 480.
Operates normally.

Rivtec Air Riviter

Skylarc Ref N176279

Rivtec Air Riviter.
Unknown model and Rivet diameter capacity.

Stell Adjustable Shelving Assembly

Skylarc Ref J176977

Stell Adjustable Shelving Assembly.
Sheet steel Shelving surfaces.
Can be fully dissasembled by buyer on pickup.
Items seen on shelves are NOT included.
Very dusty surfaces, would benefit from a good cleanup.

Office Boardroom Table

Skylarc Ref F176947

Office Boardroom Table.
Faux Wood laminated MDF top with black laminated MDF frame.
Note - Buyer should bring extra hands to assist removal as we will likely only have one staff member on-site.

Workshop Table Workbench

Skylarc Ref V176937

Workshop Table Workbench.
55x55x5mm angle steel frame.
Top is a plywood under sheet with a MDF top sheet.
Auction includes table only.

Heavy Duty Long Matetials Storage Rack

Skylarc Ref S176934

Heavy Duty Long Matetials Storage Rack.
75x75mm box steel vertical columns, 40x40mm box steel side and diagonal framing, 65x35mm and 460mm long materials support arms.
NOTE that three arms have been cut off, see photos. Unable to locate cut off arms.
This unit does not dissasemble.

Workshop Trolley Stand.

Skylarc Ref T176285

Workshop Trolley Stand..
4mm top and bottom steel with welded 50x50mm box steel column.
50mm diameter castors.
Sturdy custom built trolley.

Sturdy Workshop Table

Skylarc Ref W176262

Sturdy Workshop Table.
Frame is welded 50x50x4mm angle steel.
Top is 18mm plywood.

Sturdy Workshop Table

Skylarc Ref V176261

Sturdy Workshop Table.
Frame is welded 50x50x4mm angle steel.
Top is 18mm plywood.

Vintage Heavy Duty Workshoo Platform Trolley

Skylarc Ref Q176256

Vintage Heavy Duty Workshoo Platform Trolley.
Heavy steel frame with 150mm diameter castors and plywood top.
An older unit but very sturdy and rolls well.

Vintqge Record No.182C Chain Pipe Vice on Heavy Steel Stand

Skylarc Ref I176248

Vintqge Record No.182C Chain Pipe Vice on Heavy Steel Stand.
Stand height adjustable.

Custom Aluminium Welding Trolley

Skylarc Ref C176242

Aluminium Welding Trolley.
Custom made in workshop.
All aluminium construction (except chain and castors).
Top platform for Welder is 500x260mm.
Accommodates Welding Gas bottles up to 235mm diameter.
Lightweight but sturdy custom trolley.

2x Aluminium Platform Trollies

Skylarc Ref B176241

2x Aluminium Platform Trollies.
Custom made in workshop.
All aluminium construction with steel castors.
Each is 600x590x620mm.
Well used but lightweight sturdy units.

Workshop Mobile Shelf Trolley

Skylarc Ref Q176230

Workshop Mobile Shelf Trolley.
Narrow design.
Sturdy steel frame.

20-Ton Bottle Jack

Skylarc Ref K176978

20-Ton Bottle Jack.
Unable to decipher manufacturr name from worn label.
Model No.HP-20.
Made in Japan.
Height from 270mm to 420mm.
50mm diameter head.
Jacking handle is missing.
Functions normally but not tested under load.

Semi Custom Workshop Storage Cabinet

Skylarc Ref G176974

Semi Custom Workshop Storage Cabinet.
Dark green 2-doir locker converted into a storage cabinet. Interior has been reinforced with aliluminium rea panel, lower and upper edging, and aluminium shelves.
See photos for further design details
Buyer can have the random remaining interior contents as well if they wish.

3x Power Tools, Sander, Jig Saw, Drill

Skylarc Ref C176970

3x Power Tools, Sander, Jig Saw, Drill.
Includes:
- Metabo SBE 560 corded Impact Drill Driver with 13mm Keyless chuck.
- Black & Decker KS701E-XE corded Jig Saw.
- Black & Decker CD400A-XE corded sheet Sander.

All items seem to run ok but have not been tested at length or under load

Assorted Bow Shackles & Master Links

Skylarc Ref B176969

Assorted Bow Shackles & Master Links.
Includes:
- 2x Yoke branded master links 150x100mm with 2360kg max capacity. Both have certification tags expiring 03/2026.
- 2x 16mm 3.2-ton capacity bow shackles, one with a certification tag expiring 03/2926.
- 1x 13mm, 2-ton capacity bow shackle.
- 1x 4.75 ton capacity bow shackle, bolt won't screw fully into threads.
- 1x 6.5 ton Bow shackle with certification tag expired 03/2026.

Condition varies with each item.

HPM Worksite PowerCentre 10A, 4-Outlet w/ USB

Skylarc Ref Y176966

HPM Worksite PowerCentre 10A, 4-Outlet w/ USB.
Cat No.REPC410USB.
4x 10A single phase outlets.
2x USB-A outlets.

https://nzsafetyblackwoods.co.nz/product/hpm-worksite-powercentre-4-outlets-10a-with-usb-03614888

Industrial Surface Protection Tape, 420mm Wide Roll

Skylarc Ref T176961

Industrial Surface Protection Tape.
Unknown manufacturer.
420mm Wide Roll.
98mm diameter centre tube. Total roll diameter 240mm.
Film thickness unknown.
Film is white on exterior, lightly sticky black on underside of film.
As new leftover workshop supplies stock.

2x Aluminium Sawhorses

Skylarc Ref O176956

2x Aluminium Sawhorses.
Mismatched set.
Custom made in workshop.
One unit is 920x610x910mm.
Second unit is 700x530x910mm.

2x Adjustable Storage Shelving Assemblies

Skylarc Ref H176949

2x Adjustable Storage Shelving Assemblies.
Each is 915x455x1835mm.
Black metal frame components with black finished MDF Shelving boards.
Items seen on shelves are NOT included.
Buyer can fully dissasemble the Shelving on pickup.

5x Office Stacking Chairs

Skylarc Ref E176946

5x Office Stacking Chairs.
Dark blue fabric padded seats with black plastic backs and black steel frames.
Stacking design.
Seat widths 415mm.
Seat height 460mm.
Back height 760mm.

Aluminium Packaging /Wrapping Frame or similar

Skylarc Ref X176939

Aluminium Packaging Frame Custom built 50mm dia tube aluninium frame with lower pallet rack and an upper rolling bar for mounting large rolls of material.
Currently has a roll of 750mm wide sheet pladtic (included with auction), but can be used to hang rolls of fabric, or any other similar materials.
A sturdy multi purpose frame

Assorted Hand Tools, Tool Cases, Sets, & More

Skylarc Ref N176929

Assorted Hand Tools, Tool Cases, Sets, & More.
Sockets, hammers, hacksaw steel brush, 425x350x160mm steel tool case, Incomplete tap and die set, and more. See photos for further details on included items.

Fellowes A4 Paper Shredder PS70-2CD

Skylarc Ref L176927

Fellowes A4 Paper Shredder PS70-2CD.
Operates normally.

Vintage or Antique Folding Wood Table

Skylarc Ref G176922

Vintage or Antique Folding Wood Table.
Wood type unknown.
Age unknown.
Rope holding A-frame legs is not original.
See photos for design and condition details.
Would make a good restoration project or use as a rustic display piece in a retail setting.

Custom Ventilation Flue for Retail Kitchen or Similar

Skylarc Ref P176905

Custom Ventilation Flue for Retail Kitchen or Similar.
Custom built out of lightweight aluminium and steel with a 210mm diameter centre flue vent pipe and 290mm diameter vent cap.
See photos for further design details.

2x Small but Heavy Steel Platform Trollies

Skylarc Ref Y176264

2x Small but Heavy Steel Platform Trollies
Both have 50x50x5mm box steel frame.
150mm castors.
18mm plywood top.
Small but heavy little Trollies.

Custom Tall Workshop Trolley

Skylarc Ref M176252

Custom Tall Workshop Trolley.
Welded steel frame.
75mm diameter castors.
Sturdy well built unit.

Precision Classic 3-Door File Cabinet

Skylarc Ref U176234

Precision Classic 3-Door File Cabinet.
Gloss deep blue finish.
Lockable, key is missing.

Pair of Sawhorses

Skylarc Ref N176227

Pair of Sawhorses.
20x20mm box steel legs.
Channel steel upper frame with wood board top.
Each is approx 810x450x780mm.
See photos for condition details.

Steel Machine Support Frame

Skylarc Ref M176226

Steel Machine Support Frame.
50x25mm and 25x25mm box steel construction with 130x100x10mm steel plate corner pads.
See photos for further design details
Oily exterior surfaces.

Custom Welding Screen

Skylarc Ref K176224

Aluminium Welding Screen Frame.
Made in workshop.
Frame is 25x25mm box aluminium.
Wilson Spectra red welding screen installed.
Some Bending at one end support foot. Some tearing to screen, see photos.

2x Mill Lockdown Sets

Skylarc Ref I176222

2x Mill Lockdown Sets.
Blue set has 10mm threaded rod.
Red set has 12mm threaded rod.
Both sets are missing parts, see photos.

Bosch Professional Corded 125mm Angle Grinder

Skylarc Ref B176215

Bosch Professional Corded 125mm Angle Grinder.
Model No.GWS 1400 C.
Disk guard, disk washers, and disk tool are missing.
See video for tool running.

2x 300mm Aluminium Cutting Blades

Skylarc Ref W176210

2x 300mm Aluminium Cutting Blades.

Includes a Dart 300mm x 30mm x 100-tooth blade with originsl packaging. Blade mounting bore shows very light mounting marks, teeth appear as new.

Includes an Irwin 300mm x 30mm x 100-tooth blade that shows light usage.

Assorted 1-Metre Welding Wire Rods

Skylarc Ref R176205

Assorted 1-Metre Welding Wire Rods.
Most packs are BOC branded.
Includes various 1-metre long Rods for aluminium, mild steel, and stainless steel.
Most are open partial packs.

Metal Material Roller Stand

Skylarc Ref O176202

Metal Material Roller Stand.
Custom made in workshop from aluminium materials.
Base 510x510mm.
Main column 800mm tall, 63mm diameter.
Top plastic roller 345mm long, 47mm diameter.
Height adjustable from 895mm to 1120mm.

Far Riveting Tool K20

Skylarc Ref B176995

Far Riveting Tool.
Model K20.
Made in Italy.

4x Sets of Steel Letter & Number Stamp Punches

Skylarc Ref Z176993

4x Sets of Steel Letter & Number Stamp Punches.
12mm letter set
10mm Number set.
4mm Letter set (missing 3 stamps).
4mm Letter and number set.
Two Sets missing lids.

5x Tube Caulking / Glue / Sealant Applicator Guns

Skylarc Ref W176990

5x Tube Caulking / Glue / Sealant Applicator Guns.
One is branded as a Ramset U versatile Applicator Premium gun.
The other four are unmarked. See photos for details on types of Applicators included.
Condition varies with each tool.

5x Assorted Welding Cables

Skylarc Ref V176989

5x Assorted Welding Cables.
See photos for types included.

3x Hand Rivet Guns

Skylarc Ref T176987

3x Hand Rivet Guns.
Two are Gesipa Flipper hand riveters.
The third is an unbranded riveter, see photos

Ryobi Corded Reciprocating Saw ERS800K

Skylarc Ref D176971

Ryobi Corded Reciprocating Saw.
Model No. ERS800K.
Operates normally but not tested at length or under load.
See video to see this tool briefly operate.

Small 8-Piece ER24 Collet Set w/ Chuck

Skylarc Ref V176963

Small 8-Piece ER24 Collet Set w/ Chuck.
Unknown manufacturer.
Chuck unit has a Morse Taper No.3 shank
7x ER24 diameter, 45mm long collets in sizes of 4mm, 5mm, 6mm, 10mm, 12mm, 14mm, and 16mm.

Collets and chuck in excellent condition, some collets even as new in factory plastic bags. Case in poorer condition from Workshop storage with lid detached.

2x Aluminium Sawhorses

Skylarc Ref D176945

2x Aluminium Sawhorses.
Aluminium frames with 80mm wide, 50mm thick wood boards on top.
Each sawhorse is approx 1580x450x845mm.

2x Welding Screens

Skylarc Ref Y176940

2x Welding Screens.
25x25mm box aluminium frames custom made in workshop.
Each frame is approx 1850x640x2210mm.
Each has a red ArcSafe welding screen installed.
Some rips in screen material, see photos.

3x 2-Wheel Sackbarrel Handcart Trollies

Skylarc Ref S176908

3x 2-Wheel Sackbarrel Handcart Trollies.
All with pneumatic tyres.
One is set up as a mobile fire extinguisher trolley.
All tyres are a bit low on air.

3x Assorted Material Support Stands

Skylarc Ref R176907

3x Assorted Material Support Stands.
One customer made non-adjustable stand ,980mm tall with 380x75mm top box steel.
One custom made height adjustable stand made from steel pipe and steel bar.
One manufactured stand with tripod base and threaded centre column and V-type suport top.

Industrial Grade Air Tyre Pressure Gauge and Filler

Skylarc Ref O176904

Industrial Grade Tyre Pressure Gauge and Filler.
Unknown brand.
Made in England.

Workshop Bench

Skylarc Ref B176579

MDF construction
Contents of empty diesel container
Assorted rubber trim

2 x Steel Trestles

Skylarc Ref F176583

800mm x 480mm x 800mm
Steel with removable timber tops

Custom Workshop Aluminium Storage Shelf

Skylarc Ref S176258

Custom Workshop Aluminium Storage Shelf.
Aluminium box frame with 12mm plywood top.

Vintage Europlan Metalon 3-Drawer Steel File Cabinet

Skylarc Ref L176225

Vintage Europlan Metalon 3-Drawer Steel File Cabinet.
Lockable, key is missing.
Top drawer runners need work.

MIGArc Solid Staimless Steel MIG Welding Wire, 0.9mm, 12.5kg

Skylarc Ref A176214

MIGArc Solid Staimless Steel MIG Welding Wire.
Part No.ER316LSI.
0.9mm diameter.
12.5kg Spool.
Manufactured 11/2022.
New in box. Some box fading and wear from Workshop.storage.

Diesel Foundry Furnace

Skylarc Ref G176636

Hoffman brand
800mm outer diameter
Manual tipping
Buyer to decommission

Diesel Foundry Furnace

Skylarc Ref H176637

Square furnace
Unknown maker
450mm x 430mm deep internal dimensions
Buyer to decommission

Foundry Mould Press

Skylarc Ref I176638

Unknown make and model
500mm x 400mm press plates

Assorted Hole Saws

Skylarc Ref X176211

Assorted Hole Saws.
30 Saws of various diameters from 18mm to 113mm.
Mostly DeWalt and Sutton brands.
Includes a mostly empty hole saw carry case.
Condition varies with each saw, most show heavy industrial usage.

6x Assorted Bubble Levels

Skylarc Ref S176206

6x Assorted Bubble Levels.
Various lengths from 780mm to 1215mm.
Condition varies with each unit.

7x Assorted Oiling & Greasing Tools

Skylarc Ref M176980

7x Assorted Oiling & Greasing Tools.
Various types, see photos.
One has a 900mm long extension added.
Condition varies with each tool.
Shipping not available due to some units leaking.

2x Load Brinders, 1100kg Capacity

Skylarc Ref E176972

2x Load Brinders.
1100kg max Capacity each.
Some eye loops have been ground thinner, see photos.

3x Power Tools w/ Faults and/or rough motors

Skylarc Ref A176968

3x Power Tools w/ Faults and/or rough motors.
Includes:
- DeWalt 18V Cordless Hammer drill driver DCD996-XE, motor is very rough and sounds like its near total failure.
- Makita corded 125mm random Orbital sander M9204, motor is sounds worn and rough at high speeds.
- Bosch corded 125mm Angle Grinder GWS 1400 C, motor runs and sounds OK but the threaded disk mounting shaft is off centre and does not turn.

2x Small Steel Toolboxes

Skylarc Ref Z176967

2x Small Steel Toolboxes.
Smaller one is 320x140x80mm with dark Grey finish.
Larger one is 350x205x160mm, with silver finish, appears possibly custom made.

Assorted Drill Bits

Skylarc Ref X176965

Assorted Drill Bits.
Mostly standard drilling bits plus a few end mills as well, see photos.
Largest bit is 30mm dia.
Most are well used.

DeWalt Laser Tripod DE881-XE

Skylarc Ref U176962

DeWalt Laser Tripod DE881-XE.
Includes canvas bag.
Tripod appears unused as its feet and most of rhe tripod are clean, but tripod shows workshop storage damage with broken centre column crank and a small dent in one leg. Bag exterior very dirty from Workshop storage.

3x Vintage Chairs, need some TLC restoration!

Skylarc Ref L176953

3x Vintage Chairs.
One vintqge chair with chrome steel frame and light grey vinyl padded seat and back with chrome buttons along top edge of back. Seat width 420mm, seat height 460mm, back height 795mm.
Two vintage wood chairs with unknown wood type frames and wood Veneer back with padded seats in green vinyl. Seat widths 420mm, seat heights 460mm, 820mm.

All chairs would benefit from a good restoration!

Home Made Pulse Jet

Skylarc Ref Q176672

Home made pulse jet
Made from exhaust pipe or similar

Steel Locker Unit

Skylarc Ref U176676

Lock unit is missing
2 internal shelves

Aluminium Stand & Stool, Custom Made

Skylarc Ref Q176906

Aluminium Stand & Stool.
Aluminium stand is 600x600x500mm.
Aluminium Stool is 350x245x580mm
Both custom built in workshop.
Well used but sturdy items.

2 x Folding Saw Horses

Skylarc Ref I176664

One with locking mechanism on legs and one without
