SKYLARC’S TORDEICH ENGINEERING AUCTION

Hwacheon HL-580 x 2000G Centre Lathe

Skylarc Ref O154188

Model HL-580 x 2000G
Serial number 253009
Manufactured March 2005
Swing over bed 580 mm
Swing over cross slide 360 mm
Distance between centres 2000 mm
Spindle nose ASA A1-8 D1-8
Spindle bore 77 mm
Spindle speeds 28 to 1350 rpm
3 phase 415V power supply
Main spindle motor 15 hp
Total power 11 kW
Fagor digital readout system but has no sensor slides fitted
350mm four jaw chuck
310mm three jaw chuck
450mm faceplate
Fixed steady
Travelling steady

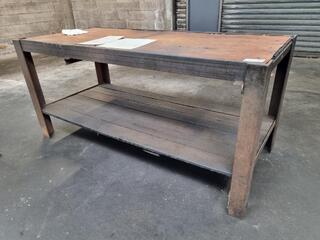

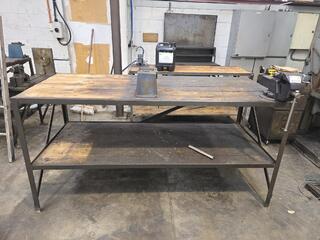

1540mm x 835mm x 1340mm tall workbench
Manual

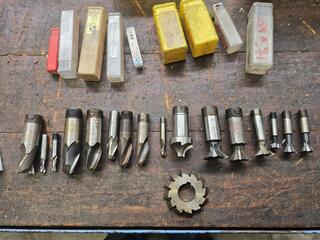

Some tooling and accessories
Hwacheon Machinery Works Co Ltd manufacturer
Made in Korea

To see this machine running:
https://youtu.be/xmk2RQyb4Dg

Nukor NKC-SL-4.5-TDF Scroll Air Compressor

Skylarc Ref G170240

Model:Nukor NKC-SL-4.5-TDF
Scroll air compressor type
Year of manufacture is 2018
Three phase
Power rating is 4.5kW
Output is 660 litres per minute
Air cooler dryer
Receiver tank capacity is 75 litres
Digital control panel with runtime hour meter
Motor hours on display 2130 hours
Load hours on display 2045 hours
Service record dated 15-11-2023
Hours at last service 1725

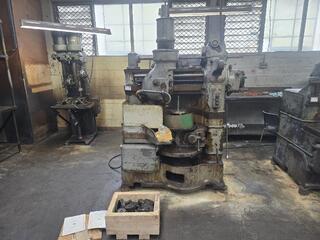

Dabrowska KNA 110 Single Column Vertical Lathe

Skylarc Ref Z154173

Manufacturer Dabrowska Fabryka Obrabiarek
Model KNA 110
Type Single column vertical turning and boring lathe
Made in Poland
Made 1965
Diameter of face plate 1100 mm
Speed range 4.5 to 140 rpm
Vertical travel of the tool head 600 mm
Vertical travel of the crossrail 800 mm
Number of tool holes in turret 5
Number of feeds of upper and side saddle 12
Feed of saddle 0.21 - 1.0 mm/rev
Feed of crossrail 180 mm/min
Feed of upper saddle 500 mm/min
Cabinet of change gears
Some tooling
Tidy heavy duty machine rarely available
You will need your own lifting equipment to load this machine unless we're delivering it (11 ton)

To see this machine running:
https://youtu.be/IP5XppzasUs

TOS Trencin SN-50B Lathe

Skylarc Ref N154187

Model SN-50B manufactured by TOS Trencin
Made in Czechoslovakia
Swing over bed 500mm
Swing over carriage 270mm
Distance between centres 2060mm
Turning length 2000mm
305mm four jaw chuck included
270mm three jaw chuck included
MT5 tailstock
Includes steady rest
Includes follow rest
Includes face plate
Damage present to removable bed block as shown in photos but on tailstock vee so accuracy not effected
Weight of machine with standard equipment is 1845kg

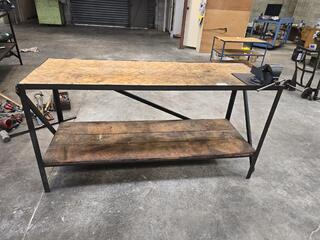

1550mm x 680mm x 1400mm workbench
Driving dogs
Manual
Some tooling and accessories

To see this machine running:
https://youtu.be/Md7Top6l6Iw

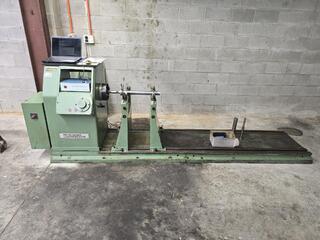

Reutlinger Losenhausen EasyBalance 2.2 Dynamic Balancing Machine

Skylarc Ref A154174

Reutlinger Losenhausen dynamic balancing machine
EasyBalance 2.2 balancing instrumentation
BalanceMasters Inc. control module installed
Laptop with EasyBalance 2.2 software
Balance system includes shaft and V-block supports
Measurement scale present on rotating assembly
Power control switch installed on main cabinet
Included tool and fastener tray on bed
Pair of steel mandrels located on machine bed
Has been balancing up to 200mm diameter
Was running at
2400mm long bed
Was running until recently but now will only go in demo mode.

Takisawa TS-20 CNC Lathe

Skylarc Ref G154180

Model Takisawa TS-20 CNC Lathe
Machine No. THFW5385
Main motor rated at 18.5 kW
Three phase
Swing over bed 500mm
Maximum turning diameter 300mm
Standard turning diameter 210mm
Maximum turning length 560mm
Hole through spindle 60mm
Spindle speed range 32–3200 RPM
Tool turret with 12 stations
Turning tool size 25x25mm
Boring bar diameter 50mm
X-axis travel 170mm
Z-axis travel 620mm
Rapid traverse
250mm three jaw chuck
Machine weight 4300kg
Fanuc controller
Range of chuck jaws
Some tool holders
Manufactured 1985
You will need your own lifting equipment to load this machine.

To see this machine running:
https://youtu.be/Nhpvu4aaYNE

Takisawa TX-3 CNC Lathe with Tsubaki Chip Conveyor

Skylarc Ref H154181

Takisawa TX-3 CNC lathe
Serial number TLNT0176
Manufacture year 1980
Model IX-310D
1500mm bed length
Fanuc control with CRT display
Equipped with Tsubakimoto-Mayfran IX310D-1000 chip conveyor
Manuals included for Fanuc spindle servo unit and maintenance
8-position turret tool changer
Includes various tool holders and lathe components as shown
New spare NSK ball screw included
Assortment of spares and fixtures included
Large range of chuck jaws

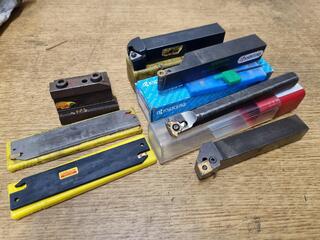

Tool holders
Accessories
You will need your own lifting equipment to load this machine unless we are delivering it

To see this machine running:
https://youtu.be/1cV76rE24as

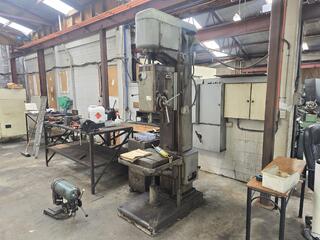

Daher Z535 Vertical Drilling Machine

Skylarc Ref I154182

Manufacturer Daher Machine Tool Works
Model Z535
Vertical drilling machine
Country of origin The People's Republic of China
Year of manufacture 1974
450mm x 500mm table
Maximum drilling diameter 35mm
Number of spindle speeds 9
Spindle speed range 68 to 1100 rpm
Table size 435mm x 500mm
Travel of table 700mm to 1130mm
Distance spindle nose to table 0mm to 750mm
11 feed speeds
Operation manual included

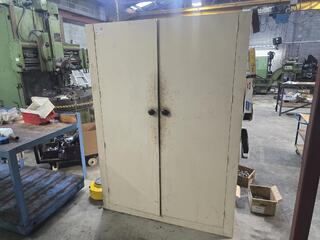

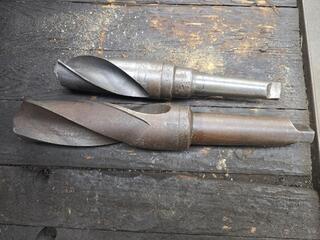

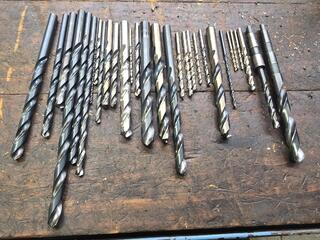

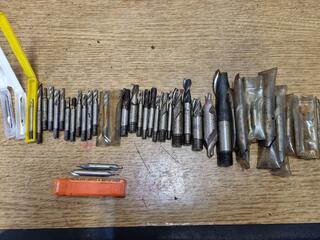

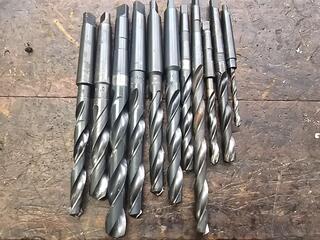

Small cabinet and assorted drills and tooling shown included

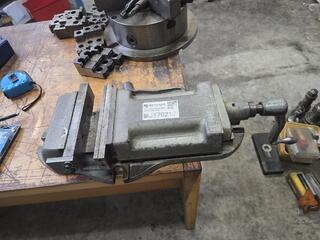

Vice
Spindle speed chart and lubrication chart on machine

SOCO MC275F Cold Saw Circular Metal Cutting Machine

Skylarc Ref J154183

SOCO MC275F metal cutting circular saw.
Manufacturer: SOCO Machinery Co Ltd.
Date of manufacture: April 20, 2000.
3 phase motor.
260mm blades
Two speeds. 60 and 120rpm
Blade guard and work vice included.
Manual included
415V 20A 3-phase plug fitted.
Made in Taiwan.

To see this machine running:
https://youtu.be/URBeFBsczQ0

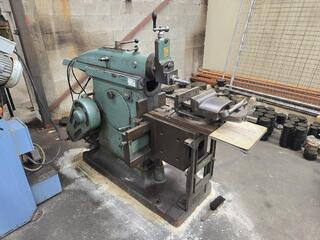

Varnamo EV-3 Shaping Machine

Skylarc Ref L154185

Manufacturer Varnamo Maskinaktiebolag Sweden
Model EV-3
Serial number 6307
Six stroke rate settings 22 30 41 54 71 100 strokes per minute
300mm x 455mm long x 320mm table
230mm vise attached to table
Lever and handwheel controls
Three phase motor fitted
Operating instructions booklet for type EV-3 serial number 6307 included
Instruction and lubrication plates present on body
JAS J Niven and Co Ltd listed as sole agents
Rectangular work table with T-slots
Exceptional tidy swedish machine

To see this machine running:
https://youtu.be/p2gow_XjKEw

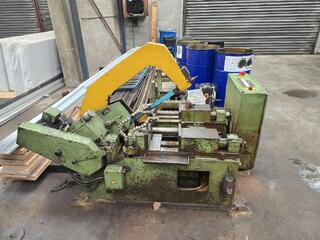

Behringer HSA-260 Metal Cutting Hacksaw

Skylarc Ref Q154190

Behringer HSA-260
Blade length 430mm
Some spare blades
Three phase 1.9kW motor
Control panel with push button controls and emergency stop
Saw vice and feed rollers included
Dual hydraulic vices
Three phase.

To see this machine running:
https://youtu.be/_95EwE0X29g

Kasto Mechanical Hacksaw

Skylarc Ref I167351

Kasto Mechanical Hacksaw
Blade length 490mm
Robust steel construction
Manual and automatic operation controls
Hydraulic vise and feed for precision cutting
Powered by a 3-phase electric motor
Large infeed/outfeed supports for long materials
Control panel with emergency stop and settings
3-phase, 20A 500V
Vise and guides adjustable for holding various workpiece sizes
Reference chart for feeds and materials included on machine
Suitable for cutting steel bar, pipe

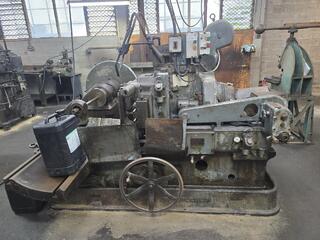

Sunderland No.19 Gear Planer

Skylarc Ref P154189

Sunderland Gear Planer No. 19
Manufacturer J. Parkinson & Son Shipley England
Will cut spur gears up to 56 inch by 9 inch by 1.5 DP
Smallest root diameter by standard cutter is 1.75 inch
Will cut spiral gears up to a 60 inch 1.5 inch normal pitch
Greatest distance end of spindle to outer support 26 inch
Double helical gear cutting head
Hole through spindle 4"
Diameter of arbor 3"
Diameter of face plate 24"
Made in England
Includes manuals,tooling and charts
Includes arbor supports and accessories
Rack of tooling and accessories
You will need your own lifting equipment to load this machine unless we are transporting it

To see this machine running:
https://youtu.be/2P8v5BkThy8

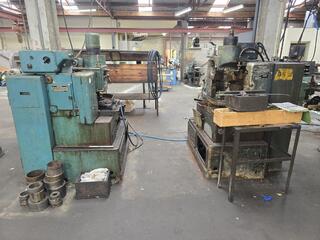

2 x Fellows England Type 7125A Gear Shaping Machines Alfred Herbert

Skylarc Ref T154193

Includes two Fellows England Type 7125A gear shaping machines.
Manufactured by Alfred Herbert.
Some manuals
Maximum pitch diameter external spur 10 inches at 6 D.P.
Maximum pitch diameter external helical 7 inches at 6 D.P.
Maximum pitch diameter internal spur or helical 6 inches at 6 D.P.
Maximum face width 2 inches.
Maximum helix angle 45 degrees.
Maximum overall length 4 feet 3 inches.
Number and range of cutting speeds six from 156 to 515 strokes per minute.
Cutter feeds per stroke from 0.006 to 0.0013 inches per inch diameter of cutter.
Motor 1.5 HP at 960 RPM.

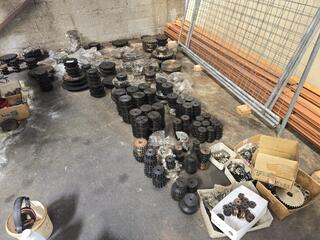

Includes change gears as shown.
Includes some accesories
Feed and gear change charts attached to machine.

To see this machine running:
https://youtu.be/j_rGgWCFJQ4

Sunderland Model 16 Gear Planer

Skylarc Ref U154194

Sunderland 16
Max spur gear diameter 812 mm
Max spur gear facewidth 152 mm
Max spur gear pitch Mod 8
Max helix angle for spiral gears 60 degrees
Max double helical gear diameter 762 mm
Maximum double helical gear facewidth 152 mm
Double helical gear pitch Mod 8
Double helical gear helix angle 30 degrees
Standard arbor diameter 50 mm
Maximum length of work on arbor 533 mm
Spindle bore 70 mm
8 cutting speeds from 32.5 to 149 strokes per minute
8 rates of feed from 20 to 50 cuts per tooth
Main drive motor 5.5 kW
Range of tooling and accessories
You will need your own lifting equipment to load this machine

To see this machine running:
https://youtu.be/YG7chQH9KxI

Hydraulic Keyway Broaching Press

Skylarc Ref Q170224

Table dimensions 665mm x 665mm
340mm ram travel
45mm diameter ram end
Three phase with roroll style plug
Hydraulic pump and tank integrated into cabinet

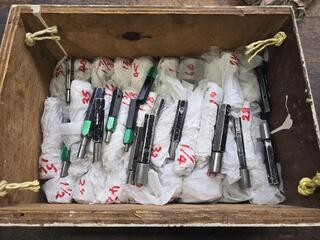

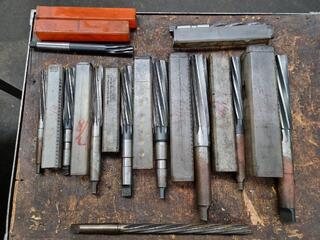

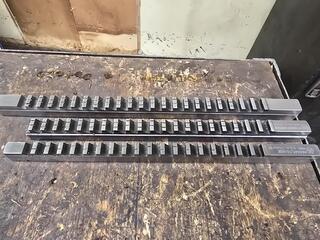

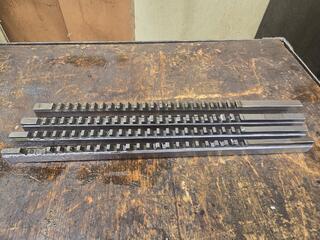

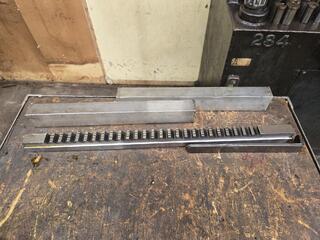

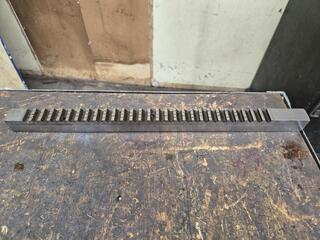

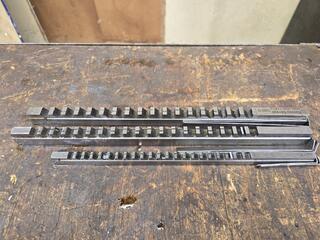

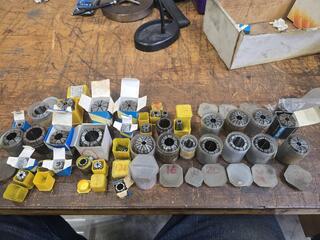

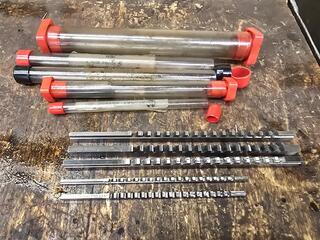

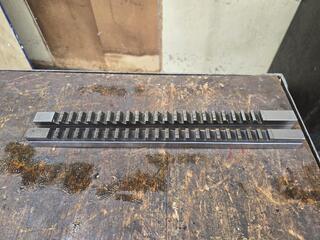

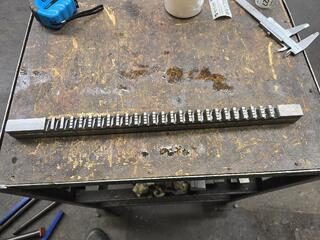

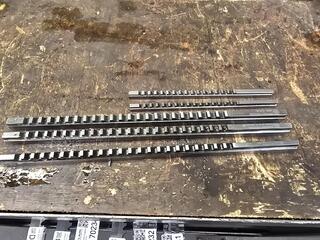

Large numbers of keyway broach collets
Will be electrically disconnected but buyer will be to decommission hydraulic lines and oil for transport

To see this machine running:
https://youtu.be/NY8Vbo__XSg

TOS R5 Turret Lathe

Skylarc Ref F154179

Model: TOS R5
Centres over bed 230mm
Maximum swing over bed 510mm
Maximum swing over turret slide 440mm
Maximum swing over cross slide 255mm
Maximum distance between spindle nose and turret 950mm
Maximum distance between chuck and turret 200 to 250mm
270mm chuck
Width of bed 415mm
Spindle bore 53mm
Spindle taper Morse 6
Spindle speeds 18 range 28 to 1400 rpm
Longitudinal travel of saddle 660mm
Travel of cross slide 250mm
Tool holder dimensions 147 x 147mm
Size of turret across flats 260mm
Number of holes in turret 6
Diameter of holes in turret 54mm
Turning length 250mm
Electric motor 7.5kW
Some accessories and tooling

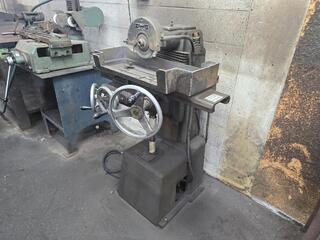

Eagle Surface Grinder

Skylarc Ref Y154198

Eagle Surface Grinding Machine model 3W-1976
Table size is 360mm x 130mm
Manual operation
Three phase power required
Fitted with Roroll plug
Grinding spindle lubrication specified as Spherol AP.2
Lubrication for slideways specified as Magna ZA
Table moves smoothly
Manufactured by Victa Engineering Co
200mm grinding wheel

Great Captain DIA-BOWL 8 Cutter Grinding Machine

Skylarc Ref Z154199

Great Captain DIA-BOWL 8 cutter grinding machine
Manufactured by Murahashi MFG Co Ltd Gifu Japan
550mm table travel
Fitted with two Kinik grinding wheels
Equipped with table-mounted workholder
Single phase
Motor specification: 0.37kW 0.50HP 1340rpm 240V 2.75A 50Hz
Table-mounted handwheel controls
Three-prong power plug attached

To see this machine running:
https://youtu.be/FuGjcugobBQ

Fellows 6A-Type Gear Shaper

Skylarc Ref I170242

Fellows 6A-Type Gear Shaper machine.
Manual gear shaper for producing precision gears.
Comes with box of change gears.
Parts List, Service repair book and operators manual
Main drive with speed change gearbox and two-step sheave drive.
Strokes per minute of cutter available from 50 to 300 depending on belt and lever combinations with 1800 RPM motor speed.

To see this machine running:
https://youtu.be/bITiTH6VlhQ

Fellows 6A-Type Gear Shaper

Skylarc Ref H170241

Fellows 6A-Type Gear Shaper machine.
Manual gear shaper for producing precision gears.
Comes with box of change gears.
Parts List, Service repair book and operators manual
Has an extension plate fitted
Main drive with speed change gearbox and two-step sheave drive.
Strokes per minute of cutter available from 50 to 300 depending on belt and lever combinations with 1800 RPM motor speed.

To see this machine running:
https://youtu.be/LAefdwFkNVU

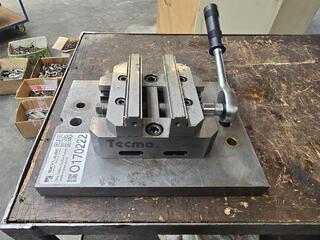

Tecma SCV 1276 Machine Vice with 125mm Jaws

Skylarc Ref O170222

Tecma SCV 1276 self centering machine vice.
Jaw width is 125mm.
Moveable jaw operated by screw mechanism with handle.
Base plate included as shown.
Comes with 14mm socket and driver
Mounted on steel plate

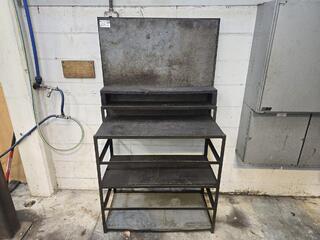

Vintage Large Workbench with Tooling Shelves

Skylarc Ref Q170068

Vintage Large Workbench with Tooling Shelves.
Welded Angle steel frame with wood board shelves and backsplash.
Msin work surface 910mm above floor and is 740mm wide.
Upper flat and angled shelfs attached to back frame.
A very well used but sturdy vintage unit.
See photos for further design details.

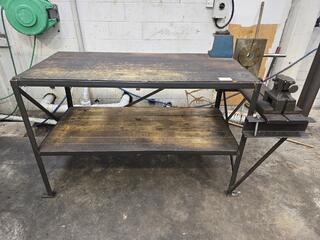

Steel Frame Workbench with Vice

Skylarc Ref B170183

Steel frame workbench with timber top
Workbench includes a lower timber storage shelf
1000mm worktop height
Fitted with Record No.5 bench vice
Bench vice is bolted to one end of the workbench
Includes tool setter mounted on top
Workbench has diagonal steel bracing for stability
Timber planks form both the work surface and storage shelf

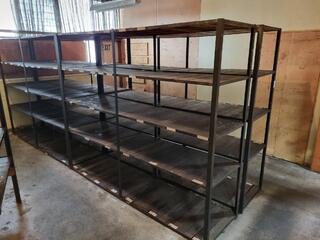

4x Heavy Duty Workshop Shelving Units

Skylarc Ref F170083

4x Heavy Duty Workshop Shelving Units.
Each welded angle steel frame is 2445mm long, 635mm wide, 2000mm tall.
Slated wood board shelving.
40x40mm vertical angle steel uprights with 25x25mm angle steel horizontal shelf supports.
Sterl frames are welded construction.
4x frames in auction.
Wood boards can be removed on pickup.
Sturdy workshop units

Large Lot of Go-No Go Gauges

Skylarc Ref T170149

Metric and imperial sizes
Most and wrapped for transport
Approx 40
Largest metric 65mm
Largest imperial 2"

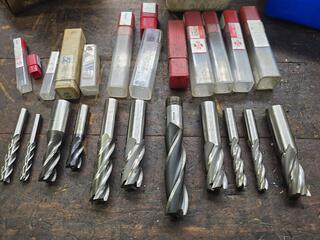

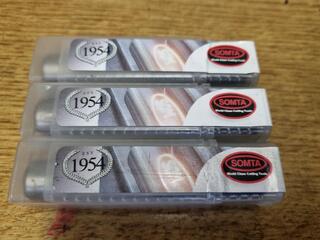

12x Somta Roughing Endmills, Metric Sizes

Skylarc Ref O170066

12x Somta Roughing Endmills.
Includes:
- 1x 22mm
- 8x 18mm
- 2x 16mm
- 1x 14mm

Two are marked as being sharpened. All others show little to no usage.

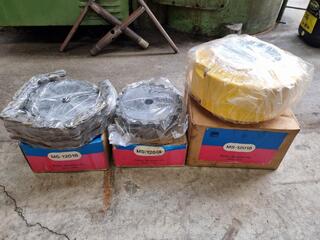

Sanko Chain Coupling Assembly MS-12018

Skylarc Ref A110054

Sanko Chain Coupling Assembly.
Model MS-12018.
Yellow housing approx 300mm outward diameter, 175mm centee hole, 180mm wide.
2x Heavy steel gear units approx 170mm cylinder diameter, 230mm diameter including gear teath, 90mm wide, 30mm diameter centre hole.
One length of chain approx 700x90x30mm.
All items as new unused.
See our other listings for more of these Coupling Assemblies.

Sanko Chain Coupling Assembly MS-12018

Skylarc Ref B110055

Sanko Chain Coupling Assembly.
Model MS-12018.
Yellow housing approx 300mm outward diameter, 175mm centee hole, 180mm wide.
2x Heavy steel gear units approx 170mm cylinder diameter, 230mm diameter including gear teath, 90mm wide, 30mm diameter centre hole.
One length of chain approx 700x90x30mm.
All items are new in unopened factory boxes. Photos of unboxed units are indicative.
See our other listings for more of these Coupling Assemblies.

Sanko Chain Coupling Assembly MS-12018

Skylarc Ref C110056

Sanko Chain Coupling Assembly.
Model MS-12018.
Yellow housing approx 300mm outward diameter, 175mm centee hole, 180mm wide.
2x Heavy steel gear units approx 170mm cylinder diameter, 230mm diameter including gear teath, 90mm wide, 30mm diameter centre hole.
One length of chain approx 700x90x30mm.
All items are new in unopened factory boxes. Photos of unboxed units are indicative.
See our other listings for more of these Coupling Assemblies.

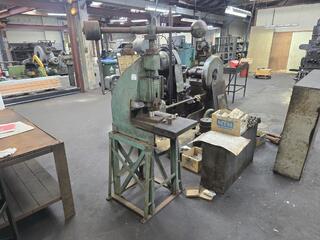

Selectron Industries Fly Press

Skylarc Ref V154195

Selectron Industries fly press.
Model C.
Serial number 495.
Approx 140mm stroke
Manual operated press.
350mm x 290mm plate

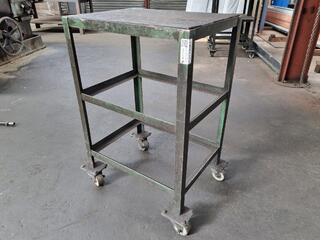

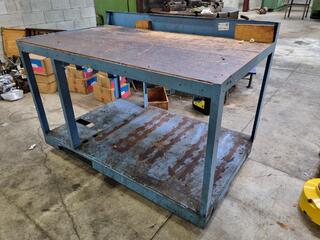

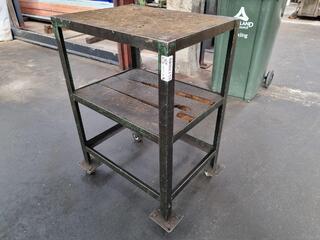

Mobile Heavy Duty Workbench

Skylarc Ref B170079

Mobile Heavy Duty Workbench.
Sturdy welded sterl frame with thick wood board top surface.
Heavy Duty castor wheels underneath.
Sturdy mobile unit.

Three Phase Drill Press on Stand

Skylarc Ref B154175

Table size is 240mm by 250mm
Spindle travel is 80mm
Spindle taper is MT2
13mm Jacobs drill chuck
Bench-mounted design
100mm mill vice
5 spindle speeds
.5hp motor

Sanko Chain Coupling Assemblies MS-5016, 7x Sets

Skylarc Ref D110057

Sanko Chain Coupling Assemblies.
7x housing/sprocket/chain sets in auction.
All are model No MS-5016.
Yellow housings measures approx 110mm outer diameter, 62mm inner hole diameter, 85mm wide.
2x Sprockets each 60mm diameter with 15mm centre hole.
270mm length of chain.
New unused stock.

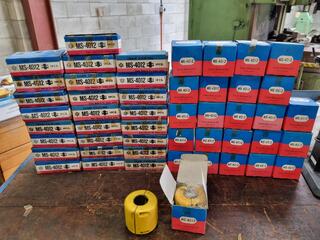

Sanko Chain Coupling Assemblies MS-4012

Skylarc Ref E110058

Sanko Chain Coupling Assemblies.
All are model MS-4012.
Includes:
- 23x new in box yellow housings, 75mm outer diameter, 35mm diameter inner hole, 75mm wide.
- 25x new in boxes Chain & Sprockets sets.
- 1x fully assembled MS-4012 unit with Sprockets and chain within housing.
- 1x unboxed and dirty yellow housing.

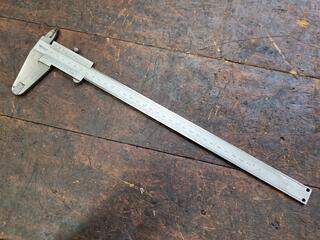

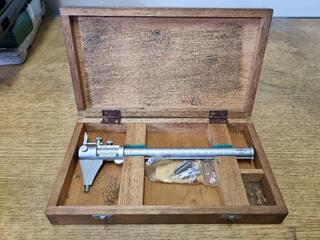

Mitutoyo 500mm Analog Vernier Caliper

Skylarc Ref Q110070

Mitutoyo 500mm Analog Vernier Caliper.
Unknown Code number.
Wood case.

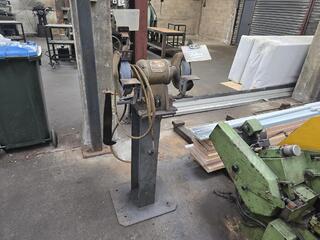

GMF 200 Heavy Duty Pedestal Grinder

Skylarc Ref R154191

GMF 200 Heavy Duty Grinder
Manufactured by Betts Electric Motors Pty Ltd
Double wheel bench grinder configuration
Fitted with protective guards and adjustable tool rests
Grinding wheels installed on both sides
Bench grinder mounted to a steel pedestal stand
Single phase

Manual Sheet Metal Shear Guillotine

Skylarc Ref S154192

Manual sheet metal shear with lever operation.
Mounted on a round metal pedestal base.
Operates with a single cutting blade and a fixed lower bed.
190mm cutting length

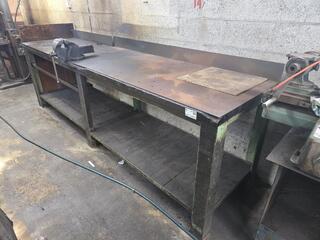

Large Workbench with Vice

Skylarc Ref F170239

Workbench with heavy duty steel frame construction
Approximate worktop height is 990mm
Workbench features metal sheet work surface
Timber beams underlay the worktop
Includes Record No 5 bench vice mounted to the worktop
Bench is equipped with two full-length lower storage shelves
Raised metal edges along the sides and back of the work surface

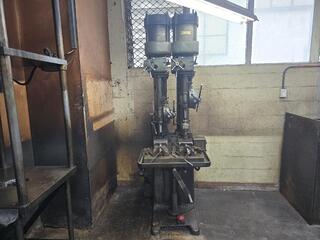

Herbert 2 Head Gang Drill

Skylarc Ref E170238

Manufacturer is Herbert Boring and Drilling Ltd
Each spindle head has an MT3 spindle taper
Table size is 610mm x 390mm
Multiple vices fitted on the table
Spindle speeds 106 - 2850rpm
Auto feeding
News tapping chuck
Three phase
Coolant pump

To see this machine running:
https://youtu.be/NDIuJOt5wJ0

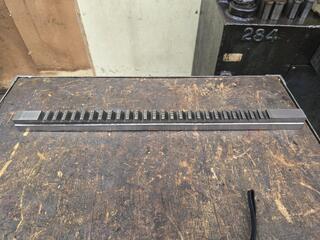

3 x Keyway Broaches

Skylarc Ref X170231

Includes three broaches.
Hassay-Savage HSS USA 12MM IV broach marked 11412.
Hassay-Savage HSS USA 10mm IV broach.
duMONT Minute Man 8MM-C broach Made in USA.
Each broach features cutting teeth for keyway or slotting operations.
All broaches are high speed steel.
Broach sizes are 12mm IV, 10mm IV, and 8MM-C.

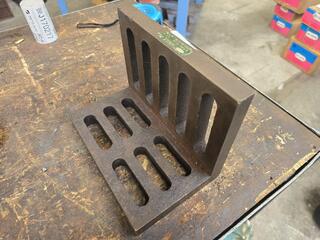

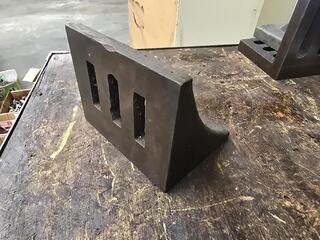

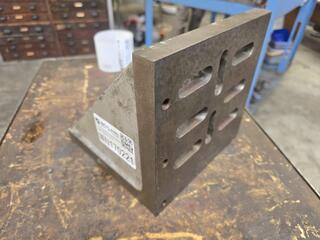

Cast Iron Milling Angle Plate

Skylarc Ref N170221

Cast iron angle plate.
Slotted faces for fixturing and mounting.
Rectangular design with multiple elongated slots.

Machine Vice with 150mm Jaws and Additional 195mm Jaws

Skylarc Ref J170217

Machine vice with 150mm jaws installed
Includes additional 195mm jaws
Manual screw handle operation
Solid metal construction
Flat base for bench or machine mounting
Jaw plates are removable and secured by bolts
No visible manufacturer marking on vice

Large Chuck on Plate

Skylarc Ref I170216

270mm diameter chuck
350mm diameter plate
Several sets of jaws
Previously used on vertical machining center

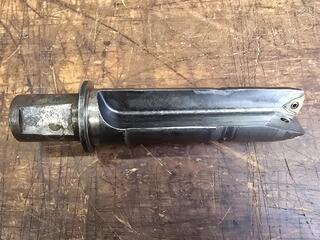

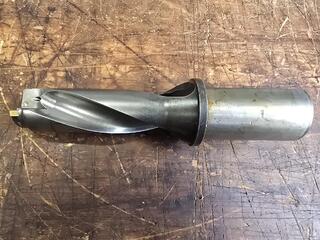

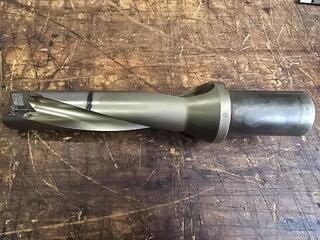

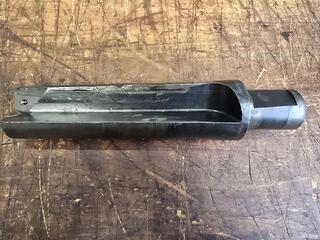

TaeguTec T-DRILL D38 Insert Drill

Skylarc Ref V170203

TaeguTec T-DRILL drill bit
Model D4180-40T2-11
Diameter marked as D38
Carbide insert type drill
Two removable cutting inserts
Coolant holes visible through the body

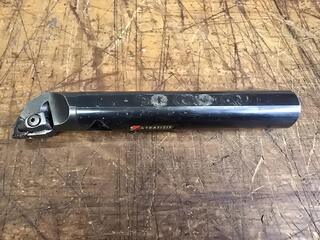

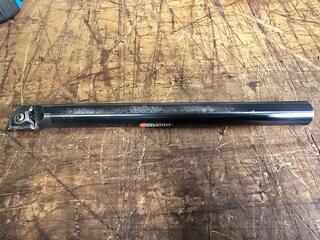

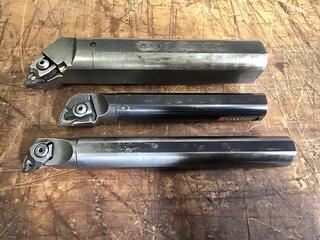

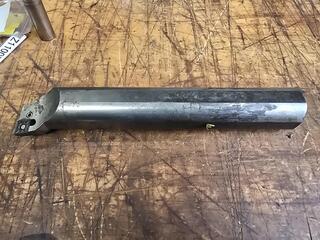

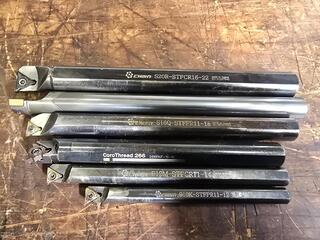

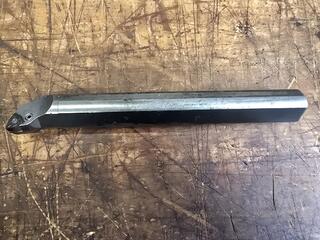

6 x Lathe Boring Bars

Skylarc Ref G170188

Set includes 6 lathe boring bars.
Chain S20R-STFCR16-22 made in Taiwan.
Holder marked E16R-SCLCR 09.
Chain S16Q-STFPR11-18 made in Taiwan.
Sandvik CoroThread 266 266RKF-16-16.
Chain S12M-STFCR11-14 made in Taiwan.
Chain S10K-STFPR11-12 made in Taiwan.
Each bar uses an indexable insert.
Bar markings and models visible in photos.

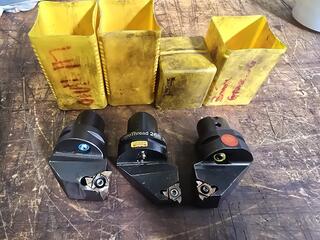

Sandvik CoroThread CNC lathe tools

Skylarc Ref F170187

Three Sandvik CoroThread 266 CNC lathe tools included.
Model numbers visible: C4-266RFC-27050-16 and C4-L166.4FGZ27050-16.
Each tool has an indexable carbide insert installed.

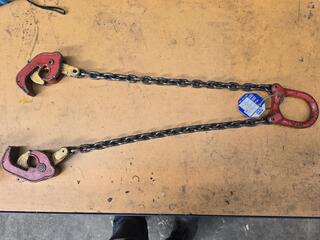

Two Leg Lifting Chain

Skylarc Ref C170184

Two leg chain
Oblong master link marked OV4 yellow
Two red hooks marked B716-8 B701 and SYSMA
Chain links attached to hooks and master link
KIWI TEST inspection tag attached
Tag rated for 2.1 tonne at 90 degrees
Test date 06/24
Next test due 06/25

Workbench with Record No 2 Vice

Skylarc Ref A170182

910mm worktop height
610mm x 1750mm worktop dimensions
Steel frame construction
Wooden top with vinyl cover
Lower wooden shelf for additional storage
Record No 2 metal bench vice mounted on worktop
Vice attached to steel plate at corner of bench
Cross-bracing on frame for stability
Bolted underside with visible hardware

Workbench with Tool Setter

Skylarc Ref Y170180

Steel workbench with worktop dimensions 1500mm by 700mm
Workbench height is 1000mm
Lower shelf constructed from timber planks
Vertex indexer tool setter unit mounted on worktop
Unknown jig fitted at one end of the bench
Steel frame with bolted foot plates for floor mounting
Includes attached fixture with handwheel and tailstock

Gear Pullers Assorted Types and Sizes

Skylarc Ref Q170172

Assorted gear pullers included in set.
One puller arm marked HIT GP-100.
One larger puller arm marked S-P 086115 6E.
Threaded central spindles visible on each puller.

Heavy Duty Industrial Steel Shelving Unit

Skylarc Ref L170167

Heavy duty shelving unit constructed from steel.
Seven shelves made from timber panels supported by a steel frame.
Welded steel construction for main frame and shelf supports.
Rectangular frame design with open sides and back.

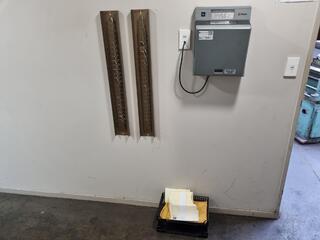

Simplex Centennial Time Recorder w/ Accessories

Skylarc Ref J170061

Simplex Centennial Time Recorder w/ Accessories.
Main unit measures approx 325mm wide, 210mm deep, 395mm high.
Includes 2x wall mounted staff time card holders, each 112mm wide, 900mm tall.
Includes tray of blank staff time cards and user manual.
https://bctimerecorders.com/product/simplex-centennial/

Set of Steel Parallels

Skylarc Ref H170137

Set of steel parallels.
Each parallel is 153mm wide.
Each parallel is 13mm thick.
Set contains four pairs of parallels.
Heights are 25mm, 31.5mm, 38mm, and 44.5mm.
Each parallel has six holes for clamping or mounting.
Supplied in a red plastic storage case.

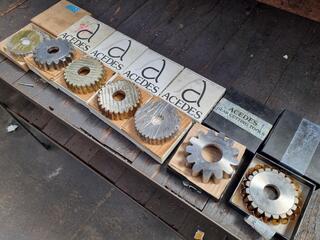

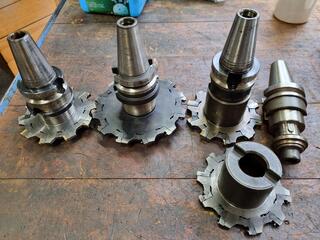

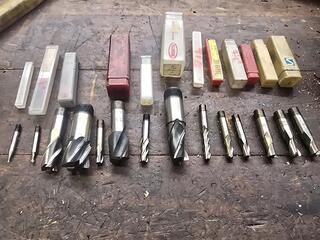

16 milling machine cutters

Skylarc Ref C170132

Carbide milling cutters
All appear to be new

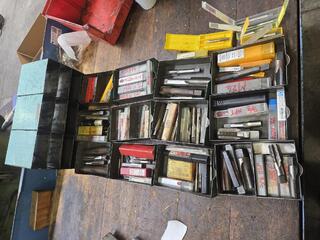

Metal Drawer Set with Assorted Taps and Threading Tools

Skylarc Ref Y170128

Metal drawer set with twelve green drawers labelled for thread types and sizes.
Contents include assorted metric taps such as M25x1.5 M24x1.5 M24x2 M22x1.5 M18x1.5 and M16x1.5.
Drawers labelled for UNF UNC BSP NPT and metric threads.
Assorted BSP taps including 3/8 BSP and 1/2 BSP.
NPT taps present including 3/8 NPT and 1/4 NPT.
UNF and UNC taps visible in multiple sizes such as 5/16-18 UNF-2B.
Brands identified include Dormer Sutton and Somta.
Taps are supplied in original manufacturer cases and loose.
Metal drawer units and tap cases included.

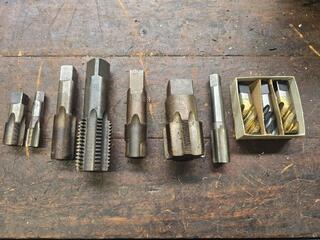

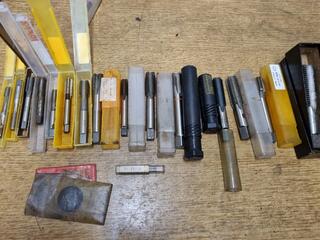

Assorted Large Thread Taps BSP UNF NPT Metric HSS

Skylarc Ref X170127

Lot includes assorted thread taps in various sizes and standards.
Taps include 3/4 BSP Dormer HSS.
Tap marked 1 1/4 UNF.
Tap marked M48x1.5.
Tap marked 1 1/2 NF.
Tap marked 2 inch 11 1/2 NPT LAL England.
Tap marked 1 1/16x12 UNF Garvin.
Three taps marked 3/4 BSPF Blue Merlin HSS Ground England.
Some taps are in a cardboard box.
Materials include high speed steel.
Thread forms present: BSP, UNF, NPT, and metric.

Slotting Cutters and Woodruff Cutters Assorted Set

Skylarc Ref U170124

Assorted T-slot
Multiple cutters are HSS and HSS-Co.
Brands visible include SOMTA and SKF.
Threaded shank cutters of varying diameters and widths.
Cutters include examples marked 7/16 inch HSS, 3/8 inch HSS, DORM 3/16 inch, and 16mm HSS.
Large range of cutter sizes and profiles visible.

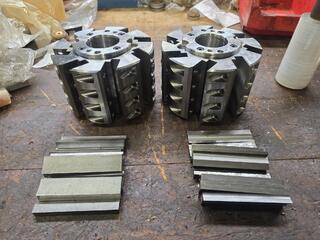

Heavy Duty Cutterheads with Knives

Skylarc Ref S170122

Two heavy duty industrial cutterheads.
165mm diameter
100mm long blades
Each cutterhead is fitted for replaceable straight knives.
Total of 8 removable knives included for each cutterhead.
Knives and cutterheads are marked for position identification.
Cutterheads constructed from metal.
Each cutterhead has a central bore with bolt holes for mounting.
Bolt holes are countersunk for secure attachment.
Knives are straight edged and uniform in dimension.
Knives feature number markings matching slots on cutterheads.

Assorted Industrial Sprockets and Chain Wheels

Skylarc Ref T171423

Large quantity of assorted industrial sprockets and chain wheels
Various sizes and tooth counts observed
Sprockets include both single and double row types
Some sprockets packed in plastic wrapping
Several boxes and containers with additional sprockets and chain wheels
Items include both unused and used components
Mixture of black and metallic finishes
Lot contains a range of diameters and thicknesses

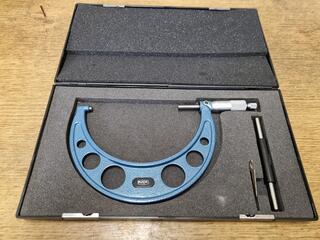

Insize 100-135mm Outside Micrometer 3203-125A

Skylarc Ref G110060

Insize 100-135mm Outside Micrometer.
Code No. 3203-125A.
Plastic case.
Micrometer and accesories in excellent condition. Plastic case exterior shows workshop storage wear.

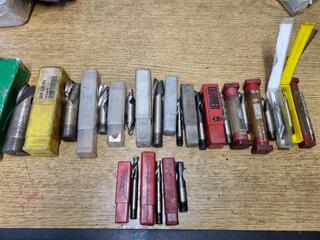

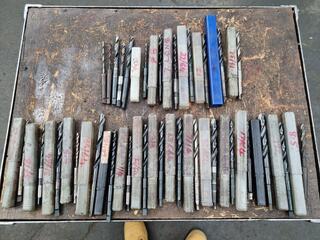

Assorted Small End Mills

Skylarc Ref H170059

Assorted Small End Mills.
Metric and Imperial sizes ranging from 1/8" to 19mm.
See photos for cutting head types included.
Condition varies with each unit.

6x BT40 Tool Holders w/ ER32 Collet Chucks

Skylarc Ref Q110096

6x BT40 Tool Holders w/ ER32 Collet Chucks.
Includes:
- 1x AW branded holder type BT40-ER32-60.
- 1x Rego-Fix Swiss-Line branded holder type BT40/ER32 060 H 4140 13230.03.
- 3x Sandvik Coromant Holders type 392.5 BT40 32 080.
- 1x unknown brand holder with illegible ID markings.
- Rego-Fix ER32 Chuck ring wrench.

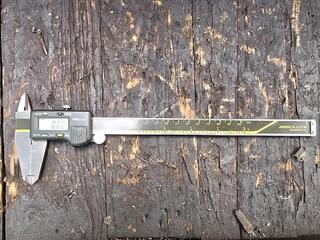

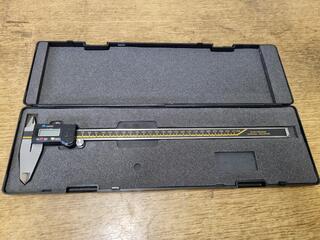

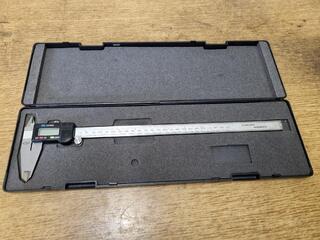

Mitutoyo 200mm Digital Verier Caliper 500-322

Skylarc Ref F110059

Mitutoyo 200mm Digital Verier Caliper.
Code No. 500-322.
Includes plastic case.

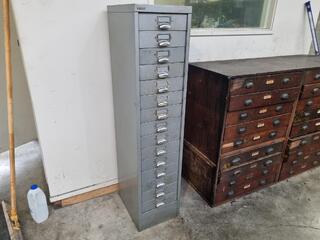

15-Drawer Steel Drawer Cabinet by Harvey

Skylarc Ref E110084

15-Drawer Steel Drawer Cabinet by Harvey.
Non-locking design.
Interior drawer space is approx 355x250x70mm each.
Sturdy older unit in very good condition for its age.

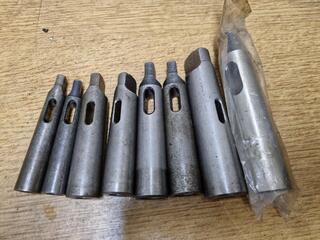

Assorted Morse Taper Drills, Adapters, & Drill Chuck

Skylarc Ref G110086

Assorted Morse Taper Drills, Adapters, & Drill Chuck.
Includes:
- Niraw branded 16mm Keyless chuck with No.2 Tapered Shank and stuck into a No.3 to No.5 adapter.
- 24.5mm drill w/ No.3 Shank.
- 1 25/32" Drill with No.4 shank.
- 1 11/64" Drill with No.3 Shank and a No.3 to No.5 shank adapter.
- 55/64" Drill with No.2 shank and a No.2 to No.4 shank adapter.
- 27/64" Drill with No.1 shank and stuck into two shank adapters a No.2 to No.4 adapter and No4 to No.5 adapter.

Condition varies with each unit.

duMONT Minute Man 20mm-F Broach

Skylarc Ref A170234

duMONT Minute Man broach.
Model 20mm-F.
Made in USA.
Rectangular steel broach with teeth for precision cutting.
Suitable for use in keyway and slotting operations.
Includes storage sleeve.

Hassay-Savage HSS Broaches 14mm 16mm 18mm

Skylarc Ref Y170232

Three broaches included
Brand is Hassay-Savage
Material is high speed steel
Country of manufacture is USA
One broach is marked 14mm IV
One broach is marked 16mm V
One broach is marked 18mm V
All broaches have serrated cutting edges
16mm has broken end

Broaches Hassay Savage and Dumont

Skylarc Ref S170226

Includes four broaches.
Three broaches are Hassay Savage brand.
One broach is Dumont brand.
Hassay Savage broach marked HSS USA 3/16 III missing teeth
Hassay Savage broach marked HSS USA 1/4 III.
Another Hassay Savage broach is present with unclear size marking but measures 7.2mm wide
Dumont broach is marked 3/8 CHS.
All broaches are made from high speed steel.

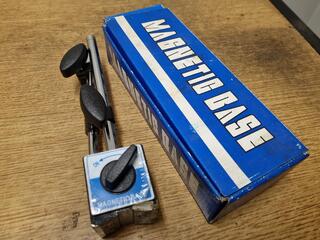

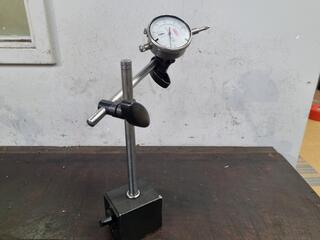

Vertex Dial Indicator w/ Magnetic Base

Skylarc Ref K110090

Vertex Dial Indicator w/ Magnetic Base.
Vertex Dial brand, model number unknown.
0-10mm range.
50mm diameter face.
Includes adjustable magnetic base stand.

Mitutoyo Dial Indicator w/ Magnetic Base

Skylarc Ref L110091

Mitutoyo Dial Indicator w/ Magnetic Base.
Dial Indicator Code No.2046F.
50mm diameter face.
0-10mm range.
Includes adjustable magnetic base.

4x BT40 Tool Holders by Sandvik Coromant & Laip

Skylarc Ref N110093

4x BT40 Tool Holders.
Includes:
- Laip No.0285021600 with attached cutter.
- Sandvik Coromant No.392.5 20-40 ???? (unable to decipher the rest of the ID markings). The black section holding the included cutter is 35mm long, 50mm diameter with a 20mm diameter bore.
- 2x Sandvik Coromant No.392.5 ?? ??? ( also unable to decipher most of the ID markings on both units). Black sections holding included Cutters are 65mm long, 65mm diameter, with 25mm diameter bores.

5x BT40 Type Tool Holders

Skylarc Ref O110094

5x BT40 Type Tool Holders.
Includes:
- 2x unknown brand Holders type BT40-ER16-M16-70L
- 1x Vertex branded holder type BT40ER16-70L
- 2x unknown brand Holders type BT40-ER16-100L-M16.

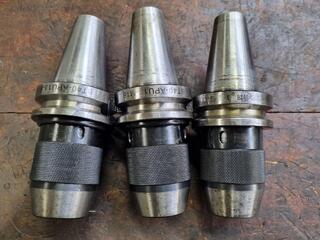

3x BT40 Tool Holders w/ 13mm Keyless Drill Chucks

Skylarc Ref P110095

3x BT40 Tool Holders w/ 13mm Keyless Drill Chucks.
Includes:
- 1x Vertex branded type BT40xCHU13-95
- 2x unknown brand type BT40-APU13-M16

Lathe Chuck on Plate

Skylarc Ref H170215

200mm diameter lathe chuck
TOS 200/3-2-M1
With extra jaws
220mm plate
Previously used on vertical machining center

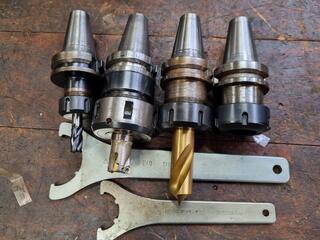

4x BT40 Tool Holders w/ ER25 and ER40 Collet Chucks

Skylarc Ref R110097

4x BT40 Tool Holders w/ ER25 and ER40 Collet Chucks.
Includes:
- Sandvik Coromant ER25 holder, unable to decipher ipher ID markings.
- Laip ER40 holder type 0412010206.
- 2x Rego-Fix Swiss Line holders type BT40/ER40x080.
- 1x Rego-Fix E40 wrench.
- 1x Rego-Fix E25 wrench.

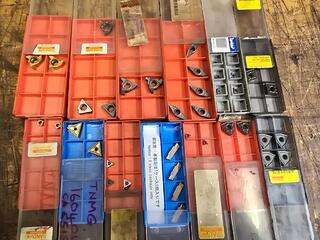

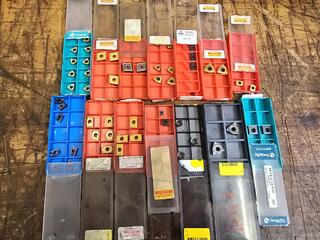

Assorted Indexable Inserts Partial Boxes

Skylarc Ref E170212

Fourteen partial boxes of indexable inserts.
Brands visible include Sandvik, TaeguTec, Kyocera, Carmex, and CoroKey.
Box labels indicate various insert types including CNMG, HCMX, SPMG, and BDMT.
Containers are plastic and include blue, red, yellow, gray, and black cases.
Some containers are marked with inspection or specification labels.
Number of inserts in each box varies and none are full boxes.
Some boxes have a mix of insert shapes including triangular and square types.

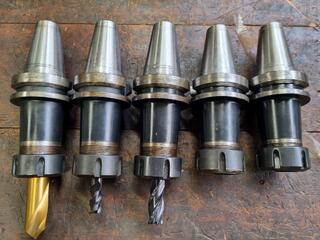

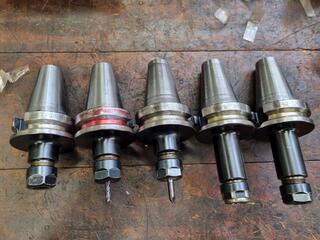

5x BT40 ER32 Collet Chuck Tool Holders

Skylarc Ref T110099

5x BT40 ER32 Collet Chuck Tool Holders.
All are Sandvik Coromant branded.
Unfortunately type markings on all 5 are illegible.
ER32 Collet Chucks.
Black cylinder length to end of threads is approx 65mm.
Includes attached Cutters..

5x BT40 ER32 Collet Chuck Tool Holders

Skylarc Ref S110098

5x BT40 ER32 Collet Chuck Tool Holders.
All are Sandvik Coromant branded.
Unfortunately type markings on all 5 are illegible.
ER32 Collet Chucks.
Black cylinder length to end of threads is approx 65mm.
Includes attached Cutters..

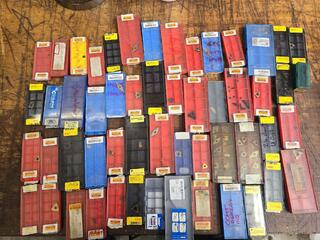

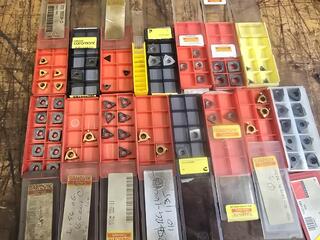

Sandvik Coromant and Korloy Indexable Carbide Inserts Assorted Lot

Skylarc Ref D170211

Assorted lot of indexable carbide inserts.
Brands include Sandvik Coromant and Korloy.
Various types in original plastic storage cases.
Inserts include CNMG, WNMG, LCMX, APKT, and more.

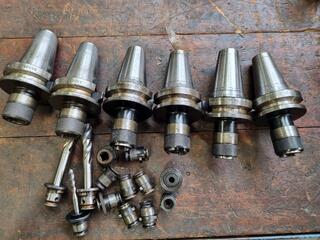

6x BT40 Tool Holders w/ Attachments

Skylarc Ref W170100

6x BT40 Tool Holders w/ Attachments.
Includes:
- 2x Laip holder type No.1912530202.
- 4x unknown brand Holders, all type TH1/BT40.
- Assorted attachments for Holders Chucks, see photos.

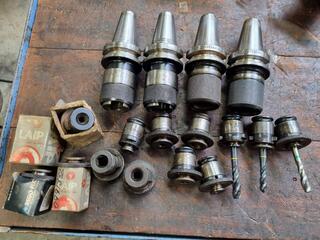

4x BT40 Tool Holders w/ Assorted Chuch Attachments

Skylarc Ref V170099

4x BT40 Tool Holders w/ Assorted Chuch Attachments.
Includes:
- 2x Laip holders type No.1912530203.
- 2x unknown brand Holders type TH2/BT40.
- 14x chuck inserts of various types, see photos.

2x BT40 Tool Holders w/ Indexable Milling Cutters

Skylarc Ref U170098

2x BT40 Tool Holders w/ Indexable Milling Cutters.
Includes:
- Mexin branded holder type 20-160-40-32 with unknown brand 100mm diameter indexable mill cutter type MFWN90100R-7T-M.
- AW branded holder type BT40 FMB27-45 with unknown brand 90mm diameter indexable cutter type MFPX45080R-5T-M.

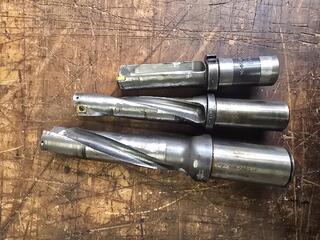

3 x Insert Drills

Skylarc Ref W170204

24mm x 75mm long
24mm x 110mm long
29mm x 115mm long
Sandvik

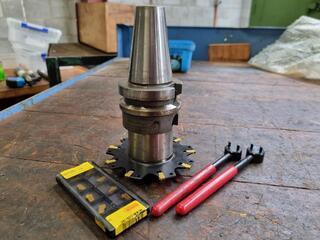

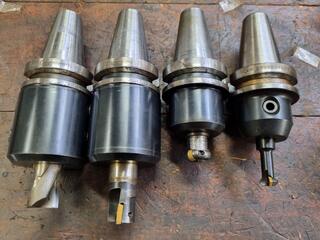

4x BT40 Tool Holders w/ Indexable Mill Cutters

Skylarc Ref T170097

4x BT40 Tool Holders w/ Indexable Mill Cutters.
Includes:
- Mexin brand holder type 20-160-40-32 with Sandvik Coromant Cutter type R331.32-125Q32EM.
- Laip branded holder type 0112020270 with unknown brand/type 120mm diameter indexable cutter.
- Unknown brand holder type E4041 553 4060 with Sandvik Coromant indexable cutter type N331.32-160S40CM.
- Rego-Fix Swiss Design holder type BT40/KFD 32x060 with no cutter attached.
- Sandvik Coromant indexable cutter type R331.32-125Q32CM

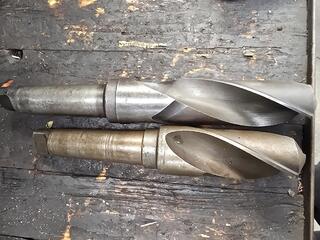

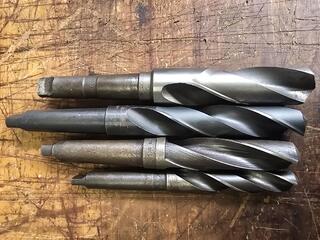

4 x Large HSS Taper Shank Twist Drill Bits

Skylarc Ref U170202

Set includes four taper shank twist drill bits.
31mm, 2 x 1 7/16", 1 21/32".

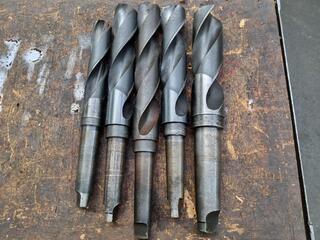

4 x Large HSS Taper Shank Twist Drill Bits

Skylarc Ref S170200

Set includes four taper shank twist drill bits.
45mm, 1 19/64", 32mm, 24.5mm

7x Laip BT40 Morse Taper Drill Holders

Skylarc Ref S170096

7x Laip BT40 Morse Taper Drill Holders.
All are Laip branded.
Includes the following size types:
- 2x No.4 drill shank size holders, type No.0312120250.
- 2x No.3 drill shank size holders, type No.0312120240.
- 1x No.2 drill shank size holders, type No.0312120230.
- 2x No.1 drill shank size holders, type No.0312120220.

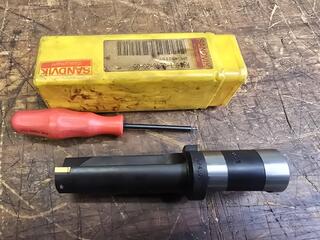

Sandvik Insert Drill

Skylarc Ref P170197

Sandvik Coromant Insert Drill R416.1-0240-020-05
D24.0 diameter
Includes original yellow Sandvik plastic case

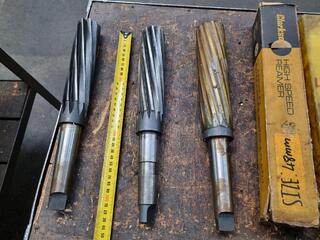

3x Morse Taper Reamers, 43mm, 45mm, & 48mm Sizes

Skylarc Ref Z170077

3x Morse Taper Reamers.
43mm Clarkson brand reamer, 200mm long cutting length.
45mm unkmown brand reamer, 195mm cutting length.
48mm Clarkson branded reamer 210mm long cutting length. With original box and wax coating.
All have Morse Taper No.4 Shanks.

3x Morse Taper Reamers, 40mm, 48mm & 2-inch Sizes

Skylarc Ref Y170076

3x Morse Taper Reamers.
Unable to read ID markings on all units, sizes hand written on protective plastic sleeves.
All have Morse Taper No.4 Shanks.
40mm diameter with 180mm long cutting head.
48mm diameter with 210mm long cutting head.
2-inch diameter with 205mm cutting head length.
Well maintained units.

11x Morse Taper Reamers, Imperial Sizes

Skylarc Ref X170075

11x Morse Taper Reamers, Imperial Sizes.
Sizes range from 5/8" up to 1 7/16".
Tapered shank sizes include No.2, No.3, and No.4.
Condition varies with each unit.

14x Morse Taper Reamers, Metric Sizes

Skylarc Ref W170074

14x Morse Taper Reamers.
Tapered shank sizes include No.2, No.3, and No.4.
Metric cutter diameters range from 15mm to 34mm.
Condition varies with each reamer, though all generally well maintained and oiled.

5x Morse Taper Drills, large Metric Sizes

Skylarc Ref V170073

5x Morse Taper Drills, large Metric Sizes.
Sizes include 36mm, 44mm, 44.5mm, 47mm, and 55mm.
55mm drill has No.5 size shank, all others have No.4 Shanks.
Condition varies between each drill.

12x Morse Taper Drills, Imperial Sizes

Skylarc Ref T170071

12x Morse Taper Drills, Imperial Sizes.
Diameters range from 3/8" to 1 29/64".
Tapered shank sizes include No.1, No.2, No.3, and No.4..
Condition varies with each drill.

30x Reamers, Metric & Imperial Sizes

Skylarc Ref S170070

30x Reamers, Metric & Imperial Sizes.
Sizes range from 4mm to 26mm.
Taperd shanks and straight shank versions
Tapered Shanks include No.1 a d No.2 sizes.
Condition varies with each reamer.

29x Morse Taper No.1 Drills, Metric & Imperial Sizes

Skylarc Ref R170069

29x Morse Taper No.1 Drills, Metric & Imperial Sizes.
Sizes range from 5/32" to 14mm.
Condition varies with each drill. Most appear in excellent condition with others showing more moderate usage.
All have No.1 Tapered Shanks.

7 Taper Shank Drills

Skylarc Ref P170145

Set of large drill bits.
Includes sizes 17.5mm, 17.5mm, 18.5mm, 57/64 inch, 25mm,, 21/32 inch, and 53/64 inch.
Twist drill bit style.
Tapered shank design.

Taper Shank Drill Bits

Skylarc Ref L170141

Sizes included are 25.0mm, 26.0mm, 17.0mm, 17.5mm, 19.25mm, 3/4 inch, 57/64 inch, and 9.6mm.
Bits have morse taper shanks.
Visible markings include HSS and brand SONTA on one bit.
All bits shown in images are included in the listing.

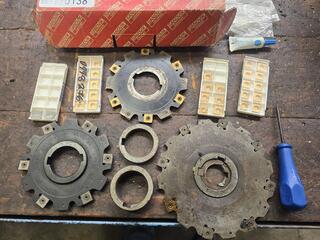

Seco Indexable Milling Cutters and Inserts

Skylarc Ref I170138

Set includes one 160mm indexable milling cutter.
Set includes two 125mm indexable milling cutters.
Includes multiple Seco indexable carbide inserts in storage boxes.
Insert trays are marked T25M.
Includes one blue handled screwdriver.
Sandvik Coromant packaging included.
Three circular metal spacers are included.
All components visible in supplied images are included.

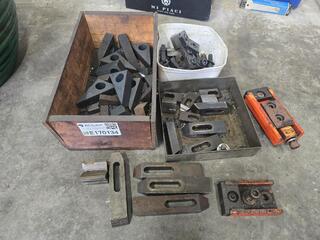

Assorted Mill Clamping Fixtures

Skylarc Ref E170134

Carver England No 175 machine clamp included
Assorted step clamps present
Several toothed clamping wedges included
Various T-slot blocks included
Assorted clamping bolts and fasteners included
Multiple sizes and shapes of clamping components
Includes wooden and metal storage trays
All components shown in photos are included

Assorted HSS End Mills and Milling Cutters

Skylarc Ref D170133

Lot includes multiple high speed steel end mills and milling cutters.
Brands marked include Sutton Australia and SUS.
Variety of shank diameters and flute styles present.
Various original plastic storage cases included.

Large Lot of Tooling

Skylarc Ref B170131

Various carbide and other end mills
Taps
Drills

Assorted HSS End Mills and Slot Drills Lot

Skylarc Ref A170130

Lot includes assorted HSS end mills and slot drills.
Various sizes and thread types visible.
Brands include SOMTA and others.
Sizes marked include 28mm HSS, 17mm HSS-Co8, and others.
Both large and small cutters included in the lot.
Qty and full details as pictured.

Milling Cutters and End Mills Assortment

Skylarc Ref V170125

Assorted milling cutters and end mills set.
Bullnose, Rounding, plain and more

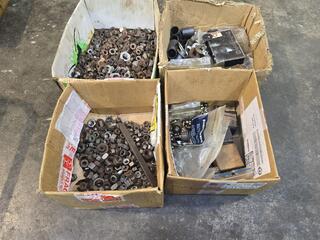

Mixed Lot of Fasteners Springs Fittings and Workshop Parts

Skylarc Ref R170121

Assorted hex bolts in various sizes and finishes.
Selection of socket head cap screws in boxes.
Multiple compression and extension springs.
Collection of pipe fittings including elbows and tees.
Industrial air regulator with attached gauges.
Mixed washers and nuts.
Fasteners in plastic bags and boxes.
Clamps and mounting brackets.

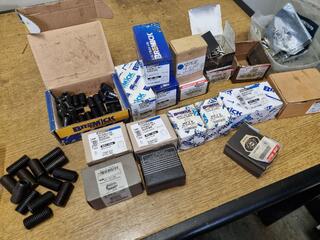

Boxes labeled Bremick Fasteners contain black oxide fasteners.
Various drill bits and metal rods.
Plastic containers and trays included.
Assorted brass screws in a red container.
Rubber O-rings and seals.

7x Gear Cutters by Acedes

Skylarc Ref J170243

Set of 7 gear cutters by Acedes.
One cutter marked 5/8 inch pitch 0.400 inch roller diameter ASP2023 20 teeth in cutter BSS REF 12/54/0502.
One cutter marked Acedes Gear Tools 104/31.
One cutter marked Acedes 102/5927 E2 2728 stock number 104145.
One cutter marked 0.625 inch R 85 228 Sprocket NON TPG 12 teeth.
One cutter marked Acedes 104/29 34 teeth 0.2400 inch CD.
One cutter marked 25 teeth 0.2700 inch CD 0.375 inch roller BS228 Sprocket NON TPG.
One cutter marked Acedes 104/33 17 teeth 0.4220 inch CD.
Manufactured by Acedes Gear Tools, England.
Cutters are either new and unused with original wax coating, or unwaxed but appear unused, see photos.

5x Rego-Fix Swiss Line BT40 Morse Taper Drill Holders

Skylarc Ref R170095

5x Rego-Fix Swiss Line BT40 Morse Taper Drill Holders.
All are Rego-Fix Swiss Line branded.
Includes the following sizes:
- 4x No1 shank Holders, type No.BT40/MK1x050.
- 1x No.2 shank Holder, type No.BT40/MK2x050.

5x Rego-Fix Swiss Line BT40 Morse Taper Drill Holders

Skylarc Ref Q170094

5x Rego-Fix Swiss Line BT40 Morse Taper Drill Holders.
All are Rego-Fix Swiss Line branded.
Includes the following sizes:
- 4x No1 shank Holders, type No.BT40/MK1x050.
- 1x No.2 shank Holder, type No.BT40/MK2x050.

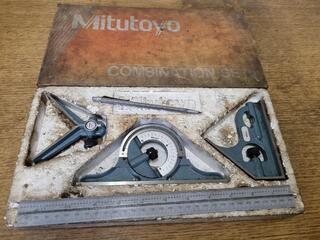

Mitutoyo Combination Square Set 180-907

Skylarc Ref J110063

Mitutoyo Combination Square Set.
Set Code No. 180-907.
Includes parts 180-102, 180-202, 180-301, and 180-503.
300mm long scale bar.

3x Somta 18mm Roughing Flat Sink Endmills. New

Skylarc Ref P170067

3x Somta 18mm Roughing Flat Sink Endmills.
HSS-Co8
All are part No.3321800A.
90mm lengths.
All are still new in factory Sealed packaging.

Assorted Thread Taps

Skylarc Ref G170058

Assorted thread taps.
Multiple sizes and thread formats present.
Includes various brands such as Sutton and Dormer.
Some taps are in labeled plastic cases.
Several taps are loose without cases.
Condition varies greatly with each item.

Assorted End Mills

Skylarc Ref E170056

Assorted lot of threaded shank slot drills and end mills.
Brands include Dormer and Sutton.
Metric and Imperial sizes.
Some tools are in original manufacturer packaging.
All tools have threaded shanks.
See photos for included items.
Condition varies with each unit.

Mitutoyo 150mm Universal Vernier Caliper 190-102

Skylarc Ref K110064

Mitutoyo 150mm Universal Vernier Caliper.
Code No. 190-102.
Made in Japan.
Wood case.
Case is missing lid latches.

MeasumaX MX 125-150mm Outside Micrometer 12-316

Skylarc Ref L110065

MeasumaX MX 125-150mm Outside Micrometer.
Model No.12-316.
Micrometer and accessories in excellent condition. Plastic case exterior shows workshop storage wear.

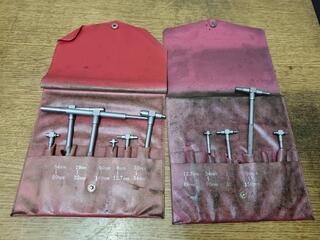

Mitutoyo Telescopic Gauge Sets 155-905

Skylarc Ref V110075

Mitutoyo Telescopic Gauge Sets.
Both are Vode No.155-905.
One set has all sizes including AA, A, B, C, D, and E.
Second set includes sizes AA, A, B, and C. Sizes D and E are missing.
Cases show workshop storage wear and fading.

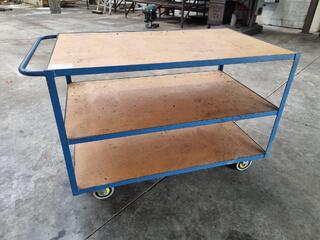

Mobile Table Tray Trolley

Skylarc Ref H110087

Mobile Table Tray Trolley.
25x25mm angle steel frame with MDF shelves
Vertical shelf spacing 250mm.
100mm diameter castors.
Appears to be a newer unit.

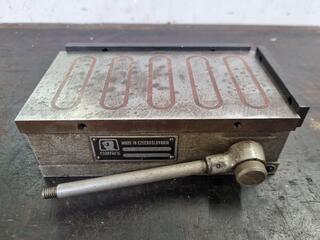

Narex Magnetic Chuck

Skylarc Ref M110092

Narex Magnetic Chuck.
200x110x62mm size.
Functions as normal.

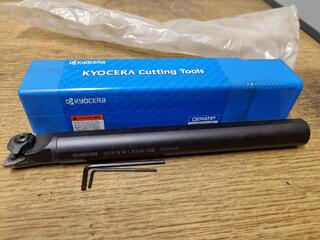

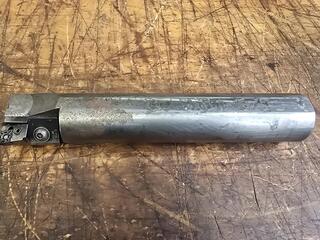

Assorted Lathe Turning, Grooving, Boring Tools

Skylarc Ref M170064

Assorted Lathe Turning, Grooving, Boring Tools.
Includes:
- Kyocera Radius tool type PRXCR2525M-10, includes 3x spare inserts, hex keys, and box.
- Sandvik Coromant 180mm long boring bar type R166.0KF-20-22, with non-original case.
- Sandvik Coromant 140mm long turning tool type R166.0FG-2525-22, with case.
- Unknown brand 150mm long turning tool type PCLNR 2525M12.
- Sandvik Coromant Grooving Tool holder that has been cut shorter, partial type number visible is 5412 1 0-02.
- Sandvik Coromant 150mm long Grooving bar type 151.2-25-50, with case.
- Sandvik Coromant 150mm long Grooving bar type 151.2-25-30, with case.

Condition varies with each item

Assorted Spiral Flute Taps

Skylarc Ref F170057

Assorted Spiral Flute Taps.
Assorted sizes and types see photos.
Condition varies greatly with each unit, some appear as new, others show varying levels of use.

5x Large Diameter Thread Taps

Skylarc Ref C170054

5x Large Diameter Thread Taps.
- 2" x 8 UNS L/H
- 1 1/2" UNF
- 1 1/4" BSW
- 1 3/8" BSF
- unable to see ID markings on 5th tap.

Condition varies with each tap.

Mitutoyo Vintage Imperial Depth Gauge Set

Skylarc Ref O110068

Mitutoyo Vintage Imperial Depth Gauge Set.
Unable to read old label on side of case so Code number is unkmown.
Attachment rods range from 125mm to 230mm in length.
Old wood case is missing latches.

Insize Metric Telescoping Gauge Set

Skylarc Ref W110076

Insize Metric Telescoping Gauge Set.
8mm to 150mm range.
Includes gauges number A, B, C, D, and F. Gauge E is missing.

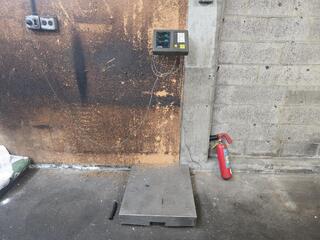

Seraoha Digi Combi Floor Scale

Skylarc Ref W154196

Seraoha Digi Combi digital floor scale
Base dimensions are 700mm by 600mm
Indicator panel with membrane keypad and numeric display
Displays weight in kilograms
Includes zero tare and memory functions
On off and function buttons on panel
Wired connection between base and indicator

Mitutoyo 300mm Analog Vernier Caliper

Skylarc Ref Y110078

Mitutoyo 300mm Analog Vernier Caliper.
Made in Japan.
Code number unknown.
Stainless Steel.
Total tool length 403mm when closed.

Mitutoyo 300mm Analog Vernier Caliper

Skylarc Ref Z110079

Mitutoyo 300mm Analog Vernier Caliper.
Made in Japan.
Code number unknown.
Stainless Steel.
Total tool length 403mm when closed.
Bottom depth gauge bar is missing, see photos.

Mitutoyo 300mm Analog Vernier Caliper

Skylarc Ref A110080

Mitutoyo 300mm Analog Vernier Caliper.
Made in Japan.
Code number unknown.
Stainless Steel.
Total tool length 403mm when closed.

Magnetic Adjustable Base Stand for Dial Indicators

Skylarc Ref B110081

Magnetic Adjustable Base Stand for Dial Indicators.
Unknown brand/model.
230mm height.
Appears unused.
Magnetic functions operate.

duMONT 22mm Metric Keyway Broach

Skylarc Ref C170236

Dumont 22mm metric keyway broach.

Hassay Savage Keyway Broach

Skylarc Ref Z170233

Hassay Savage 1" IV Keyway Broach

Hassay-Savage and duMONT Keyway Broaches

Skylarc Ref W170230

Set of five keyway broaches.
Three broaches are marked as Hassay-Savage HSS U.S.A. 5mm III, Hassay-Savage HSS U.S.A. 6mm III, and Hassay-Savage HSS U.S.A. 7MM-111.
Two broaches are marked as duMONT 4MM-B-1 H.S. and duMONT 5MM-B-1 H.S.
Material is high speed steel.
Sizes included are 4mm, 5mm, 6mm, and 7mm.

22mm Keyway Broach

Skylarc Ref V170229

Unknown brand
22mm keyway broach
High speed steel

Hassay Savage HSS Broaches 3/4" and 5/8"

Skylarc Ref U170228

Includes two broaches
Broach 1 marked HSS U S A 3/4 V
Broach 2 marked HSS U S A 5/8 V
High speed steel construction
Made in U S A

Keyway Broach Set HSS Hassay Savage and Dumont

Skylarc Ref T170227

Three keyway broaches included in this set.
One marked HASSAY SAVAGE HSS USA 3/8 IV.
One marked DUMONT 7/16 D HSS MADE IN USA.
One marked HASSAY SAVAGE HSS USA 1/2 IV.
Material is high speed steel.

Heavy Duty Vintage Workbench Table

Skylarc Ref I110088

Heavy Duty Vintage Workbench Table.
100x75x9mm angle steel corner legs and long side frame.
Wood board lower shelf.
Wood board upper surface with 2mm sheet sterl top.
Old but sturdy unit.

Broach Set Hassay Savage Steelmans

Skylarc Ref R170225

Broach set includes five broaches.
One broach marked MONTV 1/8-B H.S.
One broach marked HASSAY SAVAGE 3/16-II 10212 U.S.A.
One broach marked Steelmans size 5/32-B.
One broach marked HASSAY SAVAGE HSS U.S.A. 2mm.
One broach marked HASSAY SAVAGE 3mm-I 11103 U.S.A.
Plastic protective tubes included for storage.

Small Milling Machine Angle Plate

Skylarc Ref L170219

156mm x 156mm x 156mm cast angle plate
With mounting bolts

Small Milling Machine Angle Plate

Skylarc Ref K170218

Size 8 inch
Type No. 1
Stock No. E-148
Multiple elongated slots on each face
Green identification label on side

Selection of Collets Various Sizes and Brands

Skylarc Ref G170214

Assorted collets in various sizes.
Both metric and imperial sizes visible in images.
ER16, 32 and 40 collets
Includes collets in plastic cases and cardboard boxes.
Multiple brands visible in images including Regofix.
Some containers are labeled with sizes such as 10, 12, 16, 20, and 35.

Assorted Workshop Hand Tools and Winstar ITX06 Torque Driver

Skylarc Ref F170213

Assorted hand tools including screwdrivers, hex keys, and files are included.
Several spanners and wrenches are present, including a Toptul 25mm spanner.
Multiple handles with T-grip and L-grip designs are included.
Winstar ITX06 torque driver is included with 0.6 Nm, 6.0 kgfcm, 5.3 in-lb rating.
Various hand files and rasps are present.
Several branded screwdrivers, including SHAVIV and Wiha, are included.
Metal and plastic handle hand tools are present.
Hand deburring tools are included.
A square and angle ruler are present.
A lamp with magnifier is visible among the items.
The listing contains only the tools and items visible in the photos.

Assorted Indexable Carbide Inserts

Skylarc Ref C170210

Collection of indexable carbide inserts in multiple plastic cases.
Brands present include Sandvik Coromant Kyocera and Iscar.
Shapes include triangular diamond and square inserts.

Assorted Indexable Carbide Inserts

Skylarc Ref B170209

Lot includes multiple indexable carbide inserts.
Brands visible include Sandvik Coromant, Mitsubishi Carbide, Pramet, and Widia.
Various shapes present including triangular and square inserts.

Large Insert Drill

Skylarc Ref Z170207

46mm diameter
Coolant channels
Unknown manufacturer

Large Insert Drill

Skylarc Ref Y170206

55mm diameter
Coolant channels
Unknown manufacturer

Large Insert Drill

Skylarc Ref X170205

Unknown brand
34mm cutting diameter
Coolant channels

HSS Taper Shank Twist Drill Bits

Skylarc Ref R170199

12 drill bits
15/16", 39/64", 7/8", 31/64", 13/32", 12mm, 11mm, 11/32", 29/64", 7/16", 1/2"

Live Centers NK-MT.3B and 1MT Live Lathe Centre

Skylarc Ref Q170198

Live Center model NK-MT.3B in wooden storage box
1MT Live Lathe Centre in original box
Skoda K29C live centre in box

CERATIZIT Lathe Turning Tool

Skylarc Ref O170196

Brand CERATIZIT
Model S32U-DWLNR 08
Turning tool for lathe applications
Steel shank
Indexable insert type
Engraved number 1032345919/30 on tool body
Insert and screw included

Large Boring Bar

Skylarc Ref N170195

Lathe Boring Bar
marked PCLNR 16CA-12.
60mm diameter
Carbide insert installed in toolholder.
Steel shank with round profile and machined flat.

Shan Gin Lathe Boring Bar

Skylarc Ref M170194

Brand is Shan Gin
Model is S32T-STFCR-16
Lathe boring bar
Tool holder has indexable carbide insert attached
65mm diameter

S50M-PCLNR 16 Lathe Boring Bar

Skylarc Ref K170192

S50M-PCLNR 16 lathe boring bar
50mm diameter
Tool holder suitable for indexable insert

Rego-Fix Swiss Design BT40 Tool Holder w/ Indexable Cutter

Skylarc Ref O170092

Rego-Fix Swiss Design BT40 Tool Holder type No.BT40/KFD 32x060.
Includes attached Sandvik Coromant indexable cutter, unknown type number, 100mm diameter.
Includes a 10-piece pack of extra as new Sandvik Coromant inserts type N151.2-250-5E, 2135.
Includes 2x insert removal tools.

Sandvik Coromant Boring Bar

Skylarc Ref J170191

Sandvik Coromant Boring Bar
Model S40V-PCLNR 12
T-Max P series marking visible
40mm diameter

Ceratizit S25T-DWLNR 08 Lathe Boring Bar

Skylarc Ref I170190

Ceratizit S25T-DWLNR 08 lathe boring bar
CNC insert toolholder type
Visible product code 1023299456124
Designed for use with replaceable carbide inserts

3 x Lathe Boring Bars

Skylarc Ref H170189

Lot of 3 boring bars.
Two boring bars have 25mm diameter.
One boring bar has 40mm diameter.
Ceratizit bar model S25T DWLNR 08.
Kyocera bar model S25S WWLNR08-28E.
All bars have been shortened.

Two Leg Chain Sling with Hooks

Skylarc Ref D170185

Two leg chain sling with attached hooks
Working load limit 1 tonne at 90 degrees.
Each leg length is 500mm.
Large master link at the top for lifting connection.
Fitted with inspection and test tag.
Test tag indicates ID TE02.
Test date 06/2024.
Next test due 06/2025.

Workshop Parts Angled Washing Basin

Skylarc Ref H170085

Workshop Parts Angled Washing Basin.
Appears custom built.
Top basin is approx 1010x505mm and approx 150mm deep.
30x30mm angle steel frame.
See photos for design/type details.

Mitutoyo 300mm Analog Vernier Caliper

Skylarc Ref E170082

Mitutoyo 300mm Analog Vernier Caliper.
Made in Japan.
Code number unknown.
Stainless Steel.
Total tool length 403mm when closed.
Plate at end to hold depth gauge down is missing, see photos.

Dremel Model 732 Heavy-Duty Flex Shaft Tool with Variable Speed Control

Skylarc Ref W170178

Dremel Model 732 heavy-duty flex shaft tool
240V AC 25-60Hz 1A 22,000RPM
Double insulated motor
Made in USA by Dremel, Racine, WI
Includes Dremel Model 221 variable speed control pedal
Variable speed control is rated at 240V AC 3A
Input wattage for control pedal is 560W
Pedal is compatible with Dremel Models 276 and 732
Includes flexible drive shaft assembly
Includes handpiece labeled 236
Includes selection of rotary burrs and a wrench

Lot of 19 Pliers

Skylarc Ref V170177

Contains 19 individual tools.
Includes multiple pairs of circlip
Includes external and circlip
Some tools are marked Knipex.
Some tools are marked Facom.
Variety of shapes and sizes included.
Suitable for circlip and snap ring applications.
All items shown in photos are included.

Mixed Spanner and Vice Grips

Skylarc Ref U170176

Includes open end and combination spanners.
Brands include Sidchrome Eagle Brand Aigo Ikeda Stabil Fuller and Chrome Vanadium.
Sizes range from 5/16 inch to 1 1/8 inch and metric equivalents.
Both metric and imperial sizes are present.
Most spanners are steel construction.
Some spanners are ring and open ended.

Assorted Large Spanners

Skylarc Ref T170175

10 combination spanners.
Most spanners are Stahlwille brand.
Mainly Imperial sizes

Tohnichi 1800QL Torque Wrench and Sockets

Skylarc Ref N170169

Tohnichi 1800QL torque wrench included
Torque adjustment dial present 1/2" drive
Assorted sockets, mainly 1/2" drive
Strong arm
Extension bar

Harris Roller Chain Sprocket Cutters

Skylarc Ref I170164

Set of three Harris roller chain sprocket cutters
Each cutter is marked Made in England
Markings include Harris L2577 and Harris L2575
Each cutter has keyway slot
Material marked as HSS
Each cutter marked with respective Harris part numbers

Mixed Steel Engineering Fasteners and Bolts Bulk Lot

Skylarc Ref H170163

Bulk lot of steel fasteners
Includes cap screws and grub screws

Mixed Lot of Split Pins and Cotter Pins

Skylarc Ref D170159

Two boxes containing a mixed lot of metal split pins and cotter pins.
Various sizes included.

11x Morse Taper Drills, Metric Sizes

Skylarc Ref U170072

11x Morse Taper Drills, Metric Sizes.
Drill diameters range from 7.5mm to 27.5mm.
Tapered shank sizes include No.1, No.2, and No.3.
Condition varies with each drill.

Mixed Spanners and Hand Tools Assortment

Skylarc Ref Z170155

Assortment of open end and combination spanners shown.
Brands visible include AIGO, JBE, IKEDA, ETC-Industrial, and others.
Two locking pliers included, one marked Made in U.S.A. and another unmarked.
One adjustable slip joint plier with green handle included.
One round bar tool included.
All items shown in images are included in the lot.
Some tools marked Japan and West Germany.

Assorted Hammers and Mallet Set

Skylarc Ref W170152

Assorted ball peen, sledge and other hammers

Mixed Set of Taper Shank Drill Bits

Skylarc Ref S170148

Set includes eight taper shank drill bits.
Sizes include 19.0mm, 18.5mm, 15mm, 41/64 inch, 53/64 inch, 17/32 inch, 25/64 inch, 25/64 inch, and 7/16 inch.
Material is steel.
Shank style is taper shank.
Drill bits have spiral flutes.
Some sizes are marked in metric and some in imperial units.

Set of Large HSS Taper Shank Drill Bits

Skylarc Ref R170147

Set includes 8 taper shank drill bits.

Small taper shank drills

Skylarc Ref Q170146

18 total
Metric and imperial sizes

Set of 11 Taper Shank HSS Twist Drill Bits

Skylarc Ref O170144

Set of 11 taper shank twist drill bits
Sizes include 9/16 inch, 18.0 mm, 3/4 inch, 31/32 inch, 15 mm, 39/64 inch, 31/64", 9 mm, 1/2 inch, 5.9 mm
High speed steel construction on marked bits
Twist drill design

Mixed Twist Drill Bits Set

Skylarc Ref N170143

Mixed set of twist drill bits.
Various sizes included in the set.
Some long series and taper shank

Assorted Machine Taps and Thread Cutting Tools

Skylarc Ref M170142

Lot includes multiple machine taps and thread cutting tools.
Brands visible include Schumacher Gühring Dormer Power Tap and Jflex Plus.
Assorted sizes
Material markings include HSS and HSSE.
Some tools feature spiral flutes and some feature straight flutes.
Comes with individual plastic cases for several taps.
Various flute designs and surface finishes are present.
Sizes and specifications are as marked on tap bodies.
Items are shown on workbench with clear

Box of Milling Adapters

Skylarc Ref K170140

Assorted adapter plates and screws

Assorted Threaded Shank End Mills and Milling Cutters

Skylarc Ref J170139

Lot of assorted threaded shank end mills and milling cutters.
Multiple manufacturers including SOMTA and Sutton.
Various sizes including 30mm SOMTA HSS, 1 inch HSS, 7/8 inch HSS, 3/8 inch HSS.

Assorted End Mills and Drill Bits Lot

Skylarc Ref Z170129

Lot includes a variety of end mills and drill bits.
Several end mills with different diameters and cutting profiles.
Drill bits in multiple sizes.
Some tools are stored in protective plastic holders.
Round red holder included with several countersinks.
Various manufacturers and specifications present.
Cutting tools carbide and HSS types.
Total quantity as shown in images.

Metal Drawer Cabinet and Assorted Thread Taps

Skylarc Ref W170126

Metal drawer cabinet with 15 drawers.
Cabinet is steel construction.
Each drawer features a tabbed handle.
Cabinet has visible surface rust and wear.
Assortment of 16 thread taps included.
Tap sizes marked include 7/8 W9 LH, 1/2-20 UNF LH, 1-1/16 UNF LH, 7/8-9 LH, 5/8 BS, 1/2 BS, M20L SKF, 1/2-13 UNC, and others.
Taps include both metric and imperial sizes.
Tap manufacturers include PRESTO and BSW.
Some taps are marked LEFT HAND and HSS.
Cabinet dimensions not specified.
Drawer interiors shown in photos.

Assorted Thread Files & Gauges

Skylarc Ref B170053

Assortment includes multiple thread pitch gauges and screw thread restorers.
Brands include Moore & Wright Sheffield England 801, Mitutoyo No.186-105, Insize, and Fuji Tool.
Insize gauge is marked 0.4-7.0mm Metric 60 degrees Code 4820-122.
Mitutoyo gauge is marked No.186-105 Made in Japan.
Moore & Wright gauge is marked 801 Sheffield England.
One gauge is marked Whitworth 55 degrees.
Fuji Tool gauge is marked Modul-MP 20 degrees Made in Japan.
Two screw thread restorers are marked Whit & B.S.F. with multiple thread sizes indicated on each end.
Various metal and plastic gauge leaves for measuring thread pitch and profile are included.

Assorted Thread Taps

Skylarc Ref A170052

Lot includes multiple thread taps in a range of sizes.
Some taps are stored in original plastic cases.
Contains both metric and imperial taps.
Items appear to include a mix of new and used tools.

LG 24" IPS Monitor

Skylarc Ref W170048

LG 24" IPS Monitor.
Model No.24EB23PY.
Manufactured May 2013.
1920x1200 resolution.
D-Sub, DVI, and DisplayPort inputs.
Includes power cord and D-Sub cables.
Dirty surfaces from Workshop office usage.
Note that shipping is not available for this item from this location.
https://www.lg.com/nz/monitors/24eb23py/

Wanner Grease Gun with Pressure Gauge

Skylarc Ref N170117

Wanner branded grease gun.
Handle is marked with Wanner and Made by Abnox Switzerland.
Fitted with a pressure gauge.
Pressure gauge displays up to 5000 psi and 350 bar.
Includes flexible hose with coupler.
Manual lever operation.
Cylindrical black body with metal handle and fittings.

Kinik and Noritake Grinding Wheels Assortment

Skylarc Ref L170115

Assorted grinding wheels included.
Three Kinik grinding wheels 1A 125x13x19.05 WA 60 K V CYVX10003 2203300001.
Maximum speed for Kinik 125 mm wheels is 5093 RPM 33 m/s.
One Kinik grinding wheel 1A 205x25x31.75 WA 60 K V CYVX53032 1911080001.
Maximum speed for Kinik 205 mm wheel is 3540 RPM 38 m/s.
One Noritake grinding wheel ADR999 180.0x25.0x31.75 mm.
Noritake abrasive grit size GC 60 J 8 structure.
Noritake bond V81R shape 5.
Maximum operating speed for Noritake wheel is 2000 m/min.
Kinik wheels manufactured in Taiwan.
Noritake wheel manufactured in Japan.
www.kinik.com.tw for Kinik specifications.
Manufacturing number for Noritake wheel is 6334030.

35mm x 630mm Steel Rods with THK LM35UU Linear Bushes

Skylarc Ref K170114

Includes 35mm diameter steel rods.
Rod length is 630mm.
Set contains four THK LM35UU linear bush bearings.
Linear bush bearings are made by THK CO LTD in Japan.
Bushings are identified as LM35UU model.
Rods and linear bushings are supplied in a cardboard box.

Ullrich Aluminium Step Ladder

Skylarc Ref F170109

Ullrich Aluminium step ladder
Constructed from aluminium
Manufactured in New Zealand
A-frame design
Multiple steps

2 Large Twist Drill Bits

Skylarc Ref U171424

Two large twist drill bits included
One bit marked 2 3/8 inch
One bit marked 2 1/8 inch
Taper shanks

Large Twist Drill Bits 2-7/16 inch and 60mm

Skylarc Ref V171425

Set of two large twist drill bits
One drill bit marked 2-7/16 inch
Second drill bit marked 60mm SSS
taper shanks

Indexable Lathe Tooling

Skylarc Ref W171426

Set of eight indexable lathe tool holders.
Brands and models include Sandvik Coromant and Carboloy.
Holder marked MSSNR-12-4 Carboloy.
Holder marked MWLN-2525M08.
Holder marked MTJNR-2020K-16M1.
Holder marked DDR NM-164D INS DN43.
Holder marked MTENN-2525M22M1.
Holder marked PSSNR-2525M12T.
Holder marked Sandvik Coromant N.176.39-2020-10.

Mitutoyo CD-8"CS Digital Caliper 500-197

Skylarc Ref Y171428

Mitutoyo digital caliper.
Model number CD-8"CS.
Code number 500-197.
Serial number 0113842.
Measures in millimetres and inches.
Digital display with ON OFF button.
ABS and INC mode functionality.
Maximum measuring range shown on scale is 200mm.
Requires SR44 battery for operation (not included)
Made in Japan.
Mitutoyo Corporation branding present.

3x Vintage Imperail Size Outside Micrometers

Skylarc Ref P110069

3x Vintage Imperail Size Outside Micrometers.
Includes:
- Mitutoyo 4-5" Micrometer in wood case, Code No. unknown.
- Moore & Wright 4-8" Micrometer No.943, in wood case.
- Tesa 10-11" Micrometer in wood case.

3x Mitutoyo Outside Micrometers, 25-100mm Range

Skylarc Ref R110071

3x Mitutoyo Outside Micrometers.
Includes:
- 25-50mm micrometer, Code No.103-138.
- 50-75mm micrometer, Code No.103-139.
- 75-100mm Micrometer, Code No.103-140-10.

All include plastic cases. Cases show heavy workshop storage grime and wear. One case has broken hinge.

Co Axial Metric Indicator Set

Skylarc Ref U110074

Coaxial Metric Indicator Set.
Unknown manufacturer and model.
Indicator has crack in dial glass, otherwise appears excellent condition though accuracy is untested.
Wood case.

Kyocera Indexable Lathe Boring Bar 250mm.length, 25mm dia

Skylarc Ref X110077

Kyocera Indexable Lathe Boring Bar.
Part No.S25S-W WLNR08-28E.
250mm.length, 25mm dia
Bar shows light usage.
Includes plastic case.

Digital Benchtop Scale, 2kg Capacity

Skylarc Ref J110089

Digital Benchtop Scale.
UWE branded
Model MM-2000.
200g capacity ity.
205x130mm stainless steel weigh platform.
Includes AC power cord.
Can be poweed by a 9V battery (not included).
Blue tape measure on scale seen in photo is only for testing scale and is not included.

Atago Hand Refractometer N-10E

Skylarc Ref P170093

Atago Hand Refractometer.
Type N-10E, Brix 0-10%.
Made in Japan.
Includes case.

Sturdy Steel & Wood Workshop Shelving Unit

Skylarc Ref G170084

Sturdy Steel & Wood Workshop Shelving Unit.
Reinforced Steel end panels with sterl shelf frames.
Thick Wood board shelves.
Well used but sturdy older unit.

Vintage Waldown Single Phase Bench Grinder on Stand

Skylarc Ref A170078

Vintage Waldown Single Phase Bench Grinder on Stand.
Uses 180mm diameter grinding wheels.
Plug needs servicing, see photos.
Includes heavy steel stand 860mm tall.

Sandvik Coromant T-Max U-Lock Turning Tool

Skylarc Ref N170065

Sandvik Coromant T-Max U-Lock Turning Tool.
Part No. L 166.0FGZ-3225-16.
Shank 30x25mm, total tool length 170mm.
Shows little to no usage.
Non original plastic case.

Sandvik Coromant Lathe Turning Tool, New

Skylarc Ref L170063

Sandvik Coromant Lathe Turning Tool.
Type No.MWLNR 2525M 08.
150mm length.
Includes hex key and original case.
As new unused.

Mitutoyo Inside Micrometer 141-133, Parts Only

Skylarc Ref X170049

Mitutoyo Inside Micrometer 141-133.
Older model with damaged and dissasebled Micrometer, see photos. Most rod attachments are included and in overall excellent condition, see photos.
Vintage wood case.

300mm Digital Vernier Caliper

Skylarc Ref H110061

300mm Digital Vernier Caliper.
Unknown manufacturer and model.
Plastic case.
Battery is missing so tool is untested

300mm Digital Vernier Caliper

Skylarc Ref I110062

300mm Digital Vernier Caliper.
Unknown manufacturer and model.
Plastic case.

200mm Digital Vernier Caliper

Skylarc Ref S110072

200mm Digital Vernier Caliper.
Battery is missing so unable to test.
Case shows workshop storage wear.

4x Imperial Scale Outside Micrometers

Skylarc Ref C110082

4x Imperial Scale Outside Micrometers.
Includes:
- Unkmown brand/model of 0-1" size Micrometer, no case.
- Mitutoyo 3-4" Micrometer Code No.103-180, pladtic case.
- Moore & Wright 1-2" Micrometer Code No.966, wood case.
- Moore & Wright 2-3" Micrometer Code No.966B, wood case.

Condition varies with each tool. Cases show heavy workshop storage wear.

4x Metric Scale Outside Micrometers

Skylarc Ref D110083

4x Metric Scale Outside Micrometers.
Includes:
- Unknown brand/model 0-25mm Micrometer with no case.
- Unknown brand/model 0-25mm Micrometer with partial black plastic case.
- Mitutoyo 25-50mm micrometer Code No. 103-138, with plastic case with broken case hinge.
- Mitutoyo 50-75mm Micrometer Code No. 103-139, with plastic case that also has damaged case hinge.

Condition varies with each tool. Cases show heavy workshop wear.

2x Dial Indicators by Mitutoyo and Somet

Skylarc Ref C170080

2x Dial Indicators by Mitutoyo and Somet.
Includes:
- Mitutoyo Dial Indicator Code No.513-104 with assorted accessories and hard case see photos.
- Somet dual indicator type No.ON 251820.

8x Assorted Lathe Dead Centres w/ Tapered Shanks

Skylarc Ref D170055

8x Assorted Lathe Dead Centres w/ Tapered Shanks.
Includes:
- 200mm long centre with No.5 tapered shank diameter.
- 172mm long centre with No.4 tapered shank size.
- 147mm long centre with No.4 tapered shank size.
- 145mm long centre with No 3 Tapered shank size.
- 123mm long centre with No.3 Tapered shank.
- 120mm long centre with No.3 Tapered shank.
- 118mm long centre with No.3 Tapered shank.
- 67mm long centre with No.1 tapered shank.

Condition varies with each unit.

25x Assorted Gear Cutters

Skylarc Ref L170245

25x Assorted Gear Cutters.
Diameters from approx 80mm to approx 107mm.
Most are wrapped in pladtic so unable able to see ID markings.
Condition varies with each unit. Most appear well maintained.

Workshop Shelf Table Trolley

Skylarc Ref L170089

Workshop Shelf Table Trolley.
38x38mm angle steel frame with wood board and MDF middle and upper shelves.
A third board could be added by buyer to the lower frame.
75mm diameter, 40mm wide heavy Duty castors.
A well used but sturdy Trolley.
See our other listings for more of this type of Trolley.

Workshop Shelf Table Trolley

Skylarc Ref J170087

Workshop Shelf Table Trolley.
38x38mm angle steel frame with wood board upper shelf
The buyer can add a middle and lower board as well.
75mm diameter, 40mm wide heavy Duty castors.
A well used but sturdy Trolley.
See our other listings for more of this type of Trolley.

Workshop Shelf Table Trolley

Skylarc Ref I170086

Workshop Shelf Table Trolley.
38x38mm angle steel frame with wood board and MDF middle and upper shelves.
A third board could be added by buyer to the lower frame.
75mm diameter, 40mm wide heavy Duty castors.
A well used but sturdy Trolley.
See our other listings for more of this type of Trolley.

Assorted Socket Set Screws, Dowel Pins, & More

Skylarc Ref I170060

Assorted Socket Set Screws, Dowel Pins, & More.
Mostly Set Screws of various sizes and steel types.
A few boxes of steel Dowel Pins and other screws also included.
Amounts remaining in each box/bag vary greatly, some are near full and others with only a few units remaining.
Leftover workshop parts supply stock.

Office Desk Chair w/ Side Table

Skylarc Ref T170045

Office Desk Chair w/ Side Table.
Adjustable chair height.
On castors.
Seat width 500mm
Back height 730mm above seat.
Includes wood topped side table with black finished steel frame.
Table measures 1200x350x760mm.
Condition- Chair in very good condition showing mostly just sueface dust. Table wood top shows some moderate scratching from Workshop office usage, may benefit from a wood sanding/refinishing.

Assorted Tap Handles and Taps

Skylarc Ref P170223

9 tap handles
17 assorted taps

Small Milling Angle Plate

Skylarc Ref M170220

Cast iron milling machine angle plate

Large Lot of Tool Tips

Skylarc Ref A170208

Mainly boxes with only a single tool tip or they look used.
Wide range

Lathe Boring Bar

Skylarc Ref L170193

Model S32U-PWLNR 08
Diameter is 30mm.
Indexable turning tool holder with carbide insert.

7x Rego-Fix Swiss ER32 Collet Chuck Nuts

Skylarc Ref N170091

7x Rego-Fix Swiss ER32 Collet Chuck Nuts.
All are Type No.Hi-Q/ERC32.
Mounting thread diameter 40mm.
Includes 2x bags of washers, see photos.
Condition varies with each nut, some appears unused while others show varying usage.

Niven Bench Drill Press

Skylarc Ref E170186

Niven brand bench drill press
Metal construction with cast iron base
Three-spoke feed handle
V-belt drive system with multi-step pulley for speed selection
Powered by a Crompton Parkinson electric motor
Motor plate indicates 220-240V 50Hz single phase
Motor output 0.425 HP
13mm chuck
Push button switch on the side of the main housing
Base with slotted mounting holes
Has been shortened

Steel Workbench with Shelves and Back Panel

Skylarc Ref Z170181

Steel frame workbench with attached back panel.
Bench includes three lower shelves.
Top shelf area is tiered for additional storage.
Main working surface is made of wood.
Back panel is metal and attached to frame.
Workbench construction is steel
No visible wheels or castors attached to legs.
Overall height includes the back panel.

Dremel Moto-Tool Model 328 Series 1-09 Rotary Tool

Skylarc Ref X170179

Dremel Moto-Tool rotary tool.
Model 328 Series 1-09.
Speed range 5000 to 25000 RPM.
Rated for 220 to 240 volts at 50 Hz.
Power consumption 0.5A 115W.
Includes hard case marked Dremel.
Contains a variety of accessories shown in photos.
Made in USA by Dremel Division of Emerson Electric Co.
Case has molded compartments for tool and accessories.
Double insulated design as indicated on housing.

Steel Platform Trolley Cart

Skylarc Ref P170171

Steel platform trolley cart
Platform bed size is 460mm x 920mm
Equipped with four wheels
Handle attached to one end for pushing or pulling
Solid metal construction
White wheels

Vintage Wooden Desk with Four Drawers

Skylarc Ref J170165

Rectangular wooden desk.
Two drawers on the left side.
Two drawers on the right side.
Drawer interiors are wood with a hardboard base.
Desk features wooden round drawer handles.
Visible surface wear and marks on desktop.

Boxes of Mixed Nuts Bolts Washers and Miscellaneous Hardware

Skylarc Ref G170162

Three cardboard boxes of assorted hardware parts.
Contains a large quantity of mixed metal nuts in various sizes.
Includes various washers and metal bushings.
One box contains a plastic compartment case with assorted hardware.
Various ball bearings and loose bolts are present in sealed and open bags.

Box of Steel Machine Keys Assorted Sizes

Skylarc Ref E170160

Box contains a large quantity of steel machine keys.

Hi-Pro SD Degreaser 20 Litres

Skylarc Ref B170157

Hi-Pro SD Degreaser non-aromatic non-dangerous goods.
20 litre plastic container.
Suitable for degreasing engines parts tools machinery and equipment.
Classified solvent formulated to remove dirt grime oil and grease.
Apply by brush or spray or use in a parts bath.
Provides rust protection for up to 1 week.
Low toxicity.
Do not dilute with water.
Store securely in a cool dry well-ventilated place.
Product code: HSR902490.
Manufactured by Syntol NZ Ltd PO Box 10650 Te Rapa Hamilton 3241.
Contact phone: 07 849 6300.

Belzer No.1000 18" Pipe Wrench and Record 18 Pipe Wrenches

Skylarc Ref Y170154

Belzer No.1000 pipe wrench included
Belzer wrench marked 450mm 18
Record pipe wrench included
Record wrench marked 18 and ENGLAND
Both wrenches have adjustable jaws

Assorted Metal Clamps and Pry Bars

Skylarc Ref U170150

3 x pry bars
2 x clamps 120mm and 150mm
One with plate welded on

Box of Key Steel

Skylarc Ref F170135

Keyway steel lengths

Assorted Drill Bits and Storage Tubes

Skylarc Ref T170123

Assorted twist drill bits included in various sizes.
Multiple storage tubes included.
Mainly long series drills

Mill thread holder SR 0013 H14C

Skylarc Ref Z170051

Mill thread holder SR 0013 H14C.
Unknown brand.
110mm length, 10mm diameter.
Assorted new unused used.

8x Morse Taper Shank Adapters

Skylarc Ref Y170050

8x Morse Taper Shank Adapters.
Includes:
- 2x No.2 to No.1.
- 2x No.3 to No.1
- 2x No.3 to No.2
- 1x No.4 to No.1
- 1x No.4 to No.3

Condition varies with each unit.

V-blocks, G clamps, and parallel clamps set

Skylarc Ref Q170120

Set includes two V-blocks with clamps.
Set includes two G clamps marked TROJAN 2.
Set includes two parallel clamps with threaded adjustment.
All items are metal construction.
V-blocks feature securing screws and slotted bases.
G clamps are painted blue with threaded spindles.
Parallel clamps use twin screw adjustment mechanisms.

2x Copies of Machinerys Handbook

Skylarc Ref V170047

2x Copies of Machinerys Handbook.
One is the 12th edition and the other is the 16th edition.
Condition varies with each book, see photos.

3mm Metal Letter and Number Stamp Punch Set

Skylarc Ref I170112

3mm metal stamp punch set
Includes letter and number punches
Contains uppercase letters A to Z
Contains numbers 0 to 9
Punched characters are in uppercase
Stamps are stored in a brown plastic case
Stamp shank size is marked as 3mm

Arlec Tower Fan

Skylarc Ref U170046

Arlec Tower Fan.
Model No.ATF362RL
Includes remote.
Previuosly used in a workshop office.

Office Desk w/ Chair & Shelving Unit

Skylarc Ref S170044

Office Desk w/ Chair & Shelving Unit.
Desk measures 1705x790x720mm.
Shelving unit measures 1580x220x1645mm.
Mobile Adjustable Desk chair included.
Items seen on Desk and shelf are not included.
Items show workshop office wear and usage.

Assorted Hand Tool Lot Mixed Screwdrivers Pliers Spanners Allen Keys

Skylarc Ref V170151

Lot includes multiple screwdrivers with various handle types and sizes
Several pliers including needle-nose and side cutters
Multiple hexagonal Allen keys in various sizes
Two metal hacksaws with different frames
Assorted open-end and ring spanners
Metal chisel with wooden handle
Several flat head and Phillips head screwdrivers
Wire cutters and snips included

2x Vintage Sackbarrel Handtruck Trollies

Skylarc Ref K170244

2x Vintage Sackbarrel Handtruck Trollies.
Trolley with straight frame measures approx 455mm wide, 1050mm tall, 150mm diameter steel wheels, 285x100mm lifting base.
Trolley with the bent frame is approx 450mm wide, 1110mm tall, 195mm diameter steel wheels, 320x120mm lifting base.

Screwdriver Set in Hard Case

Skylarc Ref R170173

Set includes twelve screwdrivers.
Handles are green, yellow, red and blue plastic.
Contains both flathead and Phillips head screwdrivers.
Varying shaft lengths included.

Assorted Milling Adapters and Machined Parts

Skylarc Ref P170119

Box contains various threaded nuts.
Box contains threaded collars and locknuts.
Box contains several large bolts.
Box contains machined steel components with external threading.
Multiple heavy duty turned steel parts included

Workshop Storage Cabinet with Contents

Skylarc Ref G170110

Storage cabinet with double doors.
Cabinet contains assorted workshop items.
Includes power drill with cord and plug.
Includes case with soldering iron
Includes two oil bottles with red caps.
Contains grinding and cutting discs.
Includes welding hose set with regulators and torch.
Contains plastic boxes with electrical and hardware parts.
Box of 3M FFP2 face masks included.

Box of Hydrosleeves

Skylarc Ref O170118

Steel sleeves for hydro forming machines

Garden Equipment and Accessories Lot

Skylarc Ref M170116

One Hozelock 8L pressure sprayer is included.
One Topeak JoeBlow bicycle floor pump with gauge is included.
One large green ceramic planter is included.
One round white planter base is included.
One black roll of fabric or weed mat is included.
All items are shown in the provided images.

Large Wooden Office Desk with Drawers

Skylarc Ref H170111

Large wooden desk.
Rectangular top surface.
Three-drawer unit on right side.
Visible wear and surface markings on desktop.
MDF veneer construction

Assorted Hand Tools and Toolbox

Skylarc Ref E170108

Includes one metal toolbox with handle and latch
Assorted combination wrenches and adjustable wrench included
Socket set in black plastic case with various sockets and ratchets
Electric drill with attached power cord
Measuring tape included
Metal shovel with straight handle
Wire brush with wooden handle
Air blow gun and cartridge gun included
Oil can with metal spout
Various metal bars and rods
All items shown are included in the lot
