2020 Durma 4 Metre 320 Ton CNC Press Brake

Skylarc Ref D176607

Brand: Durmazlar
Model: AD-R 40320
Machine type: hydraulic press brake
Manufacturing year: 2020
Capacity: 4030x320 ton
Control: Durma CNC controller with touchscreen HMI
Installed software version on HMI: Indexation HMI V2.0.10.8
Motor power: 37 kW
Power supply: 400 V 3 phase kA
Nominal stroke: 365 mm
Machine weight: 20040 kg
Backgauge system fitted
Foot pedal control with emergency stop
Fiessler Elektronik AKAS II LC safety system fitted
Wide range of tooling
Made in Turkey
You will need your own lifting machinery to load this machine

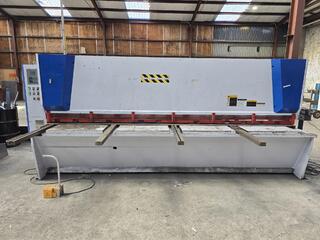

Yawei 4 Metre Hydraulic Guillotine

Skylarc Ref Z176603

Manufacturer Yawei Machine Tool Co Ltd
Model Hydraulic Shear LGSX6X4050
Max cutting thickness 6 mm
Max cutting length 4050 mm
Nominal voltage 400 V
Control unit Delem DAC-360
Emergency stop button on control panel
Machine is hydraulic operation
Foot pedal control connected by cable
Election backgauge
Shearing pressure selection table on control panel
Hydraulic clamping
You will need your own lifting machinery to load this machine

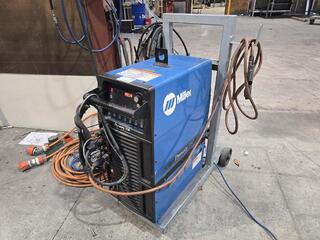

Miller Dynasty 350 TIG Stick Welder

Skylarc Ref G176584

Manufacturer Miller Electric Mfg Co.
Model Dynasty 350.
Serial number MG080439L.
Assembled in USA.
Process modes include TIG HF impulse TIG Lift Arc and Stick.
AC and DC welding capability.
Output rating 5A to 350A.
Duty cycle ratings shown on data plate up to 350A 24V at 30 percent duty.
Input frequency 50 Hz or 60 Hz three phase.
Input voltage ranges listed 380V 400V 460V 575V.
Maximum input current 23A at 380V three phase.
Maximum input current 22A at 400V three phase.
Maximum input current 19A at 460V three phase.
Maximum input current 15A at 575V three phase.
Integrated front control panel with digital amperage display.
Included TIG torch shown attached to front of unit.
Included work clamp and cable shown attached to side of cart.
Unit mounted on a wheeled metal cart.
Cooling unit

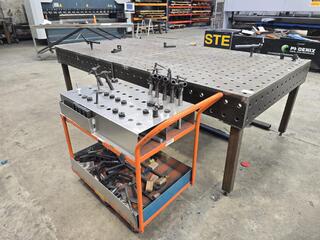

Large Double Welding Table and Clamps

Skylarc Ref G176610

2 x 1500mm x 1500mm welding tables
25mm plate steel construction
30mm diameter clamp holes
Cross braces underneath
Screw adjustment feet
Trolley with a range of clamps and fittings

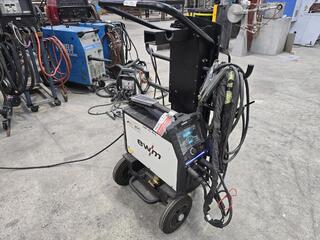

EWM Tetrix XQ 230 puls AC/DC Welder

Skylarc Ref N176617

Brand EWM
Model Tetrix XQ 230 puls AC/DC EX3 8POL V
Supply voltage 230V single phase
Frequency 50Hz or 60Hz
Process type TIG AC and DC shown on display
Front panel colour display installed
Welder mounted on wheeled trolley
Earth clamp lead attached
TIG torch and lead set attached
Gas connection point on rear panel
Main power switch on rear panel
Multiple control and communication sockets on rear panel
Made by EWM AG Germany

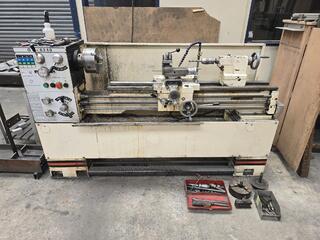

Three Phase Lathe

Skylarc Ref K176614

Model: GK-6240
Bed length 1600mm
Distance between centers approx 1000mm
Swing over bed approx 400mm
Swing over gap approx 520mm
Swing over cross slide approx 240mm
12 spindle speeds
40rpm - 2000rpm
Metric and imperial thread cutting
250mm three jaw chuck
40mm spindle bore
No.3 MT tailstock
250mm removable bed gap missing

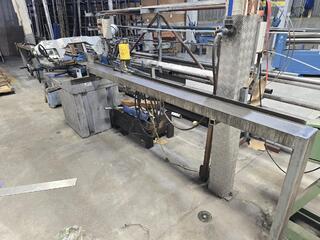

Hafco Metalmaster Single Phase Bandsaw

Skylarc Ref Q176620

Brand Hafco Metalmaster
Model EB-280DSV
Type metal cutting bandsaw
Capacity 225mm
Voltage 240V 50Hz
Motor power 1.5kW
Manufacture date 01/2022
Machine weight 295kg
Motor speed range 850 to 2800rpm
Motor rated at 240V 6A single phase
Control panel with start stop and emergency stop buttons
Adjustable cutting speed control marked in mpm
Mounted on steel base with integrated coolant tray
Fitted with vice for material clamping
Includes long infeed and outfeed support table
Mitre function
Made in Taiwan
Serial number 202201280003
Buyer to dismantle

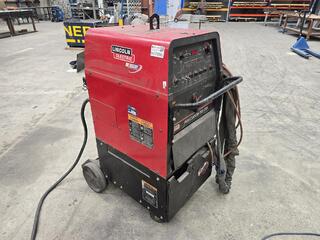

Lincoln Electric Precision TIG 375

Skylarc Ref V176599

Lincoln Electric Precision TIG 375 welding power source.
Model code K1834-1.
Rated input at 415V is 63A.
Output type AC and DC.
Maximum DC output 385A at 20V DC.
Rated duty cycle 40 percent at 375A DC.
Rated duty cycle 60 percent at 350A DC.
Rated duty cycle 100 percent at 300A DC.
Open circuit voltage 80V.
Front panel mode selector for Stick and TIG.
Front panel display selector for amps or volts.
Switchable local or remote output control.
Main power switch on front panel.
AC DC minus and DC plus output selector switch.
MicroStart technology indicated on front panel.
TIG torch and leads attached as shown.
Assorted TIG consumables in top compartment as shown.
Mounted on wheeled base.
3 phase 32 amp power plug

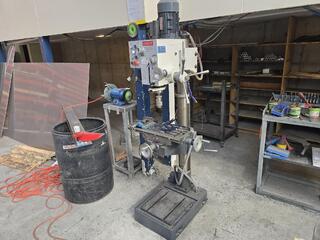

Luxcut GH-30 Geared Head Milling and Drilling Machine

Skylarc Ref W176600

Brand: Luxcut
Model: GH-30 geared head milling and drilling machine
Single phase 2.0 HP motor
Motor speed 1420 rpm
Spindle speed ranges shown as L1 95 rpm
Spindle speed L2 170 rpm
Spindle speed L3 280 rpm
Spindle speed H1 540 rpm
Spindle speed H2 960 rpm
Spindle speed H3 1600 rpm
Machine has drilling milling tapping selector
Table is a T slot type 600mm x 190mm
Machine has longitudinal and cross handwheel feeds
Machine has T slot base table
Emergency stop button fitted on front panel
Forward and reverse controls on front panel
Coolant pump on off selector on panel

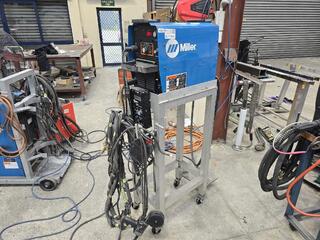

Miller Welder with Optima Pendant Control

Skylarc Ref L176615

Model: Miller XMT 350 CC/CV Auto-Line
Front panel shows TIG MIG Pulsed MIG Stick and CC modes
Three phase 32 amp plug
Arc control knob marked 10 to 80
Maximum open circuit voltage 75 volts DC
Duty cycle 40 percent or 60 percent
Unit is mounted on a metal trolley with four caster wheels
Miller Optima remote pulsing pendant control attached to the trolley
Optima pendant has select and adjust controls and display
Hand held wire feed gun attached with cable set

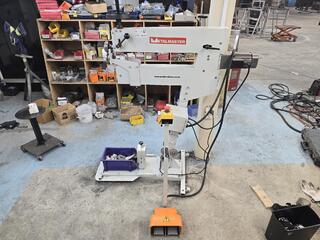

Metalmaster MBR-610MK2 Bead Roller

Skylarc Ref C176580

Model: Metalmaster MBR-610MK2
Single phase powered swager
Capacity: 1.2mm
Net weight: 115kg
Voltage: 240V 50Hz
Motor power: 0.3kW
Full load current: 1.8A
Manufacture date: 04 2024
Foot pedal control with forward and reverse
Emergency stop control post
Includes multiple bead roller dies as shown
Freestanding floor mounted frame
Single phase power plug visible

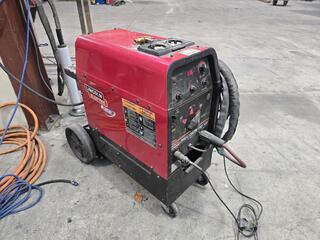

Lincoln Electric Precision TIG 185 Welder

Skylarc Ref O176592

Brand: Lincoln Electric
Model: Precision TIG 185
K No: K2346-1
Code No: 11107
Serial No: U1041115065
AC and DC TIG and stick welding modes
Square wave power source featuring MicroStart technology
Input supply 400V to 415V three phase 50Hz or 60Hz
Rated output 5A to 185A at 27V
Duty cycle 185A at 15 percent
Duty cycle 85A at 100 percent
Includes TIG torch with wrapped lead
Torch lead shows taped repair
Includes work lead and electrode lead
Unit mounted on wheeled cart base
Rear bracket and chain for gas cylinder mounting
Power switch located on front panel
Three metre mains cable visible in photos

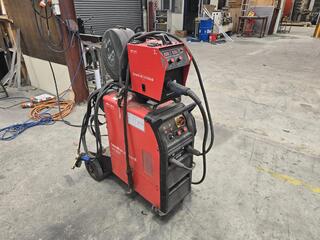

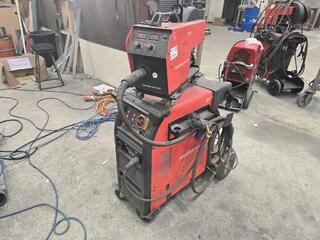

BOC Smootharc Advance II 400R MIG Welder

Skylarc Ref R176595

Brand BOC
Model Smootharc Advance II 400R
Process MIG and MMA according to rating plate
Input supply three phase AC 420V
Rated MIG output 50A at 22V to 400A at 36V
MIG duty cycle 40 percent at 400A 60 percent at 325A 100 percent at 250A
Rated MMA output 50A at 16.5V to 400A at 34V
MMA duty cycle 45 percent at 400A 60 percent at 346A 100 percent at 268A
Protection class IP21
Cooling method air cooled
Front panel controls for current wire speed inductance and voltage
Separate Smootharc Advance II wire feeder unit fitted on top
Wire feeder has digital voltage and wire speed displays
Wire feeder has controls for voltage wire speed and wire inch
Wire feeder mechanism rated DC 24V 3.5A
Includes MIG torch lead connected
Includes work return lead connected
Machine is trolley mounted with wheels
Input plug visible on rear panel
Spool compartment contains metal wire on reel

BOC Smootharc Advance II 400R MIG Welder

Skylarc Ref T176597

Brand BOC
Model Smootharc Advance II 400R
Process MIG and MMA according to rating plate
Input supply three phase AC 420V
Rated MIG output 50A at 22V to 400A at 36V
MIG duty cycle 40 percent at 400A 60 percent at 325A 100 percent at 250A
Rated MMA output 50A at 16.5V to 400A at 34V
MMA duty cycle 45 percent at 400A 60 percent at 346A 100 percent at 268A
Protection class IP21
Cooling method air cooled
Front panel controls for current wire speed inductance and voltage
Separate Smootharc Advance II wire feeder unit fitted on top
Wire feeder has digital voltage and wire speed displays
Wire feeder has controls for voltage wire speed and wire inch
Wire feeder mechanism rated DC 24V 3.5A
Includes MIG torch lead connected
Includes work return lead connected
Machine is trolley mounted with wheels
Input plug visible on rear panel
Spool compartment contains metal wire on reel

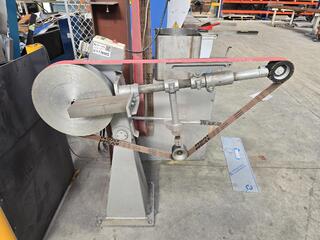

Bramley Wright Linishall Belt Linisher

Skylarc Ref Y176602

Brand: Bramley.
Base branded Wright Linishall.
Free standing pedestal mounted belt linisher.
Electric motor is Crompton Greaves three phase TEFC induction motor.
Motor rating 2.2kW.
Motor speed 2840rpm.
Three phase 32 amp power plug
Belt is fitted over drive wheel and idler rollers.
Machine has adjustable work rest in front of drive wheel.
Start and stop push button control box mounted on top of belt housing.
Some spare belts

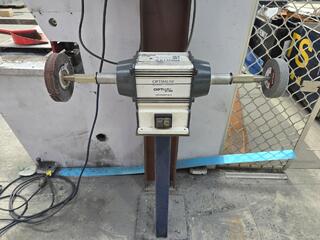

Optimum GU 25P Polishing Machine

Skylarc Ref A176604

Brand: Optimum Maschinen Germany
Model: GU 25P
Type: Polishing machine
Power rating: 1.5 kW
Supply voltage: 415 V 50 Hz
Machine weight: 23 kg
Rated speed: 2850 U/min
Serial number: 23341609021
Year of manufacture: 2016
Mounted on floor stand
Fitted with flap wheel on one spindle
Fitted with bonded polishing wheel on other spindle
Electric on off switch on front of machine
Includes assorted additional wheels as shown
Three phase 32 amp power plug

Kemppi MasterTig AC/DC 2500W TIG Welder

Skylarc Ref M176616

Brand: Kemppi
Model: MasterTig AC/DC 2500W
Process: TIG and MMA
Input supply: 3 phase 50–60 Hz
Rated input at 460 V: 16 A
Rated input at 400 V: 16 A
Rated input at 230 V: 20 A
Open circuit voltage U0: 70 V
Duty cycle and output ranges are shown on rating plate in photos
Cooling: water cooled
Cooling unit supply: 230 V 0.12 kW
Maximum cooling unit pressure: 350 kPa
Maximum gas pressure: 500 kPa
Control panel shows AC DC and pulse functions
TIG H, TIG contact and MMA modes
Includes TIG torch with protective sheath as shown
Includes earth clamp lead as shown
Mounted in a steel trolley frame with four castor wheels
Made in Finland

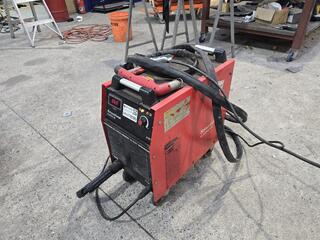

Smoothcut Plasma 100 DC Inverter Plasma Cutter

Skylarc Ref H176585

Model: BOC Smoothcut Plasma 100.
Type: DC inverter plasma cutter.
Front panel current display shows digital readout.
Current control knob marked 20A to 100A.
Duty cycle 60 percent at 100A.
Open circuit voltage marking U0 = 298V.
Protection class marked IP21.
Unit fitted with air pressure regulator and gauge.
Includes attached plasma torch marked LT141.
Includes attached earth clamp lead.
Includes attached power lead with 32A plug.
Mounted on four wheels.

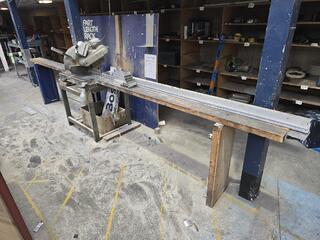

A-Tech Pegasus-I Cut-off Saw

Skylarc Ref P176593

Brand A-TECH
Model Pegasus-I
Cold saw on fixed stand
Motor power 2.2 kW
Motor speed 2750 rpm
Blade specification 355 mm x 3.0 mm x 120T
Blade type tungsten carbide tipped blade
Blade maximum speed 5100 rpm
Manual pull down handle
Rotating table with angle scale
Metal work table with integral fence
Mounted length stop and measuring scale on infeed and outfeed

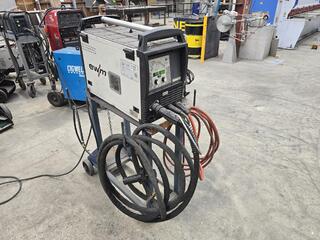

EWM Phoenix 355 Progress Puls MM T welder

Skylarc Ref U176598

Brand EWM.
Model Phoenix 355 Progress puls MM T.
Phoenix puls MULTIMATRIX series.
Gas and wire material selection controls on front panel.
Digital display with amp and volt indication on front panel.
Mounted on wheeled trolley.
Includes attached MIG torch with cable.
Includes work clamp with cable.
Wire feed unit installed inside side compartment.
Wire feed unit is four roll type.
Side compartment contains wire spool reel.
Includes gas regulator with pressure gauges.
Manufacturer EWM AG Germany.
3 phase 32 amp plug

EWM Phoenix 355 Progress Puls MM T welder

Skylarc Ref I176612

Brand EWM.
Model Phoenix 355 Progress puls MM T.
Phoenix puls MULTIMATRIX series.
Gas and wire material selection controls on front panel.
Digital display with amp and volt indication on front panel.
Mounted on wheeled trolley.
Includes attached MIG torch with cable.
Includes work clamp with cable.
Wire feed unit installed inside side compartment.
Wire feed unit is four roll type.
Side compartment contains wire spool reel.
Includes gas regulator with pressure gauges.
Manufacturer EWM AG Germany.
3 phase 32 amp plug

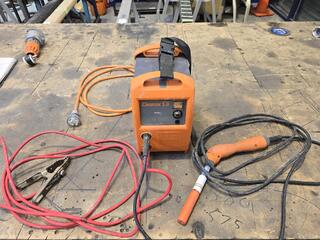

Reuter Cleanox Weld Cleaner

Skylarc Ref O176618

Brand: Reuter
Model: Cleanox 1.0
Input voltage: 230V 50Hz
Power rating: 1000VA
Includes main Cleanox 1.0 unit
Includes orange handpiece with attached black cable

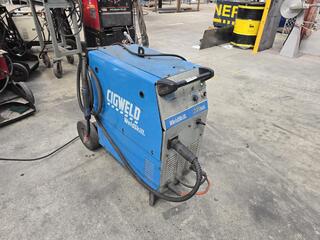

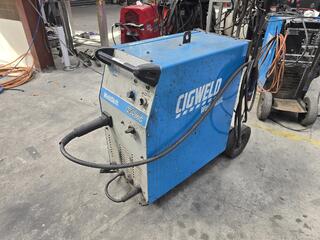

Cigweld WeldSkill 250 MIG Welder

Skylarc Ref E176608

Brand: Cigweld
Model: WeldSkill 250 MIG
Single phase 15 amp plug
Duty cycle at 250A: 30 percent
Duty cycle at 190A: 60 percent
Open circuit voltage range: 22V to 46V
Input supply voltage: 240V single phase
Input frequency: 50Hz
Maximum input current: 54A
Enclosure rating: IP21S
Generator requirement listing on data plate: 13kVA
Shielding gas inlet fitted on rear panel
Front panel controls include power on off switch
Front panel controls include weld voltage selector with 12 positions
Front panel controls include wire speed control knob
Indicators for power and overheat on front panel
Includes MIG torch connected to front panel
Includes work return lead with clamp

Cigweld WeldSkill 250 MIG Welder

Skylarc Ref F176609

Brand: Cigweld
Model: WeldSkill 250 MIG
Single phase 15 amp plug
Duty cycle at 250A: 30 percent
Duty cycle at 190A: 60 percent
Open circuit voltage range: 22V to 46V
Input supply voltage: 240V single phase
Input frequency: 50Hz
Maximum input current: 54A
Enclosure rating: IP21S
Generator requirement listing on data plate: 13kVA
Shielding gas inlet fitted on rear panel
Front panel controls include power on off switch
Front panel controls include weld voltage selector with 12 positions
Front panel controls include wire speed control knob
Indicators for power and overheat on front panel
Includes MIG torch connected to front panel
Includes work return lead with clamp

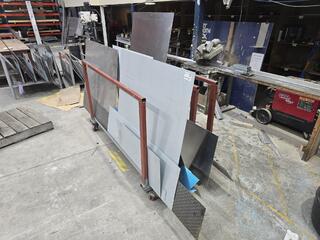

Materials Trolley and Contents

Skylarc Ref N176591

1750mm x 800mm x 1090mm tall steel trolley
Assorted partial sheets of material
Stainless steel
Checker plate
Mild steel

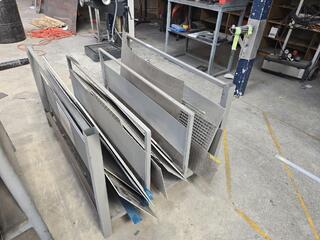

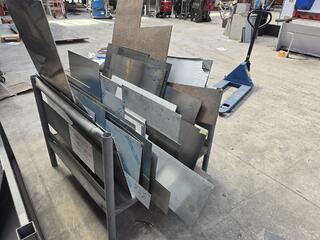

Materials Rack and Contents

Skylarc Ref B176605

Steel free standing steel rack
Assorted sheet offcuts
Steel and aluminum

Materials Rack and Contents

Skylarc Ref C176606

Steel free standing steel rack
Assorted sheet offcuts
Steel and aluminum

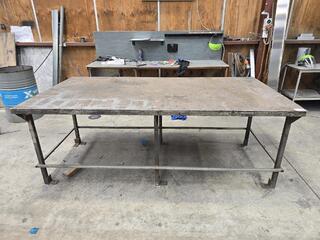

Large Steel Welding Table

Skylarc Ref H176611

10mm plate steel top
Box steel frame

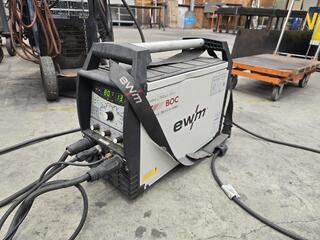

EWM Tetrix puls AC DC T 400 TIG Welder

Skylarc Ref J176613

Brand EWM
Model Tetrix puls AC DC T 400
TIG pulse function
MMA pulse function
activArc function
spotArc function
spotmatic function
DC and AC welding modes selectable on control panel
Multiple job memory selector on control panel
Includes TIG torch
Three phase 32 amp plug

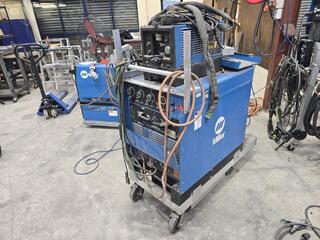

Miller 330ST Aircrafter Welder with Coolmate 3 Cooler

Skylarc Ref P176619

Brand: Miller
Model: 330ST Aircrafter
Type: Constant current AC DC arc welding power source
Front panel controls include postflow time adjustment
Front panel controls include start amperage adjustment
Front panel controls include amperage adjustment
Front panel controls include spot time control
Selector switches for electrode positive electrode negative and electrode AC
Output contactor selector with remote and panel modes
High frequency control with start and continuous modes
Voltage range markings show 20 to 250 VAC and 50 to 450 VDC
Unit is mounted on a wheeled base
Top unit is a Miller Coolmate 3
Coolmate 3 is a liquid coolant system
Power leads and welding cables are attached to the main unit
TIG torch is dismantled

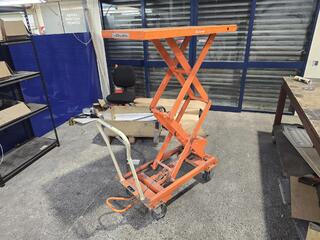

Bishamon BX30SE Scissor Lift Table Trolley

Skylarc Ref E176582

Brand Bishamon
Model BX30SE
Type manual scissor lift table trolley
Maximum load capacity 300 kg
Self weight 138 kg
Manufactured by Taiwan Bishamon Industries Corporation
Minimum platform height 430 mm
Maximum platform height 1590 mm
Platform is rectangular and painted orange
Steel frame construction
Four swivel castor wheels
Manual lift mechanism operated by foot pedal
Mechanical release lever on handle
MFG date 201207

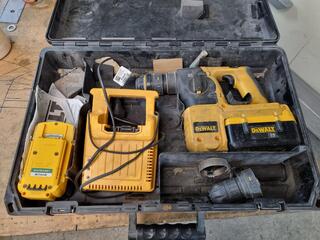

DeWalt 36V Cordless SDS Plus Rotary Hammer Kit

Skylarc Ref F176297

DeWalt 36V Cordless SDS Plus Rotary Hammer Kit.
Hammer Drill model No.DC234-XE.
36V Battery charger model.DC9000-XE.
2x 36V, 79Wh batteries model DC9360.
Includes SDS+ chuck and a Keyless 13mm drill chuck.
Includes side handle and plastic carry case.
All items operate but not tested at length or under load.

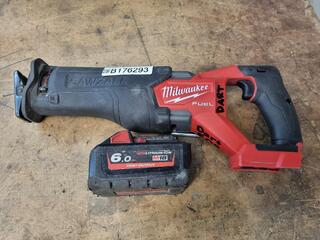

Milwaukee M18 Reciprocating Saw w/ 6.0Ah Battery

Skylarc Ref B176293

Milwaukee M18 Cordless Sawzall Reciprocating Saw.
Model No.M18 CSX2.
Brushless motor.
Includes Red Lithium-Ion 6.0Ah High Output battery.
Charger NOT included.
Tool in very good condition showing mild usage. Battery shows more moderate wear.

https://www.milwaukeetool.co.nz/power-tools/saws/reciprocating-saws/M18CSX2-0.html

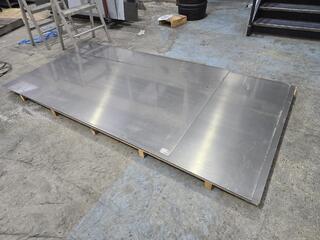

Pallet of 3mm Aluminum Sheets

Skylarc Ref L176589

3 x 2900mm x 1500mm
2300mm x 1500mm
1200mm x 1500mm
1870mm x 1500mm

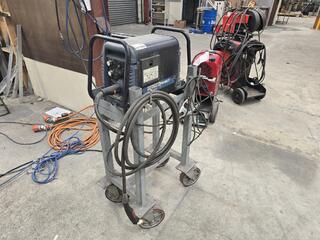

Thermal Dynamics Cutmaster 25mm CE Plasma Cutter

Skylarc Ref S176596

Brand: Thermal Dynamics.
Model: Cutmaster 25mm CE.
Type: Plasma cutting power source.
Input supply: 3 phase.
Input voltage: 400V.
Input frequency: 50 or 60Hz.
Rated output current: 80A.
Maximum cut rating shown: 25mm.
Duty cycle ratings listed for 40 percent, 60 percent and 100 percent IEC.
Includes attached plasma torch lead.
Includes mains cable with 32A 500V 50Hz IP66 plug marked 56PA432.
Mounted on a wheeled metal frame.
Control panel includes amperage adjustment.

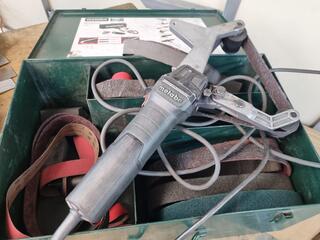

Metabo Corded Tube Belt Sander RBE 15-180 Set

Skylarc Ref C176268

Metabo Corded Tube Belt Sander Set.
Model RBE 15-180.
Steel case.
Includes assorted Sanding bells.
Includes side handle.
See video for operational condition.

https://www.metabo.com/com/en/tools/cutting-sanding-milling/stainless-steel/tube-belt-sander/rbe-15-180-set-tube-belt-sander/602243500

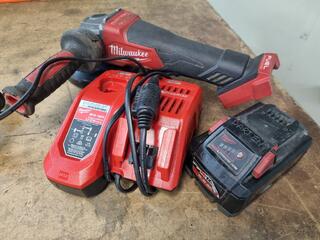

Milwaukee M18 125mm Angle Grinder w/ 6.0Ah Battery & Charger

Skylarc Ref Y176290

Milwaukee M18 125mm Angle Grinder.
Model No.M18 FAG125XPD.
Includes Red Lithium-Ion High Output 6.0Ah, 144Wh battery.
Includes battery charger M12-18FC.
Condition varies with each item.
Disk changing tool is missing.
See video to see tool operating.

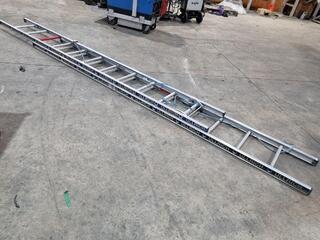

Ullrich Aluminium.Extension Ladder

Skylarc Ref A176240

Ullrich Aluminium.Extension Ladder.
Made in New Zealand.
Length from 3650mm to 6000mm.
455mm width.

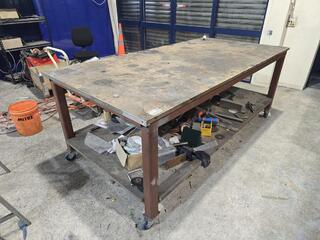

Large Steel Framed Workbench

Skylarc Ref A176578

Box steel frame
MDF sheet top and shelf
Heavy duty castor wheels
Contents of assorted industrial supplies

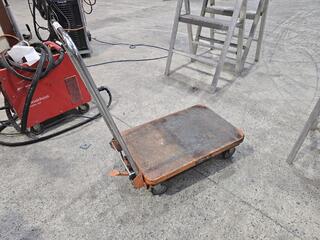

Bishamon BX16E Scissor Lift Table Trolley

Skylarc Ref I176586

Brand Bishamon
Model BX16E
Type scissor lift table trolley
Maximum capacity 150 kg
Maximum capacity 330 lb
Maximum height 740 mm
Minimum height 210 mm
Four wheels
Foot pedal lift mechanism
Handle material metal
Tabletop material metal
Colour orange table and frame

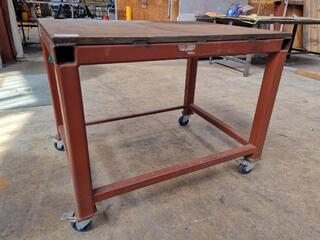

Heavy Steel Workshop Table Trolley

Skylarc Ref A176266

Heavy Steel Workshop Table Trolley.
Frame is made from 75x75x5mm and 50x50x5mm box steel.
Top is a 1200x900x25mm steel plate.
100mm diameter castors.
A VERY heavy duty mobile work table trolley. Only potential issue is the 100mm castors seem a bit undersized for this heavy unit, they are rolling OK, but seem undersized.

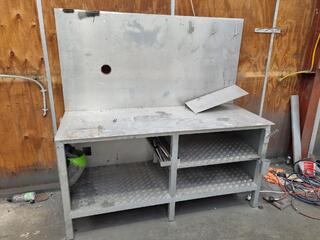

All Aluminium Workbench

Skylarc Ref U176260

All Aluminium Workbench.
Custom built welded aluminium construction.
50x50mm box frame, 5mm plate top, 3mm tread plate lower shelves.
Work surface 905mm high.
Upper rear aluminium panel for attaching shelves or hooks.
One small shelf on rear panel needs re-attaching

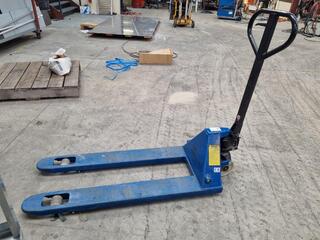

Pallet Trolley Jack, 2500kg Capacity

Skylarc Ref O176254

Pallet Trolley Jack.
Unknown manufacturer/model.
2500kg Capacity.
Forks 1150xa150mm.
Fork inner gap 225mm.
Total width 520mm.
Jack height from approx 75mm to approx 195mm.

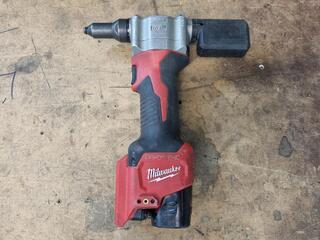

Milwaukee Cordless M12 Rivet Tool w/ 3.0Ah Battery

Skylarc Ref D176295

Milwaukee Cordless M12 Rivet Tool.
Model No.M12 BPRT.
Includes M12 3.0Ah, 36Wh Li-Ion Battery.
Charger NOT included.
Tool operates, see video, but not tested using rivets.

https://www.milwaukeetool.co.nz/power-tools/impacts-and-fastening/rivet-tools/M12BPRT-0.html

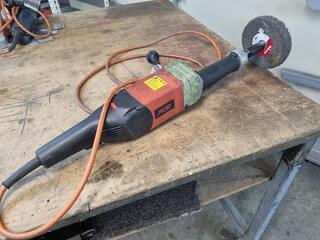

AGR Corded Straight Grinder SG6

Skylarc Ref E176296

AGR Corded Straight Grinder SG6.
Uses 150mm diameter grinding wheels.
Tool operates, see video.

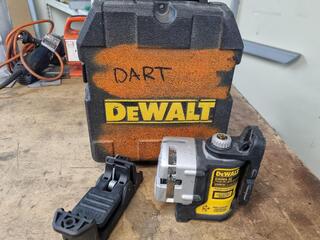

DeWalt 3-Beam 360 Cross Line Red Laser

Skylarc Ref X176289

DeWalt 3-Beam 360 Cross Line Red Laser.
Model No.DW089-XE.

https://www.dewalt.co.nz/product/dw089k-xe/3-x-360-cross-line-red-laser

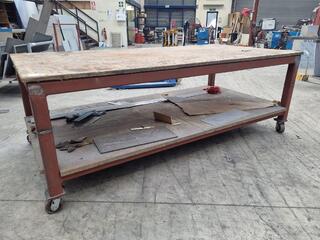

Heavy Steel Workshop Mobile Table

Skylarc Ref P176255

Heavy Steel Workshop Mobile Table.
A heavy 75x75x5mm a d 50x50x5mm welded box steel frame.
100mm diameter, 50mm wide castors.
Approx 24mm MDF top.

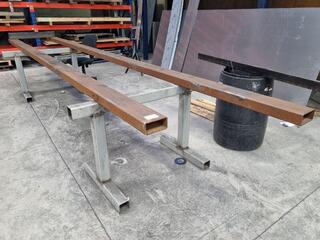

2x Large 150x75mm Box Steel Lengths

Skylarc Ref K176250

2x Large 150x75mm Box Steel Lengths.
Both are 150x75x6mm size.
One is 5720mm long and the other is 5090mm long.
Note that Both are currently welded together by one 125x75x860mm angle steel length.. Buyer should bring an angle grinder if they wish to separate the two box steel lengths on pickup.

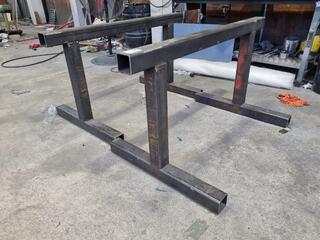

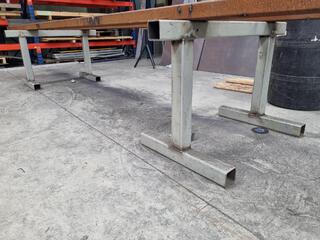

Note that the large steel sawhorses are NOT included in this auction, see our other listing for those.

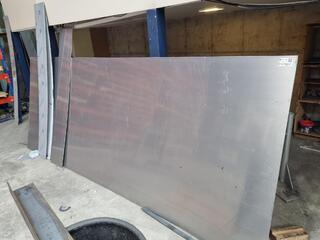

Sheets of 4mm Aluminium Panels

Skylarc Ref H176247

Sheets of 4mm Aluminium Panels.
All 4mm thick.
Sizes include:
1x 38050x1500mm (has a dent, see photo).
1x 2360x1500mm.
1x 1900x305mm.
1x 2200x315mm
1x 2200x210mm.

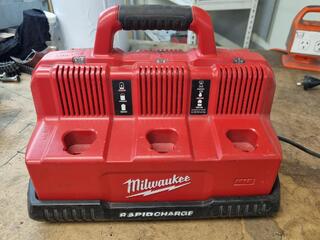

Milwaukee M12 & M18 Rapid Charging Station

Skylarc Ref H176299

Milwaukee M12 & M18 Rapid Charging Station.
Model.No.M12-18C3.

https://www.milwaukeetool.co.nz/power-tools/batteries-and-chargers/chargers/M12-18C3.html

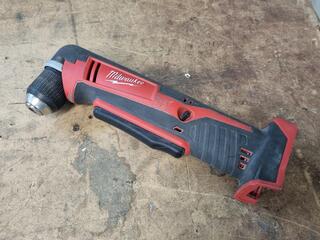

Milwaukee M18 Cordless Right Angle Drill, tool only

Skylarc Ref C176294

Milwaukee M18 Cordless Right Angle Drill.
Model No. C18 RAD.
Auction includes the bare tool only!
https://www.milwaukeetool.co.nz/power-tools/drills/right-angle-drills/C18RAD-0.html

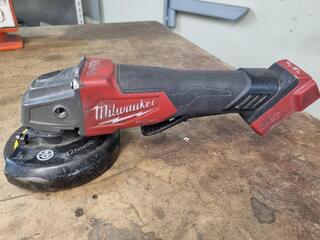

Milwaukee M18 Cordless 125mm Angle Grinder, Tool Only

Skylarc Ref Z176291

Milwaukee M18 Cordless 125mm Angle Grinder.
Model No. M18 FAG125XPD.
Auction includes tool only.
Tool is missing side handle and disk Tool.
See video to see tool operating.

https://www.milwaukeetool.co.nz/power-tools/metalworking/angle-grinders/M18FAG125XPD-0.html

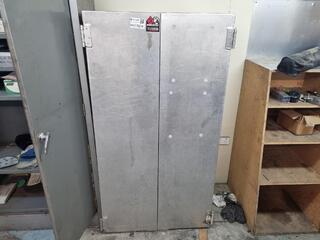

Custom Aluminium Storage Cabinet

Skylarc Ref K176276

Aluminium Storage Cabinet.
Custom.made in shop.
Non-adjjustable inner shelves.
Sturdy unit.
Would benefit to add some door handles.

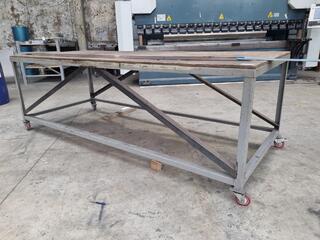

Large Mobile Workshop Work Table

Skylarc Ref R176257

Large Mobile Workshop Work Table.
50x50x4mm angle steel frame, 18mm plywood top, 100mm diameter castors.
Items seen on table not included.

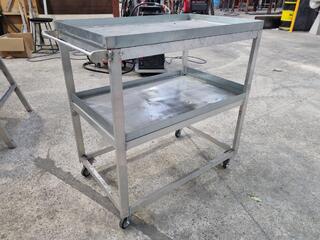

Custom Aluminium & Galvanised Workshop Shelf Trolley

Skylarc Ref J176275

Aluminium & Galvanised Workshop Shelf Trolley.
Custom made in shop.
Welded box aluminium frame with galvanised steel top and middle shelves.
75mm castors.
Lightweight but sturdy custom trolley.

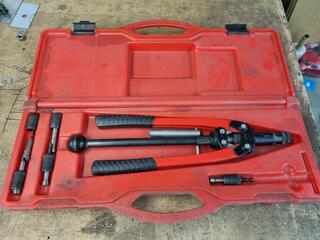

FAR Long Arm Rivet Nut Tool KJ29

Skylarc Ref I176300

FAR Long Arm Rivet Nut Tool KJ29.
M3-M10 capacity.

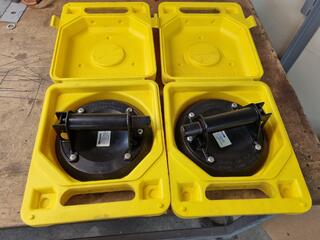

2x Wood's Power Grip 205mm Vacuum Lifters

Skylarc Ref P176281

2x Wood's Power Grip 205mm Vacuum Lifters.
Both tools excellent condition. Case exteriors show more moderate workshop storage wear.

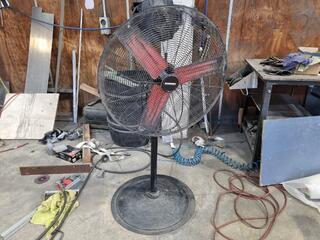

Powerbuilt 700mm Industrial Pedistal Fan

Skylarc Ref G176272

Powerbuilt 700mm Industrial Pedistal Fan.
ID label.is missing so model number unknown.
Adjustable leg height stand.
3-speed.
Non-swivel design.

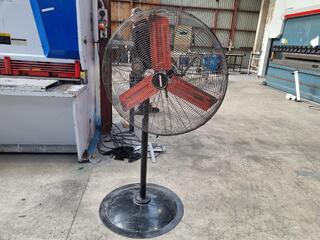

Powerbuilt 700mm Industrial Pedistal Fan

Skylarc Ref F176245

Powerbuilt 700mm Industrial Pedistal Fan.
ID label.is missing so model number unknown.
Adjustable leg height stand.
3-speed.
Non-swivel design.

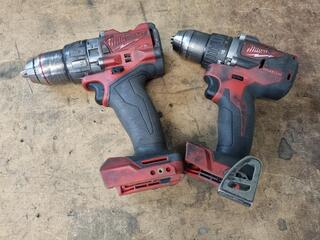

2x Milwaukee M18 Cordless Drills, Tools only

Skylarc Ref A176292

2x Milwaukee M18 Cordless Drills.
One is model M18 FPD3.
The second drill has worn label so model number is unknown.
Both have brushless motors.
Auction includes the two Drills ONLY.
See video to see the drills running.

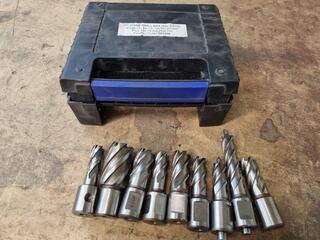

9x Annular Cutters

Skylarc Ref V176287

9x Annular Cutters.
Sizes from 12mm to 25mm.
See photos for all sizes.
Includes case.

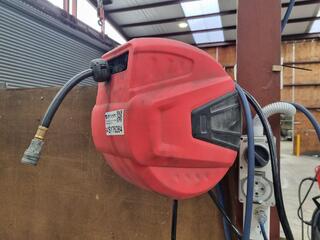

Air Hose Reel, Wall Mounted

Skylarc Ref S176284

Air Hose Reel, Wall Mounted.
Hose length unknown.

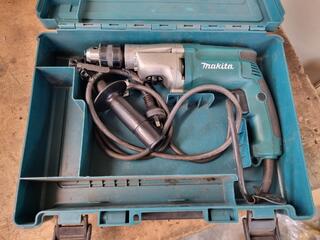

Makita Corded 2-Speed Drill DP4010

Skylarc Ref M176278

Makita Corded 2-Speed Drill.
Model DP4010.
Keyed 13mm chuck, key is missing.
Includes side handle and case.
See video to see drill operating.

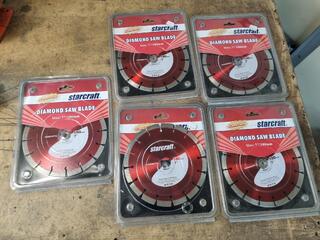

5x 180mm Starcraft Concrete Diamond Saw Blades

Skylarc Ref I176274

5x 180mm Starcraft Concrete Diamond Saw Blades.
All appear as new unused, see photos.
Packaging shows dust from Workshop storage.

Medalist 400mm Laser Level Kit

Skylarc Ref L176277

Medalist 400mm Laser Level Kit.
400mm bubble level with built in laser.
Includes tripod, laser level mount, safety goggles, user guide, plastic case.

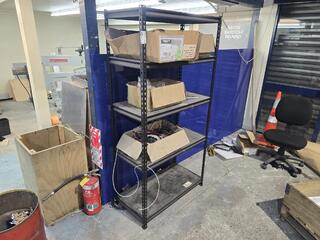

Workshop Shelving and Contents

Skylarc Ref D176581

Clip together shelving
5 levels
Contents of various handles
Wiring
Steel
Aluminum profile

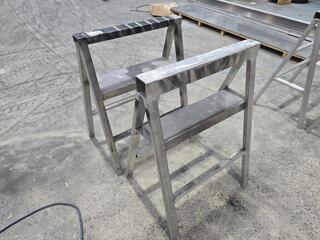

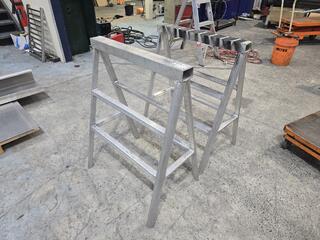

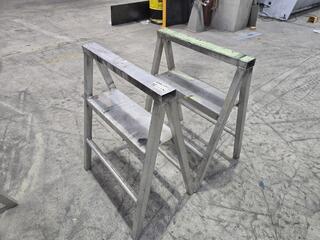

2 x Aluminum Trestles

Skylarc Ref J176587

680mm x 550mm x 910mm tall

2 x Aluminum Trestles

Skylarc Ref K176588

700mm x 520mm x 910mm tall

2 x Aluminum Trestles

Skylarc Ref M176590

680mm x 550mm x 910mm tall

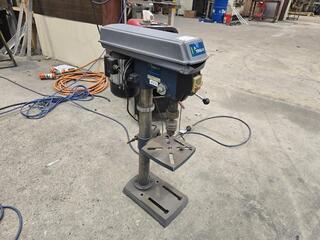

Tooline DP250B 250mm Drill Press

Skylarc Ref Q176594

Brand: Tooline
Model: DP250B 250mm Drill Press
Motor power 375 watts
Supply voltage 230V 50Hz
Speed settings 12
Speed range 230 to 2470 rpm
Table size 190mm x 190mm
Spindle travel 60mm
Keyed drill chuck marked B16
On off switch on front of head
Belt driven pulley system under top cover
Floor standing column and base
Made in China
Serial number 00013
Dent in top cover

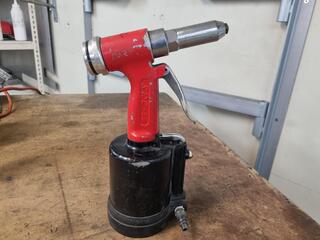

SRC 56 Air Riviter

Skylarc Ref O176280

SRC 56 Air Riviter.
3.2mm to 6.4mm capacity.

https://srcrivet.com/product-in.php?pid=162

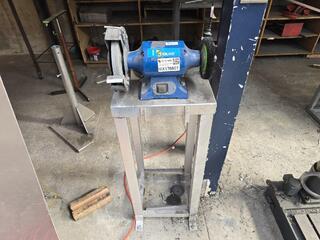

Tooline BG201 200mm Bench Grinder

Skylarc Ref X176601

Brand Tooline
Model BG201
Type Bench grinder
Wheel size 200 x 25 x 16mm
Single phase
On metal stand

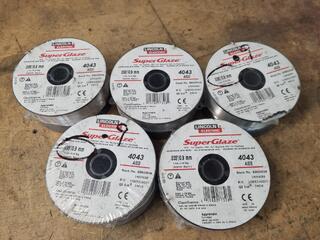

Lincoln Electric SuperGlaze 4043 Aluminium Welding Wire

Skylarc Ref F176271

Lincoln Electric SuperGlaze 4043 Aluminium Welding Wire.
5x 0.9mm wire diameter, 0.45kg rolls in auction.
Spools are 100mm diameter, 45mm wide.
New in manufacturers plastic wrapping.

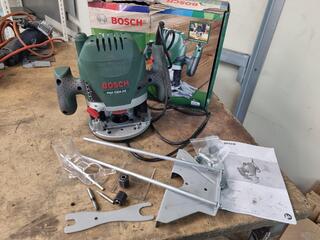

Bosch Corded Router

Skylarc Ref D176269

Bosch Corded Router.
Model No.POF 1200 AE.
See photos for included accessories.
Includes box.

https://www.bosch-diy.com/nz/en/p/pof-1200-ae-060326a140

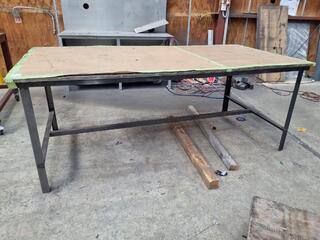

Sturdy Workshop Table

Skylarc Ref Z176265

Sturdy Workshop Table.
55x55mm angle steel frame.
Top is 18mm plywood with 4mm MDF sheet.

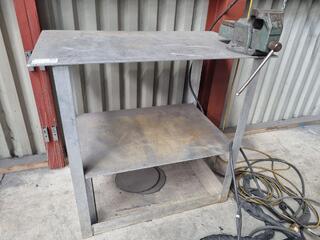

Aluminium Workbench w/ 125mm Vice

Skylarc Ref X176263

Aluminium Workbench w/ 125mm Vice.
Custom constructed workbench from wrlded 50x50mm angle lengths and 6mm aluminium plate.
Includes attached Polish made bench vice with 125mm wide jaws.

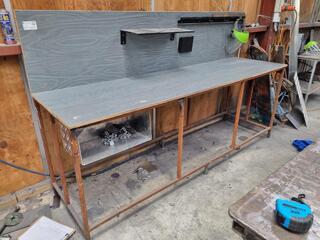

Custom Workshop Workbench

Skylarc Ref T176259

Custom Workshop Workbench.
25x25mm box steel frame, 18mm laminated MDF top and back board.
Work top 905mm above floor.
See photos for further design details.

2x Heavy Duty Box Steel Sawhorses

Skylarc Ref J176249

2x Heavy Duty Box Steel Sawhorses.
Made from 90c90x6mm box steel.
Each is approx 1300x700x800mm.
NOTE that the large box steel lengths on top are NOT included, see our other listing for those.

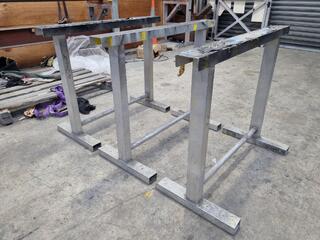

3x Aluminium Sawhorses

Skylarc Ref G176246

3x Aluminium Sawhorses.
All are 1100x500x850mm.

2x Heavy Steel Sawhorses

Skylarc Ref E176244

2x Heavy Steel Sawhorses.
Made from 90x90x6mm box steel.
Each is 1495x860x800mm.

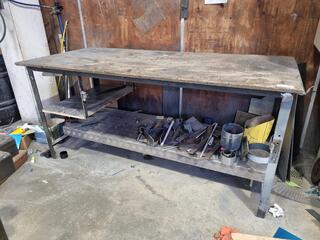

Custom Workshop Table Workbench

Skylarc Ref X176237

Custom Workshop Table Workbench.
50x50mm angle steel frame, 4mm steel sheet top covered by 18mm plywood board.
See photos for further design details.

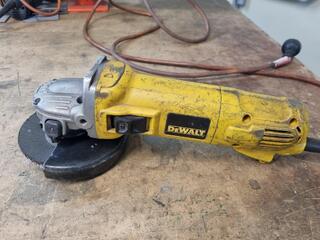

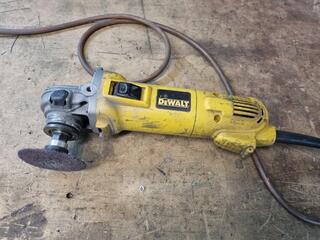

DeWalt Corded 125mm Angle Grinder

Skylarc Ref G176298

DeWalt Corded 125mm Angle Grinder.
Model No.D28135-XE.
Disk guard, removal tool, and side handle are missing.
Grinder operates, see video.

DeWalt Corded 125mm Angle Grinder

Skylarc Ref W176288

DeWalt Corded 125mm Angle Grinder.
Model No.D28135-XE.
Missing side handle snd disk tool.
See video for operational condition.

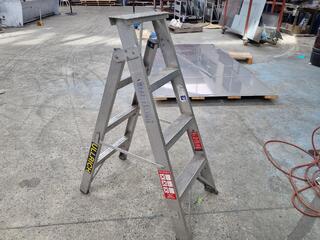

Ullrich Aluminium Combination Step & Extension Ladder

Skylarc Ref R176283

Ullrich Aluminium Combination Step & Extension Ladder.
Model CS/2.10m.
2100mm extension mode length.
1125mm step mode height.

Bosch Professional Corded Jig Saw GST 100 BCE

Skylarc Ref Q176282

Bosch Professional Corded Jig Saw.
Model GST 100 BCE.
Includes plastic case.
Case is missing both latches.
Saw operates normally.

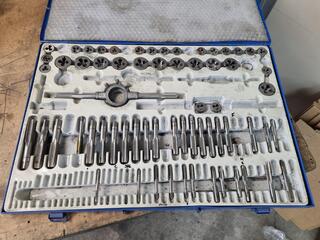

Tap & Die Set

Skylarc Ref H176273

Tap & Die Set.
In a 590x400x32mm steel case.
Some pieces are missing, see photos

Ullrich UlltraWeld Aluminium Welding Wire ER5356

Skylarc Ref E176270

Ullrich UlltraWeld Aluminium Welding Wire.
All are type ER5356.
2x Rolls are 2kg size and the third roll is 0.5kg.
As new unused.

Bostik FR Duct Sealer, 28x 375mL Tubes

Skylarc Ref B176267

Bostik FR Duct Sealer.
28x 375mL Tubes in auction.
Tube size 255x50mm.
All are Grey colour.
All with Best Before dates of 07/2023.

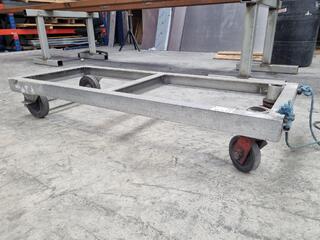

Custom Sturdy Aluminium Mobile Trolley Frame

Skylarc Ref N176253

Custom Sturdy Aluminium Mobile Trolley Frame.
75x50x6mm aluminium channel frame.
200mm diameter rear wheels, 140mm diameter front wheels.

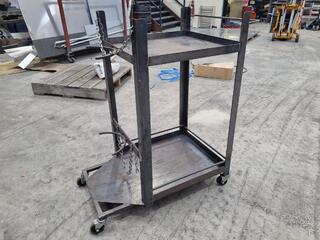

Custom Built Workshop Welding Trolley

Skylarc Ref L176251

Custom Built Workshop Welding Trolley.
Welded steel construction.
70mm diameter castors.
Can accommodate welding gas bottles up to 230mm diameter.
Appears to be a recent custom built as the new bare steel has only light rust spotting, would benefit from a surface painting to prevent further rusting.

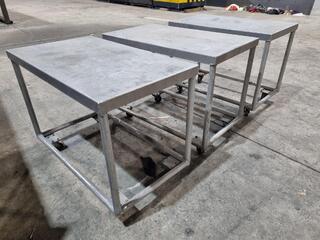

3x Small Aluminium Platform Trollies

Skylarc Ref D176243

3x Small Aluminium Platform Trollies.
Custom made in workshop.
All are 700x400x515mm.
25mm diameter aluminium tube frames welded to 2mm aluminium sheet tops.
50mm diameter meral castors.
Lightweight but sturdy little Trollies.

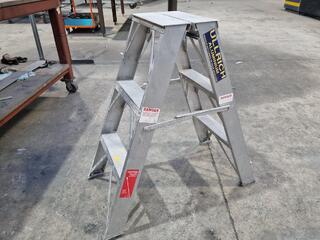

Ullrich Double Sided 850mm Aluminium Step Ladder

Skylarc Ref Z176239

Ullrich Double Sided Aluminum Step Ladder.
Made in New Zealand.
850mm height.
430mm bottom width, 310mm top width.
150kg max weight capacity.

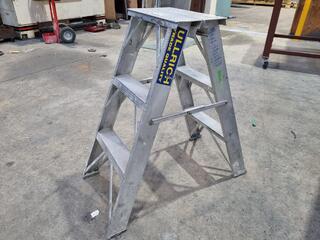

Ullrich Double Sided 840mm Aluminium Step Ladder

Skylarc Ref Y176238

Ullrich Double Sided Aluminum Step Ladder.
Made in New Zealand.
840mm height.
430mm bottom width, 380mm top width.
150kg max weight capacity.

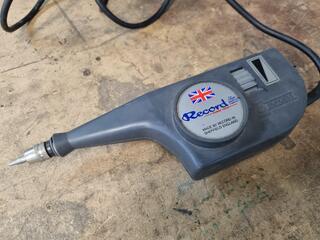

Record Professional Engraver 480

Skylarc Ref U176286

Record Professional Engraver model 480.
Operates normally.

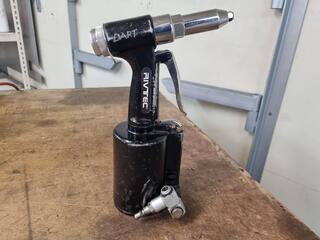

Rivtec Air Riviter

Skylarc Ref N176279

Rivtec Air Riviter.
Unknown model and Rivet diameter capacity.

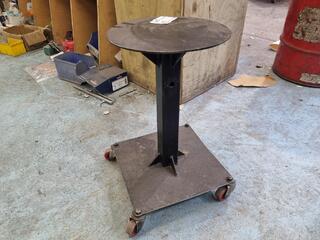

Workshop Trolley Stand.

Skylarc Ref T176285

Workshop Trolley Stand..
4mm top and bottom steel with welded 50x50mm box steel column.
50mm diameter castors.
Sturdy custom built trolley.

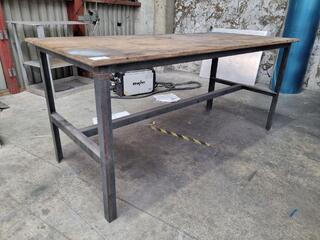

Sturdy Workshop Table

Skylarc Ref W176262

Sturdy Workshop Table.
Frame is welded 50x50x4mm angle steel.
Top is 18mm plywood.

Sturdy Workshop Table

Skylarc Ref V176261

Sturdy Workshop Table.
Frame is welded 50x50x4mm angle steel.
Top is 18mm plywood.

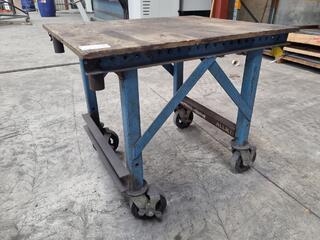

Vintage Heavy Duty Workshoo Platform Trolley

Skylarc Ref Q176256

Vintage Heavy Duty Workshoo Platform Trolley.
Heavy steel frame with 150mm diameter castors and plywood top.
An older unit but very sturdy and rolls well.

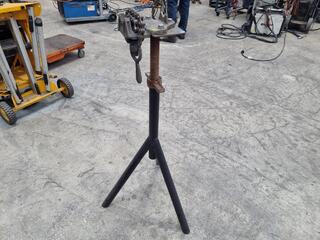

Vintqge Record No.182C Chain Pipe Vice on Heavy Steel Stand

Skylarc Ref I176248

Vintqge Record No.182C Chain Pipe Vice on Heavy Steel Stand.
Stand height adjustable.

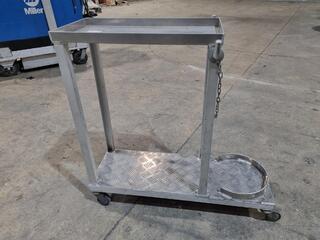

Custom Aluminium Welding Trolley

Skylarc Ref C176242

Aluminium Welding Trolley.
Custom made in workshop.
All aluminium construction (except chain and castors).
Top platform for Welder is 500x260mm.
Accommodates Welding Gas bottles up to 235mm diameter.
Lightweight but sturdy custom trolley.

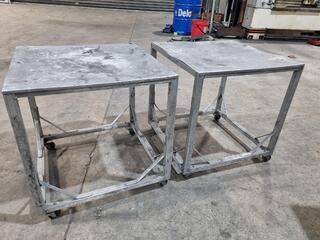

2x Aluminium Platform Trollies

Skylarc Ref B176241

2x Aluminium Platform Trollies.
Custom made in workshop.
All aluminium construction with steel castors.
Each is 600x590x620mm.
Well used but lightweight sturdy units.

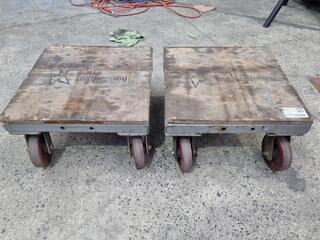

2x Small but Heavy Steel Platform Trollies

Skylarc Ref Y176264

2x Small but Heavy Steel Platform Trollies
Both have 50x50x5mm box steel frame.
150mm castors.
18mm plywood top.
Small but heavy little Trollies.

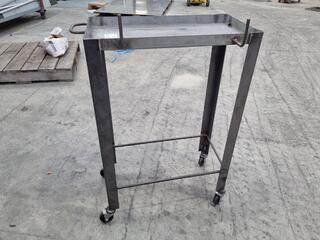

Custom Tall Workshop Trolley

Skylarc Ref M176252

Custom Tall Workshop Trolley.
Welded steel frame.
75mm diameter castors.
Sturdy well built unit.

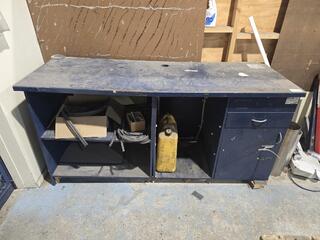

Workshop Bench

Skylarc Ref B176579

MDF construction
Contents of empty diesel container
Assorted rubber trim

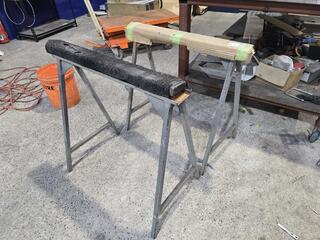

2 x Steel Trestles

Skylarc Ref F176583

800mm x 480mm x 800mm
Steel with removable timber tops

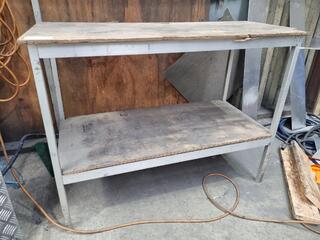

Custom Workshop Aluminium Storage Shelf

Skylarc Ref S176258

Custom Workshop Aluminium Storage Shelf.
Aluminium box frame with 12mm plywood top.
