SKYLARC'S INDUSTRIAL PLANT AND MACHINERY AUCTION

Global Three Phase Lathe

Skylarc Ref I176066

Model: Global 6256x1500
Total bed length 200pmm
Distance between centers approx 1500mm
Swing over bed 560mm
Swing over gap approx 760mm
260mm long bed gap
80mm spindle bore
12 spindle speeds
25 - 1600 rpm
Metric and imperial thread cutting
Quick change tool post
5 tool holders
Taper cutter
Sino SDS6-2V digital read out
Morse taper No.5 tail stock
300mm three jaw chuck
350mm four jaw chuck
Steadies
Change gears
Centres and some accessories
Manufactured 2008
Has been hardwired
Very tidy machine

2026 Tandem Axile Flat Deck Trailer

Skylarc Ref R177037

2026 Tandem Axile Flat Deck Trailer.
Rego good till 17/03/2027.
WOF good till 18/03/2029.
Made in New Zealand.
Galvanized steel frame.
20mm thick plywood deck and side panels.
3100mm long draw bar with 2000kg rated 1 7/8" ball hitch.
Spare tyre mount on drawer bar (spare tyre not included).
Folding front jockey wheel assembly.
Deck with sides up is 2930x1850mm and 790mm above ground.
300mm high side and rear panels.
595mm high front panel.
All panels fold downward, increasing Deck area to approx 3700x1900mm.
4x Tianfu RD-220 trailer tyres size 165R13LT.
LED rear lights.
7-pin electrical plug at front hitch.

Luxcut Single Phase Milling Machine

Skylarc Ref M176070

Luxcut turret milling machine.
Model 8A-1.
Serial number 060598.
Low range spindle speeds 80 135 210 325 160 270 420 650 rpm.
High range spindle speeds 660 1110 1750 2720 1320 2220 3500 5440 rpm.
1240mm x 230mm table
5" spindle travel
Table fitted with leadscrew and handwheel for longitudinal feed.
R8 spindle taper
Machine fitted with DRO unit Sino SDS2MS for X and Y axes.
Motor rated 2 hp 1.5 kW.
Motor rated speed 1430 rpm.
Power feed attachment present on X axis
Right angle milling attachment present on table.
Range of R8 tool holders

Dräger X-am 5000 Gas Detector

Skylarc Ref L174847

Brand: Dräger
Model: X-am 5000
Portable gas detector unit
Front panel with display screen
Two front buttons marked +M and OK on
Black plastic housing with integrated metal grill on front
Rear label shows multiple certification markings
Rear label text includes Dräger Safety Lübeck Germany
Markings include ATEX and IECEx approvals
Unit has metal belt clip on rear
Belt clip marked Dräger with code 0300 2374 97
Belt clip marking includes DUE 13 Apr 20
Power requirements and gas sensor specifications not confirmed
Battery type and remaining capacity not confirmed
Accessories and chargers not included

Luxcut Single Phase Surface Grinder

Skylarc Ref C176060

Model: Luxcut MYS7115.
Maximum grinding width 150 mm.
Maximum grinding length 460 mm.
Machine serial number 187003009.
Single phase supply.
Motor power rating 1.1 kW.
Motor speed 2800 rpm.
Magnetic chuck 460mm x 150mm
Handwheels fitted for table and head movement.
Control panel with green start button and red emergency stop button.

Jos Miller & Son Tool Grinder

Skylarc Ref U174830

Maker Jos Miller & Son Timaru
Year of manufacture 1963
Bench type tool grinder on pedestal base
Electric motor plate marked Newman ELF
Motor rating 1/2 hp
Motor voltage 220 to 230 V
Motor phase single phase
Motor speed 2850 rpm
Motor frequency 50 Hz
Spindle speed plate marked 4500 rpm
Spindle bearings marked SKF 1205
Spindle lubrication marked grease with Shell Alvania
Machine fitted with adjustable work table and slides
Machine fitted with tailstock style support on table
Machine fitted with electric lamp on articulated arm
Control panel with start and stop push buttons
Control panel with three toggle switches
Control panel with one general purpose outlet
Pedestal fitted with external power inlet socket
Pedestal fitted with external power outlet socket

Top-Tech Single Phase Radial Arm Drill

Skylarc Ref K176068

Model :Top-Tech DM20
Type radial arm drilling machine
Max drilling capacity 20mm
Spindle taper MT3
Max span 500mm
0.75kW motor
Date 2001
Spindle speed settings at 50Hz 2000 1200 710 380 210 rpm
Chuck capacity 16mm JT3
Vertical column mounted on base
Radial arm with rack and pinion adjustment
Handwheel control for head movement
Lever control for spindle feed
315mm x 260mm x 240mm tall T slot table fitted to base

Nova Viking DVR 16" Digital Drill Press

Skylarc Ref R175451

Brand: Nova
Model: Viking DVR 16" Digital Drill Press
Drive type: DVR Digital Drive Technology
Swing: 16"
Stroke: 4.5"
Spindle speeds: variable
Speed range: 150 to 3000 rpm
Spindle taper: MT2
Maximum distance spindle to table: 317mm
Distance spindle to base: 575mm
Table size: 320mm x 320mm
Table tilt: 45° to 45°
Table rotation: 360°
Chuck size: 1 to 16mm
Column diameter: 78mm
Base size: 469mm x 270mm
Motor: DVR high torque motor with electronic variable speed
Motor power: 1 HP single phase
Rated electrical parameters: 110 to 120V 15A or 220 to 240V 10A 1HP
Product date: 2020.04.20
Serial number: 031067
Features digital speed readout
Features electronic braking
Features load readout
Features programmable depth controller with digital stop
Features digital quill depth readout
Features dial knob speed adjustment
Features forward and reverse
Quill travel: 4.5" in 1.25 revolutions of handle
Features adjustable mechanical stop with digital readout
Features drill center cross-hair laser
Features built-in LED work light
Fitted with 16mm keyed drill chuck
Drill chuck key is included

https://www.carbatec.co.nz/product/32635-nova-viking-16-inch-drill-press-bench-top

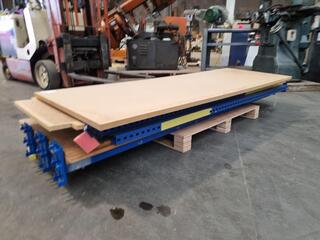

Industrial Pallet Racking Assembly

Skylarc Ref H175129

Industrial Pallet Racking Assembly.
Includes the following components:
- 14x 900x75x3010mm vertical frames.
- 168x 1820x40x60mm orange horisontal beams.
- Large stack of MDF shelving boards.
- Box of locking pins

Parts show typical warehouse usage and wear.

Single Phase Lathe by J.O. Miller, Timaru

Skylarc Ref S175452

Single Phase Lathe.
Made in New Zealand in 2010 by J.O. Miller, Timaru.
650mm total bed length.
Various Chucks in diameters from 65mm to 115mm.
A wide range of mostly pristine appearing accessories and attachments included, see photos.
Belt driven with separate motor assembly unit.
See photos for further details on what is included and condition of unit.

Single Phase Lathe / Grinder by J.O. Miller, Timaru

Skylarc Ref V175455

Single Phase Lathe / Grinder.
Made in New Zealand in 1999 by J.O. Miller, Timaru.
Includes near pristine attachments and accessories, see photos.
The lathe/Grinder is in excellent overall condition and was very well maintained

W.G. Goetz & Sons Model 10C Press

Skylarc Ref J176067

Manufacturer W.G. Goetz & Sons Ltd
Location plate shows Spotswood Melbourne
Model 10C
Serial number CR4575-6
Reclining press
Three phase
Maximum available press capacity 10 tons at 1 inch from bottom of stroke
Press capacity 7.2 tons at 1 1/8 inch from bottom of stroke
Press capacity 6 tons at 1 3/16 inch from bottom of stroke
Press capacity 5.3 tons at 1 1/4 inch from bottom of stroke
Press capacity 4.2 tons at 1 1/2 inch from bottom of stroke
Press capacity 3.8 tons at 1 3/4 inch from bottom of stroke
Stroke of slide 1 3/4 inch
Shut height adjustment up 5 1/2 inch
Adjustment of slide 1 inch
Slide takes punch shanks 1 1/2 inch diameter
Strokes per minute 135
Large flywheel drive
Electric motor mounted above flywheel
T-slotted press table with central opening
Mounted on cast frame base

EMCO Single Phase Benchtop Milling Machine

Skylarc Ref T175453

EMCO Single Phase Benchtop Milling Machine.
Model number and age unknown.
Work table 585x245mm.
Morse Taper No.2 chuck size.
Spindle speeds 120 - 2000rpm
Power feed X axis
MPS position sensor
Range of tooling including boring and facing head
Milling machine in excellent condition overall, very well maintained unit.

Atlas Copco GA26+ Rotary Screw Air Compressor

Skylarc Ref Y175458

Atlas Copco GA26+ Rotary Screw Air Compressor.
Type No.GA26P.
Manufactured in 2009.
Runtime hours unknown.
525kg.
P max 8.5 bar, 123psi.
Qv 76.2 l/s, 161.5 cfm.
26kW 3-phase motor.
Running unit straight out of work

Albrecht 13mm Keyless Drill Chuck w/ No.3 Shank

Skylarc Ref G177130

Albrecht 13mm Keyless Drill Chuck.
Made in Germany.
No.3 Morse Taper Shank.
Very well maintained tool. Jaws move smoothly.

Sherline CNC Rotary Indexer w/ 80mm Toolmaster 4-Haw Lathe Chuck

Skylarc Ref E177050

Sherline CNC Rotary Indexer model 8700 system attached to a ToolMaster 80mm 4-jaw Lathe chuck model K11-80.
Chuck mounted on a custom made base 340mm long with small movable tailstock.
Steping motor with gearbox driving chuck movement.
Custom made plywood box 265x260x185mm includes accessories like chuck keys, controller user guide, and more.
Chuck includes both internal.and external jaw sets.
Sherline controller and motor unit both operate, see video.
All items are very clean and well maintained.

Industrial Pallet Racking Assembly

Skylarc Ref G175128

Industrial Pallet Racking Assembly.
Includes the following components:
- 5x 840x80x3665mm vertical frames.
- 4x 2135x40x80mm horizontal beams.
- 30x 2740m long horizontal beams in varying beam sizes (height and thickness).
- Shelving boards not included.

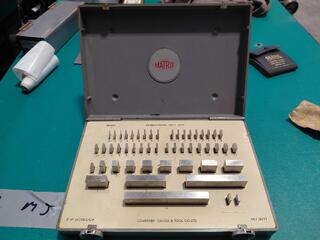

Matrix Coventry Gauge E-49 Workshop Slip Gauge Set

Skylarc Ref P174825

Brand Matrix.
Model E-49 Workshop.
Manufacturer Coventry Gauge & Tool Co Ltd.
Slip gauge set in inch sizes.
Marked International Inch 68°F.
Grade 1.
Includes protective slips marked on baseboard.
Gauges are rectangular steel blocks.
Gauges are arranged by size in labelled rows.
Set serial number NOY 18977.
Supplied in a grey metal case with two knurled latches.
Case lid has circular Matrix logo.

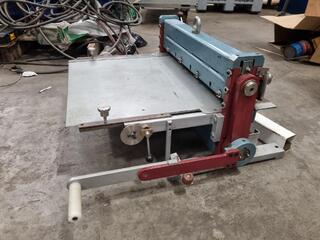

600mm Benchtop Guillotine by J.O.Miller, Timaru

Skylarc Ref B175461

Benchtop Guillotine.
Manufactured in New Zealand in 2007 by J.O. Miller, Timaru.
605mm max material width,, 1.6mm max thickness.
Cutting table approx 440mm long.
Includes 2x extra spare blades.
A well built heavy duty and well maintained unit.

Desco Wrist Strap and Footwear Electrical Ground Tester

Skylarc Ref S175010

Desco Combo Wrist Strap and Footwear Electrical Ground Tester.
Item No.19282.
Includes two 455x300x20mm rubber coated base stands and two 860mm tall steel tester mount columns.
Includes ONE tester unit with included 9V battery.
Note that tester is in factory sealed anti-static bag. Tester is operational, see photos, also Tester is indicating the battery is low on power.
New unused unit. The included second spare support column and base is new as well.

https://www.synergyelectronics.co.nz/store/desco-19282-wrist-strap-combo-tester

Adjustsble Steel Shelving Assembly

Skylarc Ref P175189

Adjustsble Steel Shelving Assembly.
All steel construction finished in light grey.
Includes the following components:
- 6x 600x80x2000mm vertical frames.
- 30x 1340x40x60mm horizontal beams.
- 26x 665x560x30mm steel Shelving panels.

Some components show rusting and/or dents, etc.

Adjustsble Steel Shelving Assembly

Skylarc Ref R175191

Steel Adjustsble Shelving Assembly.
All steel components finished in grey enamel.
Includes the following components:
- 5x 945x55x2400mm vertical frames.
- 36x 1200x40x60mm horizontal beams.
- 18x 1180x895x18mm MDF Shelving boards.
- 37x 850mm Shelving board bracing bars.

Adjustsble Steel Shelving Assembly

Skylarc Ref Q175190

Adjustsble Steel Shelving Assembly.
All steel construction in light grey finish.
Includes the following components:
- 4x 600x80x2000mm vertical frames.
- 48x 1340x40x60mm horizontal beams.
- 48x 660x560x30mm steel Shelving panels.

Some components show denting and/or surface rust.

Vintage Bramley Cold Saw, Restored by Joc Miller

Skylarc Ref F175465

Vintage Bramley Cold Saw.
Restored by Joc Miller, Timaru in 1998.
Specific machine model number and age is unknown.
215mm saw blade mounted with 7x extra blades included in bottom storage cabinet.
Very well maintained vintage machine.

Hindin Industrial 15 Air Compressor

Skylarc Ref A175460

Hindin Industrial 15 Air Compressor.
Tank capacity unknown, approx 830mm long, 275mm diameter tank size.
Compressor is a Brook & Crompton model 9122VVB-B01, manufactured 08/1999.
Single phase.
Well maintained unit.

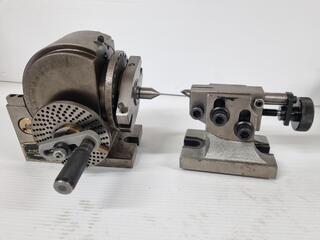

Homage Semi-Universal Dividing Head BS-0

Skylarc Ref H177053

Homage Semi-Universal Dividing Head.
Model BS-0.
Includes tailstock unit.
No other original.acccesories included.
Very well maintained and clean unit.

https://www.homge.com.tw/semi-universal-dividing-head-bs

Ceccato Beltair Pro 90C4R Air Compressor

Skylarc Ref J177549

Brand: Ceccato
Model: Beltair Pro 90C4R 400/50 MEPS
Type: Belt-driven piston air compressor
Motor power: 3 kW
Maximum pressure: 10 bar
Sound power level Lwa,w: 93.0 dB(A)
Sound pressure level Lwa,m: 89.1 dB(A)
Supply voltage: 400 V three phase 50 Hz
Rated current plug: 32 A 500 V
Plug type: 5-pin industrial
Weight: 67 kg
Year of manufacture: 2019
Country of manufacture: Italy
Tank mounted horizontal receiver
Two fixed rear wheels and one front swivel castor
Fitted with pressure gauge on receiver
Fitted with belt and fan guard

Industrial Shelving Assembly

Skylarc Ref I175130

Industrial Shelving Assembly.
Includes the following components:
- 8x 600x80x2000mm vertical frames.
- 2x 600x80x1050mm vertical frames
- 26x 1350x40x60mm horizontal beams.
- 30x 665x560x26mm steel shelving panels.

Condition - Some components show dents, some surface rust, etc.

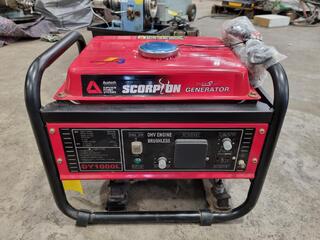

Scorpion Poetable Petrol Generator DY1000L, Unused

Skylarc Ref Z175459

Scorpion Poetable Petrol Generator.
Model No.DY1000L
Engine is a Scorpion 2.4hp petrol engine model HM-82.
Peak AC output 950W
Rated output 900W.
240V single phase.
Includes user manual and 12V DC jumper cable attachment.
Condition - Petrol tank id come dry and shows no indication of having had petrol in it, see photos. Manufacturer tag attached to pull cord stating to add oil before use. Oil dip stick shows very little oil in reservoir and that oil appears clean, see photos. Generator likely was never used, only dusty from apparent storage.

Rust Ripa Benchtop Sandblasting Cabinet

Skylarc Ref Q175450

Rust Ripa Benchtop Sandblasting Cabinet.
Model number unknown.
Includes blasting gun, power cord.

Peacock Dial Gauge No. 207 0.001"

Skylarc Ref T174829

Brand: Peacock
Model: No. 207
Type: Dial gauge
Graduation: 0.001 inch
Dial face with main scale 0 to 100
Secondary small dial on face
Rear cover marked Peacock Dial Gauge
Marked Japan on rear
Serial number on rear: 636472
Supplied in green Peacock branded box
Box marked Dial Gauge No. 207 0.001 inch

Hole Gauges 0.062–0.75 inch Set

Skylarc Ref N174823

Hole gauges set in fitted case.
Case label reads Hole Gauges 0.062–0.75 inch.
Multiple telescoping hole gauges included.
Multiple ball type hole gauges included.
Knurled metal handles on gauges.
Some gauges marked Moore and Wright.
Some gauges marked Japan.
Wood and leatherette internal dividers in case.
L shaped gauge handles marked Moore and Wright.
Metal latch closure on case.

Benchtop Sheet Metal Slip Roller

Skylarc Ref G175466

Benchtop Sheet Metal Slip Roller.
No manufacturer label though its colour scheme may indicate its a Hafco unit.
Model No.SRG-24.
Manufactured 09/2009.
600mm long rollers.

605mm Benchtop Sheetmetal Folder by J.O. Miller, Timaru

Skylarc Ref L175445

605mm Benchtop Sheetmetal Folder.
Made in New Zealsnd in 199 by J.O. Miller, Timaru.
605mm max material width.
1.6mm max thickness.
Well built local.made tool.

Vintage Pacera Drill Press, Single Phase

Skylarc Ref P177061

Vintage Pacera Drill Press.
Made in England.
Model number and age unknown.
Single phase non-original motor.
Attached Teco rpm counter with user manual.
13mm Keyed chuck with key.
Foot pedal drill start/stop.
Large brass counterweight.

Tap and die set in wooden box

Skylarc Ref X174859

Tap and die set.
Supplied in a rectangular wooden box with hinged lid.
Box has metal latches on the front edge.
Set includes a die stock holder with two handles.
Several round split dies are included.
Multiple smaller round and threaded bushings are included.
There are several small die or chaser holders.
Box contains multiple small cardboard packets marked Dies.
Some packets are marked Stronghold Adjustable Spanner.
Some packets are marked Sutton Die.

Industrial Pallet Racking Assembly

Skylarc Ref F175127

Industrial Pallet Racking Assembly.
Includes the following components:
- 2x 600x50x2100mm blue vertical frames.
- 6x 2450x40x50mm blue horizontal beams.
- 6x MDF Shelving boards.

Mitutoyo 7-8 inch outside micrometer

Skylarc Ref U174804

Brand Mitutoyo
Type outside micrometer
Measuring range 7 to 8 inches
Resolution 0.001 inch shown on frame
Scale is imperial
Supplied in fitted wooden case with foam insert
Includes Mitutoyo 7 inch standard
Includes small adjusting spanner
Includes Mitutoyo paperwork with Japanese text
Ratchet thimble fitted on spindle
Frame has through holes for weight reduction
Marking on case side reads IMP EXT 7→8 inch
Manual micrometer head with knurled thimble and sleeve

Antique Motorized Hacksaw

Skylarc Ref K175470

Antique Motorized Hacksaw.
Made un USA by M.F. Co, Miller's Falls, Massachusetts.
Patent dates of 1893 and 1892, manufacture year of this specific machine is unknown.
Machine restored by Joc Miller, Timaru in 1957.
Hacksaw blade length approx 310mm.
Single phase vintage Newman Elf electric motor model F1112191.
Powres on and runs smoothly, see video. Motor gives off ozone smell after a short time running.

Vintage Mini Drill Press by Joc Miller

Skylarc Ref J175469

Vintage Mini Drill Press.
Manufactured in New Zealand in 2967 by Joc Miller, Timaru.
Single phase.
See photos for included accessories.
Very good condition for its age.

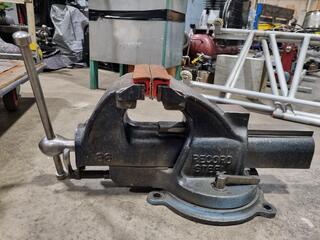

Record No.36 Engimeers Vice

Skylarc Ref I175468

Record No.36 Engimeers Vice.
150mm wide jaws.
250mm diameter swivel base.
An older unit but very well maintained for its apparent age.

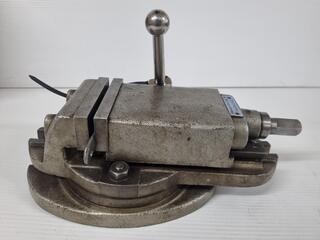

103mm Milling Vice

Skylarc Ref P175709

Milling Vice.
103mm wide jaws.
Opens to approx 105mm.
Includes crank handle.
Swivel base.
Base mounting bolt slots 210mm apart on centre.
Overall dimensions are approx 300x170x105mm.
Very clean and well maintained vice.

PA300D Electric Hoist

Skylarc Ref B176033

Model PA300D
Type electric hoist
Lifting capacity 300 kg single line or 150 kg double line
Voltage 230 V 50 Hz
Current 2.4 A
Input power 550 W
Insulating grade B
Protection grade IP54
Group of mechanisms M1
Lifting height 6 m at 300 kg
Lifting height 12 m at 150 kg
Lifting speed 4 m per min at 300 kg
Lifting speed 8 m per min at 150 kg
Duty cycle S3 20 percent 10 min
Rope diameter 3.0 mm
Rope breaking force greater than 750 kg
Wired pendant control with emergency stop button

LIFTING STROP USED TO HANG IN PHOTOS NOT INCLUDED

ELECTRIC MOTOR USED IN DEMONSTRATION VIDEO NOT INCLUDED

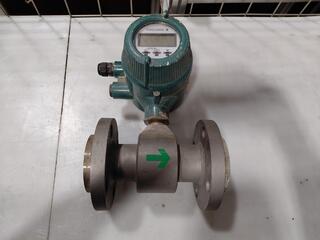

Yokogawa magnetic flowmeter

Skylarc Ref G174868

Brand: Yokogawa
Type: Magnetic flowmeter
Display: Digital LCD with SET ESC and SHIFT buttons
Process connection: Flanged both ends
Flow direction indicated by green arrow on body
Data plate visible on transmitter housing
Power rating on plate includes 24V DC and VAC 50 or 60Hz 30VA
Output noted on plate includes 4 to 20 mA
Transmitter housing is green
Body and flanges appear metallic
Physical condition shows surface wear on transmitter housing
Operational status not tested

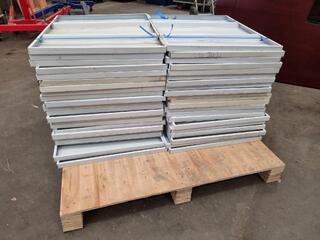

42x Spare Steel Shelving Panels, 665x560x26mm

Skylarc Ref O175188

42x Spare Steel Shelving Panels.
Each is approx 665x560x26mm.
Finished in light grey.
Condition varies with each panel, some show rusting and/or dents, etc.

Assorted Pallet Racking Horizontal Beams

Skylarc Ref E175126

Assorted Pallet Racking Horizontal Beams.
Three sizes of beams in auction.
Includes:
- 16x 1830x45x55mm beams.
- 8x 1345x45x80mm beams.
- 8x 1380x35x70mm beams.

See photos for hook end designs/types.

Chesterman No 369 Precision Measuring Tool

Skylarc Ref V174805

Chesterman precision measuring tool.
Model No 369.
Made in Sheffield England.
Patent No 396514 marked on base.
In wooden storage case with Chesterman Precision Tools Sheffield England label on lid.
Main scale graduated in inches.
Scale marked to at least 50 units.
Sliding vernier mechanism fitted to the scale.
Base plate and end fixture in metal construction.
End fixture marked 1 1 2 inch.
Inserted gauge piece marked 350 inch.
Includes various metal attachments shown in photos.
Includes multiple small desiccant packets in the case.
Latch fitted to front of wooden case.
Hinges fitted at rear of wooden case.

Vintage Ball Bearing Bench Grinder w/ Modifications

Skylarc Ref C175462

Vintage Ball Bearing Bench Grinder w/ Modifications.
Main unit it manufactured by Albertson & Company Inc.
Accessory side attachments manufactured by Joc Miller, Timaru in 1955.
Right side grinding wheels 150mm diameter with 255x103mm variable angle table with tool holding attachment (we are unsure how the attachment is supposed to be mounted, its position in the photos is likely incorrect).
Left grinding wheels with no side cover is 145mm diameter.
Grinder is mounted on a 12mm thick steel plate 458x458mm.
Older but very well maintained vintage Grinder.

320mm 4-Jaw Lathe Chuck

Skylarc Ref U175454

320mm 4-Jaw Lathe Chuck.
90mm centre bore.
Mounting pin holes spaced 115mm apart on centre.
Includes jaw key.
Chuck in excellent condition and very well maintained.

6x Vintage Thread Pitch Gauge Sets

Skylarc Ref E175776

6x Vintage Thread Pitch Gauge Sets.
Includes:
- Moore & Wright No.801.
- Moore & Wright No.800.
- Moore & Wright No.799.
- Moore & Wright No.798.
- Japan made Screw Pit Gauge, brand and model not indicated
- Unknown brand set with black frame, a "Z" stamped into metal on one side, and other sise reads "M 0 4620".

All items in excellent condition.

Vintage Record No.52 1/2 E Woodworking Vice

Skylarc Ref O177060

Vintage Record No.52 1/2 E Woodworking Vice.
Made in England.
Steel jaws approx 228mm wide
Total jaw width with wood 305mm.
Total vice length when closed approx 560mm.
Well maintained vintage tool. Jaws move smoothly.

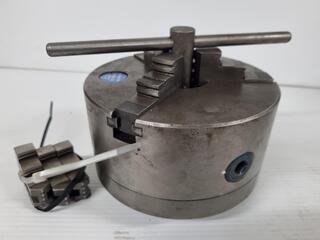

160mm 3-Jaw Lathe Chuck

Skylarc Ref J177055

3-Jaw Lathe Chuck.
160mm outer diameter.
50mm inner bore.
80mm thickness.
15mm diameter mounting pins spaced 60mm apart on centre.
Includes inside and outside jaw sets and chuck key.

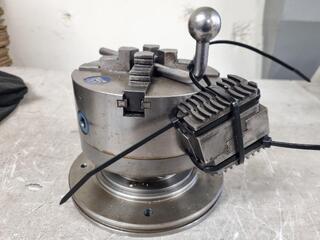

160mm 4-Jaw Lathe Chuck

Skylarc Ref I177054

4-Jaw Lathe Chuck.
160mm outer diameter.
50mm inner bore.
TOS branded.
80mm thickness.
Includes inside and outside jaw sets and chuck key.
Chuck is mounted on a 198mm diameter mount custom made by J.O. Miller, Timaru.

Yokogawa DPharp Transmitter EJX110A

Skylarc Ref F174867

Brand Yokogawa
Series DPharp transmitter
Model EJX110A
Style S3
Suffix EJS4E-914ER/BS12/X2
Supply 10.5 to 42 VDC
Output 4 to 20 mA DC
MWP 16 MPa
Thread marking M20 x 1.5 on cable entry
Made in Japan
Digital display on transmitter head
Unit mounted on stainless steel manifold assembly

SEW Eurodrive CMP50S/KY/RH1MSM1 Motor with Tramec EP 75/1C Gearhead

Skylarc Ref V174857

Manufacturer motor SEW Eurodrive
Motor model CMP50S/KY/RH1MSM1
Motor rated torque Mo 1.30 Nm
Motor speed range 0 to 3000 rpm
Motor rated current Io 0.96 A
Motor maximum current Imax 5.10 A
Motor system voltage Usys 400 V
Motor protection rating IP65
Motor insulation class F
Motor type permanent magnet
Motor duty inverter duty only
Motor mounting IM B5
Motor mass 2.000 kg
Motor made in Germany
Gearhead manufacturer Tramec
Gearhead description EP 75/1C 7 T/Q
Gearhead code 2561835102 60N001
Gearhead date code 04/11
Output shaft cylindrical with keyway
Unit has two electrical connector housings on motor

36x 380mm Roller Tracks

Skylarc Ref L175029

36x 380mm Roller Tracks.
Aluminium frames with plastic end caps, each frame is 385x40x35mm.
Each frame has 35mm diameter, 20mm wide orange plastic rollers.
36x units in auction.
See our other listings for more Bulk lots of these rollers.

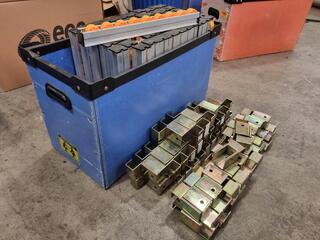

66x 380mm Roller Tracks

Skylarc Ref K175028

66x 380mm Roller Tracks.
Aluminium frames with plastic end caps, each frame is 385x40x35mm (excluding end brackets).
Each frame has 35mm diameter, 20mm wide orange plastic rollers.
66x roller units in auction.
Also includes 42x sets of steel track end support brackets, see photos.
See our other listings for more Bulk lots of these rollers.

66x 380mm Roller Tracks

Skylarc Ref J175027

66x 380mm Roller Tracks.
Aluminium frames with plastic end caps, each frame is 385x40x35mm (excluding end brackets).
Each frame has 35mm diameter, 20mm wide orange plastic rollers.
66x roller units in auction.
Also includes 42x sets of steel track end support brackets, see photos.
See our other listings for more Bulk lots of these rollers.

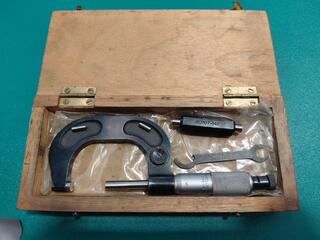

Shardlow External Micrometer 1–2 inch Model 51X

Skylarc Ref S174828

Shardlow external micrometer.
Measurement range 1 inch to 2 inch.
Model marking 51X on frame.
Marked Shardlow Micrometers Ltd Sheffield England on box.
Micrometer frame colour black.
Micrometer thimble marked Shardlow Sheffield England.
Micrometer scale graduated to 0.001 inch.
Supplied in wooden Shardlow box.
Box label text Micrometers by Shardlow External 51 Black 1"–2" Sheffield England.
Set includes micrometer frame and spindle assembly.
Set includes Mitutoyo setting standard.
Setting standard marked Mitutoyo.
Setting standard marked No 167-142.
Setting standard marked Made in Japan.
Set includes small metal spanner.
Plastic wrapping present inside box.

Oldak Centre Finder Set No. 555

Skylarc Ref O174824

Brand: Oldak
Type: Centre finder set
Also marked as wiggler set
Model: Set No. 555
Made in England
Includes one main holder
Includes two offset ball-ended arms
Includes three straight probes with ball and point ends
Supplied in black plastic wallet with snap closure
Markings and layout as shown in photos

Lufkin No 79B Telescoping Gage Set

Skylarc Ref M174822

Brand Lufkin
Model No 79B
Telescoping gage set
Six telescoping gages
Knurled steel handles
T handles on gages
Supplied in red fold-over case
Case has snap fastener
Marking on case reads Lufkin Telescoping Gage No 79B

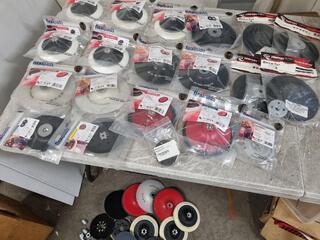

Assorted Support Disks & Sanding Pad Base Attachments

Skylarc Ref S175114

Assorted Support Disks & Sanding Pad Base Attachments.
Brands include Flexipad and Taipan.
Includes angle Grinder pad attachments and sander/Polisher velcro base disks.
Diameters from 100mm to 180mm.
20x units are new in packaging and another 13x units appear unused but are without packaging.

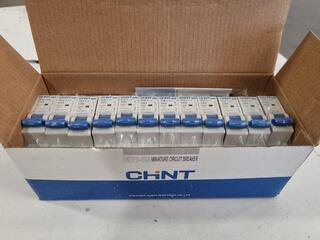

Assorted CHNT MCB Circuit Breakers, Various Types

Skylarc Ref T175479

Assorted CHNT MCB Circuit Breakers.
Includes the following types:
- 25x NB1-63, C63, 240/415V.
- 1x NB1-63, C50, 240/415V.
- 1x NB1-63, C40, 240/315V.
- 9x NB1-63, C32, 240/415V.
- 1x NB1-63, C25, 240/415V.
- 13x NB1-63, C20, 240/415V.
- 12x NB1-63, C16, 240/415V.
- 7x NB1-63, C10, 240/415V.
- 3x NB1-63, C6, 240/415V.
- 3x NB1-63, C4, 240/415V.
- 4x DZ158-125, 125A, 240V.
- 3x DZ158-125, 100A, 240V.
- 2x DZ158-135, 80A, 240V.
- 4x DZ158-125, 125A, 415V
- 1x NB1-63, C63, 415V.

Most show no visible usage but cannot verify. A few others show varying wear from possible usage, or long term storage, etc.

Fuji Tool Universal Angle Block Set UAB-8

Skylarc Ref L174821

Brand: Fuji Tool
Model: Universal Angle Block UAB-8
Manufacturer: Fuji Tool Co.
Country of manufacture: Japan
Set includes 8 angle blocks
Angles included: 1°
Angles included: 2°
Angles included: 3°
Angles included: 4°
Angles included: 5°
Angles included: 10°
Angles included: 15°
Angles included: 30°
Material appears to be metal
Supplied in original Fuji Tool cardboard box
Blocks are stored in a white foam holder
All blocks are marked FUJI TOOL JAPAN with their angle value

TM Toolmaster M250 Parallels Set

Skylarc Ref K174820

Brand: TM Toolmaster.
Model marking on box: M250.
Item type: Parallels set.
Box label text: Parallels 1/1·25/1·5/1·75.
Supplied in a wooden storage box with latch closure.
Multiple steel parallel bars included.
Some bars have through holes.
Foam padding is fitted in the box lid.

Wavy Parallels 0.5 1.5 Set

Skylarc Ref J174819

Set of wavy parallels in wooden storage box.
Front label reads Wavy Parallels 0.5 1.5.
Box contains ten pairs of wavy parallels.
Sizes marked on the insert are 1 12, 1 38, 1 14, 1 18, 1, 78, 34, 56, and 12 inch.
Parallels are stored in individual slotted compartments.
Box has metal clasp on the front.

NTB metal block with plates and pins in wooden box

Skylarc Ref I174818

NTB marked metal block
Block has five circular through holes
Block has two cylindrical end pieces
Two rectangular metal plates included
Each plate has two circular holes
Four metal pins or screws included
Set supplied in rectangular wooden box
Box has hinged lid
Box has metal hook latch on front
Interior of box is lined with green material

Yama AT-6011 Air Body Saw

Skylarc Ref H174817

Brand Yama
Model AT-6011
Type air body saw
Pneumatic operation
Cutting capacity 1.5 mm
Air inlet size 1 4 inch NPT
Overall length 9.2 inches
Net weight 1.8 pounds
Stroke length 10 mm
Includes air saw tool
Includes original Yama box
Includes instruction and parts sheet titled Air saw
Includes various saw blades as shown
Includes hex keys as shown
Blade size listed on sheet as 32 teeth and 24 teeth
Yama Pro Pneumatic Tools and Accessories branding on box
CE marking on box
Trigger style lever on saw body
Air hose fitting attached to saw
Handle wrapped with black material
Colour black and yellow body
Saw uses reciprocating blade motion
Tool requires external air supply
No power supply included
Condition as shown in photos

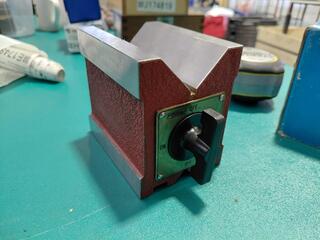

Fowler Magnetic V-Block

Skylarc Ref F174815

Brand Fowler
Magnetic V block
On off rotary switch on front face
Switch plate marked Fowler and ON OFF positions
V groove on top for holding round workpieces
Ground metal faces on top and sides
Rectangular body with red textured finish
No accessories included

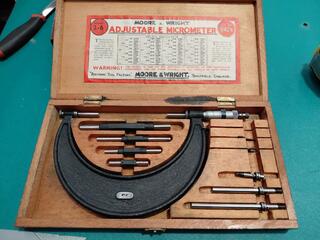

Moore and Wright No 942 Adjustable Micrometer 2–6 inch

Skylarc Ref C174812

Brand Moore and Wright
Model No 942 adjustable micrometer
Measurement capacity 2 to 6 inch
Made in Sheffield England
Supplied in wooden case
Frame marked 2 to 6 inch
Set includes micrometer frame
Set includes interchangeable anvils
Anvils marked 2 inch
Anvils marked 3 inch
Anvils marked 4 inch
Anvils marked 5 inch
Case label lists decimal equivalents chart
Case label states cat no 942x
Case label states capacity 2 to 6 inch
Knurled thimble with scale markings
Includes multiple screw in extension rods
Includes spanner type wrenches
Outer case has hinged lid with latch

INSIZE Electronic Digital Indicator IS12101-10

Skylarc Ref Q174800

Brand: INSIZE
Model code: IS12101-10
Type: Electronic digital indicator
Measuring range: 0–10mm
Measuring range: 0–0.5"
Resolution: 0.005mm
Resolution: 0.0005"
Power supply: CR2032 battery (per instruction sheet)
Functions: mm/inch conversion
Functions: ON/OFF
Functions: ZERO
Display type: LCD
Includes plastic storage case
Includes instruction sheet
Case label: Electronic Digital Indicator 0–10mm/0–0.5"
Three front buttons marked mm/inch ON/OFF and ZERO
Indicator has shank and measuring tip as shown

Insize Dial Bore Gage 2-6 inch Set

Skylarc Ref P174799

Brand Insize
Type dial bore gage set
Measuring range 2 to 6 inch as marked on handle and case
Dial indicator resolution 0.0005 inch as marked on dial face
Dial indicator range 0 to 0.25 inch as marked on dial face
Includes dial bore gage body with dial indicator
Includes multiple interchangeable measuring anvils marked 2.0in 2.2in 2.4in 2.6in 2.8in 3.0in
Includes extension rods marked 3.2in 3.4in 3.6in 3.8in 4.0in
Includes three setting rings marked plus 0.01in plus 0.05in plus 0.02in
Includes black threaded adapter
Supplied in green plastic Insize case with foam insert
Case label marked Dial Bore Gage 2-6 inch
Some anvils are in plastic wrapping
Paper documentation is present inside the case

Diamond keyway broach set

Skylarc Ref L174795

Diamond keyway broach set.
Broaches marked DIAMOND 1/16 A HSS.
Broaches marked 3/32 A HSS CHINA.
Broaches marked 1/8 A HSS CHINA.
Broaches marked DIAMOND 5/32 B HS.
Broaches marked 3/16 B HSS CHINA.
Several push bushings marked H S BROACH TURNERS FALLS MASS MADE IN U S A.
Bushing sizes marked 1/2.
Bushing sizes marked 9/16.
Bushing sizes marked 11/16.
Bushing sizes marked 5/8.
Bushing sizes marked 7/8.
Bushing sizes marked 13/16.
Bushing sizes marked 1 1/2.
Bushing sizes marked 3 1/4.
Some small slotting guides marked 11/32.
Some small slotting guides marked 11MM.
Supplied in a plastic case.

Minii Custom Benchtop Grinder by J.O.S. Miller

Skylarc Ref H175467

Minii Custom Benchtop Grinder.
Made in New Zealand by J.O.S. Miller, Timaru.
Grinder Assembly made in 1968 and the 90-degree angle gauge on grinding tanle made in 1955.
120mm diameter grinding wheel.
Front table with angle gauge 200x85mm.
Single phase Marathon Electric branded motor.
A very well made vintage machine in excellent overall condition for its age.

Vintage Delta Homecraft Scroll Saw

Skylarc Ref X175457

Vintage Delta Homecraft Scroll Saw.
Model and age unknown.
Bakelite on/off switch.
Cloth type power cord.
Single phase.
Cutting table 280x280mm.
Total saw length 675mm.
Mounted on a wooden cabinet trolley.
Well maintained vintage tool.

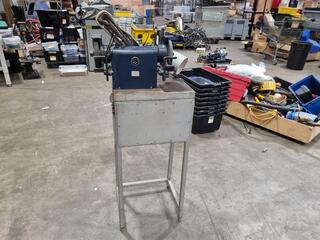

Vintage Bench Grinder w/ Stand by J.O. Miller, Timaru

Skylarc Ref W175456

Vintage Bench Grinder.
Nade in New Zealand in 1970 by J.O. Miller, Timaru.
Compatible with grinding disks up to 150mm diameter.
Single phase.
Belt driven.
Very well maintained vintage unit.
No disk guards included.

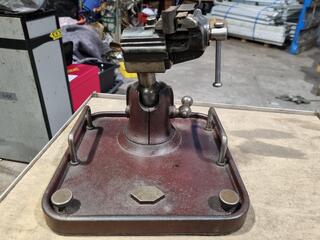

Vintage Mini 43mm Vice w/ Ball Joint Base by J.O.S. Miller, Timaru

Skylarc Ref K175444

Vintage Mini 43mm Vice w/ Ball Joint Base.
Custom made in New Zealand in 1950 by J.O.S. Miller, Timaru.
Heavy steel Base 240x240mm.
43mm jaw with.
Vice opens to approx 40mm.
Total assembly height approx 210mm.
Vice functions smoothly for its age.
A sturdy well built and maintained vintage tool.

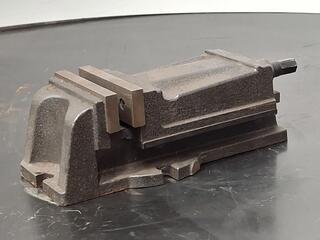

Custom Made 77mm Mill Vice by J.O. Miller, Timaru

Skylarc Ref K177108

Mill Vice custom made in 1991by J.O. Miller, Timaru.
77mm wide jaws.
Opens to approx 80mm.
190mm long.
Base plate with 360-degree scale.
Base plate 160x106mm with 14mm wide mou ting guides on bottom. Mounting bolt holes are spaced approx 133mm apart on centre.
Includes vice hand crank attachment.
The vice is in near new condition and very clean.

Hafco Industrial Workbench Table

Skylarc Ref M177058

Hafco Industrial Workbench Table.
Heavy duty steel frame with adjustable feet pads.
40mm thick top board with gren laminate top and rubber edging.
4x holes have been drilled through top, see photos.

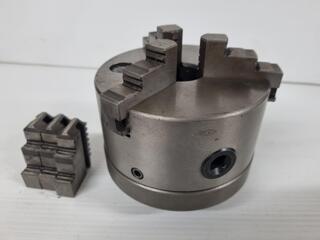

125mm 3-Jaw Lathe Chuck

Skylarc Ref K177056

3-Jaw Lathe Chuck.
125mm outer diameter.
30mm inner bore.
80mm thick body.
3x 15mm mounting pins spaced 60mm apart on centre.
Includes internal and external jaw sets.
Note that chuck key is missing.
Chuck very clean and well maintained.

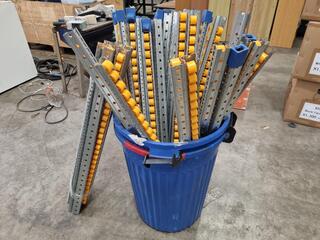

46x 900mm Roller Tracks

Skylarc Ref I175026

46x 900mm Roller Tracks.
Steel frames each 900x36x25mm.
Each Includes 25mm diameter 20mm wide orange plastic rollers.
46, roller tracks in auction.

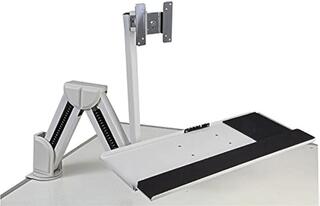

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray

Skylarc Ref P175007

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray.
Part No.PSG08382.
630mm wide keyboard tray.
Desk edge mount.
This item is new in factory sealed box, photos of opened unit are indicative only!

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray

Skylarc Ref O175006

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray.
Part No.PSG08382.
630mm wide keyboard tray.
Desk edge mount.
This item is new in factory sealed box, photos of opened unit are indicative only!

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray

Skylarc Ref N175005

Pro Signal Desk Monitor Arm w/ VESA Mount & Keyboard Tray.
Part No.PSG08382.
630mm wide keyboard tray.
Desk edge mount.
Item shows light usage marks.

Engineering Black Granite Leveling Plate

Skylarc Ref K175418

Engineering Black Granite Leveling Plate.
Unknown manufacturer.
302x230x60mm.
Pads on bottom.
Excellent condition. No edge or corner chips.

Hougen HMD908 Magnetic Drill

Skylarc Ref H175883

Brand: Hougen
Model: HMD908
Type: Magnetic base drill
Magnetic base with integral power switch
Motor on off push buttons on top panel
Top panel labelled Hougen and Made in U.S.A.
Power input via attached mains power cord
Three spoke feed handle
Coolant or lubricant bottle mounted on top
Warning and safety instruction labels on side
Base marked CF2
Currently shown with annular cutter installed
Red indicator light present near power cord entry

ER50 Collets w/ Custom Mounting Chuck & Wood Case

Skylarc Ref N177137

ER50 Collets w/ Custom Mounting Chuck & Wood Case.
Metric collet sizes from 10mm to 34mm.
Collets 50mm dia, 60mm long.
Includes a ER50 collet chuck with a 100mm diameter mount cystom made by J.O. Miller, Timaru.
Includes a cystom made Wrench and plywood case.
Items are in excellent to as new condition.

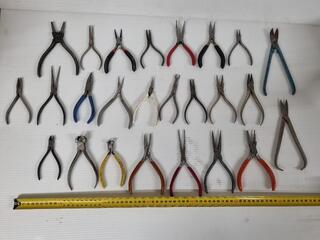

25x Assorted Small / Mini Pliers

Skylarc Ref C177126

25x Assorted Small / Mini Pliers.
Needle nose, angled needle nose, circlip, end cutting Pliers, and more.
See photos for further details on types included and their size compared to the tape measure seen in most photos.
All were well maintained by previous owner.
Ages very greatly, some are recent while others are vintage or older.

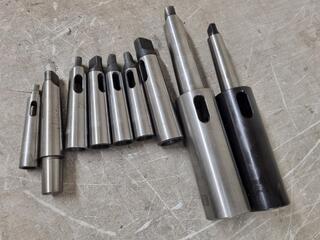

9x Morse Taper Drill Sleeves

Skylarc Ref U177118

9x Morse Taper Drill Sleeves
Includes:
- 1x Jacobs England No.3 shank for a drill chuck with a 20mm diameter inner mounting bore.
- 1x 1-2
- 4x 2-3
- 1x 3-4
- 1x 3-4 extention
- 1x 4-4 extention

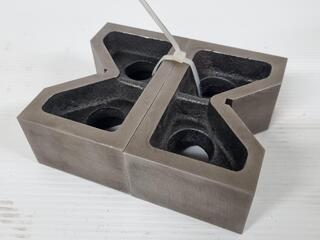

2x Vee Blocks, New

Skylarc Ref F177103

2x Vee Blocks.
Unknown manufacturer.
Both are 226x79x51mm.
Both are as new showing no signs of prior usage.

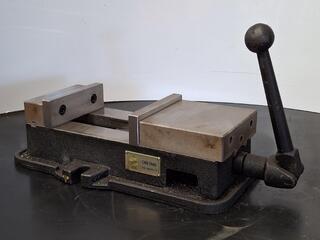

Chin Chao machine vice

Skylarc Ref E176036

Brand: Chin Chao.
Machine vice.
Manual lever operated.
Steel jaws.
Cast base.
Removable jaw plates attached with two cap screws per jaw.
Max capacity approx 155mm
Jaw width approx 150mm.

Chin Chao machine vice

Skylarc Ref D176035

Brand: Chin Chao.
Machine vice.
Manual lever operated.
Steel jaws.
Cast base.
Removable jaw plates attached with two cap screws per jaw.
Max capacity approx 155mm
Jaw width approx 150mm.

15x Assorted Milling Woodruf Keyseat Cutters

Skylarc Ref Q177088

15x Assorted Milling Woodruf Keyseat Cutters.
Mostly Clarkson branded with a few Dormer units mixed in.
All have 12mm diameter shanks.
See photos for head sizes/types.
All very clean and tidy units.

18x Assorted Milling Woodruf Keyseat Cutters

Skylarc Ref P177087

18x Assorted Milling Woodruf Keyseat Cutters.
Brands include Trucut, Somta, Domer, Clarkson.
16x units have 12mm diameter shanks plus one with 10mm shank and one with 6mm shank.
See photos for head sizes/types.
All very clean and tidy units.

17x Dovetail Milling Cutters + Curved Keyset Cutter

Skylarc Ref N177085

17x Dovetail Milling Cutters plus one curved keyset cutter.
2x Dovetails are reverse head type.
Shank diameters include 16mm, 12mm, 10mm.
See photos for specific head sizes/types.
Very clean and well maintained units.

5x Pipe Clamps

Skylarc Ref N177059

5x Pipe Clamps.
Pipe lengths are:
- 2x 500mm
- 1x 850mm
- 2x 1200mm

22mm diameter pipe.

110mm 4-Jaw Lathe Chuck

Skylarc Ref F177051

110mm 4-Jaw Lathe Chuck.
Made in England by Burnerd.
30mm inner bore.
29mm thickness.
8mm mounting holes spaced 40mm apart on centre.
Includes chuck key.

Yokogawa digital field indicator

Skylarc Ref I174870

Brand: Yokogawa
Digital display with four front buttons labelled ESC SET SHIFT and arrow
Housing has multiple cable glands
Internal terminal block with screw terminals
Label near terminals indicates 24V only
Tag notes 24VDC supply
Tag notes 0–20 m3 per hour
Unit is mounted on a metal bracket
Power and signal wiring not included
Model number not visible in photos
Actual specifications unknown

ERA PVC Union 2.5 inch 150 PSI

Skylarc Ref H174869

Brand ERA PVC union fitting
Size 2.5 inch
Working pressure 150 PSI
Body color white
Material PVC
Union style fitting with threaded components
Includes union nut and socket sections
Rubber sealing ring visible in one component
End type options on box list socket type BS ANSI DIN JIS
End type options on box list threaded type BSPT NPT
Box text states acid and alkaline resistant
Box text states easy operation
Box text states widely used in pipe systems of factory farming and residence
Two PVC unions visible in photos

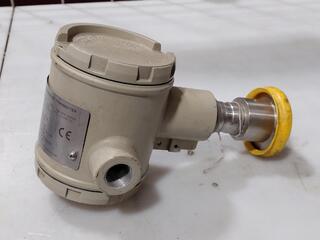

Honeywell ST 3000 Smart Pressure Transmitter

Skylarc Ref E174866

Brand: Honeywell
Series: ST 3000 Smart Pressure Transmitter
Model: STG14T-Z10-00000-4G-XXXX
Serial: 0634 060814020002
MAWP: 500 psi
Pressure range: -9 to 500 psi
Factory calibration: 0 to 862 kPa
Span: 9 to 500 psi
Body: STG14TR-Z1
Diaphragm material: stainless steel (SS)
Fill: DC200
Process temperature limits: -40 to 150 degrees Celsius
Maximum ambient temperature: 93 degrees Celsius
Supply voltage: 11 to 42 VDC
Output signal: 4 to 20 mA DC
Enclosure rating: IP66/IP67
Certification marking: Ex ia IIC T4
AUS Ex 13.371X
Ui: 30 V
Li: 150 uH
Ci: 4.2 nF
Pi: 0.75 W
Un: 42 V
Label code: 50010604-001 ISS. A
Assembled in China Tianjin 300457 P.R. China
Two terminal pairs marked TEST and SIGNAL
Includes attached process connection with sanitary style diaphragm end
Plastic screw-on covers for terminal and electronics housings included

B-H ISO4064 DN20 Water Meter

Skylarc Ref D174865

B-H ISO4064 water meter
Register shows 00000 cubic metres
Nominal diameter DN20
Marking 20mm on body
Marking PN1 on dial
Marking H2.5 on dial
Marking ΔP<0.1MPa on dial
Body has directional flow arrow
Blue painted metal meter body
Brass upper housing with hinged cover
Threaded inlet connection
Threaded outlet connection
Mechanical roller counter display
Four auxiliary dials with red pointers
Marking BIL on dial
Serial number engraved on brass rim

7x Mean Well 350W Enclosed Power Supplies NES-350-27

Skylarc Ref G175050

7x Mean Well 350W Enclosed Power Supplies.
All are Model No.NES-350-27.
Enclosures measure approx 230x120x50mm.
Some show prior usage.

https://www.meanwellaustralia.com.au/products/NES-350

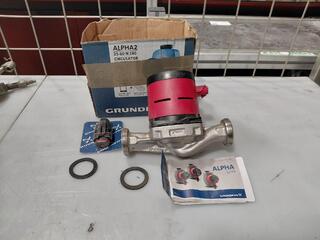

Grundfos ALPHA2 25-60 N 180 circulator pump

Skylarc Ref C174864

Brand: Grundfos
Model: ALPHA2 25-60 N 180
Type: Circulator pump
Control: AUTOADAPT function shown on display
Includes Grundfos ALPHA 1/2/3 instruction manual
Includes two circular gaskets

Kinik 205x25x31.75mm GC 60 J V grinding wheels

Skylarc Ref B174863

Brand Kinik
Abrasive grinding wheel
Model marking 1A 205x25x31.75
Outer diameter 205mm
Thickness 25mm
Bore 31.75mm
Specification GC 60 J V
Maximum speed 3600 RPM
Peripheral speed rating 38 m per second
Label code YVG53012170201
Two grinding wheels included in listing

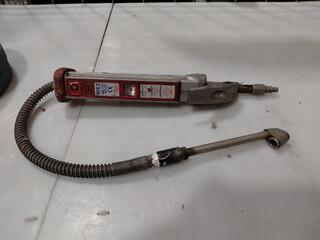

MK3 Air Line Gauge

Skylarc Ref A174862

Model MK3 Air Line Gauge
Made in Sheffield England

Honeywell SCM3000 Plus F Series CMF Flowmeter

Skylarc Ref Z174861

Brand: Honeywell
Model: SCM3000 Plus F Series CMF
Order code on electronics label: S25 FTA00A25B2F
Order code on sensor label: CMF S25-FTA00A25B2F
Serial number: G-Z8-89541
Enclosure rating: NEMA 4X
Power supply: 16-62 VDC
Power consumption: 12 VA/W
Frequency: 50-60 Hz
Connection type marked: 3A Triclamp
Line size marked: 1.0 inch
Material marked: 904LSS
K-factor marked: 2.5449/10-
Temperature maximum marked: 400 F
Display head with LCD screen and three push buttons
Tri-clamp ferrules fitted at both ends of the flow tube
Patents listed on plate: US 4,768,384 and 4,801,897
FM approval markings present on nameplate

Keystone F79U Single Acting Spring Pak Actuator

Skylarc Ref Y174860

Brand: Keystone
Model: F79U
Type: Single acting actuator
Spring Pak rated 5.5 bar
Fail close configuration
Working pressure 830 kPa
Temperature range minus 20 deg C to plus 90 deg C
CE marked
Label reference F79UWSSB01 on warning sticker
Compressed spring pack warning on end cap
Ports to ISO 2281 noted on label
Manufacture date 04/2009 on label
Serial number on main label is not fully legible
Mounted to stainless steel bracket and valve adaptor
Actuator body colour is black
End caps secured with four hex head bolts each side
Two pneumatic connection ports on underside

Bearing separator and puller set in metal case

Skylarc Ref W174858

Bearing separator and puller set.
Two bearing separator blocks included.
Multiple threaded extension rods included.
Central forcing screw included.
Assorted nuts and washers included.
Components stored in a formed plastic tray.
Tray housed in a red metal case.
Case has two metal latches.
Case has an integrated red handle.
Label inside lid shows Avon Engineering Supplies Ltd Christchurch New Zealand.
Overall quantity of individual pieces is not confirmed.
Specific sizes and capacity are not marked on the set.
Brand of the puller components is not marked.

12U Rack Mount Enclosure Flatpack

Skylarc Ref U175038

12U Rack Mount Enclosure Flatpack.
Code No.HB5174.
Assembled unit should measure 530x450x626mm.
As new unassembled flatpacked in box. Box has been opened by vendor and shows storage wear.

Bracom Sit-Stand Workstation Desk Mount

Skylarc Ref S175036

Bracom Sit-Stand Workstation Desk Mount for monitor & keyboard.
Kit No.BT-DWS01-C02.
Change from a sitting to a standing position whenever you want. The modular and flexible design of the sit-stand desk workstation fits most space while providing personalized ergonomic comfort. Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work. Easily and independently lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort. This work style encourages healthy movement throughout the day.

- Easily and independently lift monitor and keyboard to proper height for allowing switch positions as you work
- Effortlessly swivel, tilt and portrait-to-landscape rotation provide a wide range of motion
- Gas spring structure offers perfect counterbalance presentation in all directions
- Neat and efficient cable management
- Both grommet and desk clamp mounting available
- VESA plate & platform adjust for ergonomic position
- 360° Rotary VESA plate for more viewing experience
- Gas spring perfectly counterbalances the weight of your monitor
- Cable management keeps everything organized
- Both grommet and desk clamp mounting available.

New unassembled in manufacturer box.

https://www.pbtech.co.nz/product/MOABRA1136/Bracom-DWS01-C02-Single-Monitor-Sit-Stand-Workstat?srsltid=AfmBOopiDx4kT5ydRc7fMzE-foc6mJn_dNAu6wNp_SzaqTVegBxHPooF

SEW-Eurodrive CMP50S Motor with WHF37 Gearbox

Skylarc Ref U174856

Brand: SEW-Eurodrive
Motor model: CMP50S/KY/RH1MVSM1
Gearbox model: WHF37 CMP50S/KY/RH1M/SM1
Motor rated torque Mo: 1.30 Nm
Motor rated current I: 0.96 A
Motor speed range nN: 0 to 3000 rpm
System voltage Usys: 400 V
Maximum current Imax: 5.10 A
Ingress protection rating: IP65
Insulation class: F
Motor type: permanent magnet
Motor mounting: IM B5
Motor mass: 2.840 kg
Gear unit peak torque Ma pk: 108 Nm
time rating Ma pk: 194.00 Nm
Maximum input speed ne pk: 4500 rpm
Gear unit mounting: IM M1B
Gear unit mass: 8.000 kg
Nameplate code: 13339303
Gear unit ratio i: 23.25
Gearbox filled with food grade oil
Inverter duty only
Made in Germany

Sykes-Pickavant Twinpull Ball Bearing Puller Kit 098100

Skylarc Ref T174855

Brand: Sykes-Pickavant
Model: Twinpull
Kit number: 098100
Type: Ball bearing puller kit
Made in England
Case colour: red
Includes force screw part no. 098011
Includes thrust washer part no. 098012
Includes thrust nut part no. 098012
Includes beam part no. 098012
Includes main rod assemblies part no. 098019
Includes extension rods 90mm part no. 098017
Includes extension rods 195mm part no. 098017
Includes end piece part no. 098039
Kit suitable for ISO bearing designations 6004 to 6015
Kit suitable for ISO bearing designations 6200 to 6207
Kit suitable for ISO bearing designations 6300 to 6307
Kit suitable for ISO bearing designations 6403 to 6404
Overall puller spread 20mm to 111mm
Adaptor diameters 5.5mm to 12.5mm
Label states world patents pending
Manufacturer address: Sykes-Pickavant Ltd Kilnhouse Lane Lytham St Annes Lancs FY8 3DU England
Includes plastic carry case

Keystone pneumatic actuators and valve parts lot

Skylarc Ref J174949

Lot of Keystone pneumatic actuators and valve components
Multiple Keystone F257 100 pneumatic actuators visible
Actuators appear to be stainless steel bodied units
Some actuators have black plastic end covers
Several actuators have attached electrical cables
Some actuators have attached pneumatic tubing
At least one Keystone valve body is included
Valve body has three ports and pneumatic actuator mounted
Some valve components have flanged connections

SK Works SK-100 Limit Switch Box

Skylarc Ref S174854

Brand SK Works
Model SK-100
Device type limit switch box
Mechanical switch
Switch configuration 2 SPDT
Enclosure rating IP67
Enclosure rating NEMA 4
Enclosure rating NEMA 4X
Voltage rating AC 250V 3A
Voltage rating AC 125V 5A
Voltage rating DC 250V 0.2A
Voltage rating DC 125V 0.4A
Voltage rating DC 30V 4A
Voltage rating DC 14V 5A
Voltage rating DC 8V 5A
Top indicator shows OPEN position on one side
Top indicator shows CLOSED position on opposite side
Housing is black
Top cover is clear plastic
Unit includes metal mounting bracket
Conduit entry labeled on side cap

Emico OTLS Limit Switch Box

Skylarc Ref R174853

Brand: Emico
Model: OTLS
Device type: Limit switch box
Switch type: Mechanical switch
Contact configuration: 2 SPDT
Enclosure rating: IP67
AC voltage rating: 250V 3A
AC secondary voltage rating: 125V 5A
DC voltage rating: 250V 0.2A
DC secondary voltage rating: 125V 0.4A
DC voltage rating: 30V 4A
DC voltage rating: 14V 5A
DC voltage rating: 8V 5A
Manufacturer: Eunha Machinery Industrial Co Ltd
Top indicator marked OPEN
Mounted on metal bracket
Wired with multi pin circular connector lead
Includes cable glands on housing
Black plastic housing with clear indicator cover

Emico OTLS Limit Switch Box

Skylarc Ref Q174852

Manufacturer Emico
Model OTLS
Product type limit switch box
Switch type mechanical switch 2 SPDT
Enclosure rating IP67
Rated AC voltage 250V 3A
Additional AC rating 125V 5A
Rated DC voltage 250V 0.2A
Additional DC ratings 125V 0.4A 30V 4A 14V 5A 8V 5A
Top indicator marked OPEN CLOSE
Housing is black
Unit has two cable glands
Mounted on metal bracket
Label shows Eunha Machinery Industrial Co Ltd
Website on label www.emico.co.kr
Physical condition shown in photos
Power and wiring requirements are as per label
No further testing information available

APL-210N Limit Switch Box with Pneumatic Valve Actuator

Skylarc Ref P174851

APL-210N limit switch box
Valve position indicator
Enclosure rating IP67
Type mechanical switches 2 SPDT
Voltage rating AC 250V 3A 125V 5A
Voltage rating DC 250V 0.2A 125V 0.4A 30V 4A 14V 5A 8V 5A
Includes pneumatic actuator body
Actuator housing is aluminium with red end caps
Limit switch box housing is black plastic
Unit has stainless steel valve body attached
Valve body has tri clamp type ends
Electrical cable is attached to the limit switch box
Transparent tube is connected to the actuator body
"Closed" indicator visible in limit switch box dome
Made with micro switch certification markings on label
CE marking present on label
Other regulatory approval marks present on label
Overall assembly shown in photos

20x Roller Tracks

Skylarc Ref H175025

20x Roller Tracks.
Includes:
- 3x steel roller frames each 265x32x25mm with 25mm diameter, 20mm wide orange plastic rollers, plus a bag of 10x spare rollers.
- 18x aluminium frames each 515x40x35mm with 17x of these frames having 35mm diameter, 30mm wide orange plastic rollers installed.

Condition varies wirh each set, most are excellent with a few others showing more surface dust or missing end caps, one is missing two rollers, see photos.

3x Adapter Sleeve H315 65mm

Skylarc Ref N174849

Adapter sleeve item H315.
Marked size 65 m/m.
Marked KM15 on lock nut.
Marked H315 on sleeve body.
Each box label states item H315.
Each box label states size 65 m/m.
Each box label states quantity 1 pcs.
Boxes are labelled Adapter Sleeves.
Boxes are labelled Made in Taiwan.
Sleeve assembly includes threaded lock nut.
Sleeve assembly includes lock washer.
Sleeve assembly includes tapered sleeve.

SikaGrout 212 General Purpose Construction Grout 25kg

Skylarc Ref M174848

Brand: Sika
Product: SikaGrout 212
Type: General purpose construction grout
Grout type: Pourable cementitious grout
Bag weight: 25kg
Yield: 13.5L per bag with 4.5L of water
Maximum water per bag: 4.5L
Suitable for interior use
Suitable for exterior use
High strength grout as stated on packaging
Shrinkage compensated grout as stated on packaging

Chesterton 1730 Mill Pack Mechanical Packing

Skylarc Ref K174846

Brand: Chesterton
Model: 1730 Mill Pack
Type: Mechanical packing
Size: 0.500 inch (12.7 mm)
Length: Unknown
Lot number: F08 9464170E
Made in the USA
Supplied on original spool
White braided packing material

Chesterton Style 1727 Mechanical Packing

Skylarc Ref J174845

Brand: A.W. Chesterton Co.
Model: Style 1727 mechanical packing
Cross section size approximately 8mm
Length on spool unknown
Packing supplied on a wooden spool
Label states color variations will not affect packing performance
Manufactured by A.W. Chesterton Co. Stoneham MA 02180 USA
Label copyright date 1989 A.W. Chesterton Co.

50 Lamson Storage Bins - Size 5

Skylarc Ref H175389

50 Size 5
Assorted colours

Chesterton Style 477-J mechanical packing spool

Skylarc Ref A174836

Brand Chesterton.
Style 477-J mechanical packing.
Spool with braided packing material.
Label shows A W Chesterton Co.
Manufactured in Stoneham MA USA.
Label copyright date 1989.
Some length already cut from the spool.
Exact remaining length unknown.
Size marking on label not fully legible.
Color appears metallic grey.

Chesterton Style 1400R Carbon Yarn Reinforced Packing 1/2 inch

Skylarc Ref I174844

Brand Chesterton
Style 1400R
Carbon yarn reinforced packing
Nominal size 1/2 inch
Nominal size 12.7 mm
Lot number H22128309B
Supplied on spool
Color appears black

Daylight Omega 7 Magnifier LED Desk Lamp

Skylarc Ref J175001

Daylight Omega 7 Magnifier LED Desk Lamp.
Manufactured by Daylight.
"The Omega 7 is is part of the Daylight range of magnifying lamps and is modern and ergonomically designed. It has a large 17.5 cm, 3 dioptres (1.75X), lightweight acrylic lens and high power LEDs with 4 brightness level for clear viewing. The internal spring arm allows accurate positioning and lateral protections help you keep it clean. The aesthetically pleasing white and grey finish fits perfectly within any professional environment."
- Acrylic lens with anti-scratch coating
Lens Ø 17.5 cm
- 3 Dioptres (1.75X)
- 4 Brightness levels
- Covered arms with internal springs
- Long reach 118 cm

Condition - Show surface wear and marks from electronics manufacturing usage. NOTE that the base atand is missing!
See the manufacturer website below for further details:

https://www.daylightlamps.co.nz/products/omega-7-magnifier?variant=46700497436827

2x Daylight Mag Lamp S Magnifying Desk Lamps

Skylarc Ref A175200

2x Daylight Mag Lamp S Magnifying Desk Lamps.
Daylight branded.
Both are model Mag Lamp.S (N1200).
"With a modern and aesthetically pleasing design, the MAG Lamp S is your ideal companion when carrying out detailed tasks or treatments. With 2 brightness levels, a 13cm glass lens and adjustable spring arm, you can position this magnifier exactly where you need it and choose the most suitable brightness setting for your task at hand."
- Modern and attractive slim design
- 13cm glass lens with 3 dioptre (1.75X) magnification.
• Bright daylight LEDs.
• 2 brightness levels.
• Easily adjustable spring arm.
• Maximum reach 110cm.

Both show usage and wear from prior use in an electronics manufacturing facility. Both operate normally. NOTE that Both are missing mounting base stands!

https://www.daylightlamps.co.nz/products/mag-lamp-s?variant=46700497567899

2x Daylight Mag Lamp S Magnifying Desk Lamps

Skylarc Ref Z175199

2x Daylight Mag Lamp S Magnifying Desk Lamps.
Daylight branded.
Both are model Mag Lamp.S (N1200).
"With a modern and aesthetically pleasing design, the MAG Lamp S is your ideal companion when carrying out detailed tasks or treatments. With 2 brightness levels, a 13cm glass lens and adjustable spring arm, you can position this magnifier exactly where you need it and choose the most suitable brightness setting for your task at hand."
- Modern and attractive slim design
- 13cm glass lens with 3 dioptre (1.75X) magnification.
• Bright daylight LEDs.
• 2 brightness levels.
• Easily adjustable spring arm.
• Maximum reach 110cm.

Both show usage and wear from prior use in an electronics manufacturing facility. Both operate normally. NOTE that Both are missing mounting base stands!

https://www.daylightlamps.co.nz/products/mag-lamp-s?variant=46700497567899

O-ring assortment in plastic cases

Skylarc Ref F174841

Mixed O-ring assortment in multiple plastic cases
Includes grey plastic case with various O-rings and labelled sizes on base
Includes blue plastic case with O-rings and size markings on base
Includes second blue plastic case with O-rings and size markings on base
Includes red plastic case with O-rings and size markings on base
Includes orange plastic case with O-rings and size markings on base
Includes clear plastic compartment box with assorted small O-rings
Clear box lid chart lists metric sizes from 3 x 1 mm to 22 x 2 mm
Quantities shown on clear box lid chart range from QTY-5 to QTY-20
Actual O-ring counts in each compartment appear less than chart quantities
All items shown in photos are included
Specific O-ring materials are not identified
Specific O-ring size ranges in coloured cases are not identified
Brand names are not visible on cases

Isuzu 1-59459005-1 Grease Reservoir

Skylarc Ref E174840

Brand: Sanwa Seiki
Product type: Grease reservoir
Model marking on box: Gris-O-Mat
Isuzu genuine part
Isuzu part number: 1-59459005-1
GM number on label: 98414897
Label text: Reservoir; Grease
Quantity on label: 1
Net capacity marked on box: 1000 cc
Made in Japan
Outer packaging present
Plastic bellows style reservoir with red cap shown

Weg 0.25kW Electric 3-Phase Motor, As New

Skylarc Ref L175185

Weg 0.25kW Electric 3-Phase Motor.
Model No.T2000025B3.
Manufactured 03/2005.
24mm long, 12mm diameter shaft.
Overall dimensions are 190x175x122mm.
Motor appears as new unused but dusty on one side from long term open box storage.
Includes original box.

Assorted Fibre and Rubber Washer Kits in Cases

Skylarc Ref D174839

Champion Assortment No. CA 400 fibre washers set in red plastic case
Champion fibre washers are assorted sizes as shown in case compartments
One blue plastic case contains assorted fibre washers
One blue plastic case contains assorted fibre and white plastic type washers
One clear plastic case contains assorted rubber washers and grommet style parts
Clear plastic case has multiple compartments with mixed sizes and colours
One green plastic case contains assorted rubber washers O-rings and related parts
Green plastic case includes some mesh screen washers and brass fittings
Multiple compartment plastic storage cases are included as shown
Quantity of individual washers and parts is not counted
All items are shown in the photos

Denka Thermally Conductive Sheets, 69x 520x440mm Sheets

Skylarc Ref G175180

Denka Thermally Conductive Sheets.
69x sheets in auction, all 520x440mm in size.
Grade Type.BFG30
Sheet thickness 0.011mm.
One pack of unopened 50x Sheets plus an opened partial pack of 19x Sheets.
New unused stock.

Assorted hex socket grub screws in plastic case

Skylarc Ref Z174835

Assortment of hex socket grub screws
Multiple sizes present
Stored in a clear plastic compartment case
Some grub screws have ball ends
Material appears to be metal
Quantity not counted
Exact thread sizes not marked

Copper washer assortment sets

Skylarc Ref Y174834

Two assortments of copper washers
One assortment in a clear plastic compartment box
Clear box label sizes include 5x10x1mm
6x10x1mm
7x10x1mm
8x12x1mm
10x16x1mm
10.5x17x1.5mm
11x17x1.5mm
12x20x1.5mm
12.5x20x1.5mm
14x18x1mm
14x20x1.5mm
15x20x2mm
16x22x2mm
16.5x24x2mm
17.5x24x2mm
Label for clear box indicates 10 pieces per listed size when full
One assortment in a red plastic compartment box
Red box marked Champion
Red box contains various copper washers in multiple compartments
Actual washer counts in each compartment are not confirmed
All items shown are included

Assorted Metal Spring Sets in Plastic Cases

Skylarc Ref X174833

Assorted metal springs
Multiple extension springs
Multiple compression springs
Springs stored in three clear plastic compartment cases
Additional springs stored in one blue plastic box
Springs appear to be of various lengths
Springs appear to be of various diameters
Some springs have end loops
Some springs have plain cut ends
Includes both light gauge and heavier gauge springs
Quantity of springs in each compartment varies
No brand information visible on the cases
No size markings visible on individual springs
Paper insert with spring diagrams present in one case
Overall quantity of springs as pictured
Cases have hinged lids
Cases and springs are metallic colour
Blue box is rigid plastic
Contents sold together as one lot

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref A175174

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref Z175173

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 07/2026
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref Y175172

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref X175171

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref W175170

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2027.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref V175169

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref U175168

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref T175167

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 01/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref S175166

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 01/2028.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 50x Units

Skylarc Ref F175153

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Box of 50x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 02/2028
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
Photos are indicative.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite 125mm Cutting Disks 905, Box of 27x Units

Skylarc Ref E175152

Euromarc Elite 125mm Cutting Disks Tupe No.E905-12525.
Partial Box of 27x disks in auction.
125 x 2.5 x 22.23mm.
Expiry 07/2026.
As new unused stock.
See our other listings for more Bulk lots of these cutting disks.
https://www.euromarc.co.nz/elite-cutting-disc-905

Euromarc Elite Grinding Disks 933, 25x 125mm Disks

Skylarc Ref C175150

Euromarc Elite Grinding Disks 933.
25x 125mm Disks in auction.
Part No.E933-12565.
125 x 6.5 x 22.23mm.
Expiry 09/2026.
New unused stock.
https://www.euromarc.co.nz/elite-grinding-933

Euromarc Elite Grinding Disks 933, 21x 125mm Disks

Skylarc Ref B175149

Euromarc Elite Grinding Disks 933.
21x 125mm Disks in auction.
Part No.E933-12565.
125 x 6.5 x 22.23mm.
Expiry 02/2027.
New unused stock.
https://www.euromarc.co.nz/elite-grinding-933

Mitutoyo Outside Micrometer No.102-124 0-1 inch

Skylarc Ref R174827

Brand: Mitutoyo
Type: Outside micrometer
Model number on frame: No.102-124
Measuring range marked on frame: 0–1 inch
Resolution marked on frame: 0.0001 inch
Frame shows etched name J.O. Miller
Micrometer has ratchet stop
Micrometer has lock lever
Scale on thimble graduated in 0.001 inch divisions
Frame lists conversion table from thread counts to diameters
Marked Made in Japan on frame
Supplied in Mitutoyo plastic case
Includes small Mitutoyo spanner
Includes small plastic box with three loose steel balls
Includes rubber ring piece in plastic box
Includes Mitutoyo printed instructions for use and care of outside micrometer
Includes Mitutoyo millimeters to inches and inches to millimeters conversion tables sheet
Includes Mitutoyo Certificate of Accuracy card from Mitutoyo Mfg Co Ltd Tokyo Japan
Measurement faces appear flat type
Thimble and sleeve are metal construction
Case has Mitutoyo logo on lid

Moore & Wright 441 Internal Micrometer Set 1–5 inch

Skylarc Ref Q174826

Moore and Wright internal micrometer set.
Model 441.
Range 1 inch to 5 inch as marked on box.
Sheffield 9 England marked on box.
Main micrometer head marked Moore and Wright Sheffield.
Micrometer head graduated in 0.001 inch divisions.
Set includes micrometer head and multiple extension rods as shown.
Includes setting pieces as shown.
Supplied in wooden fitted storage box.
External box label reads Micrometers by Moore and Wright Internal 441.
End plate on box marked I Internal 1/5.

6x Pallet Racking Frame Floor Guards

Skylarc Ref D175125

6x Pallet Racking Frame Floor Guards.
Each is 250x140x350mm.
Inner gap approx 135mm.
Also includes 2x corner protectors each 100x100x350mm.

Groz Angle Block 0–60°

Skylarc Ref G174816

Brand: Groz
Type: Angle block
Angle range: 0–60 degrees
Scale marked in 1 degree increments
Least count: 10 minutes
Stated squareness: 0.0004 inch (10 micron)
Stated parallelism: 0.0004 inch (10 micron)
Material appears to be metal
Graduated arc scale on one face
V shaped top with adjustable jaw
Engraved with Groz Engineering Tools

TTC Adjustable Parallels Set with Starrett Inserts

Skylarc Ref E174814

Brand TTC adjustable parallels set.
Made in Japan as marked on case label.
Includes six adjustable parallel bodies marked A to F TTC.
A TTC parallel body.
B TTC parallel body.
C TTC parallel body.
D TTC parallel body.
E TTC parallel body.
F TTC parallel body.
Parallel A is fitted with a Starrett insert No.154-A.
Starrett No.154-A marked The L.S. Starrett Co Ltd Great Britain.
Parallel C is fitted with a Starrett insert No.154-C.
Starrett No.154-C marked The L.S. Starrett Co Ltd Great Britain.
Parallel D is fitted with a Starrett insert No.154-D.
Starrett No.154-D marked L.S. Starrett Co Athol Mass USA.
Set supplied in blue plastic wallet.
Wallet has individual pockets labeled with metric size ranges.
Pocket ranges printed 9.53mm to 12.70mm.
Pocket ranges printed 12.70mm to 17.46mm.
Pocket ranges printed 17.46mm to 23.81mm.
Pocket ranges printed 23.81mm to 33.34mm.
Pocket ranges printed 33.34mm to 44.45mm.
Pocket ranges printed 44.45mm to 57.15mm.

Adjustable Parallel Set

Skylarc Ref D174813

Adjustable parallel set.
Six adjustable parallels marked A to F.
Blocks are marked CHINA.
Supplied in blue plastic wallet marked ADJUSTABLE PARALLEL SETS.
Parallel A range marked 3/8 in 9.53 mm to 1/2 in 12.7 mm.
Parallel B range marked 1/2 in 12.7 mm to 11/16 in 17.46 mm.
Parallel C range marked 11/16 in 17.46 mm to 15/16 in 23.81 mm.
Parallel D range marked 15/16 in 23.81 mm to 5/4 in 33.34 mm.
Parallel E range marked 5/4 in 33.34 mm to 3/4 in 44.45 mm.
Parallel F range marked 3/4 in 44.45 mm to 1 2/4 in 57.15 mm.
Each parallel has slotted adjustment and locking screw or screws.

3–4 inch external micrometer set

Skylarc Ref B174811

3–4 inch micrometer frame marked 3"–4" and 53X
Micrometer head marked BOWERS LTD ENGLAND and 15
Mitutoyo 4 inch standard included
SHARDLOW 4 inch standard included
Adjusting wrench included
Additional cylindrical accessory included
Supplied in wooden storage case marked I External 3/4

IMS-12" Inside Micrometer Set

Skylarc Ref A174810

IMS-12" inside micrometer set.
Code No 141-109.
Made in Japan.
Micrometer head marked JAPAN and 15.
Micrometer head with knurled thimble and lock.
Set includes multiple interchangeable extension rods.
Extension rods are metal with knurled ends.
Wooden storage case with fitted wooden inserts.
Case includes small metal spanners.
Includes desiccant packet in case.

Mitutoyo 103-183A 6-7" Outside Micrometer

Skylarc Ref Z174809

Brand Mitutoyo
Model number 103-183A
Type outside micrometer
Measuring range 6 to 7 inches
Resolution 0.001 inch
Scale mechanical analog thimble and sleeve
Includes 6 inch setting standard No.167-146
Includes spanner wrench
Made in Japan
Supplied in fitted plastic case with foam insert

M Internal 50-75 and 75-100 micrometer set

Skylarc Ref Y174808

M Internal 50-75 and 75-100 micrometer set.
Two internal micrometer heads marked 50-75 and 75-100.
Resolution marking 0.01 on the 50-75 head.
Knurled grip sections on micrometer bodies.
Foam lined wooden storage case.
Case has metal hinges and latches.
Label on case reads M Internal 50-75 and 75-100.
Includes a small metal tool in the case.

Mitutoyo 103-181A 4-5" Outside Micrometer

Skylarc Ref X174807

Brand Mitutoyo
Model number 103-181A
Type outside micrometer
Measuring range 4 to 5 inches
Graduation 0.001 inch
Scale imperial
Made in Japan
Frame marking 4-5 inch 0.001 inch
Includes 4 inch standard
Includes plastic storage case
Includes adjustment tool
Includes Mitutoyo Outside Micrometer instruction leaflet
Includes decimal equivalents of parts of an inch card

Mitutoyo 103-182A 5-6" Outside Micrometer

Skylarc Ref W174806

Brand Mitutoyo
Model number 103-182A
Made in Japan
Measurement range 5 to 6 inches
Resolution 0.001 inch
Type outside micrometer
Mechanical spindle with thimble and ratchet
Includes Mitutoyo 5 inch setting standard
Includes reference card in plastic sleeve
Includes Mitutoyo document in plastic sleeve
Supplied in hard plastic case

Internal 50/200 Bore Gauge Set

Skylarc Ref T174803

M Internal 50/200 bore gauge set.
Micrometer head with 0.01 mm graduations.
Interchangeable measuring heads marked 75–100 mm.
Interchangeable measuring heads marked 100–125 mm.
Interchangeable measuring heads marked 125–150 mm.
Interchangeable measuring heads marked 150–175 mm.
Interchangeable measuring heads marked 175–200 mm.
Extension rod included.
Small cylindrical attachment included.
Pair of small flat tools included.
Supplied in fitted hard case with foam insert.

Mitutoyo 293-762-30 digital micrometer 1-2 inch

Skylarc Ref S174802

Brand Mitutoyo
Model number 293-762-30
Measurement range 1-2 inch
Resolution 0.00005 inch
Resolution 0.001 mm
Digital display with inch millimetre selection button
Origin button on display panel
Mechanical thimble and sleeve scale
Battery type SR44
Made in Japan
Supplied in fitted foam-lined case
Additional components included in case as shown

Measumax MX Thread Micrometer 2-3 inch 0.001 inch

Skylarc Ref R174801

Brand Measumax MX.
Type screw thread micrometer.
Measuring range 2 to 3 inch as marked on frame.
Resolution 0.001 inch as marked on frame.
Supplied in a fitted hard plastic case.
Includes micrometer frame and spindle assembly.
Includes 2 inch 55 degree reference standard.
Includes multiple interchangeable thread anvils as shown.
Includes clamp lever on frame.
Includes printed instructions titled Measumax Thread Micrometers.
Label on case reads Thread Mike 2-3 55.
Designed for measuring screw thread pitch diameter.
Anvils include pointed spindle anvils and V shaped bottom anvils.

Metal Block in Wooden Case

Skylarc Ref O174798

Metal rectangular block
Material appears metallic
Block stored in rectangular wooden case
Case has hinged lid
Case has metal latches
Block sits recessed into wooden base
Top surface of block appears flat
Exact dimensions not marked
Brand not marked
Model not marked
Intended use not marked

Marlco Keyway Broaches Set

Skylarc Ref N174797

Marlco keyway broaches set.
Metal storage case with hinged lid.
Internal chart titled Keyway Marlco Broaches.
Chart lists recommended shims for standard depth square keyways.
Chart lists No. 0 set sizes 1/16 inch 3/32 inch 1/8 inch.
Chart lists No. 1 set sizes 1/8 inch 5/32 inch 3/16 inch 1/4 inch 5/16 inch.
Chart lists No. 2 set sizes 5/16 inch 3/8 inch 7/16 inch 1/2 inch 9/16 inch.
Chart lists No. 3 set sizes 5/8 inch 3/4 inch.
Wooden insert holds broaches and bushings.
Broaches marked Marlco HSS.
Visible broach sizes include 3/8 inch 1/2 inch and 5/8 inch.
Circular bushings marked Marlco and size markings.
Bushing sizes shown include 1/2 inch 5/8 inch 3/4 inch 7/8 inch 1 inch 1 1/8 inch 1 1/4 inch 1 3/8 inch and 1 1/2 inch.
Each bushing marked with letter P.
Set includes push bar.

Autolock No.2 Morse Type S Collet Chuck Sets

Skylarc Ref M174796

Autolock No.2 Morse Type S collet chuck
Marked BRPAT 315713
Marked ENGLAND 3/8 BSW
Includes one Autolock No.2 Morse Type S chuck body
Includes one additional No.2 Morse Autolock chuck body
Both chucks have threaded bodies and knurled nuts
Metric collets included 6mm
Metric collets included 8mm
Metric collets included 10mm
Metric collets included 12mm
Metric collets included 16mm
Imperial collets or inserts included 1/4 inch
Imperial collets or inserts included 3/8 inch
Imperial collets or inserts included 1/2 inch
Imperial collets or inserts included 5/8 inch
Includes Autolock marked spanner
Includes second unmarked spanner
Supplied in two blue metal storage boxes
Boxes externally marked Imperial 2MT and Metric 2MT

21pc Counterbore Set 8.5–16.5mm 3617-0121

Skylarc Ref K174794

21 piece counterbore set.
Label on box: 21Pc Counterbore.
Label on box: Size 8.5~16.5mm.
Label on box: 3617-0121.
Set includes multiple counterbore cutters.
Cutters are stored in a wooden box.
Visible cutter diameters marked in box include 8.5mm.
Visible cutter diameters marked in box include 9.5mm.
Visible cutter diameters marked in box include 10.5mm.
Visible cutter diameters marked in box include 11.5mm.
Visible cutter diameters marked in box include 13.5mm.
Visible cutter diameters marked in box include 16.5mm.
Set includes interchangeable pilot pins.
Box has hinged lid.

Sandvik ER16 Collet Set 1–10 mm

Skylarc Ref J174793

Brand: Sandvik Coromant
Type: ER16 collet set
Collet size range: 1 mm to 10 mm
Individual collets marked 2 mm 2.5 mm 3 mm 4 mm 5 mm 6 mm 7 mm 8 mm 9 mm 10 mm
Wooden box label: ER16 COLLETS 1–10 mm
Wooden box label: 20 dia x 100 (&5C) and 2 MT
Set includes multiple ER16 collets as shown
Set includes at least two ER16 collet chucks as shown
Supplied in wooden storage box

Wobble Rotary Broach Set

Skylarc Ref I174792

Wobble rotary broach set in wooden box.
Metal identification plate on lid states Broach Protrusion 5/8.
Plate states T.I.R. 0.0008 inch.
Plate lists Across Flats and Bore O/S values in inches.
Across Flats ranges shown 0.06 to greater than 0.63 inch.
Bore O/S ranges shown 1–2/1000 to 6–12/1000 inch.
Plate states Speed up to 1500 r.p.m.
Main rotary broach body included.
Broach body has round brass tag marked J.O.M. 2009.
Set includes multiple broach tools and pins as shown.
Internal metal holders contain broach tools of various hex sizes.
Box has front label marked Wobble Rotary Broach.
Box has metal latch and hinges.
All dimensional information on plate is in inches.

Mercer Type 71 Dial Indicator Set

Skylarc Ref H174791

Mercer dial indicator set.
Two Mercer England Type 71 dial indicators.
Indicators marked 0.001 inch resolution.
Rectangular metal bar marked J.O.M. 012.
Metal bar fitted with the two dial indicators.
Cylindrical metal rod included.
Pivoting two arm metal attachment included.
Small yellow plastic container included.
Yellow container holds four small metal screw fittings.
All items supplied in a wooden box with metal lid.
Box label reads Milling m/c TRAM.

3MT Multi-point Centre

Skylarc Ref G174790

3 M.T. Multi-point Centre.
Lathe centre with Morse Taper No.3 shank.
Includes main body with interchangeable tip holder.
Includes one large cone centre tip.
Includes five smaller cone centre tips.
Includes one plain cylindrical adaptor.
Includes one small tool or key.
Supplied in metal storage box with fitted insert.

Genevas centering indicator set

Skylarc Ref F174789

Brand: Genevas
Dial indicator reads 0.01 mm per division
Dial scale marked from 0 to ±45 units
Centering indicator body with integral dial gauge
Taper shank fitted to the centering indicator body
Set of multiple contact stems included
Includes straight contact stems
Includes curved contact stems
Includes black contact stem with knurled adjustment head
Small open ended spanner included
Paper instruction sheet included
Supplied in a wooden dovetailed storage box
Box has metal latches on the front
Box front label marked Centre finder
Foam insert in box with cutouts for components

Mitee-Bite 12mm T-Slot Kit Metric PN 50646

Skylarc Ref E174788

Manufacturer Mitee-Bite Products Company
Product Mitee-Bite T-Slot Kit
Part number 50646
Type 12mm T-Slot Kit Metric
Includes MB-8M fixture clamps as shown on insert
Includes TSN-12M tee-slot clamps as shown on insert
Includes hexagonal clamp elements visible in case
Includes small hex key visible in case
Case label shows U.S. Patent 4,805,888
Made in U.S.A. as printed on insert
Supplied in black plastic carry case
Operating instructions printed on inside of lid

J O Miller Drive Centre Set

Skylarc Ref D174787

J O Miller drive centre set.
Main body engraved MAKER J O MILLER 1994.
Includes steel drive centre body.
Includes wooden storage box.
Includes five interchangeable drive heads marked 9–16 mm.
Includes interchangeable drive head marked 11–20 mm.
Includes interchangeable drive head marked 13–24 mm.
Includes interchangeable drive head marked 17–32 mm.
Includes interchangeable drive head marked 21–40 mm.
Includes interchangeable drive head marked 26–50 mm.
Includes several small steel centre points.
Includes steel mounting bracket.
Includes steel spanner bar with hex socket.
All parts are steel.
Box label reads Drive Centre.
Exact shank size not marked.
Model number not marked.

Fabrex 413 Machine Vice

Skylarc Ref C174786

Brand: Fabrex.
Model marking: 413.
Type: screw operated bench or machine vice.
Body material appears to be cast metal.
Fixed and moving jaws are metal.
Knurled handle on threaded leadscrew.
Base has two elongated mounting slots.
Underside casting marked MADE IN ENGLAND.
Overall length approximately 220mm based on tape in photo.
Colour: green painted body with bare metal jaw faces.

Machinist Vice by J O Miller 1951

Skylarc Ref B174785

Machinist screwless vise.
Marked MAKER J O MILLER.
Dated 1951 on the fixed jaw block.
Leadscrew with hex socket end for operation.
Two main jaws with cap screw fixings.
Overall length approximately 135mm based on tape measure shown.
Steel construction.
Parallel guide rails with sliding jaw.
Top surface shows two dowel pins near jaw ends.

Machinist screw vice J O Miller 1983

Skylarc Ref A174784

Machinist screw vice.
Marked MAKER J O MILLER 1983.
Leadscrew with fixed handle.
Four cap screws on fixed jaw block.
Four cap screws on moving jaw block.
Overall length approximately 210mm based on tape measure.
Jaw width approximately 70mm based on tape measure.
Steel construction.

Small metal machine vice

Skylarc Ref S175296

Small metal screw vice.
Approximate overall length 160mm as shown against tape measure.
Approximate base width 80mm.
Fixed jaw and moving jaw both metal.
Lead screw operated by round metal handle with cross hole.
Base has four side cut outs for clamping or location.
Single bolt visible on underside securing moving jaw slide.
Finish on base is metallic with visible wear.
No maker name or model number visible.

Nippy machine vise

Skylarc Ref R175295

Brand: Nippy
Type: machine vise
Material: metal construction
Actuation: leadscrew with knurled handle
Jaw type: V grooved jaws
Jaw width approximately 100mm based on tape measure
Overall body length approximately 190mm excluding handle based on tape measure
Base features longitudinal T slot style clamping grooves
Base underside has central recess and mounting holes
Handle has transverse hole near end
Jaws are secured with cap screws
Leadscrew passes through central channel in base
Colour: blue painted base with bare metal jaws and handle

British Made Machine Vice

Skylarc Ref Q175294

British made machine vice.
Steel construction.
Fixed jaw and movable jaw.
Leadscrew operated movable jaw.
Knurled cylindrical steel handle.
Two vertical V-grooves in the top of the jaws.
Jaws are secured with slotted screws.
Base has two counterbored mounting holes at the fixed jaw end.
Overall length including handle approximately 265mm.
Jaw width approximately 50mm.
Maximum jaw opening approximately 70mm.
Leadscrew diameter approximately 12mm.
Marking on body reads BRITISH MADE.
Additional marking on body reads M W with circular logo.

Tooline corner clamp

Skylarc Ref P175293

Brand Tooline
Type corner clamp
Material cast metal body with steel screw
Finish blue painted body with textured surface
Clamp screw length approximately 200mm overall
Jaw span shown at approximately 200mm on tape measure
Fixed 90 degree clamping angle
Single lead screw with T handle
Four slotted mounting holes in base
Label on body marked TO OLINE
Manual mechanical operation
No accessories included

Steel V Block 230mm

Skylarc Ref O175292

Steel V block.
Overall length approximately 230
mm measured with tape.
Width approximately 80mm measured with tape.
Height approximately 50mm measured with tape.
Central V groove along the top face.
Rectangular through cutout in the body.
Four rectangular feet on the base.
Machined faces visible on all sides.
Unbranded with no visible markings.
Photos show actual item.

TM Toolmaster HSS Broach Drill Set D109

Skylarc Ref N175291

Brand: TM Toolmaster.
Model: D109.
High speed steel broach drill set.
Nominal cutter sizes: 14mm.
Nominal cutter sizes: 16mm.
Nominal cutter sizes: 18mm.
Nominal cutter sizes: 20mm.
Nominal cutter sizes: 22mm.
Nominal cutter sizes: 24mm.
Nominal cutter sizes: 25mm.
Cutters marked TM HSS with diameter on each shank.
Label states 25mm depth of cut.
Set includes 19mm universal shank arbor as per label.
Set includes 1 x 1/4 inch locating pin as per label.
Locating pins marked Ø6.34 x 77 and Ø6.34 x 103.
Item code on case label: D109.
Made in China (per case label).
Supplied in plastic carry case with foam insert.

Lot of involute gear cutters assorted DP CP and DP racks

Skylarc Ref M175290

Lot of involute gear cutters.

Assorted small HSS cutters and end mills

Skylarc Ref L175289

Lot of assorted small cutters and end mills.
Includes cutters labelled 1/16" LONG SERIES.
Includes cutters labelled 1/8" LONG SERIES.
Includes cutters labelled 7/32" LONG SERIES.
Includes cutters labelled 3/32" BALL NOSED.
Some cutters labelled HSS-Co8c 3 FLUTE T/AWAY CUTTER 1/16" 3810159 FLAT SHK.
Some cutters labelled HSS-Co8c 3 FL EM T/AWAY CUTTER 3/32" 3800238 FLAT SHK.
Some packaging labelled Clarkson 1/8" SHORT SERIES CUTTER.
Cutters are stored in plastic sleeves and cases.
Quantity of individual cutters is mixed and not counted.
All items shown in the photos are included in this lot.

Mixed Lathe HSS and Cobalt Tool Bits

Skylarc Ref K175288

Mixed lot of lathe tool bits
Some bits marked HSS
Some bits marked Cobalt Super M2
One bit marked HSS 5 by 32 by 8 by 5
Some bits marked ASSAB 17 Sweden
Some bits marked Ultra Capital
Some bits marked Sandvik Coromant C60 Sweden
One black tool bit marked PN Extra
Various shank sizes
Various tool profiles including blanks and ground tools
Quantity as shown in photos
No holders included

Assorted countersinks and end mills on wooden block

Skylarc Ref J175287

Assorted metal cutting tools on wooden block
Includes multiple countersinks and end mills
One tool marked 7/16 AUSTRALIA
One tool marked 1/2 W2 KOREA
One tool marked 7/8 x 60° USS ENGLAND
One tool marked 1/4 x 3/8 M42 L-0-45S
One tool marked 1/4 x 3/8 M42 L-0-45S
One tool marked 3/8 M42
One tool marked 5/16 x 3/8 M42 L-0-567
One tool marked 3/8 M42 L-0-???
Wooden block drilled with 10 vertical holes to hold tools
Quantity of cutting tools is as shown in photos

Assorted Small Cutting Tools in Metal Tray

Skylarc Ref I175286

Assorted small metal cutting tools.
Range includes various small end mills.
Range includes small countersink tools.
Range includes small burr type rotary cutters.
Range includes small slitting or slotting saws on arbors.
Range includes pointed centre type tools.
Tools are stored upright in a drilled wooden block.
Wooden block is fitted into a rectangular metal tray.
Shanks are mainly cylindrical metal.
Exact tool count is not specified.
Brands and sizes are not marked in the photos.
Only the items shown in the photos are included.

Assorted metal cutting tools in steel drawer

Skylarc Ref H175285

Assorted metal cutting tools.
Multiple end mills visible.
Multiple slot drills visible.
Multiple countersink or chamfer tools visible.
Tools are stored in a steel drawer.
Tools are held in a perforated wooden holder.
Various shank diameters visible.
Cutting tools appear to be high speed steel or similar ferrous alloy.
Some tools are straight flute.
Some tools are helical flute.
Some tools have multi-flute cutting ends.
Some tools have centre cutting tips.
Drawer includes several cylindrical rods on the right side.
Exact tool count is not confirmed.
No size markings are legible in the photos.
Brands or manufacturers are not clearly identifiable from the photos.
Only the items shown in the photos are included.

Assorted Sutton Daco Sandvik End Mills and Cutters

Skylarc Ref G175284

Assorted metal cutting tools.
Includes Sutton Co HSS 5/8 inch short series end mill threaded shank.
Includes Sutton Co HSS 5/8 inch long end mill threaded shank.
Includes Sutton Co HSS 1/8 inch short Unimill threaded shank cutters set of three.
Includes Sutton high speed steel tools as labelled on yellow cases.
Includes Daco 8 percent cobalt high speed steel end mill double end two flute.
Includes Sandvik Coromant cutter marked 695-6206.
Plastic storage cases included for each tool shown.
Exact quantities and any other sizes are as shown in the photos only.

Multi-Trade pneumatic rivet gun kit

Skylarc Ref E175282

Multi-Trade pneumatic rivet gun.
Supplied in grey plastic carry case.
Blue metal body with air inlet fitting.
Trigger operated.
Includes multiple nose pieces marked 1/8 3/32 5/32 3/16.
Includes oil bottle with fluid.
Includes metal spanners.
Includes selection of springs stored in lid compartment.
Includes small parts and seals in plastic bag.
Case insert has part numbers 06-1 07 06-2 08 10 marked.
Lid insert has markings 19 44A 46.
Interior of lid is marked J O Miller.
Includes folded paper documents in case.

Jos Miller and Starrett surface gauge set

Skylarc Ref D175281

Jos Miller surface gauge on base marked MAKER JOS MILLER TIMARU 1942.
Starrett surface gauge on base marked L S Starrett Co Athol Mass USA.
Both gauges include vertical posts.
Both gauges include adjustable scriber arms.
Both bases have V groove undersides.
Knurled locking screws present on both gauges.
Material appears to be metal construction.
Two separate surface gauges are included in this listing.
No other items are included.

Jacobs Super-craft 8SCG Drill Chuck and Key

Skylarc Ref C175280

Genuine Jacobs Super-craft chuck and key.
Model 8 SCG.
Chuck capacity 0 to 5/16 inch.
Chuck capacity 0 to 8 mm.
Mount threaded 1/2 x 20.
One Jacobs Super Craft chuck marked MC6G64 0 to 5/16 0 to 8 mm.
One Jacobs chuck marked N30B 0 to 5/16 0 to 8 mm THD 1/2 - 20.
One Jacobs K0D chuck key.
Includes original Jacobs Super-craft chuck cardboard box.
Box marked The Jacobs Manufacturing Company Limited Sheffield England.

Moore & Wright and Ahrem metal calipers set

Skylarc Ref B175279

Set of four metal calipers and dividers.
One outside caliper with spring and screw adjustment.
One Moore & Wright divider marked MOORE & WRIGHT SHEFFIELD ENGLAND.
The Moore & Wright divider has a screw adjustment.
One divider with one straight leg and one bent leg with red plastic tip.
The bent leg divider has a screw adjustment.
One Ahrem divider marked AHREM'S GOOD LINE GERMANY.
The Ahrem divider has an adjustable curved guide arm with locking screw.
All items are metal construction.

Air die grinder and grinding stone set

Skylarc Ref A175278

Air die grinder
Body marked Taiwan
Red textured hand grip
Black metal collet end
Includes multiple mounted grinding stones
Stones are various shapes and sizes
Includes one collet
Includes two flat wrenches
Includes a grey plastic storage case
Case has moulded inserts for tools
Some stone shanks have handwritten markings
Handwritten marking includes 0.117 and 3mm
Air inlet and hose fittings not shown
Power and air pressure specifications not shown
Model number not shown

Vmade metal protractor with rule

Skylarc Ref Z175277

Brand Vmade.
Metal protractor with straight rule.
Protractor scale marked from 0 to 180 degrees.
Scale graduations in 1 degree increments.
Rule attached to protractor via central pivot screw.
Knurled metal locking knob on pivot.
Protractor body and rule appear to be metal.
Engraved Vmade logo on rule.

Starrett Dividers and Calipers Set

Skylarc Ref Y175276

Brand: The L S Starrett Co
Manufactured in Athol Mass U S A
Set includes four small Starrett spring dividers and calipers
Set includes one large Starrett outside caliper
All tools are metal construction
All tools have screw adjustment mechanisms
Markings include STARRETT and THE L S STARRETT Co ATHOL MASS U S A
Tools are shown together in the first photo
Close up photos show the maker markings and adjustment screws
Exact model numbers and sizes are not marked or not visible
Quantity in this lot is five pieces total

Starrett surface gauge attachment

Skylarc Ref X175275

Brand: Starrett.
Marking on handle: STARRETT ATHOL MASS USA.
Two pointed steel scriber tips.
One scriber tip is straight.
One scriber tip is cranked.
Steel cross bar with two sliding holders.
Knurled locking screws on both holders.
Main handle is knurled steel.
Overall length approximately 95mm based on tape measure.

Moore & Wright and Starrett dividers set

Skylarc Ref W175274

Set of three divider style tools
Two tools marked Moore & Wright Sheffield England
One tool marked The L.S. Starrett Co Athol Mass U.S.A.
All tools appear to be made of metal
Each tool has two legs joined by a pivot
Two tools have a knurled adjustment screw on one leg
One tool has a sliding knurled adjustment screw between the legs
Two tools have one pointed leg and one leg with a hooked end
One smaller tool has two curved legs
Brand markings are stamped into the metal
No cases or additional accessories are visible
All items shown are included in the sale

Moore & Wright and Starrett Outside Calipers Set

Skylarc Ref V175273

Set of four outside calipers.
Two calipers marked Moore & Wright Sheffield England.
Two calipers marked The L S Starrett Co Athol Mass USA.
All calipers are metal construction.
Each caliper has a pivoted joint.
One Starrett caliper has knurled adjustment screws.

Precision steel squares and frame level set

Skylarc Ref F175283

Set of precision steel angle and square tools
Two Preisser DIN 875 II steel squares
One small steel square marked 360 Ng Nr.49
One steel L square marked ACRU MANCHESTER
One adjustable angle steel gauge in two pieces
One large steel square frame
Square frame includes fitted spirit level vial
Spirit level frame stamped MADE BY J O S M 1987
All items are unpainted steel except black inlay on ACRU square
Quantity and configuration as shown in photos
No accessories or storage case visible
Brand markings visible Preisser ACRU and 360 Ng
DIN 875 II marking indicates tolerance class on two Preisser squares
Engravings and markings are on the steel surfaces

Makita DA3000R Angle Drill 10mm

Skylarc Ref U175272

Brand: Makita
Model: DA3000R
Type: Angle drill
Chuck capacity: 10mm
Power input: 300W
Rated voltage: 230-240V AC
Frequency: 50-60Hz
Current: 1.3A
No load speed range: 0-1400 per minute
Drill chuck is keyed
Double insulation symbol shown on box
Variable speed function indicated on box
Reversible rotation function indicated on box
Power cord with Makita branded plug
Manufactured by Makita Corporation Japan
Original retail box included

Universal Series O-Ring Service Kit 407 Pieces

Skylarc Ref T175271

Universal Series O-Ring Service Kit
ASTM D-2000 SAE J200
Buna-N BG715 nitrile 70 shore material
Label states 407 pieces
Red plastic case
Multiple sizes of O-rings included
Size chart printed on case label
Case label lists part numbers F-01 to F-32
Case label lists AS 568 reference sizes
Case label lists nominal inside diameter outside diameter and section
Case label lists quantity of each size in kit
Several O-rings visible in case
Some positions in the case are empty
Handwritten text visible on case label

YT-160AL Sheet Cutter

Skylarc Ref S175270

Model YT-160AL sheet cutter
Selective double head cutter
Designed for cutting sheet material
Use with pneumatic drill
Use with electric drill
Required drill speed 1500 to 3000 rpm
Minimum cutting radius 12 mm
Maximum cutting thickness for steel plate 1.8 mm
Maximum cutting thickness for stainless steel 1.2 mm
Maximum cutting thickness for copper 2 mm
Maximum cutting thickness for aluminium 2 mm
Maximum cutting thickness for plastic 5 mm
Maximum cutting thickness for fibre board 5 mm
Metal housing main cutter body included
Two cutting heads included
Black plastic handle included
Spanner included
Metal storage case included
Foam insert with handwritten note 7/16 inch hole to start

AmPro A3024 1/4" Anglehead Air Die Grinder

Skylarc Ref R175269

Brand: AmPro
Model: A3024
Type: 1/4" anglehead air die grinder
Serial number: 0000956
Rated speed: 20000 RPM
Rated pressure: 90 PSIG maximum
Includes AmPro A3024 air die grinder
Includes air line filter marked Festo LOE-D-MICRO
Includes threaded air hose fitting
Includes open-end spanner
Includes mounted grinding point
Original box shown
Warning on tool body to use accessories with adequate speed rating

ER32 Collet Set with MT2 MT3 and MS2 Holders

Skylarc Ref Q175268

ER32 collet set.
Collet size range marked from 3/16 inch to 25/32 inch.
Collets include fractional sizes 3/16 7/32 1/4 5/16 11/32 3/8 13/32 7/16 17/32 9/16 5/8 21/32 11/16 3/4 25/32 inch.
Collets are marked with dual size codes such as 5-4 6-5 7-6 8-7 8-6 9-8 10-9 11-10 12-11 14-13 15-14 16-15 17-16 18-17 19-18 20-19.
One holder marked ER32-MS2.
One holder marked MTB3-ER32.
Plastic carry case shown.
Metal internal tray shown.

ENCO Centering Scope

Skylarc Ref P175267

Brand ENCO
Type centering scope
Marking CENTERING SCOPE on body
Made in Korea
Shank mounted scope body
Knurled adjustment sleeve on lower end
Eyepiece on angled body section
Supplied in fitted foam-lined case
Includes printed instructions titled INSTRUCTIONS FOR ENCO CENTERING SCOPE
Instructions describe mounting in spindle or chuck
Instructions describe use for aligning work to reticle crosshair

SDA Laser Center Edge Finder

Skylarc Ref O175266

Brand SDA Manufacturing
Product Laser Center Edge Finder
Serial number 09577
Laser max output power 5mW
Laser wavelength 650nm ±10nm
Laser classification Class IIIa
Manufacture date November 2007
Body material metal
Black knurled end cap
Includes clear plastic storage case
Includes blue foam insert
Includes printed operations manual
Website printed on label www.lasercenteredgefinder.com
Manufacturer location Piedra California USA
Device shown powered on with visible red laser point

Eclipse No244 Pin Vice and T Handle Tap Wrenches

Skylarc Ref N175265

Eclipse No244 0–1/8 inch pin vice
One T handle tap wrench with long black body
One small T handle tap wrench with straight knurled body
One small T handle tap wrench with stepped knurled body
All tap wrenches have self centering jaws
Total of four tap wrenches and one pin vice shown
All tools are metal construction
Brand marking Eclipse on pin vice
Jaw details and sizes as visible in photos
No other markings identified on tap wrenches

Set of die stocks and round threading dies

Skylarc Ref M175264

Set of eight die stocks with handles
Some die stocks are fitted with round threading dies
One die stock marked T BAR WARRIOR ENGLAND with 7 BA die fitted
One die stock marked WARRIOR ENGLAND with 3 BA die fitted
One die stock marked SKS M4 with M4 round die fitted
One die stock fitted with 12 round die marked 1 2 JOK
Several die stocks have knurled handles
Die stocks are metal construction
Some die stocks have two clamping screws
Some die stocks have three clamping screws
Round dies and holders are various sizes
All items are shown in the photos

Steel V blocks and T slot bar set

Skylarc Ref L175263

Steel V blocks and T slot Bar set

Mill Lock Down Set

Skylarc Ref J175261

Clamping kit with steel storage rack
Multiple T nuts shown
Multiple step blocks shown
Multiple clamping studs shown
Multiple flange nuts shown
Multiple clamping claws shown
Steel rack has keyhole slots for mounting
Steel rack base supports all components
All components are metal construction
Exact sizes and thread types are not marked
Brand and model are not marked

Mitutoyo Outside Micrometer Set

Skylarc Ref I175260

Brand Mitutoyo.
Outside micrometer marked 25–50 mm.
Outside micrometer marked 50–75 mm 0.01 mm.
Outside micrometer marked 100–125 mm 0.01 mm.
Outside micrometer marked 125–150 mm 0.01 mm.
Outside micrometer marked 103–140 mm.
Several small unbranded micrometers present.
Multiple Mitutoyo extension standards present.
Wooden fitted storage case present.
Some paperwork and diagrams included in case.
Made in Japan marking visible on at least one micrometer.
Measurement units are metric.
Resolution on marked Mitutoyo frames is 0.01 mm.

MX M Thread 25-50 60 55 Micrometer Set

Skylarc Ref H175259

Brand MX.
M Thread 25-50 60/55 marked on case plate.
Micrometer frame with interchangeable anvils.
Metric reference standard marked 25mm 60°.
Set includes multiple pointed and slotted tips.
Includes two circular washers.
Supplied in fitted black plastic case with foam insert.

Horex Internal Micrometer Set 5–50 mm

Skylarc Ref F175257

Brand Horex
Artikel-Nr 1632002
Internal micrometer set
Measuring range 5–30 mm head
Measuring range 25–50 mm head
Ring gauge marked 5 mm and 25 mm
Wooden storage case included
Foam insert in case
Case label text Innenmeßschraube mit einseitigem Schnabel 25–50 mm 5–30 mm
Two interchangeable measuring heads marked 5–30 and 25–50
Micrometer thimble with knurled grip
Locking screw on micrometer body
Includes small hex key
Includes additional small metal accessory
Includes two wooden spacers

Mitutoyo Digital Micrometer 0-1 inch No. 293-831

Skylarc Ref E175256

Brand Mitutoyo
Type digital micrometer
Measurement range 0 to 1 inch
Resolution 0.00005 inch
Resolution 0.001 mm
Model number 293-831
Marking Digital External 0 I on case
Battery type SR44
Made in Japan
Buttons marked ORIGIN and in mm
Supplied in fitted hard case
Paperwork is present in the case
CE marked instrument

Vintage Archer No.20 Tapping Chuck

Skylarc Ref N175447

Vintage Archer No.20 Tapping Chuck.
No.2 Morse Taper mount.
Very good overall condition for a well maintained older unit.

Mitutoyo Grade B Gage Block Set 516-932

Skylarc Ref D175255

Manufacturer Mitutoyo MFG CO LTD
Model code 516-932
Gage block set Grade B
Metric or inch system not specified on case front
Certificate serial number 713751
Certificate number 710801
Inspection date on certificate 20 AUG 71
Inspection method comparative measurement
Inspection temperature 20°C
Coefficient of thermal expansion on certificate 11.5 ± 1.0 x10⁻⁶ per degree
Blocks visible in case are marked 0.0625 0.100 0.125 0.200 0.250 0.300 0.500 1 IN and 2
Blocks are stored in a wooden case
Original Mitutoyo grade certificate included in lid
Rust-prevention instruction sheet from Mitutoyo present in lid
Some blocks have individual serial numbers etched
Case includes recesses matched to each block size

M 0-100mm Depth Micrometer Set

Skylarc Ref C175254

Depth micrometer marked M 0-100mm Depth Mike on case
Micrometer base marked 0-25mm and 0.01mm resolution
Micrometer body has 0 to 25mm scale on barrel
Set includes three extension rods stored in the case
Set includes cylindrical standard marked 25mm
Set includes cylindrical standard marked 49.95mm
Micrometer and accessories supplied in wooden fitted case

Mitutoyo No.146-102 micrometer

Skylarc Ref B175253

Brand Mitutoyo.
Model No.146-102.
Made in Japan.
Mechanical micrometer.
Knurled thimble grip.
Scale marked 0 to 25.
Supplied in fitted wooden case with foam insert.

ER25 Collet Set with MT2 MT3 5C Holders

Skylarc Ref J175443

ER25 collet set in wooden box
Label on box reads ER 25 Collets 1-16mm No. 2 & 3 MT 5C & S/L
Includes ER25 collet chuck marked J.O.M 01 with 1/8 Hex grub screw
Includes MT2 holder marked 2MT
Includes MT3 holder marked 3MT
Includes 5C holder marked 5C
ER25 collets present in metric sizes including 1-2mm 2-3mm 3-4mm 4-5mm 5-6mm 6-7mm 7-8mm 8-9mm 9-10mm 10-11mm 11-12mm 12-13mm 13-14mm 14-15mm 15-16mm
ER25 collets present in imperial sizes including 3/32 inch 1/8 inch 5/32 inch 3/16 inch 7/32 inch 1/4 inch 5/16 inch 3/8 inch 7/16 inch 1/2 inch 9/16 inch 5/8 inch
Wooden box has internal dividers for holders and collets
Metal spanner visible in box

Vintage Eclipse Magnetic Transfer Blocks

Skylarc Ref L175419

Vintage Eclipse Magnetic Transfer Blocks.
Each brass/steel block is 75x30x60mm.
Wood case.

Steel & Aluminium Magnetic V-Block & Parrallel Set

Skylarc Ref J175417

Steel & Aluminium Magnetic V-Block & Parrallel Set.
V-blocks each 60x50x47mm.
Parrallels each 100x50x25mm.

Woodcut Tools Tru-Grind CBN Grinding Wheel, 150mm, 180g

Skylarc Ref I175416

Woodcut Tools Tru-Grind CBN Grinding Wheel.
180 grit.
150 x 25.4 x 12.7mm Wheel.

2mm & 3mm Keyway Broaches w/ Accessories

Skylarc Ref G175414

2mm & 3mm Keyway Broaches.
Both are 130mm long.
Includes assorted mounting parts, see photos.

Vintage Analog Depth & Angle Gauges

Skylarc Ref F175777

Vintage Analog Depth & Angle Gauges.
Includes:
- L.S. Starrett Co. No.610N 6" depth Ruler.
- Moore & Wright depth ruler with 6" and 150mm scales.
- Moore & Wright depth ruler with 12" scale.
- Moore & Wright depth gauge with 2mm dia, 152mm long rod.
- Moore & Wright No.45 Protractor/ depth gauge.

All tools were meticulously maintained in excellent condition.

Seco SEKR1203AFTN-ME13-76 T25M inserts

Skylarc Ref N176097

Brand Seco
Model SEKR1203AFTN-ME13-76 T25M
Marked Secolor on cases
Grade T25M marked on inserts
EDP 17144 printed on labels
Code SEKR 42AFTN-76 T25M printed on labels
Quantity 10 inserts per case printed on labels
Three plastic cases visible in photos
Inserts stored in white plastic insert trays

Seco SEKR1203AFTN-ME13-76 S25M inserts

Skylarc Ref M176096

Brand Seco
Model SEKR1203AFTN-ME13-76 S25M
Marking SEKR 42AFTN-76 S25M
EDP 17145 on each box
Each box label states quantity 10
Three plastic insert boxes included
Packaging shows manufacturer and distributor printing only
No other specifications are visible on the packaging

Dormer K100 1212 Lathe Toolholder

Skylarc Ref L176095

Brand Dormer
Model K100 1212
Made in Sweden
Lathe toolholder with triangular indexable insert
Locking screw marked Lock at tool tip
Includes red Dormer plastic case for toolholder
Includes small red plastic case with three spare triangular inserts
Spare inserts appear gold coloured with central mounting hole

Imperial 5C Collets 1/16–1 1/8 Set

Skylarc Ref K176094

Imperial 5C collet set.
Size range marked 1/16 to 1 1/8 inch.
Collets are 5C type.
Collets marked Phase II.
Collets marked China.
Some collets marked Taiwan.
Wooden box with internal fitted tray.
One collet closer body present.
Closer body marked MAKER J O MILLER 1992.
Drawing sheet for No 5 Morse taper 5C adapter included.
Adapter drawing shows 20 TPI right hand thread.
Multiple individual collets with split clamp design.
Gear and small shaft included in box.
Square drive tightening tool included.

MX M 0-25mm Jaw Micrometer

Skylarc Ref J176093

Brand MX.
Model M 0-25mm Jaw Mike.
Type mechanical jaw micrometer.
Measurement range 0 to 25mm.
Resolution 0.01mm.
Knurled thimble and ratchet.
Supplied in fitted hard case with foam insert.
Includes adjustment spanner.

Moore and Wright Combination Square Set

Skylarc Ref I176092

Brand: Moore and Wright.
Manufactured by Moore and Wright Sheffield Ltd England.
Precision Tools branding on wooden case lid.
Combination square set with protractor head.
Protractor head marked with degree scale 0 to 180.
Protractor head includes spirit level vial.
Square head includes spirit level vial.
Set includes square head.
Set includes protractor head.
Set includes centre head.
Set includes steel rule.
Steel rule length marked to 12 inches.
Wooden storage case included.
Metal clamp part included as shown.

VIS Vernier Caliper Set

Skylarc Ref H176091

VIS vernier caliper
Made in Poland
Stainless hardened construction on main caliper
Vernier scale marked in millimetres
Case side marked 0–12 inch vernier
Includes Mitutoyo stainless hardened rule
Mitutoyo rule is metric
Mitutoyo rule marked Made in Japan
Set is stored in a blue hinged case
Case has fitted interior for caliper and accessories

Insize IS11137-150 Electronic Caliper 0–150mm 0–6"

Skylarc Ref G176090

Brand: Insize
Model code: IS11137-150
Type: electronic caliper
Measuring range: 0 to 150 mm
Measuring range: 0 to 6 inches
Scale displays mm and inch
LCD digital display
Buttons: OFF ON ZERO and mm/inch
Powered by SR44 1.55 V battery
Serial number: 2312080026
Includes green plastic storage case
Foam inlay holds caliper in case
Case label states High Precision Electronic Caliper 0–150mm 0–6"
Website listed on instrument: www.insize.com
CE mark on instrument

MX M 25-50 Uni-Mike Micrometer

Skylarc Ref F176089

Brand MX.
Model M 25-50 Uni-Mike.
Mechanical outside micrometer.
Measuring range 25 to 50 mm.
Resolution 0.001 mm.
Frame marked 25–50 mm 0.001 mm.
Body marked F 00684.
Includes MX certificate.
Includes 25 mm standard.
Includes interchangeable spindle tips as shown.
Knurled thimble and ratchet.
Supplied in blue plastic storage case with foam insert.

TESA Micromaster Digital Micrometer 0-30mm 0-1.2in

Skylarc Ref E176088

Brand: TESA
Model: Micromaster
Measurement range: 0 to 30 mm
Imperial range: 0 to 1.2 in
Measurement system: capa µ system
Country of manufacture: Switzerland
Display type: digital
Instrument type: external micrometer
Battery type: CR2032
Marking: CE
Serial number: 9Z 1074 02
Supplied in plastic storage case
Printed quick manual for TESA Micromaster series included

NSK M Tube Mike 0-250mm Set

Skylarc Ref D176087

Brand: NSK.
Label on case: M Tube Mike 0-250 mm.
Label on case: Japan Micrometer.
Measuring head marked 50-63 mm.
Measuring head marked No. 11697.
Extension rod marked 100 mm.
Extension rod marked 50 mm.
Additional extension rod marked 50 mm.
Adapter marked 25 mm.
Adapter marked 13 mm.
Knurled locking screw on measuring head.
Includes metal setting ring.
Components are metal construction.
Supplied in wooden storage case with hinged lid.

Mitutoyo CD-S6"CT Digital Caliper 500-474

Skylarc Ref C176086

Brand Mitutoyo
Model No. CD-S6"CT
Code No. 500-474
Digital caliper
Scale labelled 0 to 150 mm and 0 to 6 in
Markings in/mm and ORIGIN on display bezel
Solar Absolute Digimatic scale
Serial No. 0000321
Made in Japan
CE marked
Includes plastic storage case with foam inserts
Includes printed manual labelled Manual No. 2081 Series No. 500
Display window shows visible cracks

Electronic Digital Caliper

Skylarc Ref B176085

Electronic digital caliper.
Stainless digital scale marked to 150 mm.
Display shows mm and inch units.
Buttons for OFF ON and ZERO functions.
mm inch selector button on the display.
Battery type marked as 1.55V.
Rear plate has metric ISO and Whitworth thread reference tables.
Two round button batteries shown in the case.
Supplied in a wooden storage case with foam insert.
Printed manual marked ELECTRONIC DIGITAL CALIPER included.

Helios Vernier Caliper 0–8 inch

Skylarc Ref A176084

Brand Helios
Made in Germany
Vernier caliper
Measuring range 0 to 8 inches as marked on case
Main scale graduated in inches
Vernier scale on sliding jaw
Manual screw locking mechanism on slide
Supplied in wooden storage case with metal latches

Mitutoyo BM1-10BN Gage Block Set

Skylarc Ref Z176083

Manufacturer Mitutoyo Mfg Co Ltd
Model BM1-10BN
Code No 516-101
Grade B
Gage block set
Serial number 800456
Metric blocks marked 1 mm
Blocks marked 1.25 mm
Blocks marked 1.5 mm
Blocks marked 2 mm
Blocks marked 3 mm
Blocks marked 5 mm
Blocks marked 10 mm
Blocks marked 15 mm
Blocks marked 20 mm
Blocks marked 25 mm
Supplied in wooden storage case
Made in Tokyo Japan

Watts London 8" Precision Block Level No 70617

Skylarc Ref Y176082

Brand Watts London.
Model 8" Precision Block Level.
Serial or identification number 70617.
Made in England.
Main vial marking DIV = 0.0005 in in 10 in.
Main vial marking 0.05 mm per metre.
Body has machined V groove base.
Includes fitted case shown in photos.

Mitutoyo depth micrometer set 0.01mm

Skylarc Ref X176081

Brand Mitutoyo
Type depth micrometer
Resolution 0.01mm
Made in Japan
Micrometer head with ratchet thimble
Flat base on micrometer head
Supplied in rigid plastic case
Foam insert with cutouts for components
Includes micrometer body
Includes multiple interchangeable extension rods
Includes small tool stored in foam insert
Graduated thimble scale on micrometer body

Electronic Digital Caliper 150mm 6in

Skylarc Ref W176080

Electronic digital caliper.
Maximum measuring range 150 mm.
Maximum measuring range 6 in.
Scale marked in millimetres.
Scale marked in inches.
LCD display.
Display marked AUTO POWER OFF.
Button marked mm/in for unit selection.
Zero button on front panel.
Stainless steel measuring jaws.
Thumb roller for fine adjustment.
Locking screw on top of slide.
Powered by 1.55V silver oxide button cell.
Reference chart on rear of caliper body.
Supplied in black plastic storage case with foam insert.

Mitutoyo Universal Bevel Protractor Series 187

Skylarc Ref V176079

Mitutoyo Universal Bevel Protractor.
Series 187.
Made in Japan.
Main body with circular protractor scale and vernier.
Vernier scale with magnifying glass attachment.
Stainless steel protractor body and blades.
Includes main protractor body.
Includes long straight blade.
Includes short acute angle attachment blade.
Supplied in fitted wooden storage case.
Includes Mitutoyo Universal Bevel Protractor Series 187 instruction sheet.
Minimum reading 5 minutes as stated in instruction sheet.
Main scale and vernier scale are on the same plane as stated in instruction sheet.
Main parts are hardened stainless steel as stated in instruction sheet.

Proebster Lines and Circles Divider

Skylarc Ref U176078

Proebster drafting divider.
Made in Germany.
Engraved text on one arm reads PROEBSTER MADE IN GERMANY.
Engraved scale on one arm is labelled Lines.
Engraved scale on the other arm is labelled Circles.
Central knurled metal knob for adjustment.
Two pointed metal tips.
Includes fitted case with fabric lining.
Name J O Miller is written on the case interior.
Name J O Miller is engraved on the tool.
Material appears to be metal.
Manual sliding scale with engraved numeric markings.

Moore & Wright No 314 Hardened Straight Edges Set

Skylarc Ref T176077

Brand: Moore & Wright
Sheffield England
Model No 314
Hardened straight edges
Set of five straight edges
Straight edges are metal
Supplied in wooden hinged box
Box marked STR. EDGES on the side
Moore & Wright branding on inside of lid
Each straight edge marked MOORE & WRIGHT SHEFFIELD HARDENED No 314

Eclipse Magnetic Base

Skylarc Ref S176076

Eclipse magnetic base.
Label text: Eclipse Magnetic Base.
Label text: British Pat. No. 588522.
Label text: Made in Sheffield England.
Push button on off control on base.
Includes steel holding rod fitted to base.
Includes wooden storage box with hinged lid and clasp.
Includes two metal clamp assemblies with knurled lock screws.
Includes two straight metal rods.
Includes one small metal spigot with knurled section.
Includes one small round metal piece.
All items shown in photos are included.

Moore and Wright 6 inch hardened steel try square Type 401

Skylarc Ref R176075

Moore and Wright hardened steel try square
Type number 401
Blade length 6 inch
Steel construction
Supplied in wooden box
Includes plastic wrapping inside box
Includes National Physical Laboratory Certificate of Examination
Certificate describes item as a 6 inch hardened steel try square Type No. 401
Certificate identification E 182 1496
Certificate reference TM 15-95 TH 4517
Certificate dated 9th February 1954
Certificate issued by National Physical Laboratory Teddington

Precision Machinist Squares & Straight Edge

Skylarc Ref U175714

Precision Machinist Squares & Straight Edge.
Includes:
- Moore & Wright No.308 straight edge, 305x30mm.
- Moore & Wright No. 1944 square, 243x132mm.
- Moore & Wright square 182x107mm.
- Presser square DIN 875/1, 150x100mm.
- Presser square DIN 875/2, 105x70mm.

All are in near new condition, see photos. Age of items is unknown.

Assorted Vintage Precision Engineers Tools

Skylarc Ref Q175710

Assorted Vintage Precision Engineers Tools.
Moore & Wright No.825A and 825B centre finders.
Moore & Wright No.417 diemakers square.
Starrett No.453 square set.
Starrett combination Bevel gauge, unknown model.
Starrett Bevel gauge, unknown model number.
Starrett Pat 4'02 tool.
Vintqge magnifier.
Vintage tools in excellent near new condition.

Vintage Imperial Size Reamers in Custom Wood Case

Skylarc Ref O175708

Vintage Imperial Size Reamers in Custom Wood Case.
Sizes from 1/8" to 1".
All.stored in a 335x290x32mm custom wood case with metal strips indicating each drill size.
Age of set is unknown.

Metric 5C Collets 3-25mm Set

Skylarc Ref A175876

Metric 5C collets set.
Label on box states Metric 5C Collets 3-25mm.
Collets are stored in a wooden box.
Collets are marked with size numbers.

CY180 Industrial Blower with YL90L-2 1.5kW Motor

Skylarc Ref U175870

Model number CY180 blower housing
Blower voltage rating 220V
Blower cycles 60Hz or 50Hz
Blower phase 1
Blower current rating 3.2 or 1.1A
Blower maximum air flow 39 or 46 cubic metres per minute
Blower power rating 1.5kW
Blower speed 3200 or 2800rpm
Blower maximum pressure 198 or 186 mmAq
Motor model YL90L-2
Motor power rating 1.5kW
Motor speed 2800rpm
Motor voltage 220V
Motor frequency 50Hz
Motor current 9.44A
Motor protection rating IP44
Motor insulation class B
Single phase capacitor motor
Unit mounted on metal base with bolt holes
Blower housing has round metal inlet duct

HP Elitebook 840

Skylarc Ref A175668

Intel core i7
16gb Ram
230gb HD

Safeway DV-100 machine vise

Skylarc Ref W175664

Brand Safeway
Model DV-100
Machine vise
Screw operated with T-handle
Steel jaws

Vintage Record No.146 Breast Drill

Skylarc Ref O177138

Vintage Record No.146 Breast Drill.
Made in England.
Tool 450mm long.
Original built in bubble level vial still intact.
Gearing and mechanisms function smoothly and easily.
A very well maintained and clean vintage tool.

Belco 20mm Keyed Drill Chuck w/ No.3 Shank

Skylarc Ref J177133

Belco 20mm Keyed Drill Chuck.
Made in England.
Key is missing.
Chuck mount is a Jacobs branded Morse Taper No.3 shank.
Chuck is very clean and jaws move smoothly.

Rohm 20mm Keyed Drill Chuck w/ No.2 Shank

Skylarc Ref I177132

Rohm 20mm Keyed Drill Chuck.
Model J3S4
Made in Germany
No.2 Morse Taper Shank.
Includes chuck key.
Jaws move smoothly.

Yukiwa 13mm Keyed Drill Chuck w/ No.3 Shank

Skylarc Ref H177131

Yukiwa 13mm Keyed Drill Chuck.
Model 5675.
Includes chuck key.
Mounting shank is a Jacobs Chuck branded No.3 Mores Taper size shank, Part No.A0306.
Very well maintained tool. Jaws move smoothly.

2x Transfer Punch Sets

Skylarc Ref E177128

2x Transfer Punch Sets.
One set is metric with diameters from 1mm to 13mm in 0.5mm intervals.
Secind set is Imperial in sizes of 3/32" to 17/32".
Includes 2x spare punches.

2x Engineers Squares

Skylarc Ref A177124

2x Engineers Squares.
One is branded Groz and measures 347mm long, 183mm wide at weighted base.
Second square is unbranded and measurea 307mm long, 198mm wide at base.

58x Vintage or Antique Steel Files

Skylarc Ref W177120

58x Vintage or Antique Steel Files.
Wide range of sizes and types. Longest up to 495mm, shortest 220mm.
Visible Brand markings include Wiltshire, Nicholson, Simonds, Cyclops, F.B. Tools, J.J. Seville, Beaver to name some.
Ages of files are unknown.

19x Morse Taper Drills, Imperial Sizes

Skylarc Ref V177119

19x Morse Taper Drills.
Imperial Sizes from 7/16" to 1 ¼".
Sgsnk sizes include No.1, No.2, No3, and No.4

Vintage Steel Hand Files & Brushes

Skylarc Ref R177115

Vintage Steel Hand Files & Brushes.
File lengths up to approx 320mm.
Most items appear to be of older vintage.
Over 65+ files.
Assorted loose wood handles.
9x vintage steel bristle brushes.

Assorted Reamers, Metric & Imperial Sizes

Skylarc Ref N177111

Assorted Reamers, Metric & Imperial Sizes.
Sizes from 1mm & 9/64" to 24mm & ¾".
Condition and age varies with each unit.

3x Sets of Precision 1-2-3 Block Sets

Skylarc Ref I177106

3x Sets of Precision 1-2-3 Block Sets.
All blocks are 75x50x25mm with 10mm threaded bolt holes.
All appear as new.

Eclipse No.321 T-Slot Angle Plate

Skylarc Ref H177105

Eclipse No.321 T-Slot Angle Plate.
Measures 76x63x51mm.
The block has no obvious marks from bolts being tightened down and the block is clean and dry, possibly is as new unused.

2x Eclipse No.212 Vee Blocks

Skylarc Ref G177104

2x Eclipse No.212 Vee Blocks.
Each is 100x75x40mm.
Both appear as new unused.

2x Starrett No.268 V-Blocks w/ 1x Clamp

Skylarc Ref E177102

2x Starrett No.268 V-Blocks w/ 1x Clamp.
Each block is 51x38x38mm.
All parts are very clean and dry showing very little prior usage.

2x Eclipse No.706 Vee Blocks w/ 2x Clamps

Skylarc Ref D177101

2x vintage Eclipse No.706 Vee Blocks w/ 2x Clamps.
Made in England by James Neil & Co.
Each block is 51x38x38mm.
Includes 2x bock Clamps.
Items are very clean and dry.

2x Sets of Vee Blocks

Skylarc Ref C177100

2x Sets of Vee Blocks.
Smaller set is branded G.C. Martin and marked with a 0 (Zero), both blocks are 37.5x30x30mm.
Larger block set has no ID markings and each are 50x41x31mm.
Both sets are very clean and dry. Small set appears unused.

Assorted Precision Milling Blocks, Clamps

Skylarc Ref B177099

Assorted Precision Milling Blocks, Clamps.
Includes:
- 1x Vee Block with 2x compatible Clamps. Block measures 48x40x30mm.
- 2x Blocks each 95x22x22mm.
- 1x Vee Block with single M10 threaded hole in bottom, Block measures 60.5x32x31mm.
- 1x 77x38mm Block with two vertical V-shaped sides with max height of 31.5mm.

All units are very clean and dry, appear to be very well maintained.

Vintage 1940's Engineers Parrallel Clamps by Moore & Wright

Skylarc Ref A177098

Vintage Engineers Parrallel Clamps by Moore & Wright.
One is marked 1943, the other is marked 1944, each with an upwards pointing wide arrow near the date, see photos.
Each Clamp bar is 127x17.5x17.5mm. Threaded Rods are approx 8mm diameter.
Both Clamps show meticulous care, are very clean and dry with no surface rusting. Excellent condition vintage WWII era tools.

4x Vintage Engineers Parrallel Clamps by Moore & Wright & Eclipse

Skylarc Ref Z177097

4x Vintage Engineers Parrallel Clamps by Moore & Wright & Eclipse.
2x branded Moore & Wright, unable to locate a model number on these.
2x are branded Eclipse No.411.
All four are 75.5mm long, 11mm thick, with 6mm threaded rods.
All show meticulous care, clean and oil free with no obvious surface rusting. All function perfectly.

7x Vintage Small Toolmakers Parrallel Clamps

Skylarc Ref Y177096

7x Vintage Small Toolmakers Parrallel Clamps.
Includes:
- 1x Starrett No.161A clamp, 51mm long.
- 2x Monument Brand Clamps, both dated 1943 with an upward pointing wide arrow mark next to the dates, see photo. These Clamps are 51mm long.
- 1x Brown & Sharpe Clamp with Patented date of January 14,1908. Length 53.5mm.
- 1x Moore & Wright clamp, no model number marking. Length 50mm.
- 2x unmarked Clamps, one with a modified tip. Both of similar size to branded units.

All appear in excellent condition overall, dry and clean, very well maintained and cared for vintage tools.

14x Corner Rounding Mill Cutters

Skylarc Ref O177086

14x Corner Rounding Mill Cutters.
Brands include Clarkson, Trubor, Domer, Somta.
Shank diameters include 16mm, 12mm, 20mm.
All appear very well maintained and clean.

21x Ball Nose Milling Drills

Skylarc Ref M177084

21x Ball Nose Milling Drills.
Brands include Clarkson, Dormer, Sutton.
Shank diameters include 16mm, 12mm, 10mm, 6mm.
Overall well maintained and clean units.

Assorted End Mill Cutters

Skylarc Ref L177083

Assorted End Mill Cutters.
Shank diameters include 12mm, 10mm, 8mm.
See photos for details on cutting head types.
Very clean and well maintained units

Assorted Small Milling End Mills

Skylarc Ref K177082

Assorted Small Milling End Mills.
6mm shank diameters.
See photos for cutting head types.

Assorted End Mills & Tapered Reamers

Skylarc Ref J177081

Assorted End Mills & Tapered Reamers.
Shank sizes from 10mm to 16mm.
Two as new wax coated Tapered Reamers both have No.1 Morse Taper shanks.
See photos for details on cutting head types.
Condition varies wirh each item.

Involute Gear Cutter set 12DP

Skylarc Ref I177080

Involute Gear Cutter set 12DP.
Includes set No.1 through 8.
25mm inner bore.
See photos for details on markings on each cutter.
Cutter appear near new with little to no visible signs of prior usage. Very clean Cutters.

Involute Gear Cutter set 24DP

Skylarc Ref H177079

Involute Gear Cutter set 24DP.
Includes set No.1 through No.8.
25mm inner bore.
See photos for details on markings on each cutter.
Cutter appear near new with little to no visible signs of prior usage. Some light protective oil residue on some units.

Involute Gear Cutter set 16DP

Skylarc Ref G177078
