$205
Sold Price

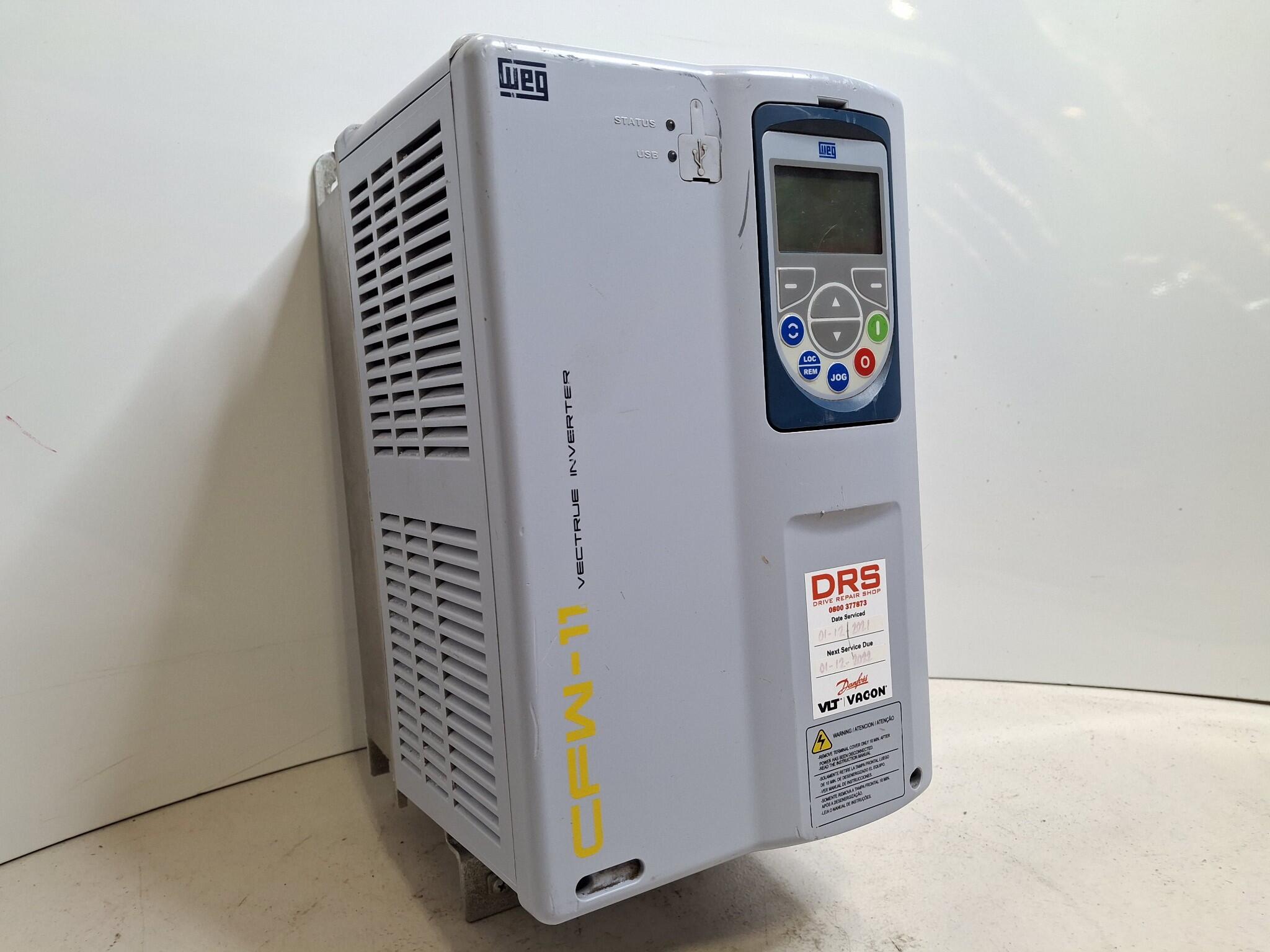

Brand WEG
Model CFW-11 Vectrue Inverter

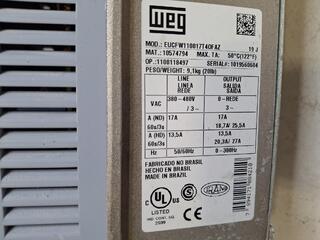

Model number EUCFW110017T40FAZ
Material code 10574794
Serial number 1019560604
Input line voltage 380 to 480 V AC three phase
Input current 17 A nominal at 60 Hz for ND rating
Input current 13.5 A nominal at 60 Hz for HD rating
Output voltage 0 to line voltage three phase
Output current 17 A nominal for ND rating
Output current 18.7 A to 25.5 A for ND rating at 60 s to 10 s
Output current 13.5 A nominal for HD rating
Output current 20.3 A to 27 A for HD rating at 60 s to 10 s
Frequency range 0 to 300 Hz
Supply frequency 50 or 60 Hz
Maximum ambient temperature 50 degrees Celsius
Weight 9.1 kg
