$295
Sold Price

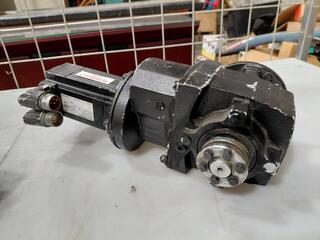

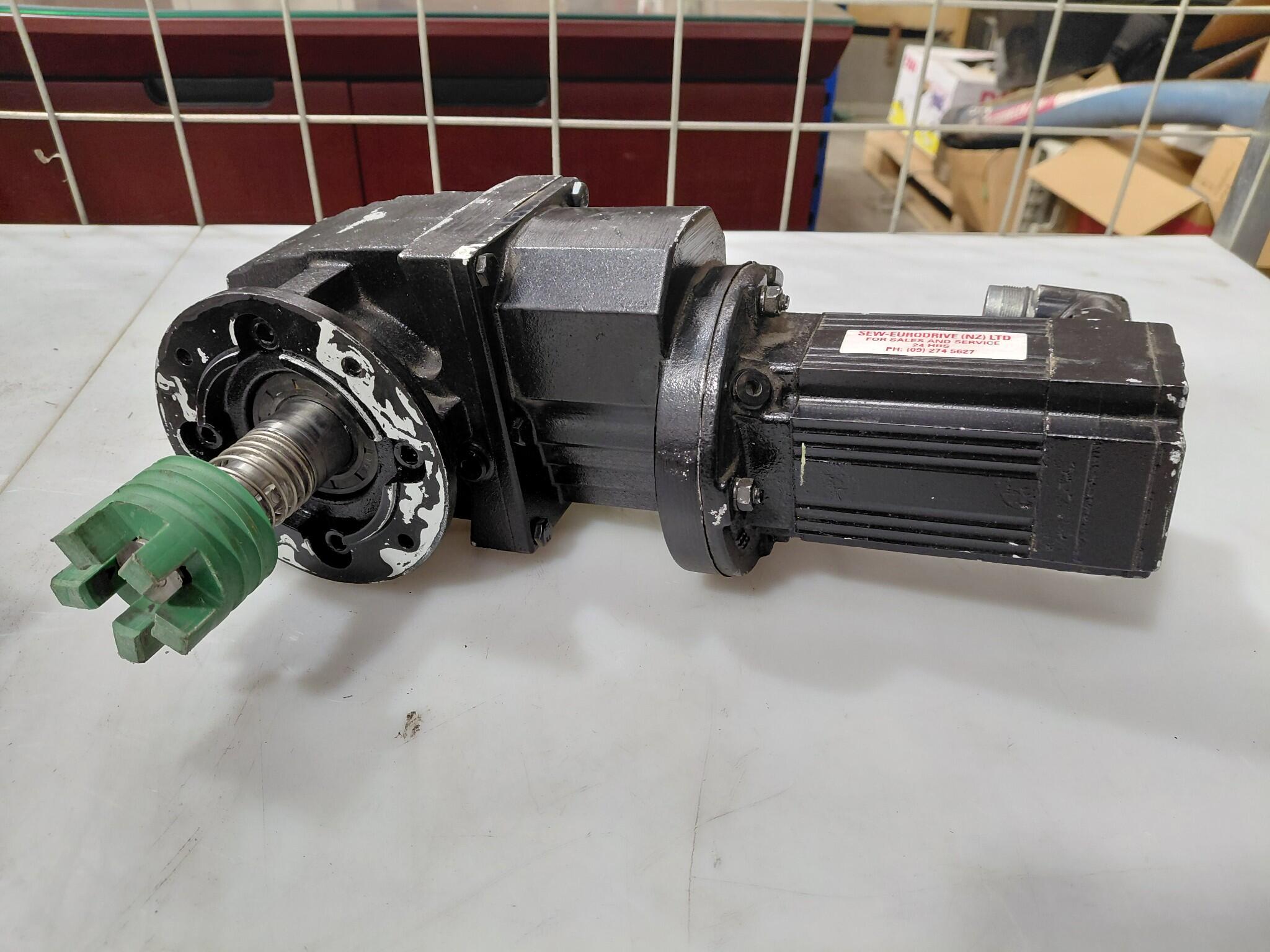

Brand: SEW-Eurodrive
Motor model: CMP50S/KY/RH1MVSM1
Gearbox model: WHF37 CMP50S/KY/RH1M/SM1
Motor rated torque Mo: 1.30 Nm
Motor rated current I: 0.96 A
Motor speed range nN: 0 to 3000 rpm
System voltage Usys: 400 V
Maximum current Imax: 5.10 A
Ingress protection rating: IP65
Insulation class: F
Motor type: permanent magnet
Motor mounting: IM B5
Motor mass: 2.840 kg
Gear unit peak torque Ma pk: 108 Nm
time rating Ma pk: 194.00 Nm
Maximum input speed ne pk: 4500 rpm
Gear unit mounting: IM M1B
Gear unit mass: 8.000 kg

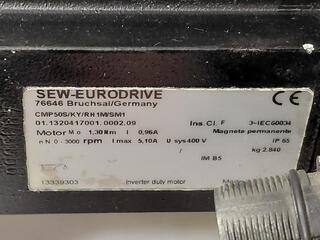

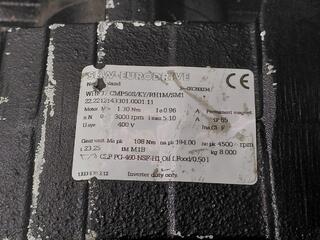

Nameplate code: 13339303
Gear unit ratio i: 23.25

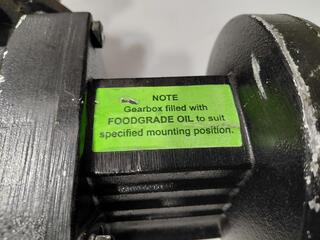

Gearbox filled with food grade oil
Inverter duty only
Made in Germany
