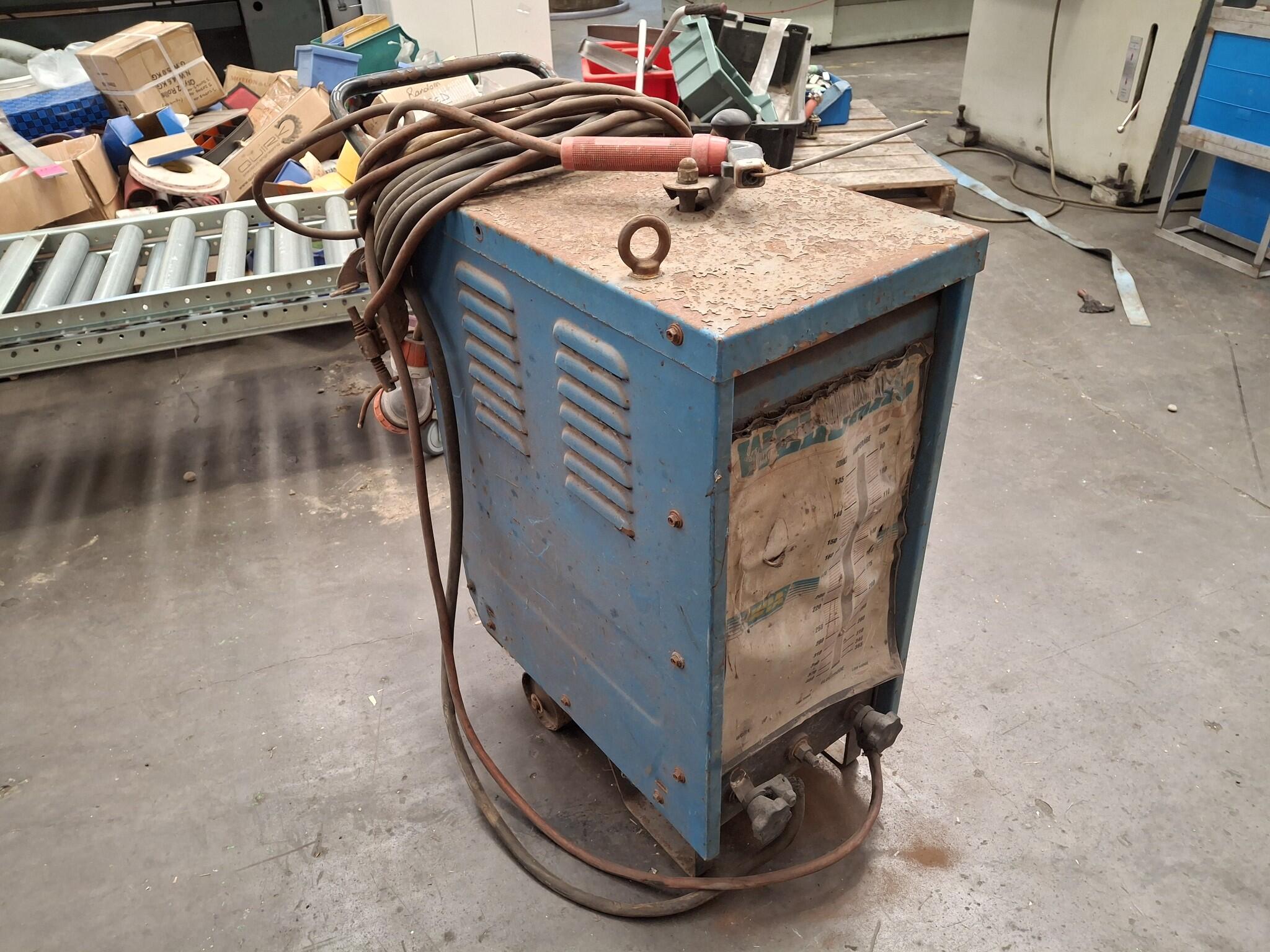

WM400 Industrial Class AC Welding Plant

Model WM400 industrial class AC welding plant
Part number WM400

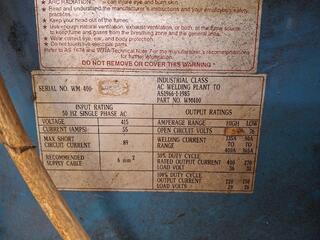

Serial number WM 400 with final digits obscured
50 Hz single phase AC input
Input voltage rating 415 V
Input current rating 55 A
Max short circuit current 89 A
Recommended supply cable size 6 mm2
Amperage range high scale 135 A to 400 A
Amperage range low scale 90 A to 365 A
Open circuit volts high 54 V
Open circuit volts low 76 V
30 percent duty cycle rated output current 400 A
30 percent duty cycle load volts 36 V and 31 V
100 percent duty cycle output current 220 A and 150 A
100 percent duty cycle load volts 29 V and 26 V

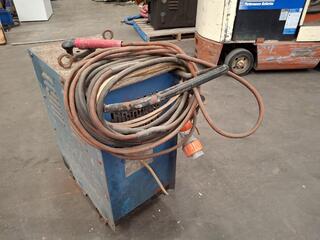

Fitted with welding leads

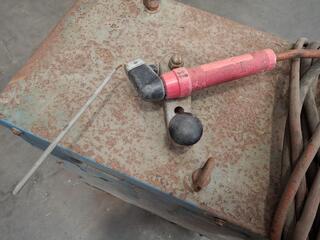

Fitted with electrode holder
Fitted with work clamp

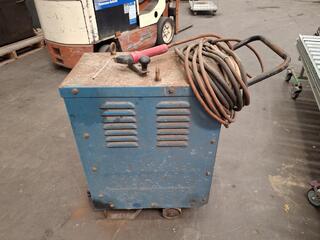

Unit is mounted in a blue metal cabinet with vents
Cabinet is on fixed wheels

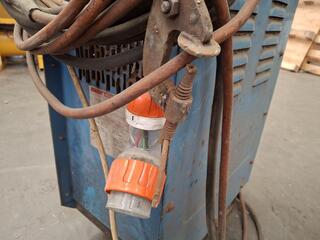

Power connector marked 32 A 500 V 50 Hz IP66 56PA432
