$338
Sold Price
High-capability roll-fed flexographic printing press designed for multi-station printing, coating, drying, and inline finishing. Suitable for high-volume production with accurate multi-colour registration across a wide range of substrates.
Features four independently adjustable impression stations for precise alignment, four separate dryer units for controlled drying, and integrated inline slitting with waste extraction.
Automatic and manual tension control for stable web handling.
Variable speed control from 0–100 m/min (dependent on material and process conditions).
Closed-loop hydraulic system (50L tank), Includes two electric hoists for roller changeover and a full set of 42 rollers. լայն printing range from 20–650 GSM
BUYER TO REMOVE/DISMANTLE
Flexographic Printing Press

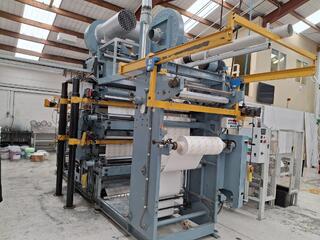

The flexographic printing press is a high-capability roll-fed system designed for multi-station printing, coating, drying, and inline finishing. It is configured to support both high-volume production and high-accuracy registration work across a wide range of substrate types and thicknesses.

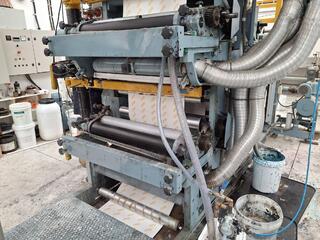

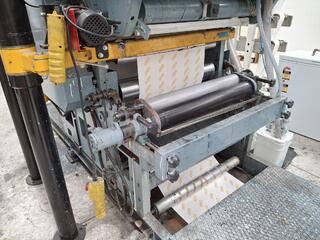

Printing and Alignment System

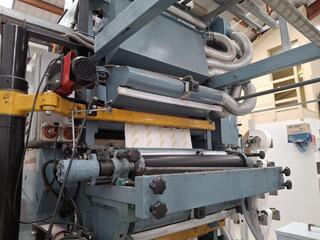

The press is equipped with four independent impression roller stations, each with its own individual adjustment controls. This allows for precise print alignment and roller registration, particularly important for multi-colour work, coating passes, and repeat accuracy.
Drying Capacity

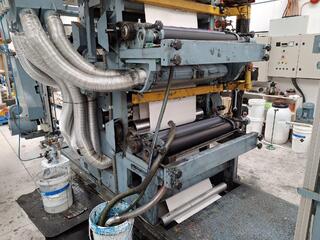

The press includes four independent dryer units, each operating separately. This supports consistent drying across multiple stations and allows production to be tuned based on ink type, coating, substrate weight, and line speed.
Inline Slitting and Waste Handling
The press has a built-in slitter, allowing material to be finished inline without secondary slitting equipment. It also includes integrated waste extraction, supporting clean operation and efficient removal of trim waste and offcuts during production.
Tension and Web Control
The machine supports both automatic and manual tension control, enabling stable web handling across light and heavy substrates, and allowing operators to fine-tune tension for specialty materials or sensitive papers.
Feed Rate / Line Speed Control
The press has a fully controllable feed rate, with a speed range of 0 to 100 metres per minute.
Please note that actual operating speed is dependent on the substrate type, thickness, ink/coating requirements, and drying conditions.

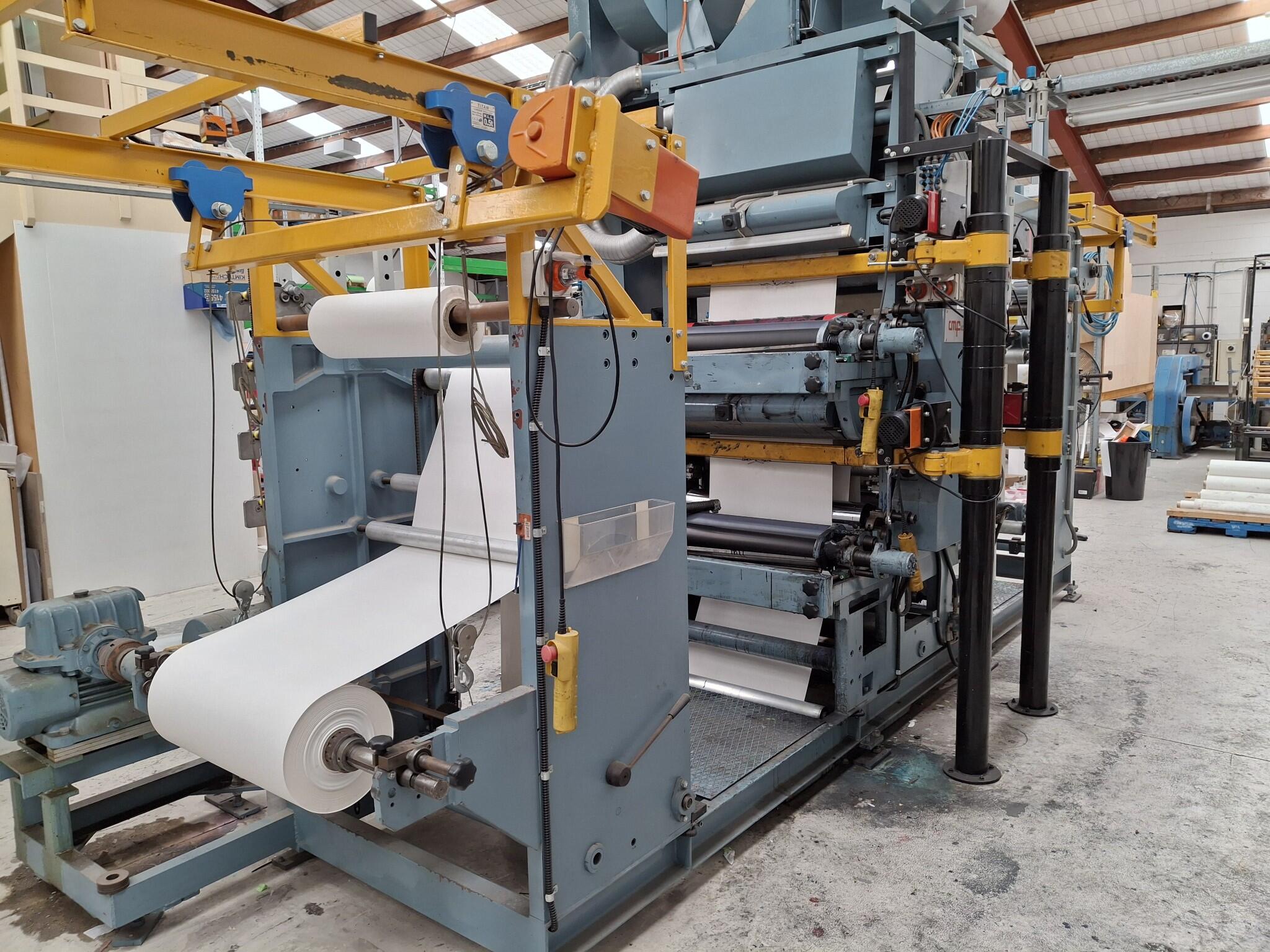

Roll Feed and Collection System (Heavy-Duty)
The roll handling system is designed for large-format production and includes powered hoisting support for safe loading/unloading.
Roll feed (unwind)
Maximum roll width: 900mm
Maximum roll diameter: 1800mm
Includes electric loading hoist for fitting and removing rolls
Roll collection (rewind)
Adjustable height roll collection system
Maximum roll width: 900mm
Maximum roll diameter: 1200mm
Includes electric loading hoist for fitting and removing rolls

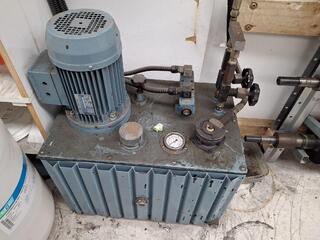

Hydraulic System
The press operates with a closed-loop hydraulic system, incorporating a 50-litre hydraulic tank and dedicated pump. This supports stable mechanical performance and consistent operation under load.

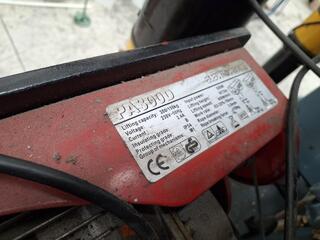

Roller Handling and Changeover
To support efficient and safe roller changeovers, the machine includes two independent electric hoists dedicated to the loading and unloading of impression print rollers. This improves speed, reduces manual handling risk, and supports repeatability when swapping job sets.

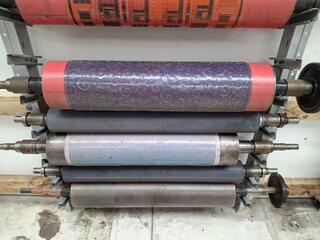

Roller Full Set’s

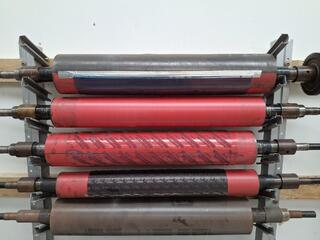

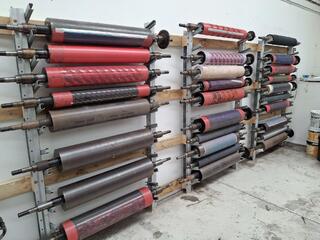

The press includes a total of 42 rollers, covering:
Impression rollers
Coating rollers
Serial plate / tag printing rollers
Additional rollers for job configuration and changeover
Substrate Thickness Range
The machine has an unusually broad printing range, supporting ultra-light papers through to heavy board and specialty substrates.
Minimum paper thickness: 20 GSM
Maximum paper thickness: 650 GSM
Can also print card and card-lined plastics, with a maximum of 650 GSM
