$9,150
Sold Price

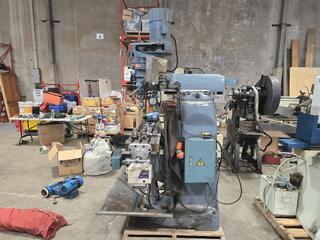

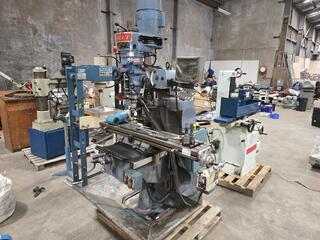

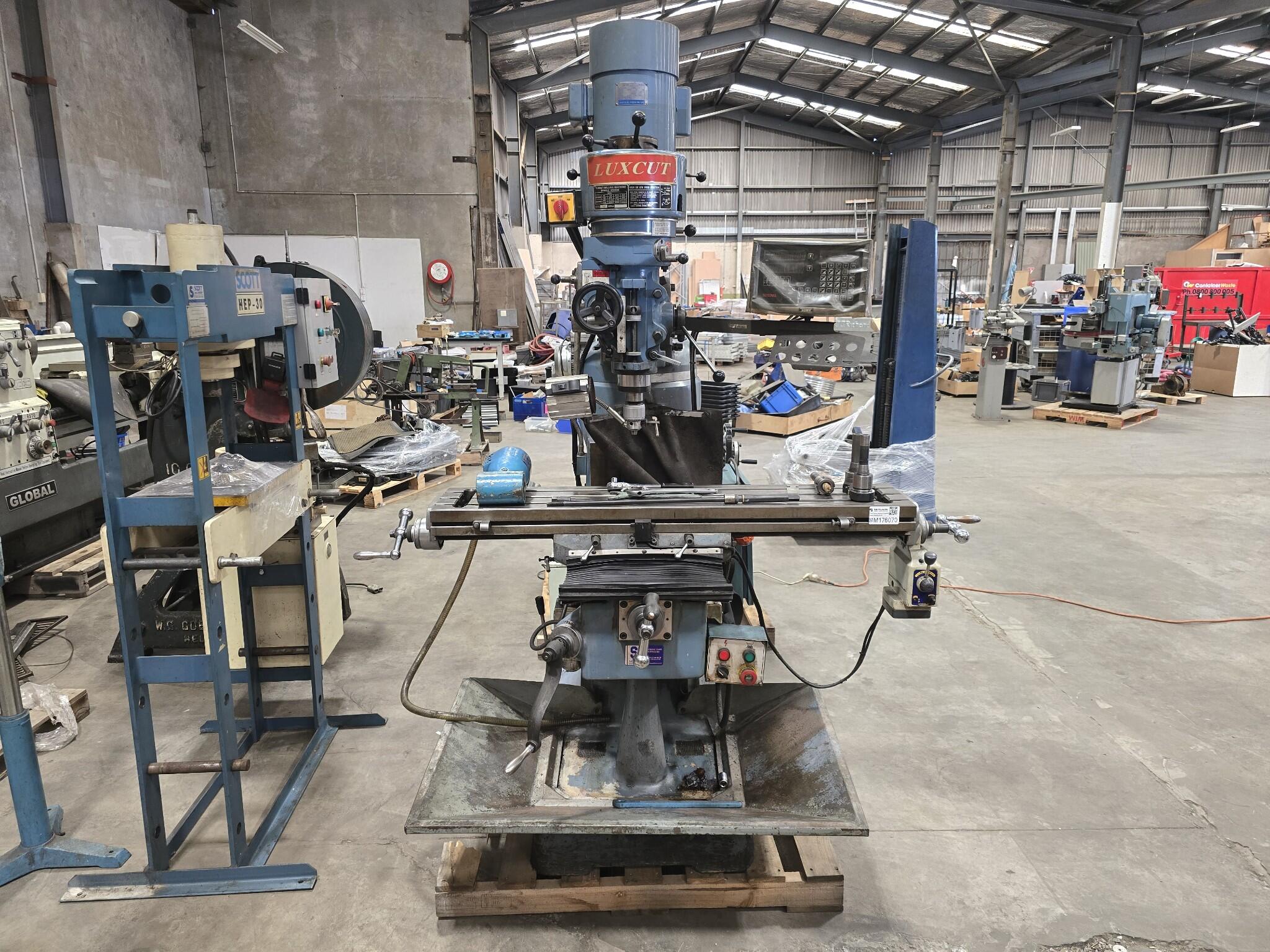

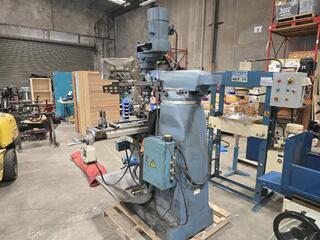

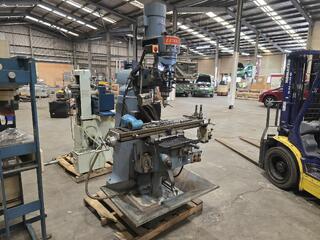

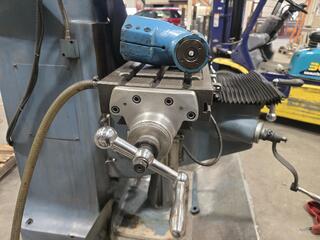

Luxcut turret milling machine.
Model 8A-1.
Serial number 060598.

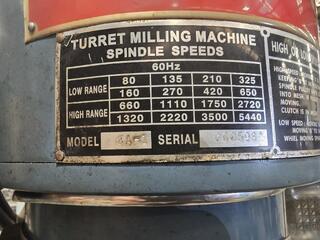

Low range spindle speeds 80 135 210 325 160 270 420 650 rpm.
High range spindle speeds 660 1110 1750 2720 1320 2220 3500 5440 rpm.

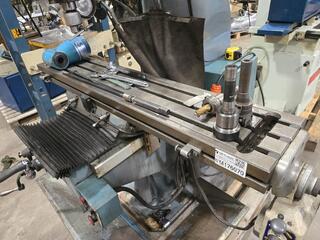

1240mm x 230mm table
5" spindle travel

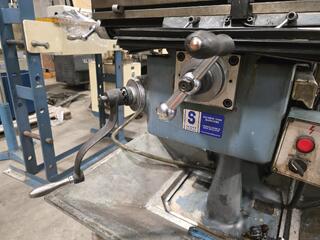

Table fitted with leadscrew and handwheel for longitudinal feed.

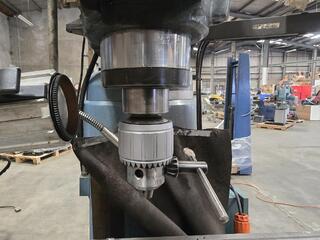

R8 spindle taper

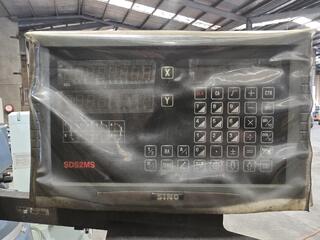

Machine fitted with DRO unit Sino SDS2MS for X and Y axes.

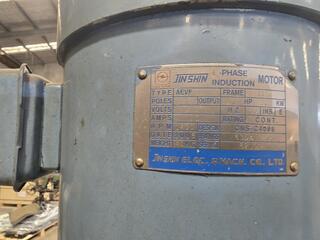

Motor rated 2 hp 1.5 kW.
Motor rated speed 1430 rpm.

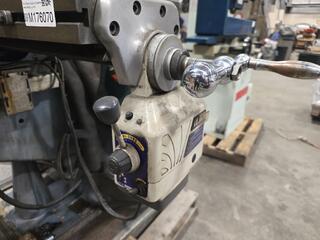

Power feed attachment present on X axis

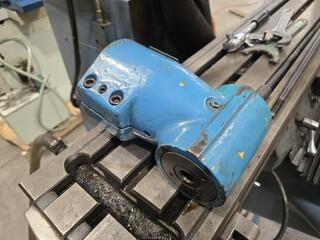

Right angle milling attachment present on table.
Range of R8 tool holders
