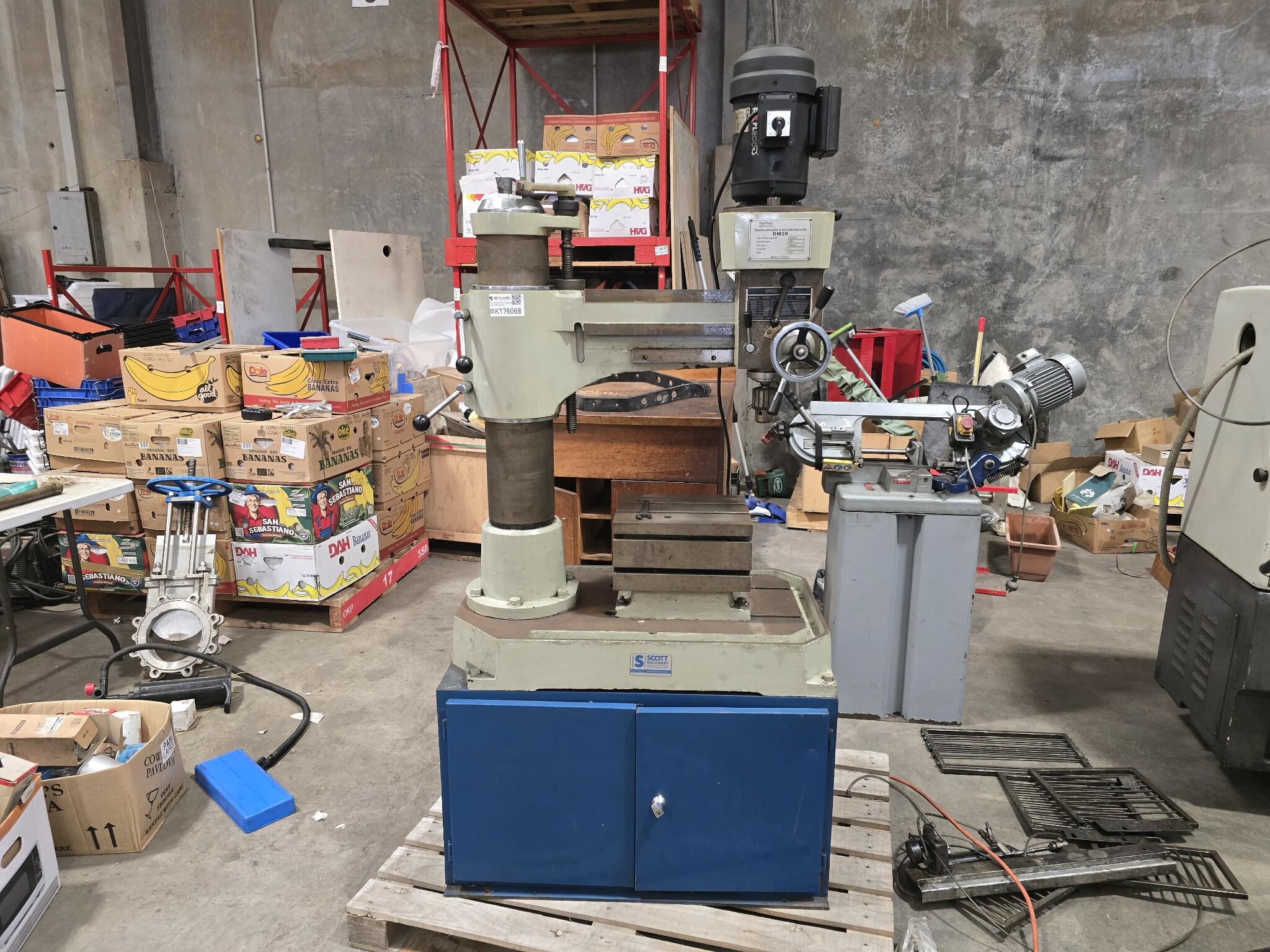

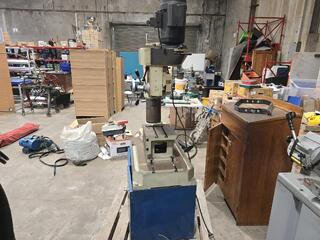

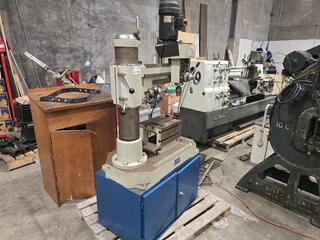

Top-Tech Single Phase Radial Arm Drill

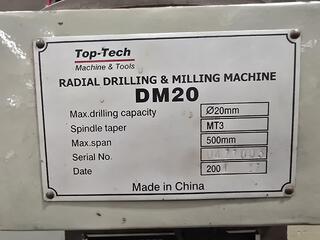

Model :Top-Tech DM20
Type radial arm drilling machine
Max drilling capacity 20mm
Spindle taper MT3
Max span 500mm
0.75kW motor
Date 2001

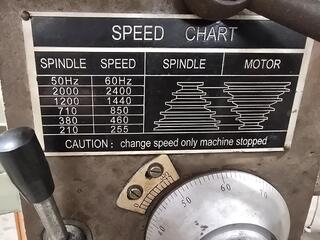

Spindle speed settings at 50Hz 2000 1200 710 380 210 rpm

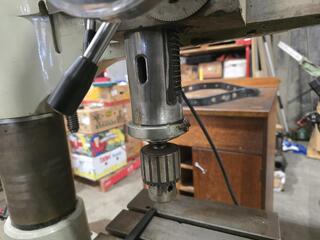

Chuck capacity 16mm JT3
Vertical column mounted on base

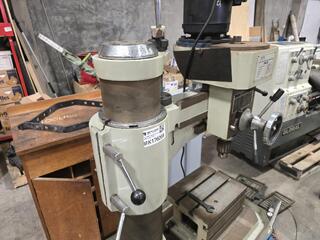

Radial arm with rack and pinion adjustment

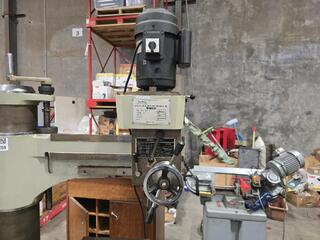

Handwheel control for head movement
Lever control for spindle feed

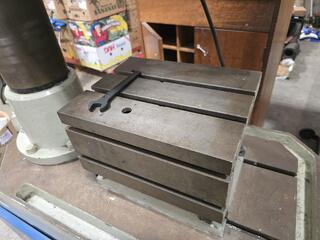

315mm x 260mm x 240mm tall T slot table fitted to base
