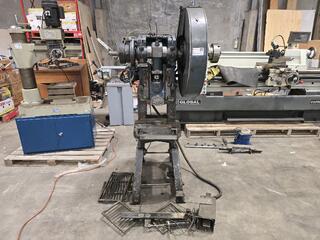

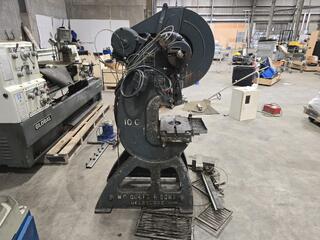

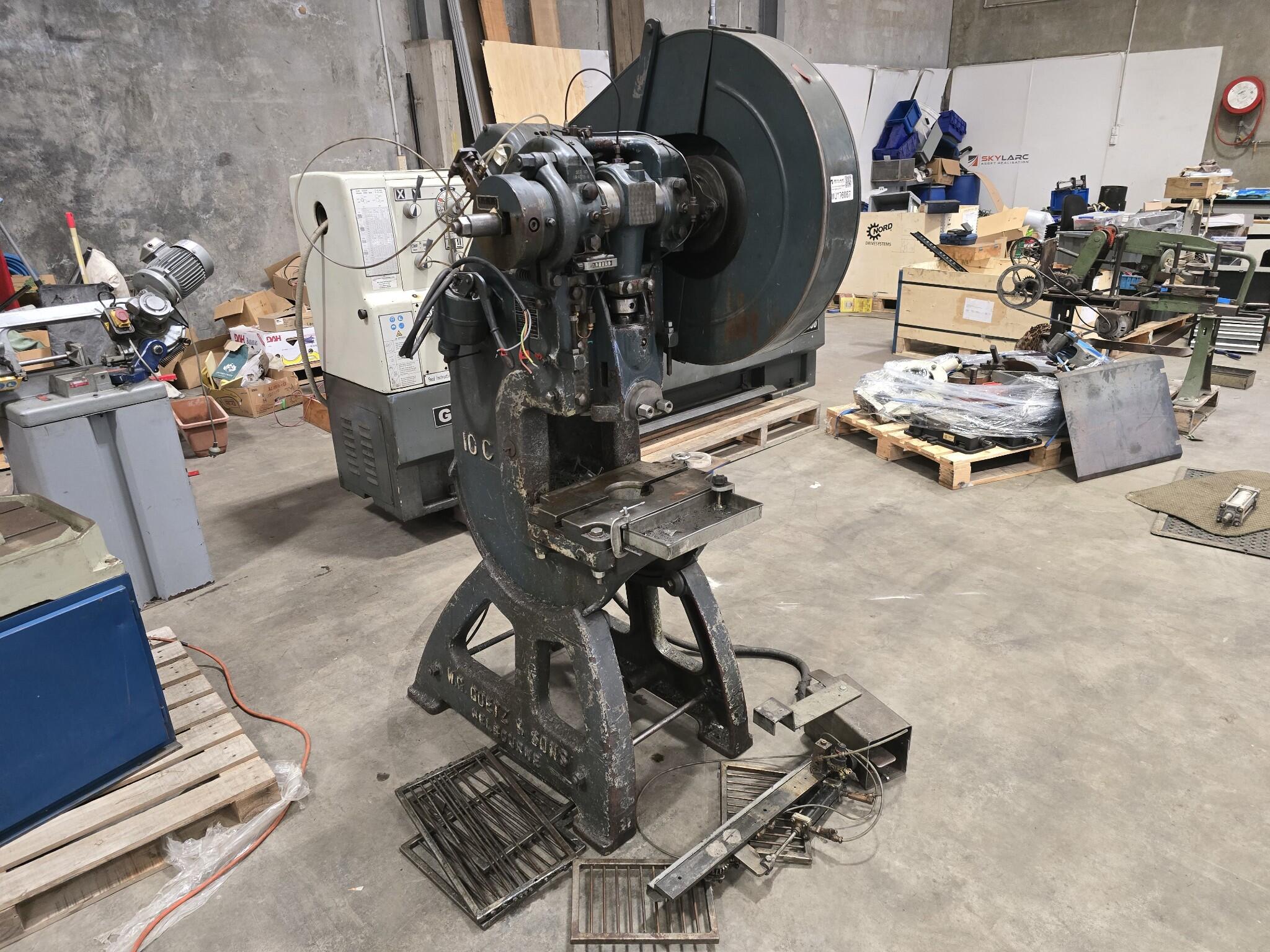

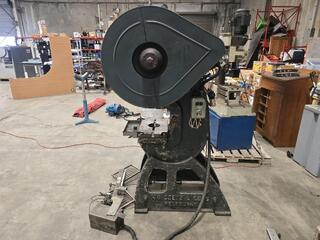

W.G. Goetz & Sons Model 10C Press

Manufacturer W.G. Goetz & Sons Ltd

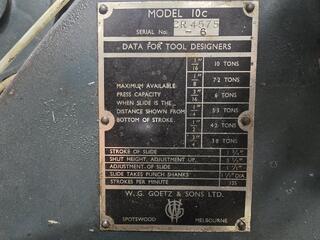

Location plate shows Spotswood Melbourne
Model 10C
Serial number CR4575-6
Reclining press
Three phase
Maximum available press capacity 10 tons at 1 inch from bottom of stroke
Press capacity 7.2 tons at 1 1/8 inch from bottom of stroke
Press capacity 6 tons at 1 3/16 inch from bottom of stroke
Press capacity 5.3 tons at 1 1/4 inch from bottom of stroke
Press capacity 4.2 tons at 1 1/2 inch from bottom of stroke
Press capacity 3.8 tons at 1 3/4 inch from bottom of stroke
Stroke of slide 1 3/4 inch
Shut height adjustment up 5 1/2 inch

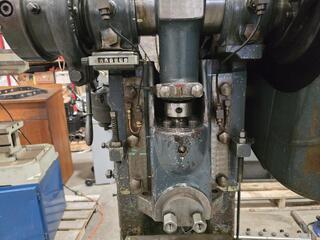

Adjustment of slide 1 inch
Slide takes punch shanks 1 1/2 inch diameter
Strokes per minute 135

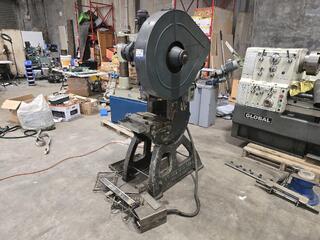

Large flywheel drive
Electric motor mounted above flywheel

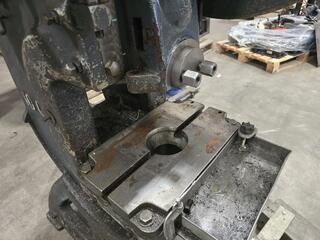

T-slotted press table with central opening

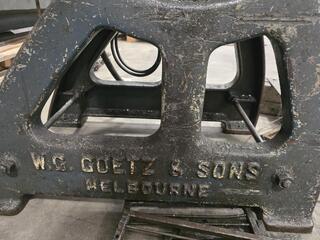

Mounted on cast frame base
