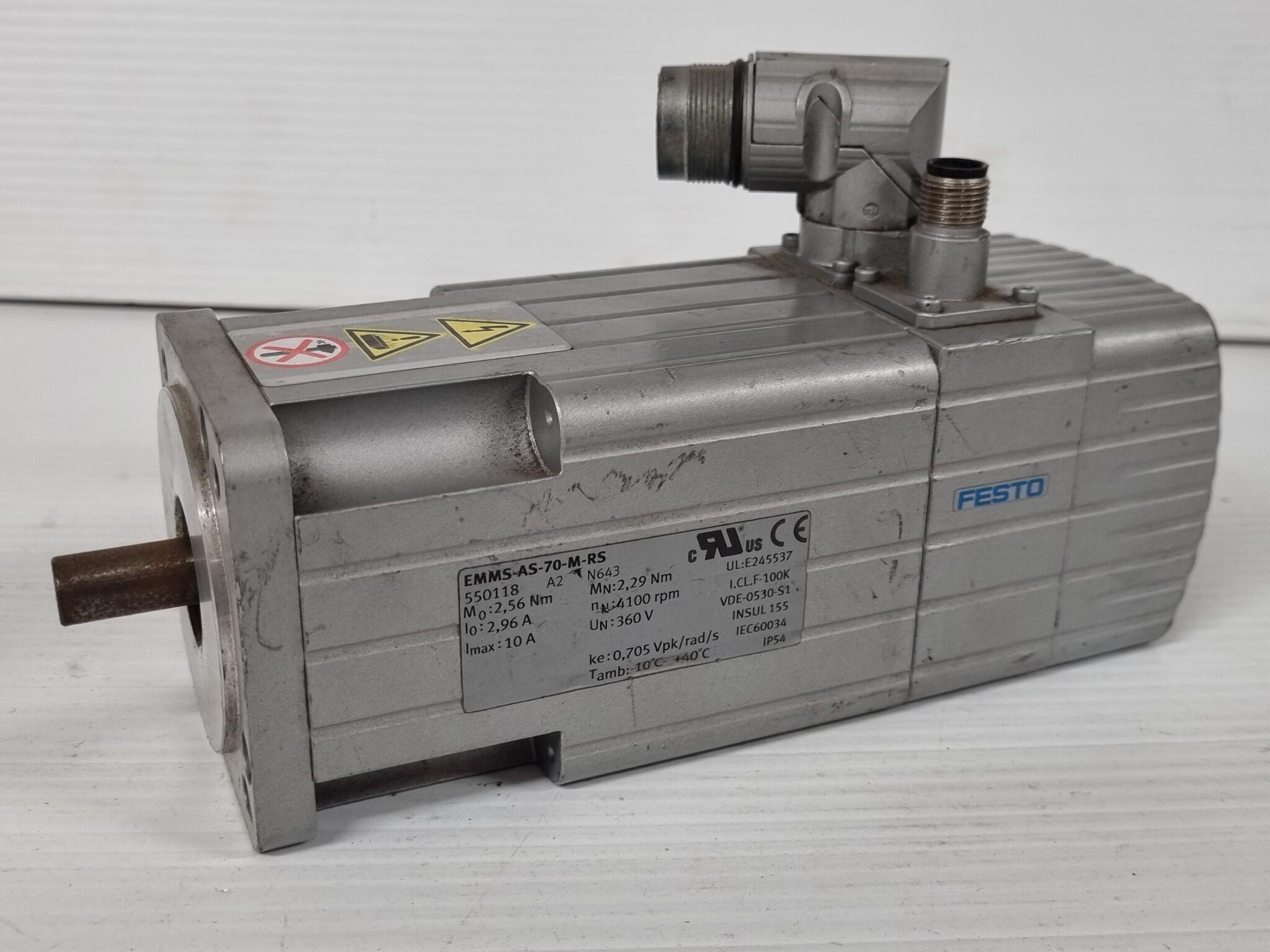

Brand: Festo.

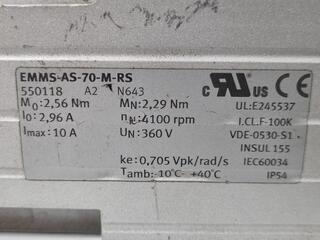

Model: EMMS-AS-70-M-RS.
Part number: 550118.
Rated torque Mn: 2.29 Nm.
Holding torque M0: 2.56 Nm.
Rated current Io: 2.96 A.
Maximum current Imax: 10 A.
Rated speed nn: 4100 rpm.
Rated voltage Un: 360 V.
Back EMF constant ke: 0.705 Vpk per rad per second.
Thermal class: INSUL 155.
Protection class: IP54.
Standards: IEC60034 and VDE-0530-S1.
Certification marks: cURus and CE.
Insulation class designation: I.C.L.F-100K
Ambient temperature range Tamb: -10°C to +40°C
Electrical connector with 8 pins on main plug
Secondary circular connector with 8 pins
Keyed output shaft 12mm dia.
Mounting face 70x70mm.
190mm casing length.
