RICHARD ILLSEY ENGINEERING RETIREMENT AUCTION

Luxcut 3 Metre Lathe

Skylarc Ref U178496

Model: Luxcut Z660LX3000 Centre Lathe
Swing over bed 660mm
Swing in gap 870mm
Swing over carriage 420mm
Distance between centres 3000mm
Spindle bore 105mm
Number of spindle speeds 12
Spindle speed range 36 - 1600 rpm
Thread range 1-14 mm (22) / 28 - 2 TPI (26)
Tailstock taper 5MT
Motor power 12hp
Sino SDS6-2V digital read out
D-18 camlock spindle
Quick change toolpost with 11 tool holders
Taper cutter
Rapid traverse
Foot brake
380mm three jaw chuck
400mm four jaw chuck
600mm faceplate
3 x fixed steadies
Travelling steady
Manufactured 2012
You will need your own lifting machinery to load this machine

Full specs
http://www.scottmachinery.co.nz/conventional.php?s=100&ss=120&scode=LCNT-0-6267

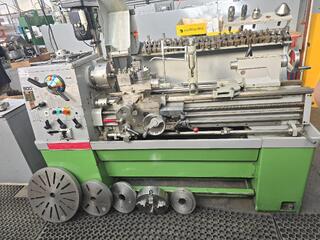

Colchester Master 2500 Lathe

Skylarc Ref V178497

Model: Colchester Master 2500
Distance between centres 1015mm
Swing over bed 335mm
Swing over gap 480mm
40mm spindle bore
16 spindle speeds
30 - 2500 rpm
Thread cutting
Taper cutter
MT3 tailstock taper
Four jaw 200mm chuck
Four jaw 250mm chuck
Three jaw 200mm chuck
Four jaw 250mm chuck
Four jaw 150mm chuck
305mm and 455mm faceplates
Newall DPG2000 digital readout
Fixed and traveling steadies
Gate system for cutting metric threads
Back stop system
Coolant pump
Quick change tool post with 27 assorted tool holders
Extending parting tool holder
Wide range of tooling, boring bars, turning tools, knurler
Exceptionally tidy condition

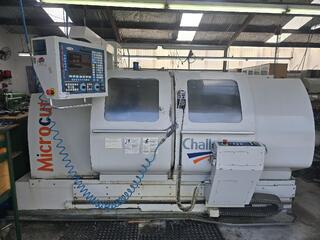

Microcut Challenger CNC Lathe

Skylarc Ref H178457

Model: Microcut Challenger BNC-1840
Max turning length 1120mm
Swing over bed 475mm
Swing over gap 710mm
X axis travel 260mm
Z axis travel 1120mm
Speed range 100 - 4500rpm
Spindle nose D6
Spindle bore 65mm
7.5kW main motor
8 position tool turret
Morse taper No.5 tail stock
Fagor 8040 T controller
Manufactured 2004
Range of tool holders
New power supply
New bearings when current owner purchased
200mm four jaw chuck
300mm four jaw chuck
200mm three jaw chuck
Tidy machine ready for work

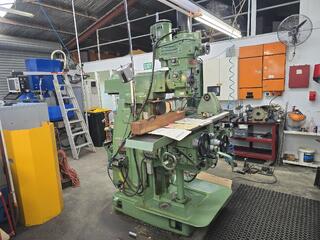

Hwacheon Universal Milling Machine

Skylarc Ref W178498

Model: Hwacheon HMTH-1300
1300mm x 280mm T slot table
Vertical spindle speeds 65 - 3165rpm
Horizontal spindle speeds 95 - 1400rpm
Two speed ranges
NT40 spindle taper
140mm spindle travel
X and Z power feeds
0.002mm - 2.5mm per revolution auto spindle feed
Forward and reverse
Horizontal arbor and arbor supports
Newall Topaz digital read out
Air power draw bar
Includes custom line boring attachment
Manuals
Exceptionally tidy machine

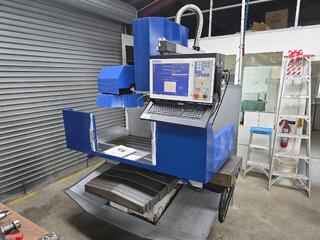

Centroid CNC Milling Machine

Skylarc Ref T178495

Centroid CNC Milling Machine
M-400 control console
520mm x 1320mm t slot table
6000rpm max spindle speed
BT40 spindle taper
20 tool magazine
Manuals
USB and RS232 inputs
Transformer
You will need to decommission this machine for transport

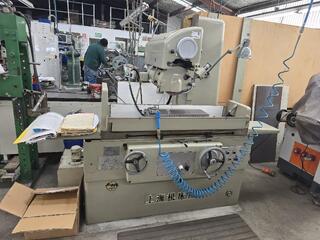

Shanghai Machine Surface Grinder

Skylarc Ref P178491

Model: Shanghai Machine Tool Works M7120A surface grinder
230mm wheel
560mm x 200mm magnetic chuck
Max width to be ground 200 mm
Max length to be ground 630 mm
Max height to be ground 320 mm
Worktable working surface size 200 x 630 mm
Max longitudinal travel of worktable manual 780 mm
Max longitudinal travel of worktable hydraulic 730 mm
Max cross travel of wheelhead manual 250 mm
Max cross travel of wheelhead hydraulic 235 mm
Max vertical travel of wheelhead 345 mm
Manual micro feed per pass 0.005 mm
Wheel spindle speed two steps 1500 rpm and 3000 rpm
Total motor power 4.02 kW
Wheel motor power 2.1 kW or 2.8 kW
Manuals

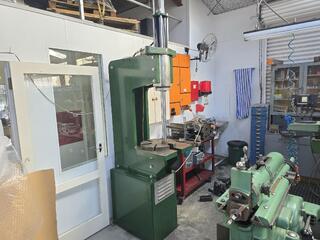

Custom Hydraulic Broaching Press

Skylarc Ref Y178500

3 phase broaching press
500mm x 500mm x 50mm thick table
400mm diameter rotary broaching table
Believed to be about 12 ton capacity
600mm ram stroke
Removable hydraulic pump in frame on wheels
Adjustable height controls
Hydraulic pump has quick release connections so it can be used on other machines
Cupboard of assorted broaching collets
Exceptionally well made machine in excellent condition

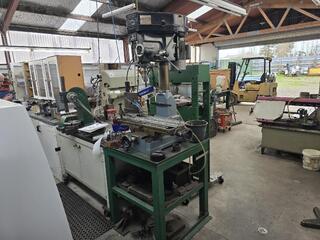

Nantong Single Phase Drill Mill

Skylarc Ref R178493

Model: Nantong ZX30
730mm x 210mm t slot table
12 speeds
120 - 2500rpm
130mm spindle travel
13mm keyless chuck
No.3 morse taper
Mounted on heavy duty steel workbench
Sliding attachment on bed (mounted on t slots)
Setup for grub screwing sprockets and pulleys

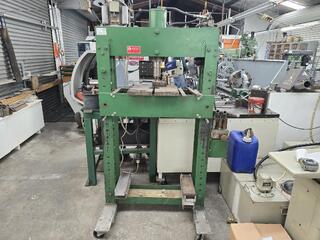

Hydraulic Workshop Press

Skylarc Ref Q178492

3 stage press
Different handles for different pressures
150mm diameter ram
65mm diameter spear
760mm between uprights
Mounted on wheels
Includes 30mm thick press plates
Adjustable height table
Unknown capacity

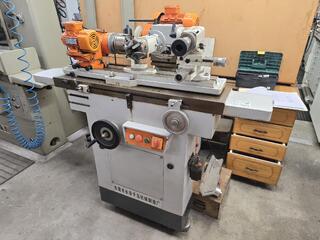

Universal Tool Grinder

Skylarc Ref O178490

Model: WS1 universal tool grinder
Max swing diameter of workpiece 250mm
Max distance between centers 650mm
Operating table area 940 x 135mm
Max longitudinal travel of table 480mm
Max swing angle of table ±60 degrees
Max vertical cross travel of wheel head 230mm
Wheel head swing angle in horizontal plane 360 degrees
Wheel head swing angle in longitudinal vertical plane 30 degrees ±15 degrees
Spindle end taper MT No.3
Main motor power 1.1kW 50Hz
Grinding wheel speed 1400 or 2800rpm
Motor speed 3050 or 6095rpm
Cylindrical grinding attachment motor 0.12kW 50Hz
Machine size 1460 x 1102 x 1240mm
Machine weight 1000kg
Fitted with powered grinding wheel head
Includes workhead with three jaw chuck
Includes tailstock
Includes indexing workhead
Includes multiple orange steady rests and supports
Includes spare grinding wheels
Includes 5C collets in labelled tubes
Includes assorted arbors and tooling in black plastic box
Manuals

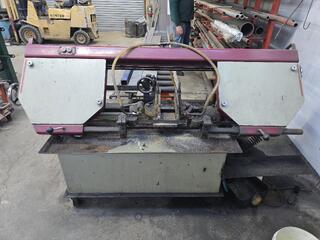

Three Phase Metal Cutting Bandsaw

Skylarc Ref M178488

New Zealand made
Max cutting width approx 500mm
Manual lift and gravity fall
Coolant pump
3080mm exit rollers
Spare blade
Three phase

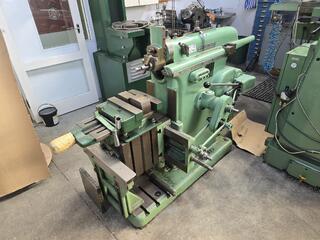

Invicta Three Phase Shaper

Skylarc Ref X178499

Model: Invicta-4M
2 speed ranges
11-101 strokes per minute
415mm x 335mm tall x 300mm wide T slot block
305mm wide machine vice
Has been restored

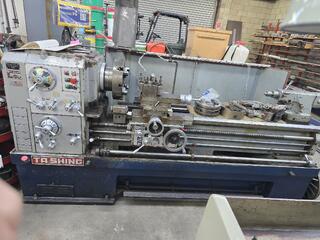

Ta Shing Three Phase Lathe

Skylarc Ref N178489

Model: Ya Shing Crown 3/1500
Swing over bed 500mm
Swing in gap 758mm
Swing over carriage 298mm
Distance between centres 1500mm
Spindle bore 80mm
Number of spindle speeds 12
Spindle speed range 21 - 1500 rpm
Motor power 7.5hp
Eason ES-10 DRO
Quick change toolpost
4 tool holders
Foot brake
250mm three jaw chuck
350mm four jaw chuck
505mm faceplate
Fixed steady
Travelling steady
Bed is worn in rear
Manufactured 1981

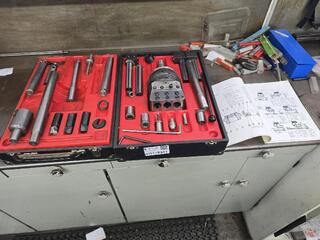

Narex Boring and Facing Head

Skylarc Ref R178441

Brand Narex.
Model VHU 56.
Made in Czechoslovakia.
In case with accessories

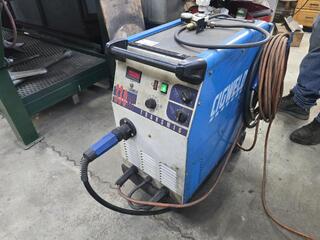

Cigweld Transmig 330se MIG Welder

Skylarc Ref J178485

Brand: Cigweld
Model: Transmig 330se
Made in Australia
Three phase input
Input voltage options: 220V 380V 415V
Input frequency: 50 or 60Hz
Rated output range: 25A at 15.5V to 271A at 30.3V
Duty cycle at 330A: 30 percent
Mounted on wheeled base

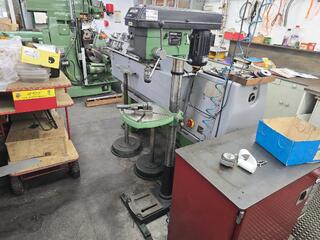

Rexon Single Phase Drill Press

Skylarc Ref S178494

Model: Rexon DP-430F
0.85kW motor
Morse taper No.3 spindle
80mm spindle travel
350mm x 350mm table
13mm keyless chuck
12 speeds
210 - 2500rpm
25mm max drilling capacity
85mm machine vice

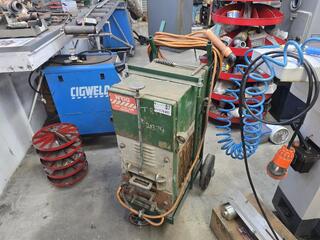

Young 400 Amp Arc Welder

Skylarc Ref K178486

Model: Young Type M
400 amp max welding output
On wheeled stand
Three phase

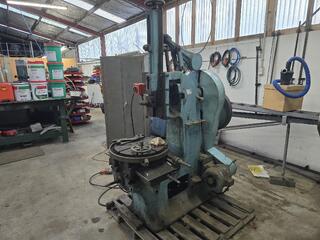

Three Phase Slotter

Skylarc Ref H178483

550mm table diameter
Max stroke approx 400mm to tool holder
2hp motor
Flywheel machine
Rotary table can be angled

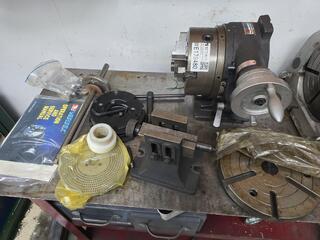

Vertex Rotary Indexing Head

Skylarc Ref E178480

200mm three jaw chuck
Tailstock
Indexing plates
Back stop
Manual
T spanner
Includes t slot table with 25mm slots
Assorted accessories

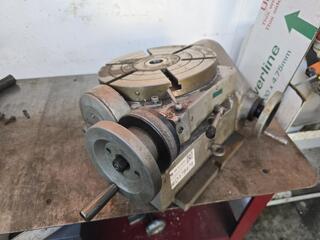

Tilting Milling Rotary Table

Skylarc Ref D178479

Model TSK250
Tilting rotary table
Table diameter 250mm
Table has T-slots
T-slot width 21mm
Handwheel with degree scale
Mounting base with T-slots
Through bore in table centre
Manufacturers plate marked TSK250 with 250mm table diameter
Manual operation via handwheel
Cast iron body
Steel table surface

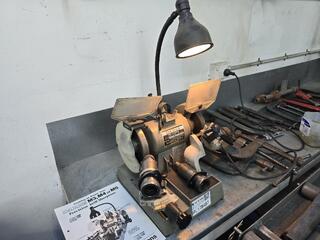

Darex Drill Sharpener

Skylarc Ref L178487

Model: Darex Drill Sharpener
Max capacity 19mm
Single phase
Built-in work light
2 x drill holders

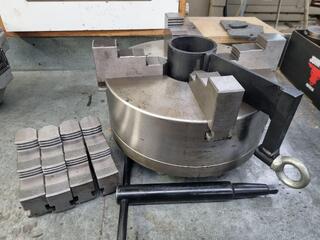

325mm 4-Jaw Lathe Chuck

Skylarc Ref K175912

325mm 4-Jaw Lathe Chuck.
Ytum branded.
Includes inner snd outer jaw sets.
Includes chuck jaw key.
325mm outer diameter
Inner bore 95mm.
123nm thickness.
6x 25mm diameter, 50mm long mounting pins spaced 85mm apart on centre.

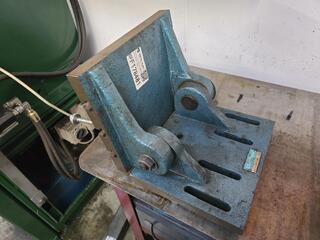

Adjustable Milling Angle Plate

Skylarc Ref F178481

Elephant EAP-12S
25mm t slots

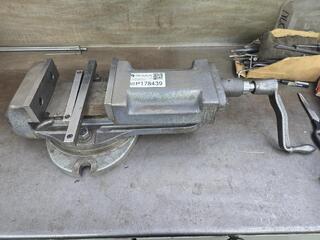

Large Milling Machine Vice

Skylarc Ref P178439

155mm wide jaws
155mm max opening
Swivel base
Includes bars for aligning on T slots on a mill

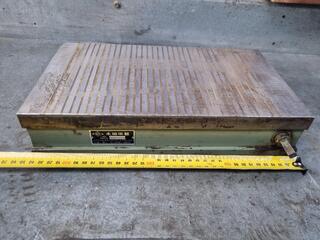

Industrial Magnetic Chuck, 360x200mm

Skylarc Ref O175942

Industrial Magnetic Chuck.
360x203x70mm.
On/off handle missing

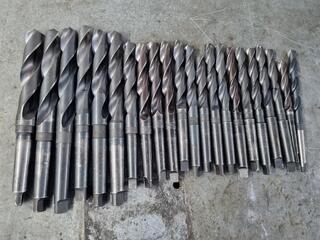

22x Metric Morse Taper Drills

Skylarc Ref B175903

22x Metric Morse Taper Drills.
Diameters range from 13.5mm to 30mm in 0.5mm to 1mm intervals.
Shank sizes include No.1, No.2, and No3.

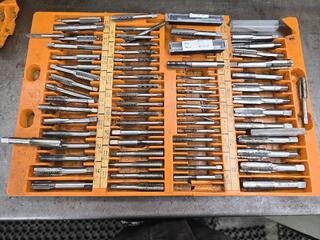

Large Lot of Metric Taps

Skylarc Ref C178452

73 x metric taps

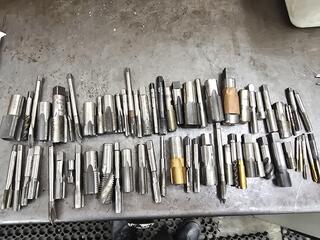

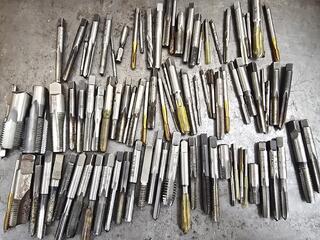

Large Lot of Threading Taps

Skylarc Ref Z178449

Approx 100 total

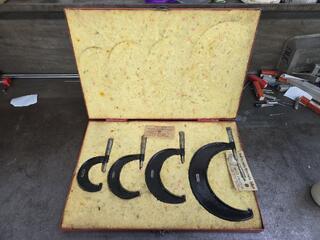

Starrett No. 436 Outside Micrometer Set

Skylarc Ref Q178440

Starrett No. 436 outside micrometer set.
Four micrometers in fitted case.
Micrometer marked 1in No.436–2in.
Micrometer marked 2in No.436–3in.
Micrometer marked 3in No.436–4in.
Micrometer marked 5in No.436–6in.
Includes red metal storage case.
Includes Starrett wrench for micrometer envelope.
Includes Starrett "How to read Micrometer Caliper" leaflet.
Made by The L. S. Starrett Co.

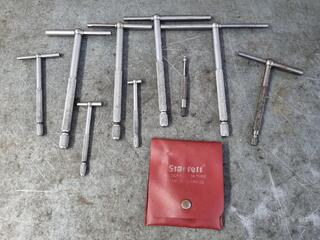

Assorted Telescoping Gauges by Moore & Wright & Starrett

Skylarc Ref A175902

Assorted Telescoping Gauges.
Includes:
- 3-piece Starret Set No.S229F, 12.7mm to 53.98mm.
- Starrett No.829C small hole gauge.
- Shardlow branded gauge with no part number or size markings.
- 7x Moore & Wright gauges in combined size range from 12.7mm to 152.4mm.

Condition varies with each tool.

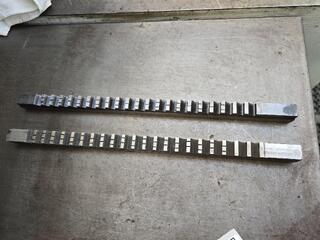

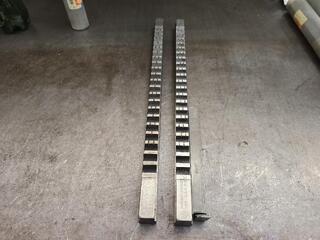

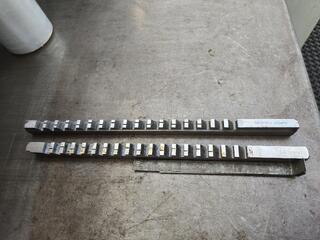

2 x Broaches

Skylarc Ref C178478

18mm Hassay Savage
16mm unknown make

2 x Broaches

Skylarc Ref B178477

Hassay Savage 5/8"
Unknown make 5/8"

2 x Broaches

Skylarc Ref A178476

Hassay Savage 14mm (damage to end)
Dumont 7/16"

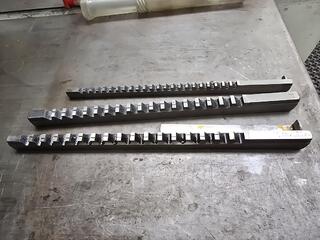

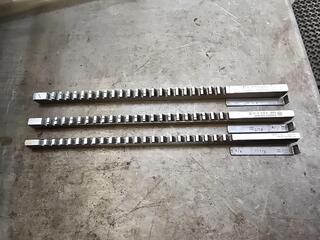

3 x Keyway Broaches

Skylarc Ref Z178475

Hassay Savage brand
3/8", 5/16", 1/4"

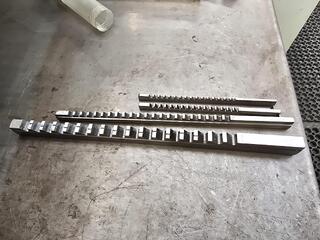

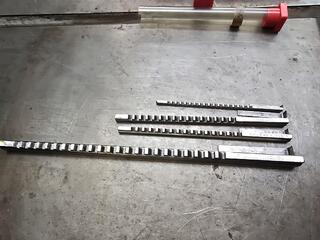

4 x Keyway Broaches

Skylarc Ref Y178474

Hassay Savage 1/8"
Hassay Savage 3/16"
Dumont 1/4"
Dumont 1/2"

4 x Keyway Broaches

Skylarc Ref X178473

Hassay Savage 6mm
Dumont 4mm
Hassay Savage 5mm
Hassay Savage 3mm

3 x Keyway Broaches

Skylarc Ref W178472

Hassay Savage brand
8mm, 10mm, 12mm

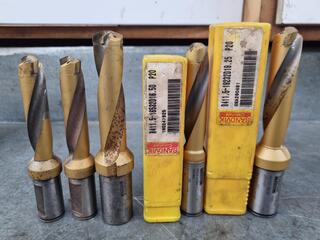

5x Sandvik Coromant Indexable Tipped Drills

Skylarc Ref Q176568

5x Sandvik Coromant Indexable Tipped Drills.
Includes the following Part numbers:
- R411.5-17534
- R411.5-19232 (2x units)
- R411.5-16232
- R411.5-16532

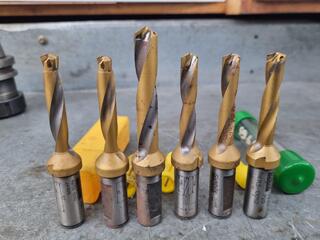

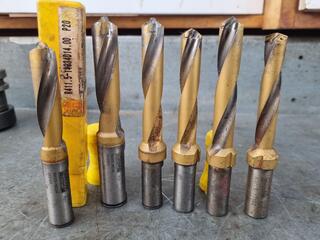

6x Sandvik Coromant Indexable Tipped Drills

Skylarc Ref P176567

6x Sandvik Coromant Indexable Tipped Drills.
Includes the following Sandvik part numbers:
- R411.5-14034
- R411.5-16534
- R411.5-14052 (2x units)
- R411.5-13052
- R411.5-12552

6x Sandvik Coromant Indexable Tipped Drills

Skylarc Ref O176566

6x Sandvik Coromant Indexable Tipped Drills.
Includes the following Sandvik part numbers:
- R411.5-10052 (5x units)
- R411.5-12052

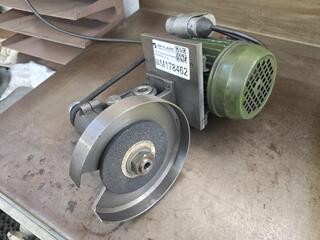

Lathe Tool Post Grinder

Skylarc Ref M178462

Single phase
150mm max wheel diameter
0.5hp motor

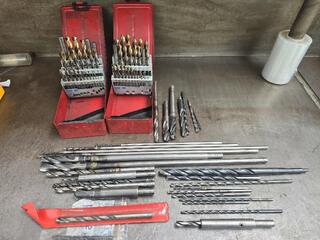

Large Lot of Drill Bits

Skylarc Ref J178459

2 x sets in cases
Assorted loose drills
Includes long series drills

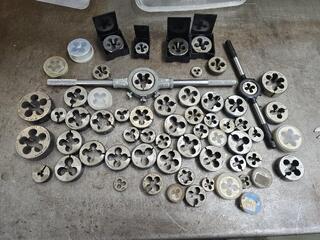

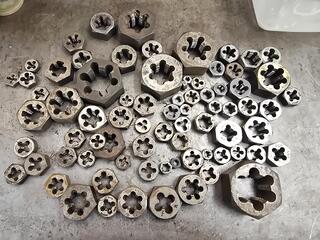

Large Lot of Threading Dies

Skylarc Ref B178451

Mostly metric dies
Die handles

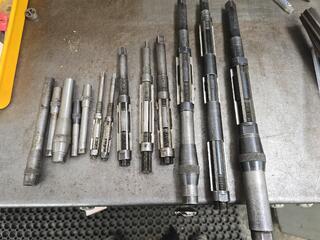

Adjustable Reamers

Skylarc Ref V178445

8 x adjustable reamers
5 x reamer pilots

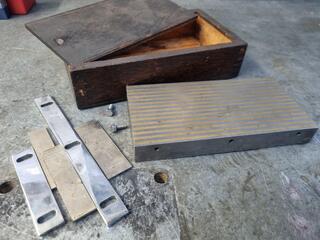

Eclipse Magnetic Transfer Block, 185x93x23mm

Skylarc Ref G175908

Eclipse Magnetic Transfer Block.
No.A105
Block is 185x93x23mm in size.
Wood case.
Block in excellent condition. Wood case shows moderate storage wear.

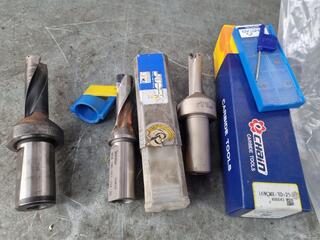

3x Assorted Indexable Tipped Drills by Iscar & Chain

Skylarc Ref J176561

3x Assorted Indexable Drills by Iscar & Chain.
Includes:
- Iscar Part No.DCN 190-057-25A-3D.
- Iscar Part No.DZ024-072-32-05
- Chain Carbide Tools Part No.16WCMX-3D-25.

Condition varies with each unit.

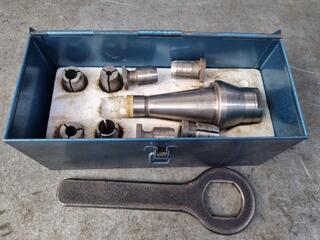

NT40 Autolock Chuck Kit

Skylarc Ref J175937

NT40 Autolock Chuck Kit.
Unknown manufacturer.
Made in England.
Type S
16mm
260x110x110mm steel case.

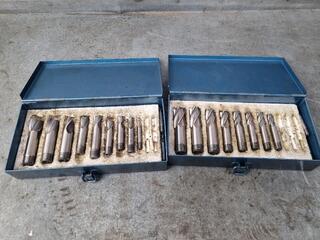

17x Assorted End Mills

Skylarc Ref H175935

17x Assorted End Mills.
Threaded shank sizes from 5mm to 16mm.
Cutting head diametes from 4mm to 20mm.
Brands include Clarkson, Sutton.
Two 225x120x42mm steel storage cases.
End Mills excellent condition.
Steel cases show external storage wear.

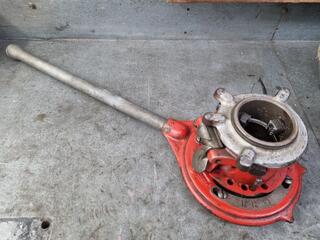

Ridgid Manual Receding Threader No.65-R

Skylarc Ref M175914

Ridgid Manual Receding Threader No.65-R.
700mm tool length.
2" capacity.
No accessories included.

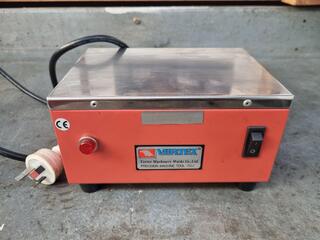

Vertex Demagnetizer VDM-68

Skylarc Ref P175943

Vertex Demagnetizer VDM-68.
Single phase.
Operares normally.

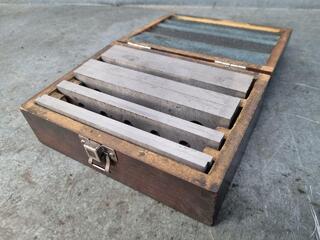

Vintqge Machinists Parrallel Sets

Skylarc Ref K175938

Vintqge Machinists Parrallel Sets.
175x130x63mm wood case.
4x Sets of Parrallels in the following sizes:
153x26x5mm
153x32x5mm.
153x38x13mm
153x45x13mm

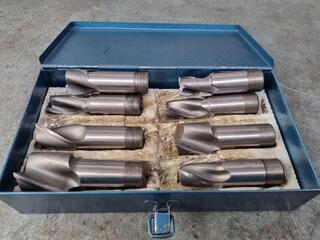

8x Assorted End Mills, 25mm Shanks

Skylarc Ref I175936

8x Assorted End Mills.
25mm diameter threaded mounting Shanks.
Cutting diameters from 22mm to 38mm.
Sutton and Clarkson brands.
Mills in excellent condition. Steel case shows workshop wear.

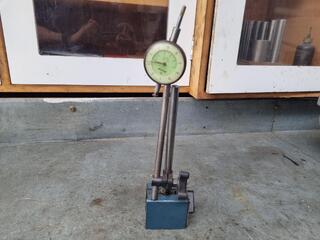

Mitutoyo No.2915 Dial Gauge w/ Magnetic Base Stand

Skylarc Ref Z175927

Mitutoyo No.2915 Dial Gauge w/ Magnetic Base Stand.
Unknown stand manufacturer.

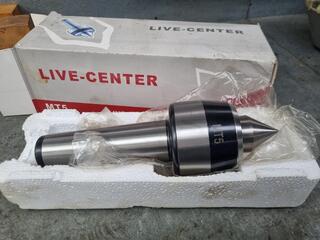

Lathe Live Centre w/ Morse Taper No.5 Shank

Skylarc Ref P175917

Lathe Live Centre w/ Morse Taper No.5 Shank.
Unknown manufacturer.
38mm Live cone diameter.
250mm total tool length.
As new unused cemtre.
Outer box shows workshop storage marks.

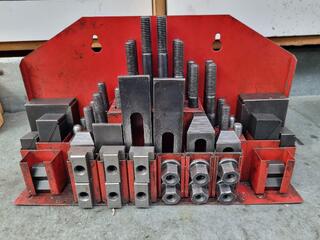

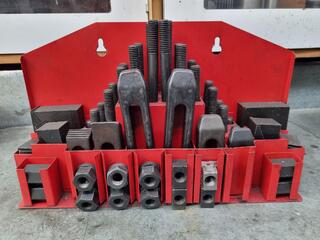

Mill Lockdown Clamping Kit

Skylarc Ref O175916

Mill Lockdown Clamping Kit.
12mm diameter threaded rods.
Some pieces are missing, see photos.
Steel rack 355x100x205mm.

Mill Lockdown Clamping Kit

Skylarc Ref N175915

Mill Lockdown Clamping Kit.
12mm diameter threaded rods.
Steel rack 355x100x205mm.

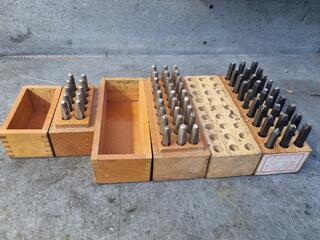

3x Vintage sets of Steel Letter & Number Stamps

Skylarc Ref H175909

3x Vintage sets of Steel Letter & Number Stamps.
Includes:
- Young Bros 3.2mm letter stamp set in wood case.
- Priority Marking Punches 4mm letter and number punch sets, both in wood cases.

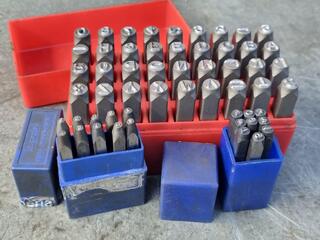

3x Sets of Steel Letter & Number Stamps

Skylarc Ref E175906

3x Sets of Steel Letter & Number Stamps.
Includes:
- 6mm letter set, stamps appear near new.
- 4mm number stamp set showing mild usage.
- 3mm Number stamp set showing mild usage.

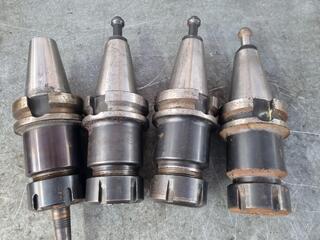

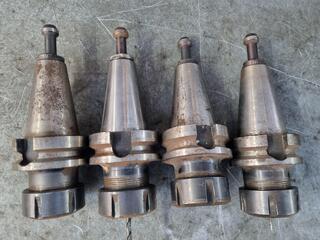

4x BT40 Tool Holders w/ ER32 Collet Chucks

Skylarc Ref V176573

4x BT40 Tool Holders w/ ER32 Collet Chucks.
One is Kojex model BT40 ER32 100.
The other three have illedgible ID markings.
Shank lengths 60mm.
Condition varies with each unit.

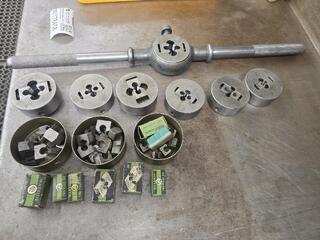

Die Handle and Two Piece Dies

Skylarc Ref I178458

The British Tap & Die Co Ltd
7 x die holders
Assorted warrior 2 piece dies

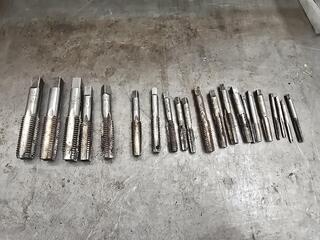

Lot of Large Threading Taps

Skylarc Ref Y178448

16 total
Largest size M30x1

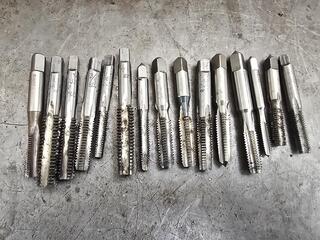

Large Lot of Threading Taps

Skylarc Ref X178447

Approx 70 total

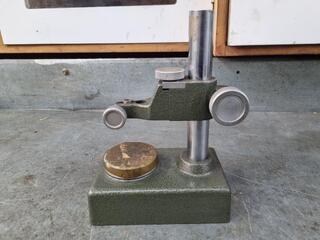

Mitutoyo Dial Gauge Stand 7001/7003

Skylarc Ref U176546

Mitutoyo Heavy Duty Dial Gauge.
Code No.7001/7003.
Made in Japan.
Overall dimensions 146x100x205mm.
60mm diameter serrated anvil with original protective wax mostly still in place.

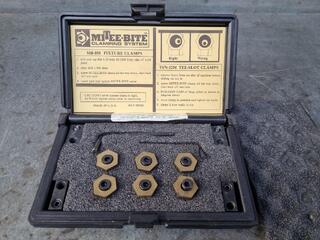

Mitee-Bite 12mm T-Slot Clamp Kit TSN-12M

Skylarc Ref M175940

Mitee-Bite 12mm T-Slot Clamp Kit.
Kit No TSN-12M.
Complete Kit, well maintained.

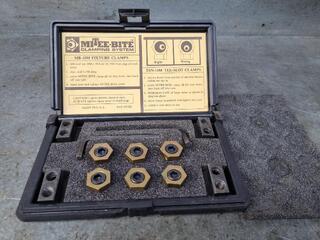

Mitee-Bite 14mm T-Slot Clamp Kit TSN-14M

Skylarc Ref L175939

Mitee-Bite 14mm T-Slot Clamp Kit.
Kit No TSN-14M.
Complete Kit, well maintained.

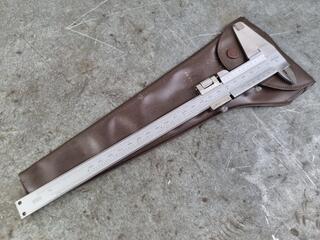

Mitutoyo 200mm Analog Vernier Caliper

Skylarc Ref S175920

Mitutoyo 200mm Analog Vernier Caliper.
Model number unknown.
Made in Japan.

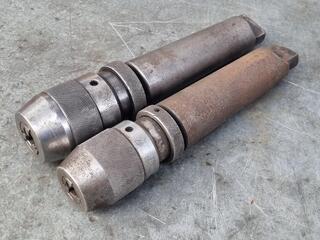

16mm & 13mm Keyless Drill Chucks w/ Morse Taper No.5 Shanks

Skylarc Ref Q175918

16mm & 13mm Keyless Drill Chuck.
Both have Morse Taper No.5 Shanks.
16mm chuck is Golden Goose branded,
13mm chuck is of unknown brand.
Jaws move well on both Chucks.

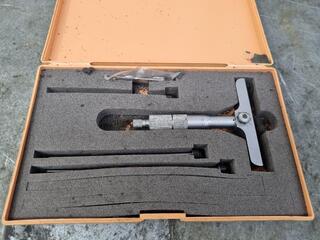

Mitutoyo Depth Micrometer Set

Skylarc Ref X175925

Mitutoyo Depth Micrometer Set.
Incomplete case ID label, see photos, so full tool model number is unknown.
Longest accessory rod is 175mm.
Made in Japan.
Plastic case.

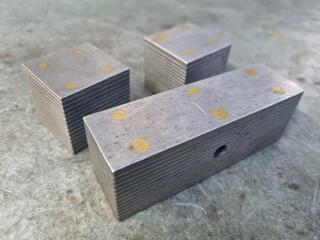

3x Assorted Magnetic Transfer Blocks

Skylarc Ref D175905

3x Assorted Magnetic Transfer Blocks.
Two matching cube pairs are each 39x37x37mm.
One rectangle block is 102x31x35mm. This block has a 7mm diameter hole drilled into one side, see photo.

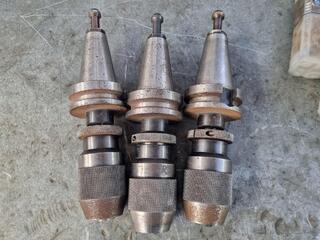

3x BT40 Tool Holders w/ Albrecht 13mm Keyless Drill Chucks

Skylarc Ref Z176577

3x BT40 Tool Holders each with Albrecht 13mm Keyless Drill Chucks.
Kennametal branded tool Holders. Unable to decipher specific model number from Holders.
Drill chuck jaws all move smoothly.
Some surface rust spotting.

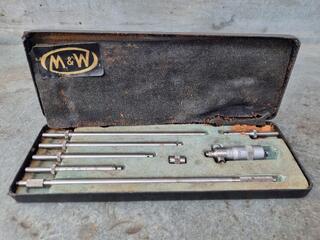

Vintage Moore & Wright Inside Micrometer Set

Skylarc Ref E175932

Vintage Moore & Wright Inside Micrometer Set.
Set number unknown.
Longest Extension rod 200mm.
Micrometer and accessories in excellent condition. Vintage case shows more moderate storage wear.

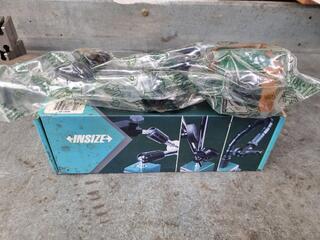

Insize Magnetic Stand 6201-60, New

Skylarc Ref D175931

Insize Magnetic Stand 6201-60.
Stand is new in sealed manufacturer plastic protective bag. Outer box exterior shows workshop storage wear and marks.

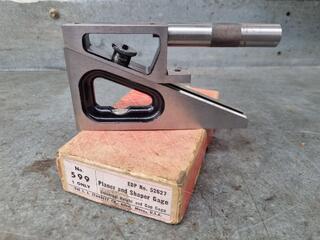

Starrett Planer and Shaper Gauge No.599

Skylarc Ref C175930

Starrett Planer and Shaper Gauge No.599.
Made in USA.
144mm tool length.
Tool in excellent condition, original box shows more moderate storage wear.

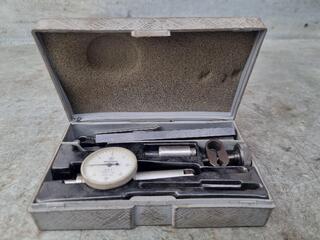

Mitutoyo Dial Test Indicator No.513-118

Skylarc Ref Y175926

Mitutoyo Dial Test Indicator No.513-118.
Made in Japan.
Jeweled.
Tool and accessories in excellent condition. Plastic case exterior shows more moderate workshop wear.

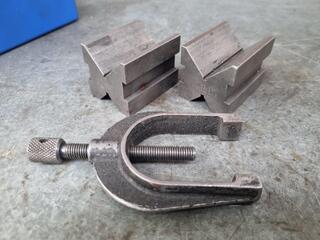

Moore & Wright Machinists V-Blocks w/ Clamp Set No.502

Skylarc Ref W175924

Moore & Wright Machinists V-Blocks w/ Clamp Set No.502.
Made in England.
Each block 51x38x38mm.

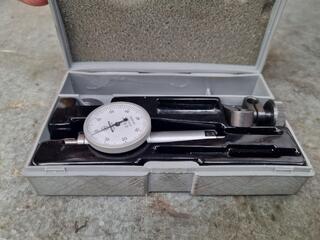

Mitutoyo Dial Test Indicator No.513-117

Skylarc Ref V175923

Mitutoyo Dial Test Indicator No.513-117.
Made in Japan.
Jeweled.
Some original accessories are missing from case, see photos.

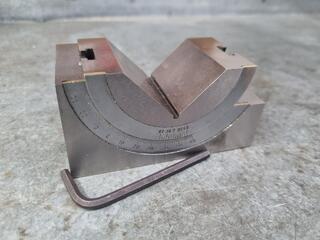

Groz Adjustable Angle Block

Skylarc Ref U175922

Groz Adjustable Angle Block.
Brand: Groz.
Type: Adjustable angle block.
Angle range 0 to 60 degrees.
Least count 10 minutes of arc.
Squareness and parallelism 0.0004 inch.
Squareness and parallelism 10 micron.
Engraved angle scale from 0 to 60 degrees.
V groove top face.
Steel construction.
Includes hex key.
Block measures 95mm long, 45mm wide, 50mm tall.

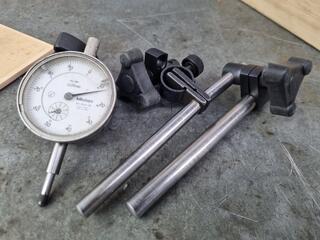

Mitutoyo Dial Indicator Gauge No.2046-08 W/ Partial Stand Components

Skylarc Ref T175921

Mitutoyo Dial Indicator Gauge No.2046-08.
Made in Japan.
Includes incomplete stand components, see photos.

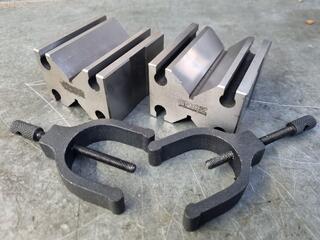

Groz V-Blocks w/ Clamps

Skylarc Ref I175910

Groz V-Blocks w/ Clamps.
Each block is 71x64x45mm.

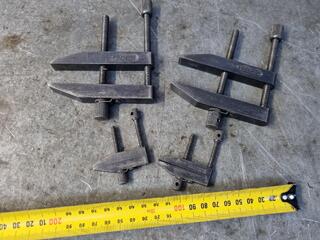

2x Sets of Moore & Wright Toolmakers Parrallel Clamps

Skylarc Ref F175907

2x Vintage Sets of Moore & Wright Toolmakers Parrallel Clamps.
Specific set numbers are unknown.
Smaller set has 50mm long jaws snd larger set has 100mm long jaws.

4x BT40 Tool Holders w/ ER32 Collet Chucks

Skylarc Ref Z175901

4x BT40 Tool Holders w/ ER32 Collet Chucks.
All are Kennametal branded but specific model number markings are all too worn to read on all units.
All have 30mm threaded shank.lengths.

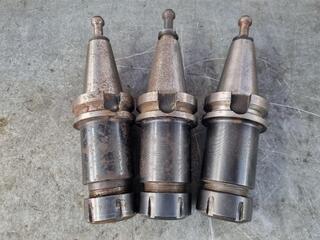

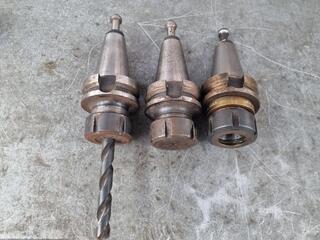

3x BT40 Tool Holders w/ ER32 Collet Chucks

Skylarc Ref W176574

3x BT40 Tool Holders w/ ER32 Collet Chucks.
ID markings worn on all units so brand and model numbers unknown.
80mm long threaded shank length.

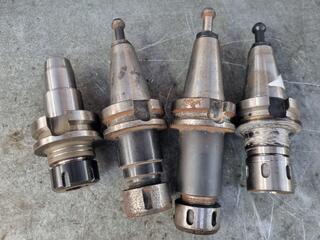

4x BT40 Tool Holders w/ ER25 Collet Chucks

Skylarc Ref S176570

4x BT40 Tool Holders w/ ER25 Collet Chucks.
One Seco unit with modified BT40 mounting cone, see photos.
One MariTool BT40 SK16-3.0
One Kennametal holder, illedgible type markings.
One unknown brand/type unit.

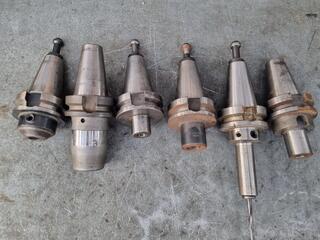

6x Assorted BT40 Tool Holders

Skylarc Ref D176555

6x Assorted BT40 Tool Holders.
Includes:
- Maritool BT40 EM.500 -2.0
- Sandvik Coromant CoroChuck 930 Tool No.930-B40-P-12-110.
- SPV Sweden tool No.HV20-55151.
- Morse Taper No.1 and No.2 BT40 Tool Holders.
- One unknown brand/model tool holder, see photos

Condition varies with each unit.

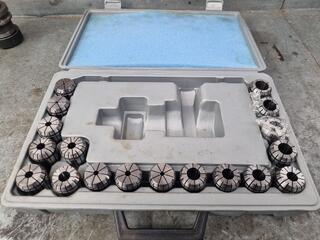

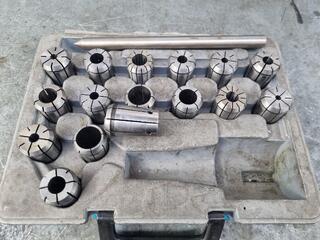

16x ER32 Collets, Metric & Imperial Sizes

Skylarc Ref Y176550

16x ER32 Collets.
Metric & Imperial Sizes from 6mm to 25mm.
All collets are the 52mm long variety.
Plastic case missing collet holder and lid.

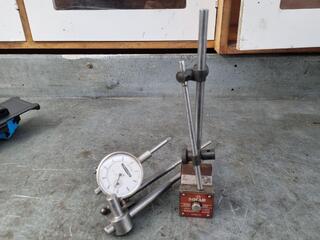

Saginomiya Dial Indicator w/ Solar Magnetic Base Stand

Skylarc Ref W176548

Saginomiya Dial Indicator w/ Solar Magnetic Base Stand.
Dial indicator model ECM-1100, made in Japan. Has partial adjustable mounting frame attached.
Also includes a Solar model SMB/41 magnetic base unit.

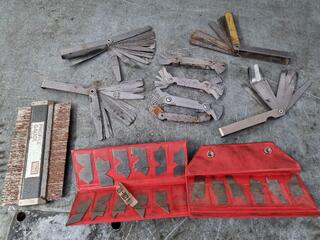

Assorted Feeler, Thread Pitch, Angle, & Profile Gauges

Skylarc Ref V176547

Assorted Feeler, Thread Pitch, Angle, & Profile Gauges.
- Vitrex vintage profile gauge.
- Moore & Wright No.799 AMER.NAT. thread pitch gauge (2x units).
- Moore & Wright No.800 WHIT.thread gauge.
- Starrett No.178 thread gauge.
- 4x Assorted Feeler gauges.
- SPI Angle Gauge set No.31-375-9.

Condition varies greatly with each item, from excellent to average.

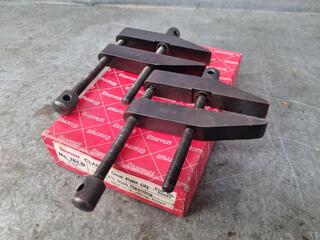

Starrett Toolmakers Parrallel Clamp Set No.161-D

Skylarc Ref B175929

Starrett Toolmakers Parrallel Clamp Set No.161-D.
Includes box.
Made in England.
100mm long jaws.
https://www.starrett.com/products/precision-shop-tools/vise-and-clamps/161D

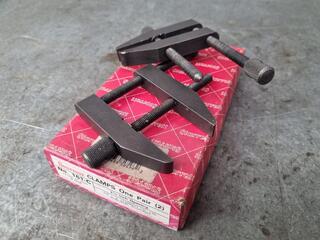

Starrett Toolmakers Parrallel Clamp Set No.161-C

Skylarc Ref A175928

Starrett Toolmakers Parrallel Clamp Set No.161-C
Includes box.
Made in England
75mm long jaws.
https://www.starrett.com/products/precision-shop-tools/vise-and-clamps/161C

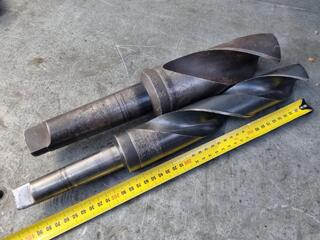

2x Large Diameter Morse Taper Drills

Skylarc Ref C175904

2x Large Diameter Morse Taper Drills.
Includes:
- 70mm drill with No.5 shank, 380mm total length.
- 2" drill with No.4 shank, 420mm total length.

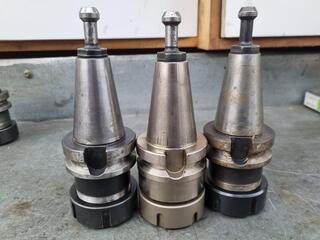

3x BT40 Tool Holders w/ ER40 Collet Chucks

Skylarc Ref T176571

3x BT40 Tool Holders w/ ER40 Collet Chucks.
The cleanest unit is of unknown brand is marked with BT40 ER40 80L
The other two are more used with also illedgible manufacturer markings.

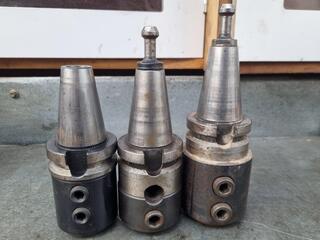

3x BT40 Tool Holders w/ Slide Lock End Mill Holders

Skylarc Ref R176569

3x BT40 Tool Holders w/ Slide Lock End Mill Holders.
ID markings illedgible on all units.
Inner end mill mounting bores are 32mm diameter on two units and 25mm on the third.

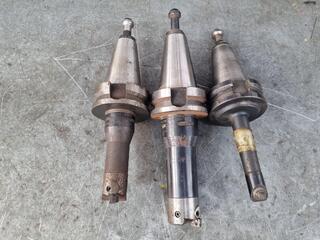

3x Assorted BT40 Tool Holders

Skylarc Ref E176556

3x Assorted BT40 Tool Holders.
Includes:
- Nachi SF holder Part No.BT40 -BCA19-120.
- Unknown brand Holder C4-390.55-40 030 with attachment No.C4-391.38A-1-033 106A.
- Unknown brand holder C3-390.55-40-030 with attachment No.C3-391.38A-1-024 086 A

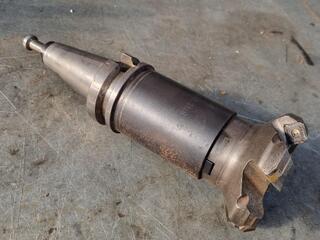

BT40 Tool Holder w/ Sandvik Coromant Indexable Face Miller Cutter

Skylarc Ref C176554

BT40 Tool Holder w/ Sandvik Coromant Indexable Face Miller Cutter.
Tool holdet part No.BT40 SEM27x105 E
Includes attached Sandvik Coromant 90mm diameter indexable Face Mill, unable to decipher specific part number markings.

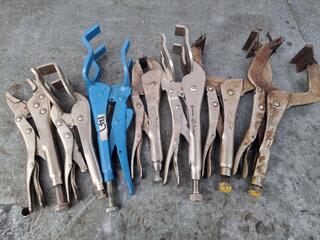

7x Assorted Locking Jaw Pilers

Skylarc Ref A176552

7x Assorted Locking Jaw Pilers.
Three units are Vice-Grip branded.
One is Growler Tools branded.
One is ScanGrip branded.
Two are unbranded, marked made in Taiwan.
Condition varies wirh each tool.

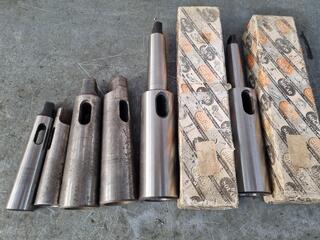

Assorted Morse Taper Drill Shank Sleeves & Extensions

Skylarc Ref X176549

Assorted Morse Taper Drill Shank Sleeves & Extensions.
Includes:
- Solar branded near new extension with No.3 outer shank and No.4 inner bore.
- Solar branded near new extension with No.4 outer shank and No.4 inner bore.
- 2x used No.4 to No.5 sleeves.
- 2x used No.3 to No.4 sleeves.

Condition varies with each item.

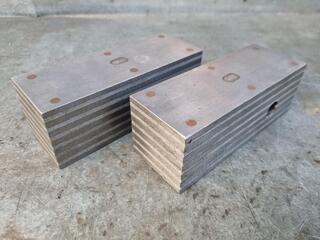

Pair of Magnetic Transfer Blocks, 150x54x52mm

Skylarc Ref N175941

Magnetic Transfer Blocks
Each is 150x54x52mm.
Note that one has a 15mm diameter hole drilled partway through it.

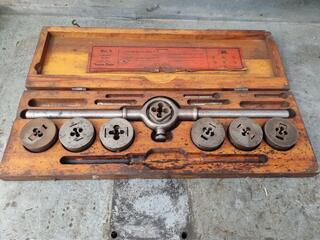

Vintage or Antique Thread Die Set by Little Giant

Skylarc Ref F175933

Vintage or Antique Thread Die Set by Little Giant.
Made in USA.
Set No.5.
Imperial sizes.
Wood case 630x200x58mm.
Some parts missing, see photos.

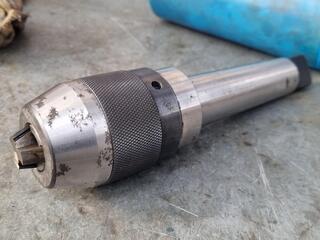

13mm Keyless Drill Chuck w/ No.4 Morse Taper Shank

Skylarc Ref R175919

13mm Keyless Drill Chuck w/ No.4 Morse Taper Shank.
Unknown brand/model.
Jaws move smoothly.

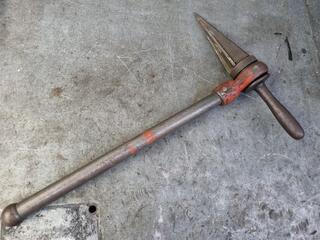

Ridgid Straight Pipe Reamer No.2

Skylarc Ref L175913

Ridgid Straight Pipe Reamer No.2.
525mm tool length.

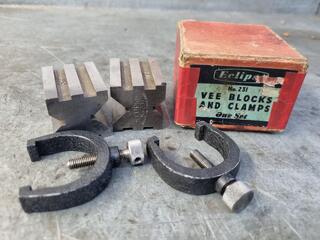

Vintage Eclipse No.231 Vee Blocks & Clamps

Skylarc Ref J175911

Vintage Eclipse No.231 Vee Blocks & Clamps.
Made in England.
Each block is 42x32x32mm.

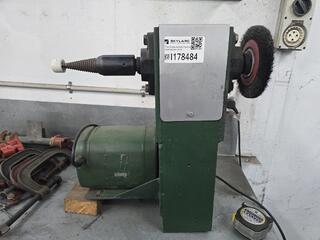

Single Phase Polisher

Skylarc Ref I178484

Polishing wheel mount one side
150mm wire brush other side
1/2 hp motor

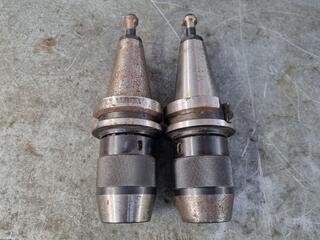

2x BT40 Tool Holders w/ 13mm Keyless Drill Chucks

Skylarc Ref Y176576

2x BT40 Tool Holders w/ 13mm Keyless Drill Chucks.
Vertex branded tool Holders.
Unknown brand drill chucks.
Chuck jaws move smoothly.
Some surface rust spotting.

3x BT40 Tool Holders w/ ER32 Collet Chucks

Skylarc Ref U176572

3x BT40 Tool Holders w/ ER32 Collet Chucks.
Two are Kojex BT40 ER32 60
The third is Trade Tools BT40 ER32 70

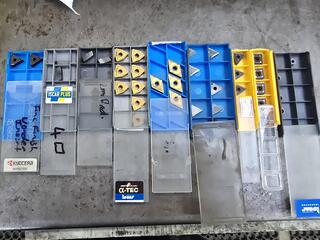

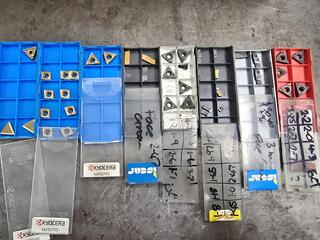

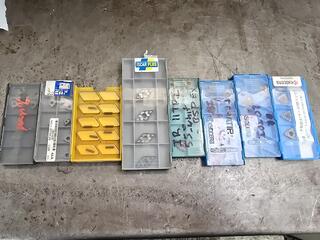

8 Boxes of Tool Tips

Skylarc Ref V178471

Assorted machine tool tips

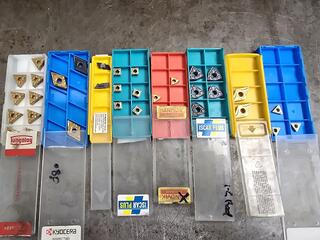

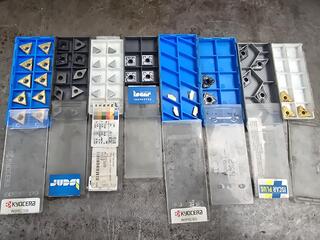

8 Boxes of Tool Tips

Skylarc Ref U178470

Assorted machine tool tips

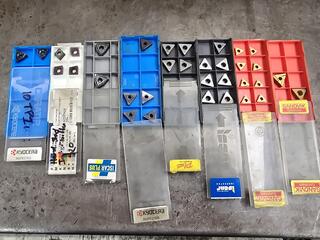

8 Boxes of Tool Tips

Skylarc Ref T178469

Assorted machine tool tips

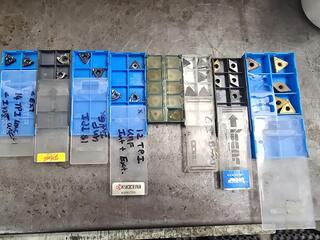

8 Boxes of Tool Tips

Skylarc Ref S178468

Assorted machine tool tips

8 Boxes of Tool Tips

Skylarc Ref R178467

Assorted machine tool tips

8 Boxes of Tool Tips

Skylarc Ref Q178466

Assorted machine tool tips

8 Boxes of Tool Tips

Skylarc Ref P178465

Assorted machine tool tips

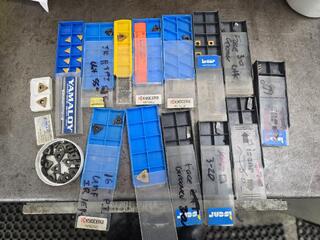

Boxes of Tool Tips

Skylarc Ref O178464

Assorted machine tool tips

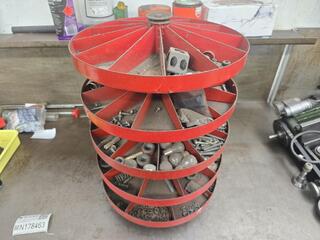

Rotary Parts Storage Unit

Skylarc Ref N178463

5 levels
Each level rotates
Contents of fixings
Steel construction

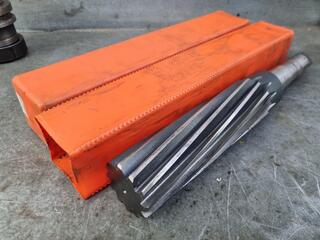

Somta 50mm Reamer w/ No.4 Shank

Skylarc Ref N176565

Somta 50mm diameter Reamer.
H7
4/05
HSS
330mm total length.
175mm blade length

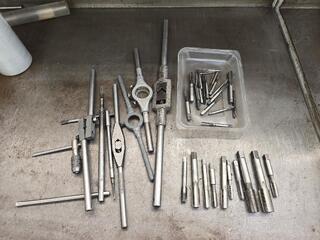

Taps and Tap Handles

Skylarc Ref L178461

8 assorted tap handles
10 x left hand taps
Assorted standard taps
Metric threads

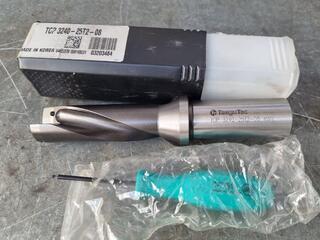

TaeguTec Indexable Drill, New

Skylarc Ref K176562

TaeguTec Indexable Drill.
Part No.TOP 3240-25T2-08.
As new unused.

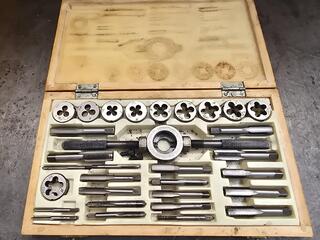

Tap and Die Set

Skylarc Ref K178460

TY-I M3-M12 thread gauge set
Includes multiple round threading dies
Visible dies marked M3 M4 M5 M6 M7 M8 M10 M12 and M12x1.25
Includes multiple hand taps in various metric sizes
Includes a central die stock holder
Includes two knurled tap wrenches
Supplied in a yellow wooden case

18x ER32 Collets w/ Case

Skylarc Ref I176560

18x ER32 Collets w/ Case.
40mm collet length.
Centre hole sizes from 2-3mm to 19-20mm
Collects excellent condition. Case exterior shows more moderate workshop wear.

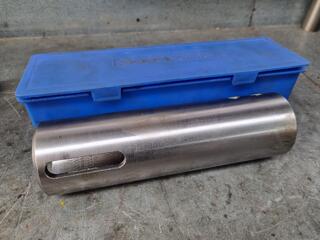

Lathe Turrent Socket, New

Skylarc Ref F176557

Lathe Turrent Socket.
Unknown brand/model.
220mm length.
62mm outer diameter.
48mm front tooling bore.
25mm lathe mounting bore.
As new unused.

BSW Taps

Skylarc Ref G178456

21 x BSW Taps
Largest 3/4"

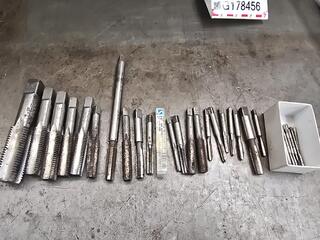

BSF Taps

Skylarc Ref F178455

36 x BSF Taps

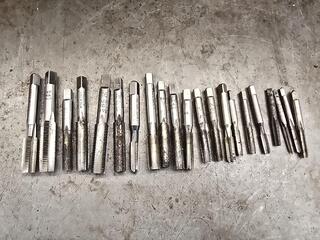

UNF Taps

Skylarc Ref E178454

21 x UNF taps

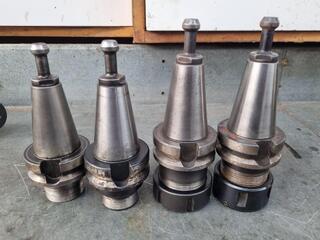

4x BT40 Tool Holders for ER32 & ER40 Collets

Skylarc Ref B176553

4x BT40 Tool Holders for ER32 & ER40 Collets.
- Kennametal ER32 Collet holder model BT40 ER32 070M. Missing nut.
- AW branded holder model BT40 ER32-70. Missing nut.
- Unknown brand holder, model BT40 ER40x80.
- Sandvik Coromant holder with illegible part number markings. Is ER40 collet holder with a ER32 Collet inside it and ER32 adapter ring inside nut.

Condition varies with each unit.

Large Lot of Die Nuts

Skylarc Ref A178450

Approx 60 total

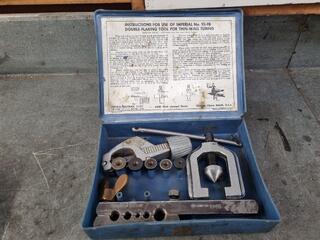

Vintage Imperial No.93-FB Double Flaring Tool Kit

Skylarc Ref Z176551

Vintage Imperial No.93-FB Double Flaring Tool Kit.
Made in USA by Imperial-Eastman Corp.
See photos for included components.

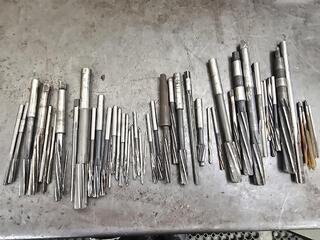

Large Lots of Reamers

Skylarc Ref W178446

Approx 65

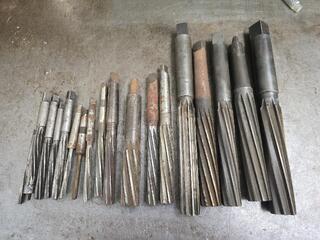

Lot of Reamers

Skylarc Ref U178444

18 x reamers

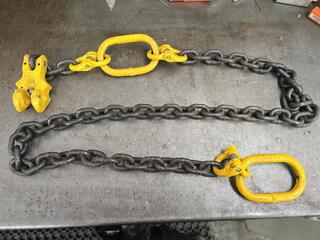

Small Lifting Chain

Skylarc Ref T178443

1700mm long

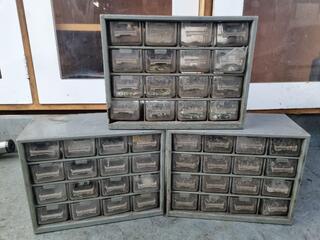

3x Small Parts Drawer Bins w/ Fastening Hardware Contents

Skylarc Ref Q176542

3x Small Parts Drawer Bins w/ Fastening Hardware Contents.
Each plastic bin unit is 240x120x185mm, each with 16x 110x50x35mm plastic drawers.
Two units have small screws, washers, nuts in most drawres, the third bin unit is empty.

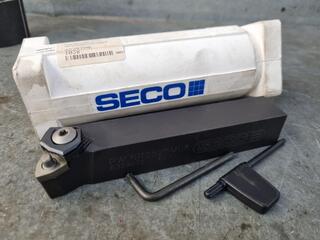

Seco Indexable Lathe Turning Tool, 25x25mm, New

Skylarc Ref X176575

Seco Indexable Lathe Turning Tool.
Part No.PWLNR 2525 M08.
As new unused with packaging and tools.
150mm length.

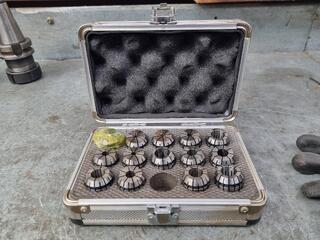

14x ER25 Collets w/ Case

Skylarc Ref H176559

14x ER25 Collets w/ Case.
35mm collet length.
Inner drill hole sizes ftom 1-2mm to 15-16mm.
Includes padded case.

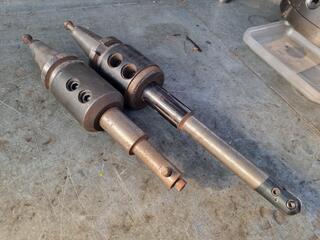

2x BT40 Tool Holders w/ End Mill Mount.

Skylarc Ref G176558

2x BT40 Tool Holders.
Both with 32mm diameter bit mounting bores.
One has missing locking bolts and inserted cutter is stuck in tool holder.

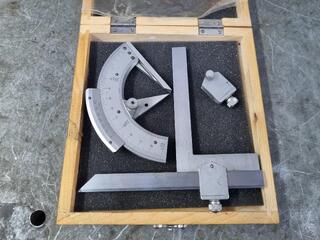

Universal Bevel Protractor Kit

Skylarc Ref S176544

Universal Bevel Protractor Kit.
Unknown brand/model.
Wood case.

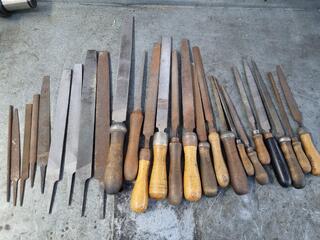

Assorted Metal Hand Files

Skylarc Ref R176543

Assorted Metal Hand Files.
Lengths from 200mm to 450mm.
Some with vintage wood handles.
Condition and file type varies with each unit.

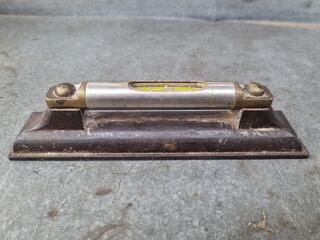

Vintage or Antique Machinists Brass Spirit Level

Skylarc Ref G175934

Vintage or Antique Machinists Brass Spirit Level.
Unknown manufacturer.
Brass and steel construction.
Measures approx 174x35x38mm.
Bubble vial is intact, see photos.

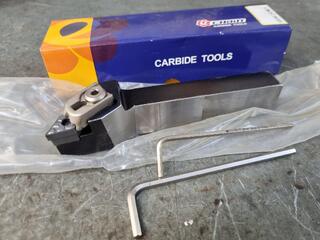

Modified Lathe Turning Tool by Chain Carbide Tools

Skylarc Ref M176564

Modified Lathe Turning Tool by Chain Carbide Tools.
Part No.EDJNR-2525 M15
150mm length.
The item is as new but has had its shank thinned, see photos.

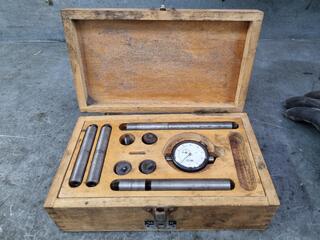

Mercer Bore Gauge Kit No.2218

Skylarc Ref T176545

Mercer Bore Gauge Kit No.2218.
Made in England.
Some accessories are missing, see photos.
Wood case hinge is loose.

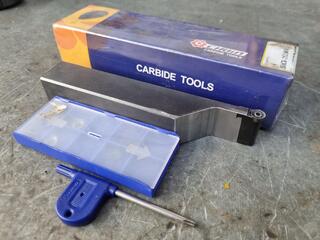

Modified Lathe Turning Tool by Chain Carbide Tools

Skylarc Ref L176563

Modified Lathe Turning Tool by Chain Carbide Tools.
Part No.SRACR-2525M08
Includes a few spare inserts.
Shows no.mounting bolt marks but has had its shank modified, see photos.

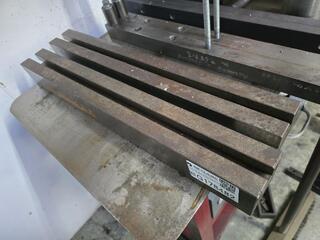

2 x T Slot Blocks

Skylarc Ref G178482

600mm long x 70mm x 70mm
30mm wide T slots

UNC Taps

Skylarc Ref D178453

15 x UNC taps

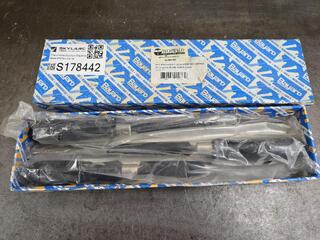

Techweld SCRM-S3 3pc Machinist Scraper Set 200mm

Skylarc Ref S178442

Brand Techweld New Zealand Limited
Model SCRM-S3
Bearing scraper set
3 piece machinist scraper set
Length 200mm stated on box
Scraper profiles triangular flat and half round stated on box
